Honeywell 2MLR-CPUH/F Maintenance Spare for Factory Uptime

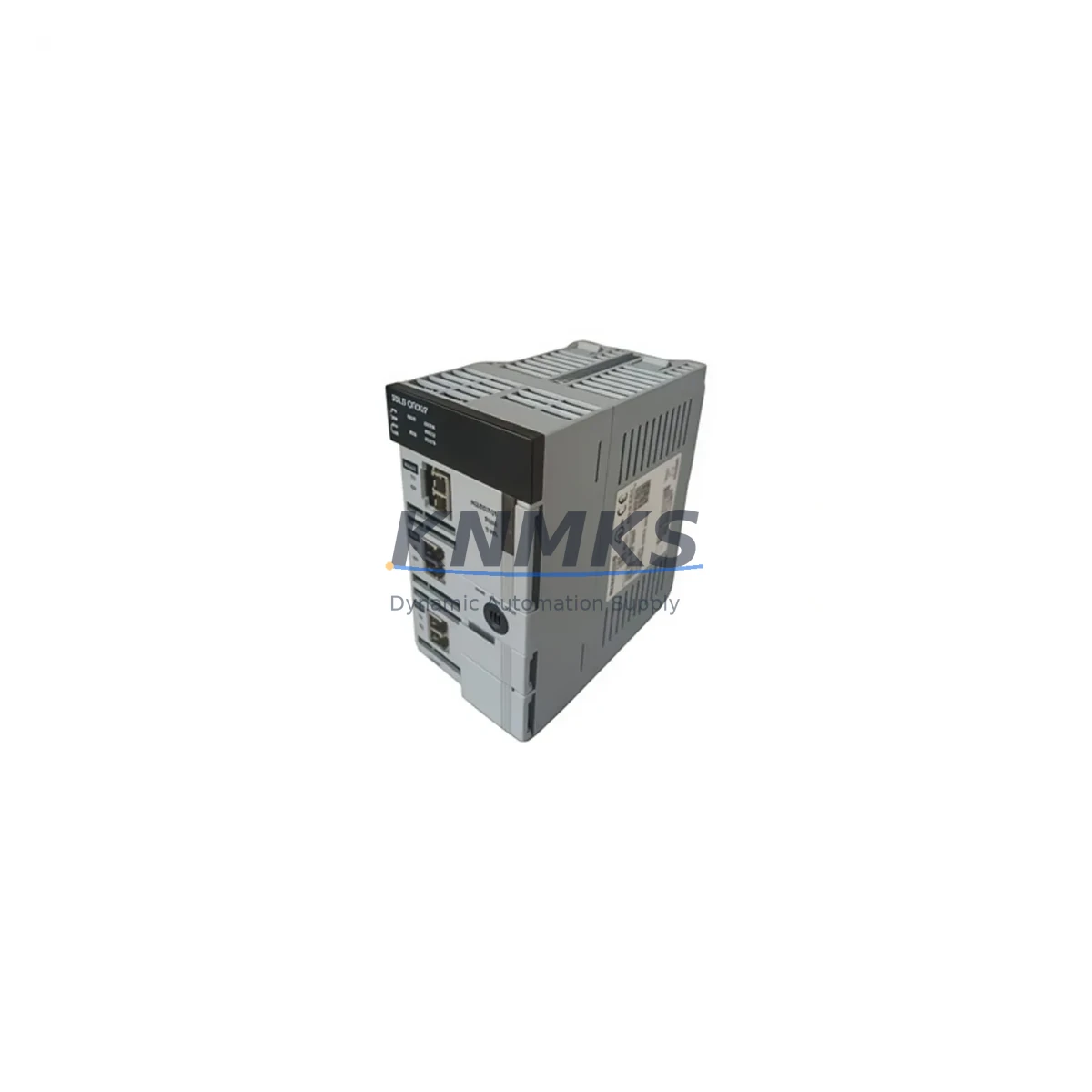

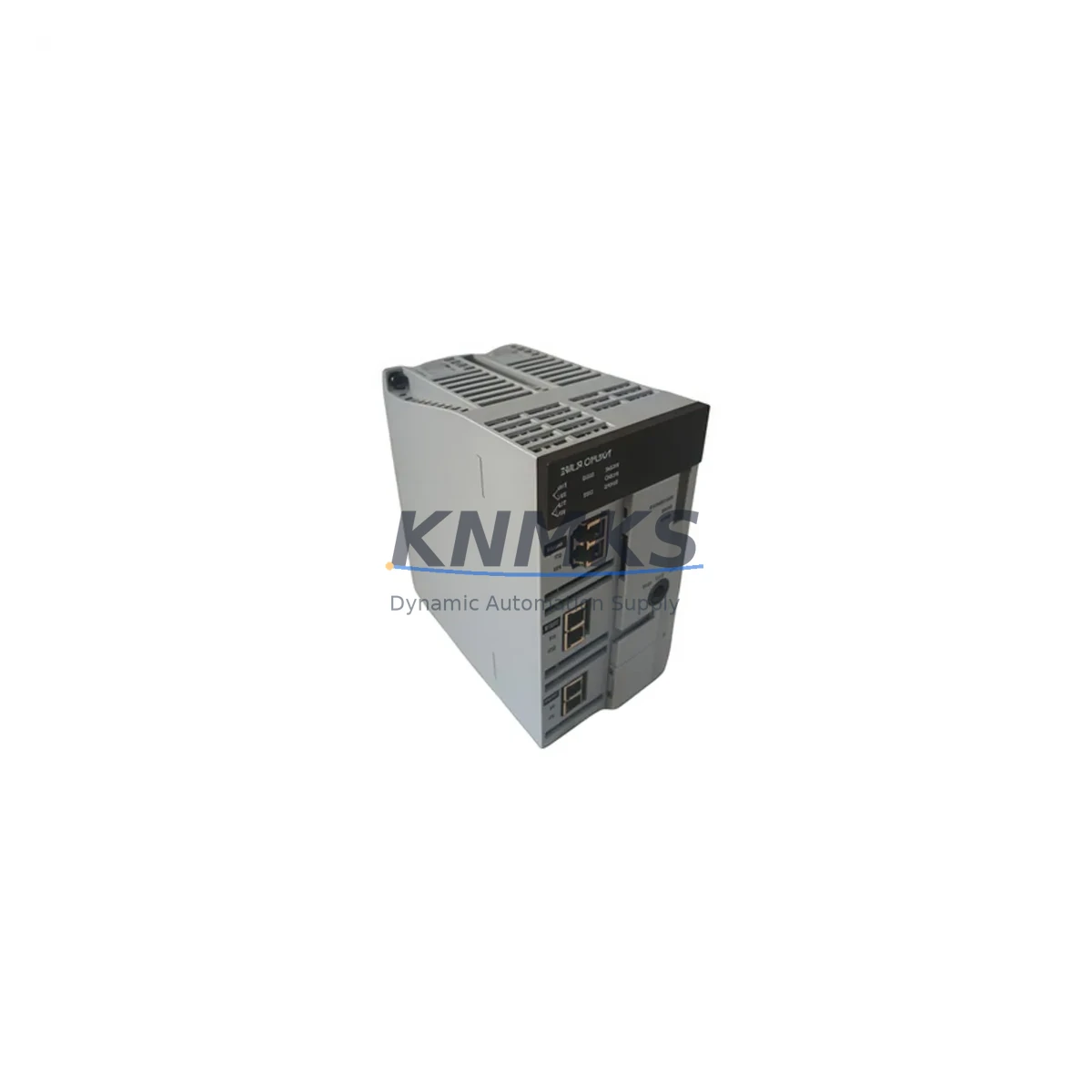

The Honeywell 2MLR-CPUH/F is a Redundant CPU Module designed for the HC900 Process & Safety Controller platform — one of Honeywell’s most widely deployed hybrid control systems in refining, chemical processing, power generation, and continuous manufacturing environments. As a hot-standby redundant CPU, the 2MLR-CPUH/F ensures seamless bumpless transfer between primary and secondary controllers, maintaining process continuity even during a CPU fault event. For maintenance engineers managing aging DCS/PLC infrastructure, keeping a verified original spare of this module on the shelf is not optional — it is a fundamental pillar of any credible uptime strategy.

At KNMKS, every 2MLR-CPUH/F unit is sourced from authorized channels, inspected prior to dispatch, and shipped with a support terms confirmed by quotation. We support long-term supply agreements for facilities requiring multi-unit buffer stock across annual maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 2MLR-CPUH/F failure is detected — whether through a redundancy fault alarm, watchdog timeout, or scheduled inspection — the replacement workflow must extend beyond the CPU module itself. A thorough site assessment should include verification of the HC900 rack power supply module, since an unstable or degraded power rail is a leading cause of premature CPU failure. Maintenance teams should simultaneously inspect the HC900 I/O modules installed in the same rack, particularly analog input cards and digital output modules, as backplane communication errors can cascade from a failing CPU and mask underlying I/O faults.

The HC900 redundancy communication cable — the dedicated fiber or copper link between the primary and secondary CPU chassis — must be tested for continuity and signal integrity. A degraded redundancy link can prevent proper hot-standby synchronization, rendering the redundancy architecture ineffective even after a CPU swap. Additionally, the HC900 Ethernet communication module (if installed for supervisory SCADA integration) should be inspected for firmware version compatibility with the replacement CPU.

For facilities running Honeywell’s HC Designer or Experion PKS integration, the replacement CPU must be loaded with the correct application program version. Procurement engineers should ensure that the spare 2MLR-CPUH/F is sourced alongside a compatible HC900 rack termination assembly and any associated HC900 serial communication modules if the plant uses Modbus RTU or HART pass-through configurations. Fuse protection on the 24 VDC input rail feeding the CPU rack should also be verified — a blown or degraded fuse can cause intermittent CPU resets that are difficult to diagnose without a systematic inspection protocol.

For annual turnaround planning, KNMKS recommends maintaining at minimum one 2MLR-CPUH/F unit per HC900 redundant controller pair, supplemented by buffer stock of HC900 power supply modules and a set of commonly used I/O modules matched to your installed base. This approach reduces mean time to repair (MTTR) and eliminates the risk of extended lead times during emergency procurement.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the standby CPU is in hot-standby state and that the redundancy link is active. Download and archive the current application program from the primary CPU using HC Designer before initiating any hardware change.

Step 2 — Safe Switchover: Initiate a controlled switchover to the standby CPU via the HC900 operator interface or HC Designer. Verify that the standby CPU has assumed primary control and that all I/O modules are communicating normally.

Step 3 — Module Removal: Power down the now-secondary (faulted) CPU slot only. Remove the 2MLR-CPUH/F module from the rack. Inspect the backplane connector for contamination, bent pins, or corrosion before installing the replacement unit.

Step 4 — Replacement Installation: Insert the new 2MLR-CPUH/F into the secondary CPU slot. Power on the slot and allow the module to synchronize with the primary CPU. The HC900 platform supports automatic program download to the new secondary CPU — verify synchronization status via the front-panel LEDs and HC Designer diagnostics.

Step 5 — Post-Replacement Validation: Confirm redundancy status is restored (both CPUs in synchronized hot-standby). Perform a test switchover if plant conditions permit. Document the replacement in the site maintenance log and update the spare parts inventory accordingly.

This workflow minimizes process disruption, maintains system compatibility, and ensures the HC900 redundancy architecture is fully restored before the maintenance team leaves the site.

Spare Parts Support FAQ

Q1: Is the 2MLR-CPUH/F compatible with all HC900 rack configurations?
The 2MLR-CPUH/F is designed for HC900 redundant controller configurations and is compatible with HC900 4-slot, 8-slot, and 12-slot racks. Compatibility with specific firmware versions of HC Designer should be confirmed prior to installation. KNMKS can assist with compatibility verification based on your installed HC900 firmware revision.

Q2: How is the unit tested before shipment?
Every 2MLR-CPUH/F dispatched by KNMKS undergoes functional inspection and power-on verification prior to packaging. Units are shipped with anti-static protection and documented inspection records. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions.

Q3: Can KNMKS support long-term or blanket purchase orders for this module?
Yes. KNMKS supports long-term supply agreements, annual blanket orders, and consignment stock arrangements for facilities with recurring HC900 maintenance requirements. Contact our team at admin@knmks.com to discuss volume pricing and guaranteed lead-time commitments.

Q4: What is the recommended spare parts strategy for HC900 redundant systems?
For HC900 redundant controller installations, we recommend maintaining at least one 2MLR-CPUH/F per redundant pair, one HC900 power supply module per rack, and a set of your most critical I/O module types. This buffer stock strategy, combined with a documented annual inspection schedule, is the most effective approach to minimizing unplanned downtime and controlling emergency procurement costs.
