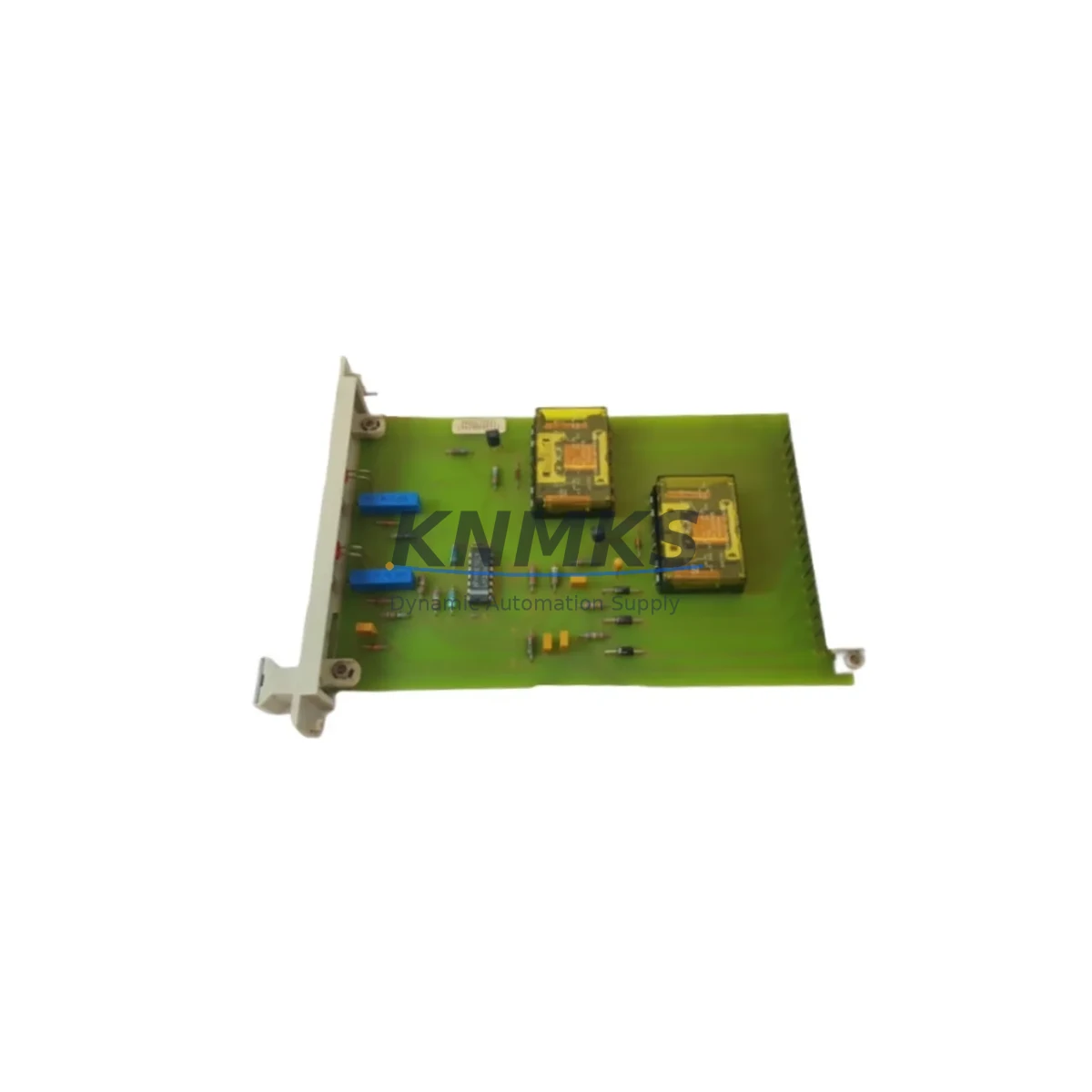

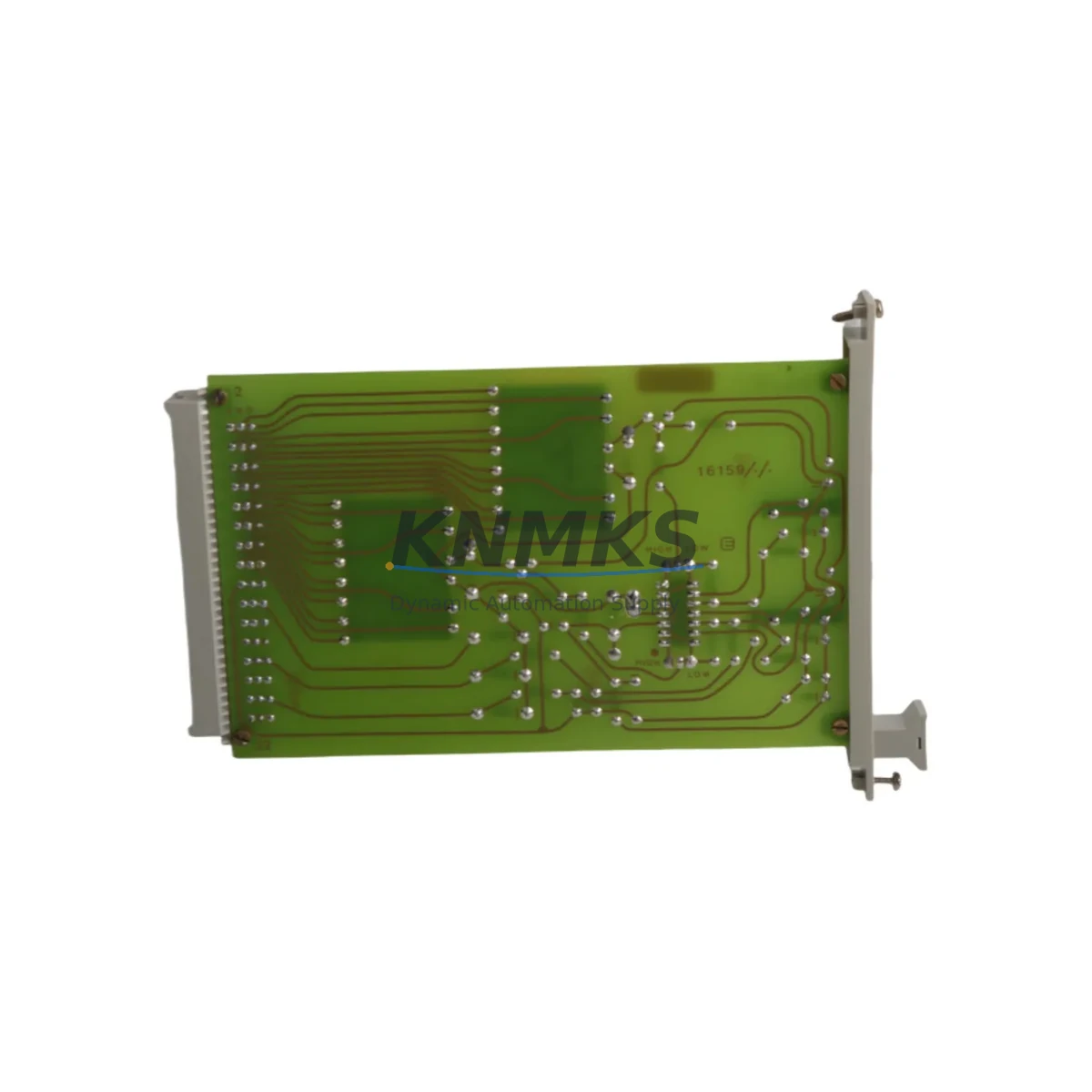

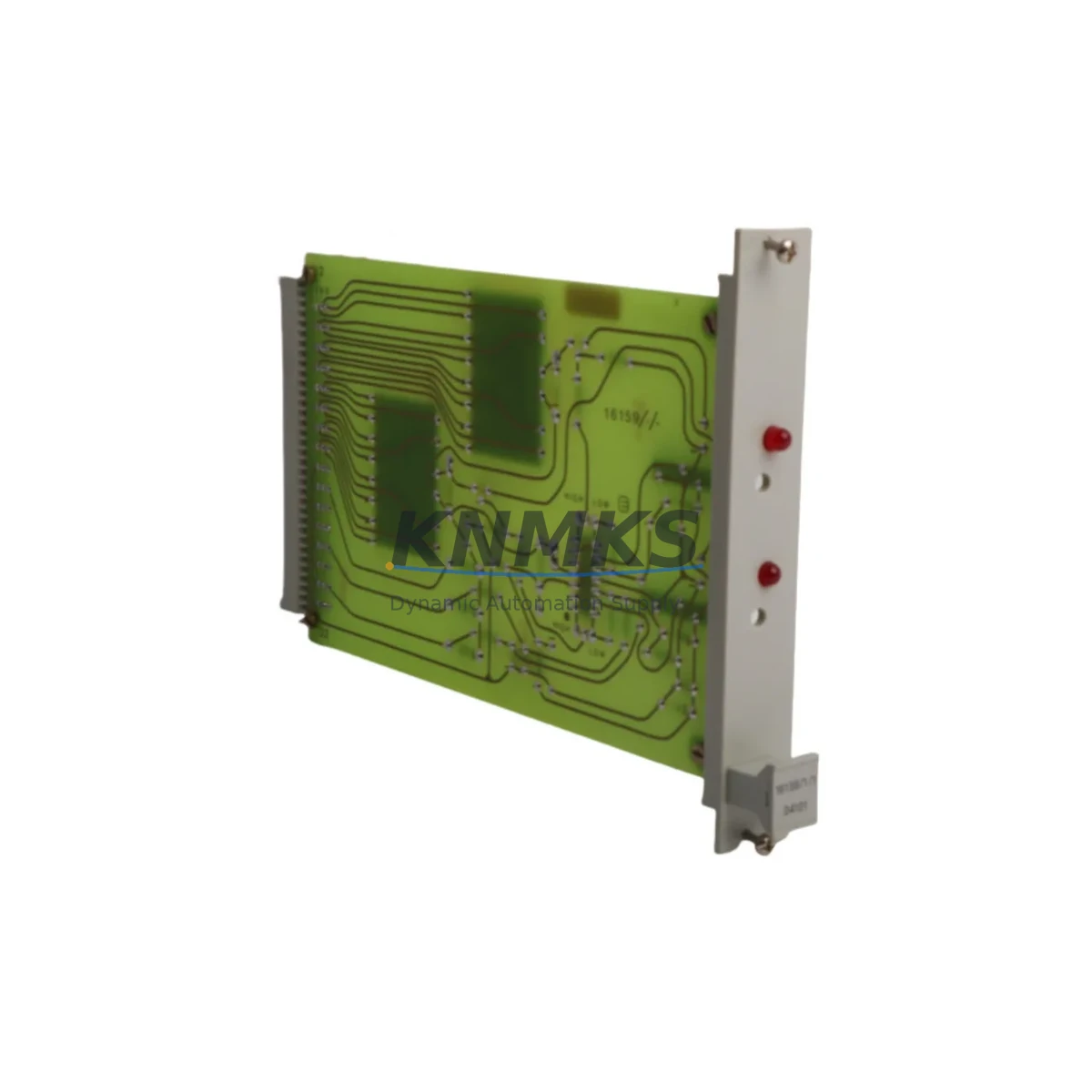

Honeywell 16159/1/1 Migration-Ready DCS Input Module

Overview

Honeywell 16159/1/1 Migration-Ready DCS Input Module: Legacy System Retrofit and Compatibility Upgrade

The Honeywell 16159/1/1 is a DCS Input Module designed for the Honeywell 16000 Series distributed control platform. As legacy automation infrastructure reaches end-of-life, the 16159/1/1 remains a critical spare part and retrofit component for facilities managing aging control cabinets, field I/O networks, and process automation systems that cannot be immediately replaced with modern DCS architectures. This module supports direct drop-in replacement workflows, enabling maintenance teams to restore system availability with minimal disruption to ongoing production.

When sourcing the 16159/1/1 as a replacement for a discontinued or failed module, engineers must verify several key parameters before installation. Power supply capacity within the existing rack must be confirmed — the 16000 Series backplane distributes regulated DC voltage across all installed modules, and adding or swapping a module without checking the total load budget can cause instability across the entire node. Terminal wiring assignments should be cross-referenced against the original I/O drawing set, as field wiring connected to the legacy module must be re-terminated to match the replacement unit’s channel mapping. Backplane slot addressing and module jumper settings must also be validated to ensure the replacement module is recognized correctly by the system controller.

Program compatibility is another critical checkpoint. The control logic referencing the original module’s I/O tags must be reviewed to confirm that channel numbering, signal scaling, and alarm setpoints remain consistent after the swap. In systems where the Honeywell TDC 3000 or Experion PKS platform manages the 16000 Series nodes, the module configuration database may need to be updated to reflect the replacement hardware. HMI display pages that reference specific I/O points from the original module should be audited to prevent display errors or false alarm conditions during commissioning of the replacement unit.

Communication link integrity is equally important. The 16000 Series relies on a proprietary data highway or local control network to pass I/O data upstream to the supervisory controller. After installing the 16159/1/1, the communication link status should be verified at both the module level and the network node level to confirm that data is being transmitted without errors. If the replacement module is being installed as part of a broader migration toward a modern Experion C300 controller or an Experion LX platform, the I/O signal paths may need to be remapped through a Series C I/O Link Interface Module or a compatible CHARM I/O carrier to bridge the legacy field wiring to the new control architecture.

Installation space confirmation is required before ordering. The 16159/1/1 occupies a standard 16000 Series module slot and must be installed in a compatible 16000 Series card file or rack assembly. If the existing rack has been partially populated with newer Honeywell FSC Safety Manager modules or mixed with third-party I/O from other vendors, slot availability and mechanical clearance must be confirmed. Firmware version compatibility between the replacement module and the installed system software should also be checked — particularly in systems running older versions of the Universal Control Network software or legacy HPM (High-Performance Process Manager) firmware.

Pre-shipment testing is performed on every 16159/1/1 unit before dispatch. Each module is powered up, channel-by-channel I/O verification is completed, and communication interface functionality is confirmed. Units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Inventory is maintained to support both immediate replacement needs and long-term spare parts agreements for facilities managing multi-year maintenance contracts.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 16159/1/1 into an existing 16000 Series installation requires a structured approach to component verification. The card file or rack assembly hosting the module must be inspected for backplane connector condition and slot integrity before the replacement unit is seated. In systems where the rack also houses a 16000 Series Power Supply Module, the supply’s output capacity must be recalculated to account for the replacement module’s current draw alongside all other installed cards.

Field I/O wiring connected to the original module is typically routed through marshalling cabinets using terminal blocks and signal cables. During the replacement process, each field wire should be labeled and documented before removal to prevent miswiring during re-termination. In installations where signal isolation is required between field devices and the control system, a signal isolator or barrier module may need to be inserted in the signal path to protect the new module from voltage transients or ground loops present in the field wiring.

For facilities planning a phased migration from the 16000 Series to a modern Experion PKS or Experion LX architecture, the 16159/1/1 can serve as a bridge component — maintaining operational continuity in legacy nodes while newer control hardware is commissioned in parallel. In this scenario, the migration plan should account for the eventual transition of I/O points from the legacy 16000 Series rack to a new CHARM I/O carrier or Series C I/O module, with the associated re-engineering of control logic, HMI faceplates, and alarm management configurations. A programming cable compatible with the legacy HPM or UCN interface will be required for any on-site configuration changes during the migration window.

Downtime Control During System Migration

Minimizing unplanned downtime during a 16159/1/1 replacement requires advance preparation and a clearly defined cutover procedure. Before the maintenance window begins, a full backup of the control database — including module configuration, I/O tag assignments, and alarm setpoints — should be exported and stored offline. This ensures that if the replacement module requires reconfiguration, the original parameter set can be restored quickly without relying on field documentation alone.

During the physical swap, the affected I/O channels should be placed in manual mode or held at their last known good values within the DCS to prevent process upsets caused by signal loss during the module changeover. Once the replacement 16159/1/1 is seated and powered, a systematic channel-by-channel verification should be performed to confirm that each input signal is being read correctly before returning the channels to automatic control. Communication link status at the node level should be confirmed before the module is declared operational.

For systems where continuous process control is required and a hot-swap procedure is not supported by the 16000 Series architecture, a pre-staged spare module — pre-configured and tested offline — can significantly reduce the duration of the maintenance window. KNMKS maintains ready-to-ship inventory of the 16159/1/1 to support urgent replacement requirements, with pre-shipment testing completed on every unit to reduce on-site commissioning time and protect against repeat failures.

Retrofit Support FAQ

Q: Is the 16159/1/1 a direct replacement for the original Honeywell module of the same part number?
A: Yes. The 16159/1/1 is supplied as a direct form-fit-function replacement for the original Honeywell 16159/1/1 DCS Input Module. It is compatible with the 16000 Series card file and backplane interface. Customers should verify firmware version compatibility with their installed system software before installation.

Q: What wiring and terminal adaptation is required during replacement?
A: Field wiring connected to the original module must be re-terminated to the replacement unit following the original I/O drawing. Channel mapping should be verified against the as-built wiring documentation. If signal isolation barriers are present in the field wiring circuit, their compatibility with the replacement module’s input impedance should be confirmed.

Q: How is pre-shipment testing performed on the 16159/1/1?
A: Every unit undergoes a full power-on test, channel-by-channel I/O signal verification, and communication interface check before dispatch. Test results are available upon request. Units are shipped in protective packaging to prevent damage during transit.

Q: What support terms and inventory support is available?
A: All 16159/1/1 units are covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. KNMKS maintains stock inventory to support both immediate replacement orders and long-term spare parts supply agreements. Contact admin@knmks.com or +86 18359268345 for availability and lead time confirmation.
