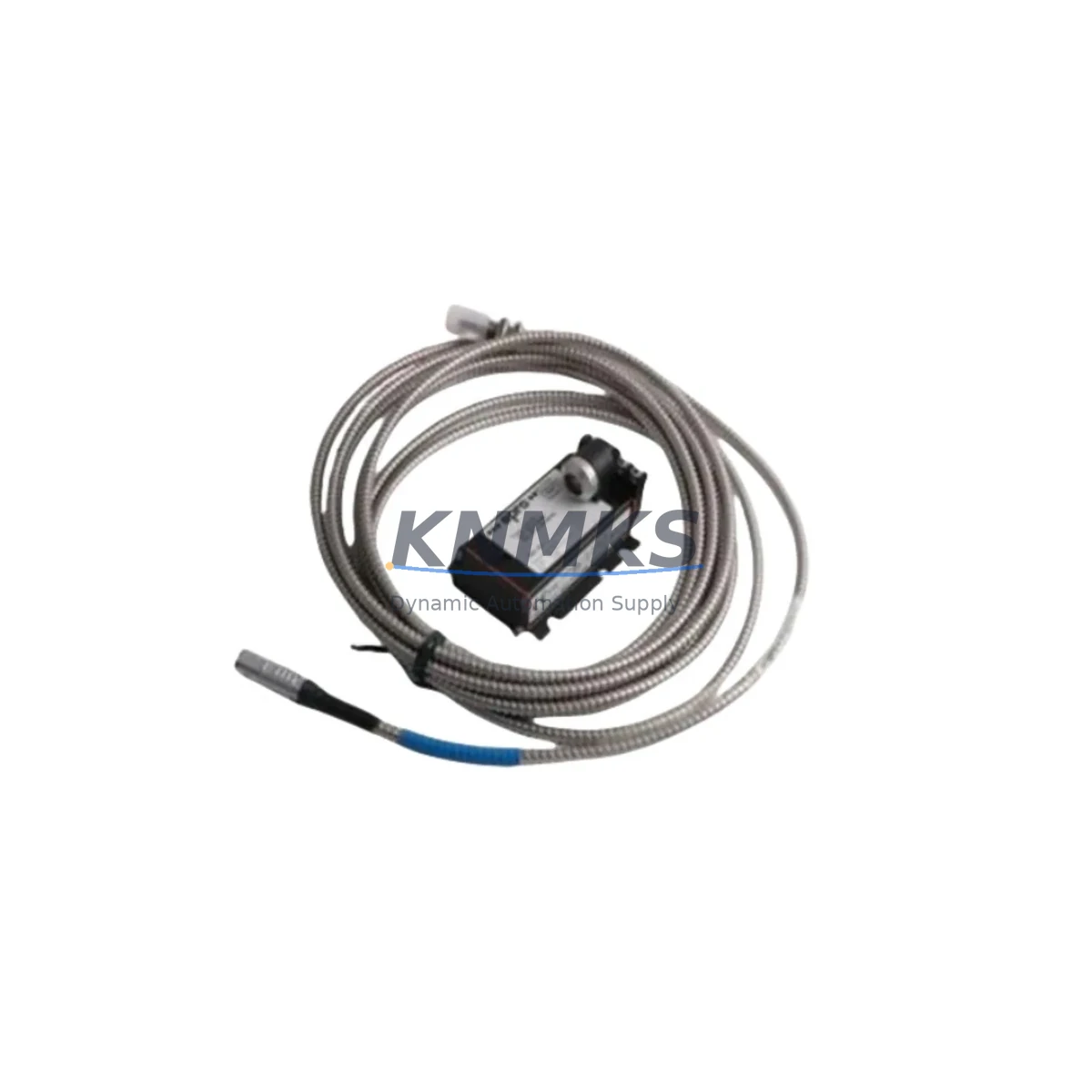

Emerson EPRO PR6424/000-040-CN-CON021 Fail-Safe Proximity Sensor

Overview

Emerson EPRO PR6424/000-040-CN-CON021 Fail-Safe Proximity Sensor: Fault Protection and Critical Industrial Field Reliability

The Emerson EPRO PR6424/000-040-CN-CON021 is a precision eddy current proximity sensor engineered for fail-safe operation in the most demanding industrial automation environments. Designed as part of the EPRO PR6424 series, this sensor delivers continuous, non-contact shaft displacement and vibration monitoring with exceptional immunity to electromagnetic interference, mechanical shock, and harsh ambient conditions. Whether deployed in rotating machinery protection systems, turbine supervisory instrumentation, or critical safety interlock loops, the PR6424/000-040-CN-CON021 provides the signal integrity and long-term stability that plant engineers depend on to prevent unplanned shutdowns and protect personnel.

In continuous production facilities — petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical mills, port crane systems, and marine propulsion platforms — control interruptions caused by sensor drift, signal loss, or false trips carry severe operational and safety consequences. The PR6424/000-040-CN-CON021 addresses these risks through its robust eddy current measurement principle, which is inherently immune to oil contamination, moisture ingress, and non-conductive deposits that would compromise optical or capacitive alternatives. Its shielded coaxial cable assembly and precision-matched extension cable ensure that signal transmission from the probe tip to the signal conditioner — typically the Emerson EPRO CON021 series — remains stable across long cable runs in high-EMI control cabinet environments.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable machinery protection begins at the sensor level, but system-level fail-safety requires a coordinated architecture across the entire signal chain and control cabinet. The PR6424/000-040-CN-CON021 probe is designed to operate as part of a matched measurement chain with the Emerson EPRO CON021 signal conditioner, which converts the probe’s impedance change into a calibrated DC voltage suitable for input to vibration monitoring systems such as the Emerson EPRO MMS6000 or Bently Nevada 3500 series rack-mounted monitors. Within the control cabinet, surge protection devices — such as the Phoenix Contact TRABTECH series or equivalent DIN-rail surge arresters — should be installed on all field signal cables entering the enclosure to guard against lightning-induced transients and switching surges that can corrupt displacement readings or damage conditioner input stages.

Power supply stability is equally critical. The CON021 conditioner and associated monitoring cards require a clean, regulated 24 VDC supply; deploying a redundant Siemens SITOP PSU8200 or equivalent industrial power supply with active current limiting and diagnostic output ensures that a single PSU fault does not cascade into a monitoring blackout. For communication integrity in DCS or safety PLC architectures — such as those built on Emerson DeltaV SIS or Rockwell Allen-Bradley GuardLogix platforms — the vibration monitor’s relay or analog output should be routed through galvanically isolated signal conditioners to prevent ground loop interference from corrupting the safety function. Cabinet thermal management, achieved through filtered forced-air cooling or heat exchanger units, prevents conditioner drift at elevated ambient temperatures common in compressor halls and turbine buildings, ensuring the PR6424 measurement chain maintains its calibrated accuracy throughout the operating cycle.

Critical Industrial Safety Applications

The PR6424/000-040-CN-CON021 is deployed across a broad spectrum of safety-critical industrial applications where rotating machinery protection is non-negotiable. In petrochemical and refinery environments, it monitors radial shaft vibration on centrifugal compressors, boiler feed pumps, and cooling water pumps, providing the early-warning displacement data that allows operators to initiate controlled shutdowns before bearing failure or seal damage occurs. In power generation — both thermal and combined-cycle plants — the sensor forms part of the turbine supervisory instrumentation (TSI) system, continuously tracking shaft eccentricity and differential expansion to protect multi-million-dollar turbine rotors from rub events during startup and load transients.

In mining and mineral processing operations, where crusher drives, ball mill pinion bearings, and slurry pump shafts operate under extreme radial loads in dust-laden, high-humidity atmospheres, the PR6424’s IP67-rated probe body and oil-resistant cable jacket maintain measurement integrity without the signal degradation that affects less robust sensor technologies. Water and wastewater treatment facilities rely on the sensor for continuous monitoring of large vertical turbine pumps and blower shafts, where vibration exceedances can indicate impeller cavitation or bearing wear before catastrophic failure. In metallurgical and steel mill applications — rolling mill main drives, continuous caster pinch rolls, and ladle crane hoists — the sensor’s tolerance for high ambient temperatures and electromagnetic noise from large motor drives makes it the preferred choice for machinery protection engineers. Port and marine applications, including shipboard propulsion shaft monitoring and harbor crane slewing ring supervision, further demonstrate the sensor’s versatility across rotating machinery protection disciplines.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the PR6424/000-040-CN-CON021?
All units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. Replacement or repair is arranged promptly to minimize any impact on your maintenance schedule.

Q2: What pre-shipment testing is performed before dispatch?
Every PR6424/000-040-CN-CON021 unit undergoes full functional verification prior to shipment, including coil impedance measurement, cable continuity and insulation resistance testing, and calibration gap verification against the matched CON021 conditioner. A test report is available upon request.

Q3: Is this sensor compatible with existing Bently Nevada and Emerson EPRO monitoring systems?
Yes. The PR6424/000-040-CN-CON021 is a matched-system component designed for use with the Emerson EPRO CON021 conditioner and is electrically compatible with Bently Nevada 3300 and 3500 series monitors when used with the appropriate extension cable and driver. Always verify the full measurement chain calibration after installation.

Q4: Can long-term supply and replacement support be arranged for critical plant spares programs?
Yes. We maintain forward stock of the PR6424 series and can support scheduled spare parts programs, blanket purchase orders, and emergency dispatch requirements. Contact our team to discuss buffer stock arrangements, lead-time commitments, and multi-unit pricing for your plant’s critical spares inventory.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Emerson
Assorted Brands

Model / Series

PR6424/000-040-CN-CON021
Assorted Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Emerson PR6424/000-040-CN-CON021
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
