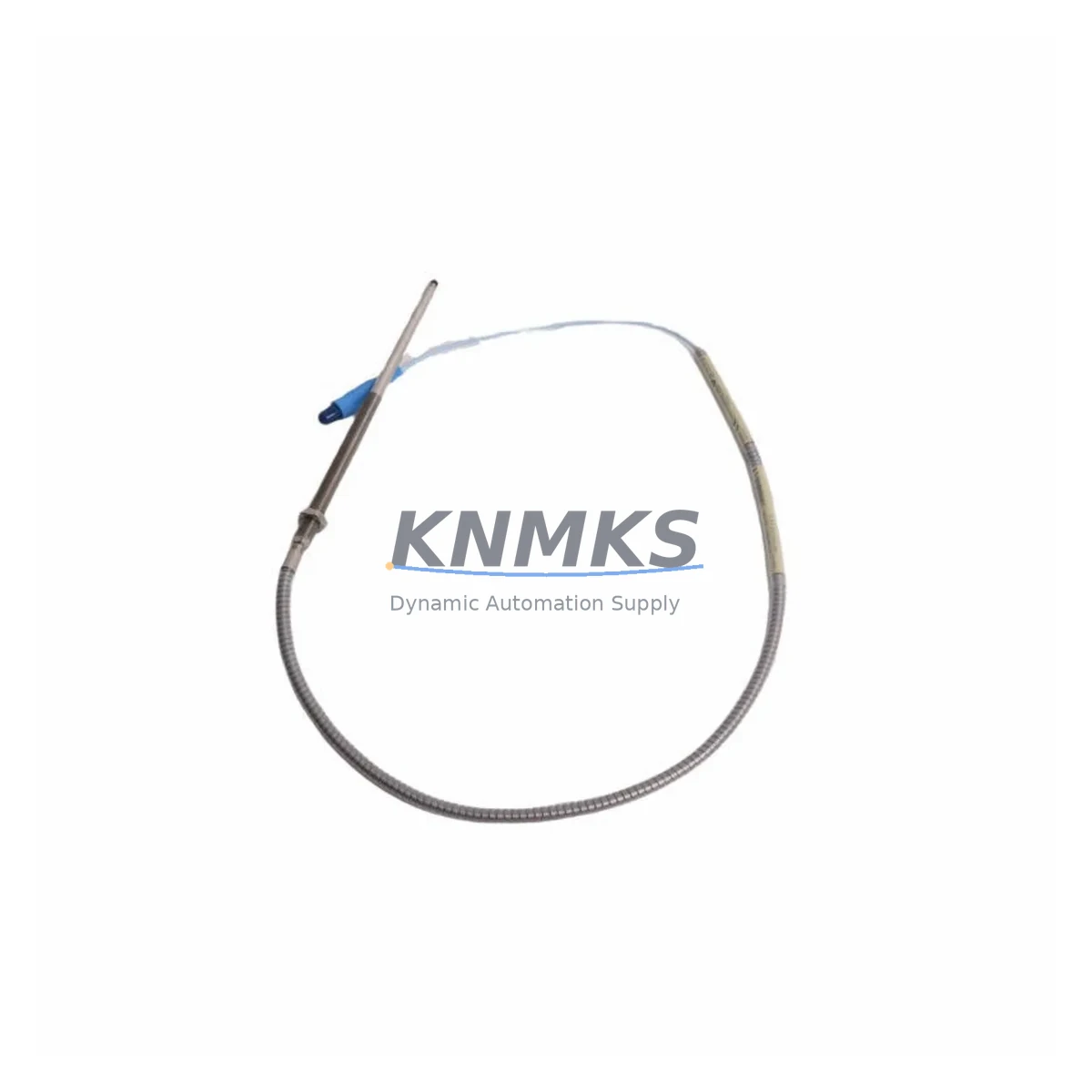

Bently Nevada 330903-00-12-05-02-CN Proximity Transducer

Overview

Bently Nevada 330903-00-12-05-02-CN Proximity Transducer: Migration-Ready Replacement for Legacy Control Systems

The Bently Nevada 330903-00-12-05-02-CN is an eddy-current proximity transducer engineered for the 3300 XL Series vibration monitoring platform. As aging distributed control systems and machinery protection systems approach end-of-life, this transducer serves as a verified drop-in replacement for facilities managing legacy turbomachinery, compressor trains, and rotating equipment. Whether you are executing a full control system migration or sourcing a critical spare to extend the operational life of an existing installation, the 330903-00-12-05-02-CN delivers the dimensional accuracy, output linearity, and signal integrity required for uninterrupted plant operation.

Facilities operating original Bently Nevada 3300 XL proximity systems frequently encounter obsolescence challenges: discontinued transducer cables, unavailable extension cables, and monitor cards that can no longer be sourced through standard distribution channels. The 330903-00-12-05-02-CN addresses this directly. With a 5 mm tip diameter, 12-inch armored cable, and standard TNC connector, it integrates with existing 330130 extension cables and 3300 XL monitor modules without requiring field rewiring or signal conditioning changes. Engineers planning a phased migration can deploy this transducer as an interim measure while the broader control architecture — including 3500 Series rack-based monitors — is commissioned and validated.

For plants transitioning from the 3300 XL platform to the Bently Nevada 3500 Series, the 330903-00-12-05-02-CN supports a structured migration path. The transducer’s output characteristics — a nominal scale factor of 200 mV/mil — are compatible with both legacy 3300 XL proximitor drivers and modern 3500/42M proximity monitor modules, reducing the risk of signal mismatch during cutover. Retrofit engineers should confirm the proximitor driver model (typically a 330180 or 330185 series) installed in the field, as driver gain settings directly affect the usable measurement gap range and alarm setpoints stored in the monitor configuration.

During retrofit planning, terminal wiring verification is a mandatory step. The 330903-00-12-05-02-CN uses a standard three-conductor shielded cable arrangement (drive, return, and shield), consistent with the broader 330900 transducer family. When replacing an older 330903 variant without the -CN suffix, technicians must verify that the connector type and cable jacket material are compatible with the existing conduit routing and hazardous area classification. In installations where the original cable tray is shared with power conductors, additional shielding or rerouting may be required to maintain signal integrity on the 200 mV/mil output.

Backplane and rack compatibility is equally critical in multi-channel installations. Plants running 3300 XL 16-channel racks should audit available slot positions before ordering replacement transducers, as channel-to-transducer mapping is stored in the monitor’s non-volatile memory. Reconfiguring channel assignments without a current backup of the monitor database risks losing alarm setpoints, gap voltage references, and OK relay logic. KNMKS recommends that customers request a full configuration export from the existing monitor before any transducer swap is initiated.

Communication protocol migration is another consideration for facilities integrating vibration data into a modern DCS or SCADA environment. Legacy 3300 XL systems typically output analog 4–20 mA signals or dry contact relays, while modern 3500 Series monitors support Modbus RTU, Modbus TCP, and Ethernet/IP. If the migration plan includes upgrading the communication layer, the transducer replacement can be executed independently of the monitor upgrade, allowing operations teams to maintain continuous vibration protection during the transition. The 330903-00-12-05-02-CN is fully compatible with this staged approach.

Firmware compatibility should be confirmed when the replacement transducer is installed alongside an upgraded proximitor driver. Some 330180 series proximitor firmware versions introduced changes to the OK voltage window, which can trigger nuisance OK relay trips if the transducer gap is not re-established within the updated acceptance band. KNMKS pre-tests all 330903-00-12-05-02-CN units against documented gap voltage specifications prior to shipment, providing customers with a test report that confirms output linearity across the full measurement range.

Installation space confirmation is straightforward for this model. The 330903-00-12-05-02-CN uses a standard M8 threaded body with a 5 mm sensing tip, compatible with existing probe holders and lock nuts used across the 330900 series. No machining or adapter hardware is required for direct replacement in most turbomachinery probe ports. For installations where the original probe holder has corroded or seized, KNMKS can advise on compatible replacement holders from the Bently Nevada accessory catalog.

All units supplied by KNMKS are covered by a support terms confirmed by quotation against manufacturing defects and are shipped with full documentation including calibration data, gap voltage reference tables, and installation guidelines. Stock is maintained for immediate dispatch, with typical lead times of 3–7 business days for international shipments. For urgent plant shutdowns or unplanned outages, expedited shipping options are available upon request.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a complete audit of the existing installation. For plants running Bently Nevada 3300 XL machinery protection systems, the audit should cover every transducer in the rack, including radial vibration probes, axial thrust probes, and keyphasor transducers. The 330903-00-12-05-02-CN addresses radial vibration measurement, but a complete migration plan will also need to account for 330980 keyphasor transducers and 330905 axial thrust probes where these are installed on the same machine train.

Power supply capacity is a foundational check. The 3300 XL rack draws power from a dedicated 3300/20 power supply module, and adding replacement transducers with slightly different cable capacitance characteristics can affect the total load on the proximitor driver bus. Engineers should verify that the existing power supply module is operating within its rated output current before completing the transducer replacement across a full rack.

For facilities that have already begun migrating to the Bently Nevada 3500 Series, the 330903-00-12-05-02-CN can be used in a hybrid configuration where the transducer feeds a 3500/42M monitor module via a 330130 extension cable. This approach allows the mechanical sensing layer to remain unchanged while the signal processing and communication layer is upgraded. The 3500/42M supports both Modbus RTU and Ethernet/IP, enabling direct integration with modern DCS platforms such as Honeywell Experion, Emerson DeltaV, or Yokogawa CENTUM without additional signal converters.

In control cabinet upgrades where space is constrained, the compact form factor of the 330903-00-12-05-02-CN is an advantage. The M8 threaded body fits existing probe ports without modification, and the 12-inch armored cable routes cleanly through standard conduit fittings. For installations where the original cable has been damaged or the connector has corroded, the TNC connector on the 330903-00-12-05-02-CN mates directly with standard 330130 extension cable assemblies, eliminating the need for field splicing or custom cable fabrication.

Downtime Control During System Migration

Minimizing unplanned downtime during a transducer replacement requires preparation at three levels: documentation, spare parts staging, and a defined rollback procedure. Before any transducer is removed from service, the existing monitor configuration — including gap voltage references, alarm setpoints, and OK relay logic — must be exported and stored offline. This ensures that if the replacement transducer exhibits unexpected behavior during commissioning, the original configuration can be restored without requiring a full re-engineering of the monitor database.

Spare parts staging should include not only the 330903-00-12-05-02-CN transducer itself but also a compatible 330130 extension cable of the correct length, a replacement probe holder and lock nut, and a calibrated gap-setting tool. Having these components on-site before the maintenance window begins eliminates the most common cause of extended downtime: waiting for a secondary part that was not identified during the initial audit.

During the physical swap, the replacement transducer should be installed and the gap voltage verified against the reference table before the monitor is returned to service. The OK relay should be confirmed in the healthy state before the machine is restarted. If the OK relay does not assert within the expected gap voltage window, the most likely causes are an incorrect gap distance, a firmware mismatch on the proximitor driver, or a wiring error at the extension cable junction. KNMKS technical support is available to assist with remote commissioning guidance for customers who encounter unexpected behavior during the cutover.

For critical machines where continuous protection is required, a temporary bypass relay can be used to maintain the OK signal to the turbine control system during the transducer swap, provided that the machine is operating within safe vibration limits and the bypass duration is minimized. This approach preserves control system continuity and prevents nuisance trips during the brief period when the transducer is disconnected.

Retrofit Support FAQ

Q1: Is the 330903-00-12-05-02-CN a direct replacement for earlier 330903 variants without the -CN suffix?
In most cases, yes. The -CN suffix denotes a connector type designation. The sensing tip diameter, cable length, and scale factor are identical to the standard 330903-00-12-05-02 variant. Customers should verify the connector type at the extension cable junction to confirm compatibility before installation.

Q2: Has KNMKS tested this unit for compatibility with the 3500/42M monitor module?
Yes. All 330903-00-12-05-02-CN units are pre-tested against documented gap voltage and scale factor specifications. A test report is included with each shipment confirming output linearity across the full measurement range. Compatibility with the 3500/42M has been verified in a controlled bench environment.

Q3: What is the lead time and support terms coverage?
Stock units are available for dispatch within 1–3 business days. International shipments typically arrive within 3–7 business days depending on destination. All units are covered by a support terms confirmed by quotation from the shipment date, covering manufacturing defects and verified performance against published specifications.

Q4: Can KNMKS assist with wiring and commissioning questions during the retrofit?
Yes. KNMKS provides pre-shipment technical documentation including terminal wiring diagrams, gap voltage reference tables, and installation guidelines. Remote commissioning support is available via email and phone for customers who require assistance during the cutover. Contact [email protected] or call +86 18359268345 for technical support inquiries.
