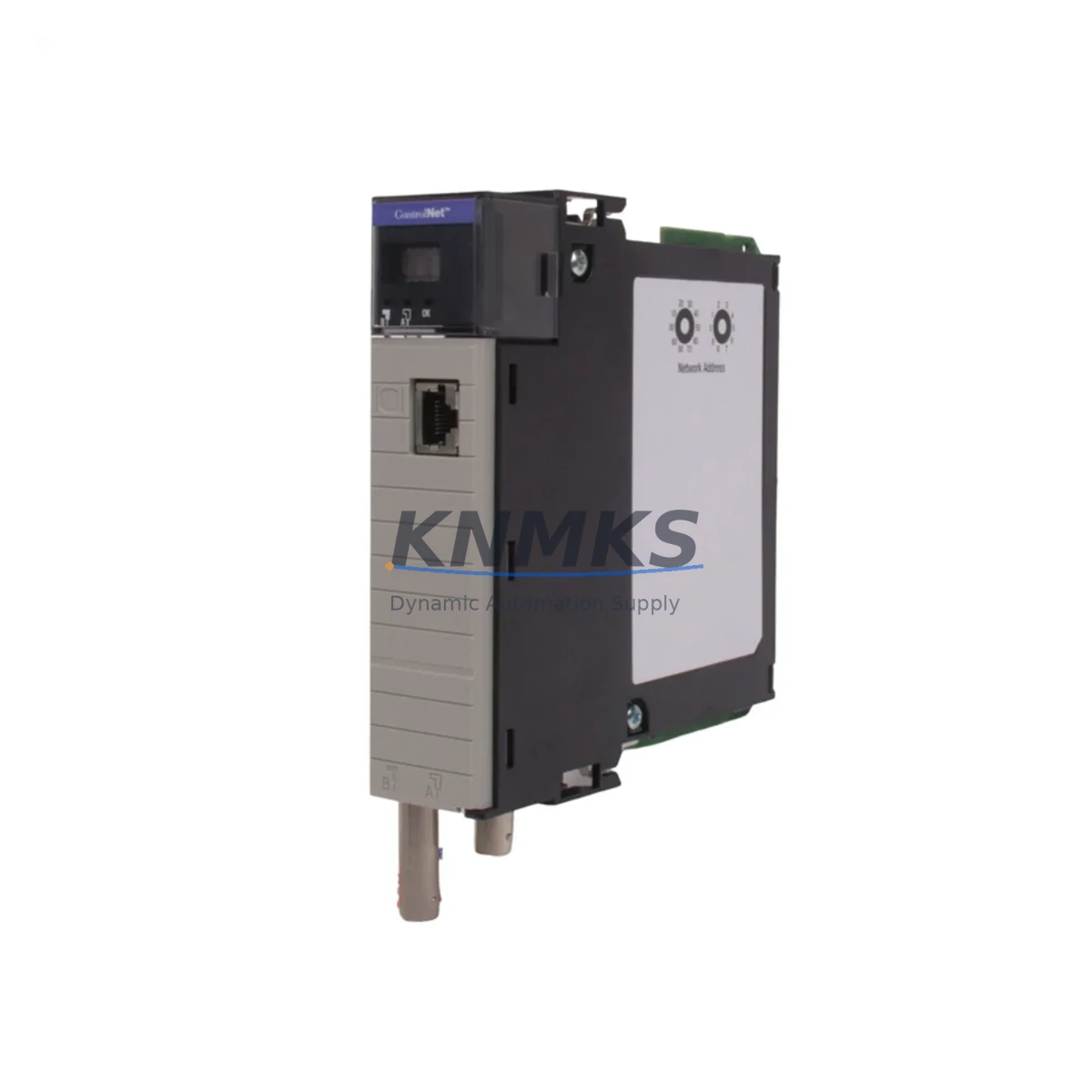

Allen-Bradley 1756-CNBR Fail-Safe ControlNet Bridge Module

Overview

Allen-Bradley 1756-CNBR Fail-Safe ControlNet Bridge Module

In critical industrial environments where control interruption is not an option, the Allen-Bradley 1756-CNBR ControlNet Bridge Module delivers the fault-tolerant communication backbone that maintenance and reliability engineers depend on. Designed for the ControlLogix 1756 platform, the 1756-CNBR provides redundant ControlNet media access, ensuring that a single cable fault or node failure does not cascade into a full production shutdown. Whether your facility operates continuous chemical processes, high-voltage power distribution switchgear, underground mining conveyors, or heavy-load port crane systems, the 1756-CNBR is engineered to maintain deterministic, real-time I/O communication under the most demanding electrical and environmental conditions.

The 1756-CNBR is the redundant-media variant of the standard 1756-CNB, offering dual coaxial or fiber ControlNet connections that allow the module to automatically switch to the healthy media path without interrupting the control scan cycle. This fail-safe architecture is critical in applications where a momentary communication loss could trigger emergency shutdowns, process upsets, or safety interlock activations. For facilities running SIL-rated safety loops alongside standard process control, the 1756-CNBR provides the communication reliability that underpins the entire safety instrumented system architecture.

In high electromagnetic interference environments — such as arc furnace control rooms, variable frequency drive (VFD) cabinets, or high-current bus bar enclosures — the 1756-CNBR’s shielded ControlNet interface and robust surge protection circuitry prevent signal drift and communication timeouts that can cause nuisance faults or, worse, undetected I/O failures. Maintenance engineers working in these environments frequently pair the 1756-CNBR with the 1756-PA75 or 1756-PB75 power supply modules to ensure the backplane receives clean, regulated DC power, eliminating power-induced communication anomalies. The 1756-A17 or 1756-A10 chassis provides the physical mounting and backplane interconnect, and should be inspected for backplane connector wear whenever the 1756-CNBR is replaced during scheduled maintenance.

From a control cabinet protection standpoint, the 1756-CNBR works in concert with the broader ControlLogix ecosystem. When performing a site replacement, engineers should simultaneously verify the condition of the 1756-L series controller firmware version to confirm ControlNet driver compatibility, check the 1756-EN2T or 1756-EN3TR EtherNet/IP bridge modules for any cross-communication dependencies, and inspect the 1794-ACN15 FLEX I/O ControlNet adapter nodes on the network for firmware alignment. Signal isolation barriers on analog I/O drops connected via ControlNet should also be tested for calibration drift, as communication interruptions during module swap can cause transient signal spikes that shift analog baselines.

For facilities in petrochemical, water treatment, metallurgical smelting, or continuous paper and pulp manufacturing, the 1756-CNBR supports the long-term operational continuity strategy that procurement engineers must plan for. With original Allen-Bradley manufacturing provenance, each unit supplied by KNMKS undergoes pre-shipment functional verification including ControlNet node address assignment, media redundancy switchover testing, and backplane communication handshake confirmation. Units are dispatched with full support terms confirmed by quotation coverage, supporting your spare parts inventory program with confidence.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Replacing the 1756-CNBR in a live control cabinet requires a structured protection strategy to avoid cascading faults. Before removing the module, maintenance engineers should place the ControlLogix controller (1756-L71 or equivalent) into Program mode to suspend I/O scanning and prevent false output activations on downstream actuators. The 1756-PA75 or 1756-PB75 power supply should be checked for output voltage stability — a sagging 5 VDC backplane rail is a common root cause of intermittent ControlNet communication errors that are often misdiagnosed as module failure.

Within the same cabinet, the 1756-EN2T EtherNet/IP communication module should be verified for active connections to the SCADA or DCS historian, as a ControlNet bridge replacement can temporarily disrupt tag update rates and trigger historian gap alarms. For cabinets serving safety-critical interlocks, the safety relay modules and hardwired emergency stop circuits should remain energized and independent of the ControlNet path during the swap procedure. After installing the replacement 1756-CNBR, the ControlNet network schedule should be re-verified using RSNetWorx for ControlNet to confirm all scheduled and unscheduled bandwidth allocations are intact before returning the controller to Run mode.

In high-dust or high-humidity environments such as cement plants, coastal port facilities, or underground mining operations, the cabinet door seals, filter mats, and thermostat-controlled cooling fans should be inspected during every module replacement event. Accumulated conductive dust on backplane connectors is a leading cause of premature module failure and intermittent communication faults that are difficult to reproduce during bench testing.

Critical Industrial Safety Applications

The 1756-CNBR is deployed across a wide range of safety-critical industrial sectors. In petrochemical and refinery environments, it serves as the communication backbone between the ControlLogix safety controller and remote I/O panels monitoring pressure relief valve positions, emergency isolation valve status, and flammable gas detector inputs. The redundant media architecture ensures that a single ControlNet cable cut — a realistic risk in high-traffic cable tray environments — does not interrupt the safety PLC’s ability to read field device status.

In electric power generation and grid substation automation, the 1756-CNBR connects protection relay panels, transformer tap changer controllers, and bus coupler breaker control circuits to the central ControlLogix platform. The deterministic ControlNet scan cycle ensures that protection trip signals are communicated within defined latency windows, supporting the coordination requirements of power system protection schemes.

In metallurgical and smelting operations, where high-current arc furnaces generate extreme electromagnetic interference, the 1756-CNBR’s shielded dual-media design maintains communication integrity even when adjacent VFD drives switch at high frequencies. Water treatment and municipal utility facilities rely on the 1756-CNBR for continuous monitoring of pump station motor control centers, chemical dosing systems, and SCADA-connected flow and level instruments — applications where a communication dropout can result in regulatory compliance violations or public safety incidents.

Safety and Quality FAQ

Q: Does the 1756-CNBR carry a support terms, and what does it cover?
A: Yes. Every 1756-CNBR supplied by KNMKS is covered by a support terms confirmed by quotation from the date of dispatch. Coverage includes functional failure under normal operating conditions. Each unit is pre-shipment tested for ControlNet node communication, media redundancy switchover, and backplane handshake integrity before leaving our facility.

Q: How do I confirm the 1756-CNBR is compatible with my existing ControlLogix system?
A: The 1756-CNBR is compatible with all 1756-series ControlLogix chassis and controllers running RSLogix 5000 or Studio 5000 firmware. Compatibility is determined by the ControlNet network schedule configured in RSNetWorx for ControlNet. Please provide your controller catalog number and firmware revision when inquiring, and our technical team will confirm compatibility before shipment.

Q: Can the 1756-CNBR replace the standard 1756-CNB in my existing installation?
A: The 1756-CNBR is the redundant-media version of the 1756-CNB and occupies the same chassis slot. It can replace a 1756-CNB in a single-media configuration, with the second ControlNet port left unused. To take advantage of media redundancy, both A and B ControlNet cable paths must be connected and the network schedule must be configured for redundant media operation in RSNetWorx.

Q: What is KNMKS’s long-term supply commitment for the 1756-CNBR?
A: KNMKS maintains standing inventory of the 1756-CNBR and actively sources from verified supply channels to support long-term maintenance programs. We support customers with multi-unit procurement for spare parts kitting, annual maintenance contracts, and emergency same-day dispatch for critical production recovery situations. Contact [email protected] for volume pricing and availability confirmation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1756-CNBR
ControlLogix Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Allen-Bradley 1756-CNBR
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
