Allen-Bradley 1756-CNB Maintenance-Proven Spare for ControlLogix

Overview

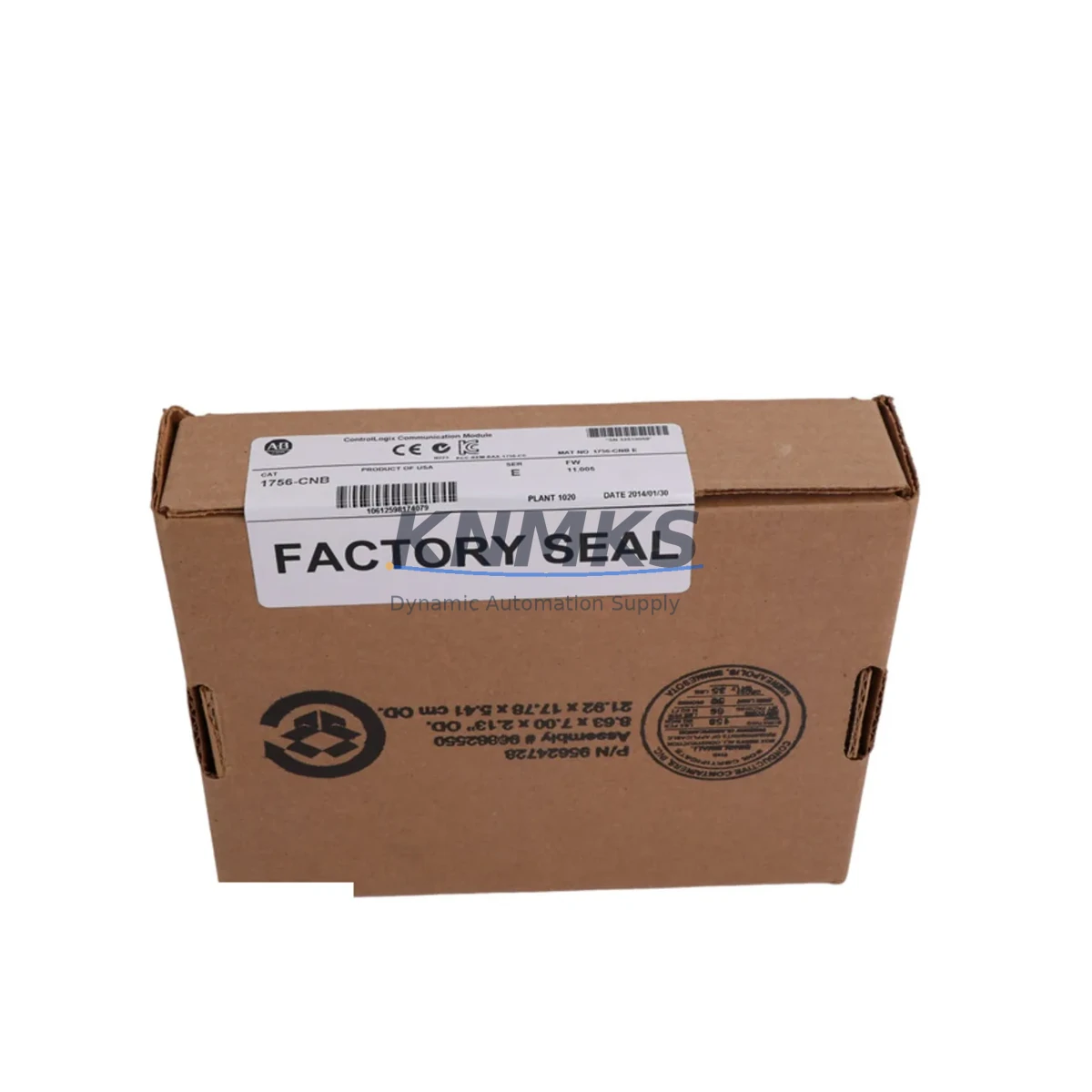

Allen-Bradley 1756-CNB Maintenance-Proven Spare for ControlLogix

The Allen-Bradley 1756-CNB is a ControlNet bridge communication module designed for the ControlLogix 1756 chassis platform. As a critical network interface component, the 1756-CNB enables deterministic, high-speed ControlNet communication between ControlLogix controllers, remote I/O adapters, and distributed control nodes across industrial plant floors. For maintenance engineers managing aging ControlLogix systems, keeping a verified 1756-CNB spare on the shelf is a fundamental strategy for minimizing unplanned downtime and protecting production continuity.

In industrial facilities running continuous processes — chemical plants, automotive assembly lines, food and beverage production, and water treatment infrastructure — a failed ControlNet bridge module can isolate entire I/O subsystems from the controller, triggering emergency shutdowns. The 1756-CNB spare part sourced through KNMKS is tested prior to dispatch, supplied with a support terms confirmed by quotation, and traceable to verified inventory. Every unit undergoes functional verification before shipment to ensure it meets the original Allen-Bradley specification for ControlNet bandwidth, node addressing, and chassis backplane communication.

Procurement engineers sourcing 1756-CNB replacements for long-term MRO (Maintenance, Repair, and Operations) programs will find KNMKS a reliable supply partner. We maintain stock continuity for legacy ControlLogix components, including modules that have reached end-of-life status with the OEM, supporting plant operations that cannot justify a full system migration in the near term.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the 1756-CNB in a live ControlLogix cabinet, a disciplined maintenance engineer will not stop at the module itself. The ControlNet bridge sits at the intersection of the controller backplane and the plant-floor network, meaning adjacent components must be evaluated simultaneously to prevent repeat failures and ensure a clean restoration.

Begin with the 1756-PA75 or 1756-PB75 chassis power supply — an under-spec or aging power supply is a common root cause of intermittent communication faults that are misdiagnosed as module failures. Verify output voltage stability under load before inserting the replacement 1756-CNB. Next, inspect the ControlNet coaxial trunk cable and BNC tap connectors at the module’s network port; corroded or loose taps introduce signal reflections that degrade network performance even with a new module installed.

If the 1756-CNB serves as a bridge to remote I/O racks, confirm that the 1794-ACN15 FlexLogix ControlNet adapter or equivalent remote adapter at the far end of the network segment is functioning correctly and that its node address does not conflict with the replacement module’s configuration. For systems using scheduled ControlNet connections, re-verify the Network Update Time (NUT) settings in RSNetWorx for ControlNet after module swap to avoid connection timeouts.

Maintenance planners should also audit the 1756-ENBT or 1756-EN2T EtherNet/IP bridge module in the same chassis — in many hybrid architectures, both ControlNet and EtherNet/IP bridges coexist, and a chassis power event that damages one module may stress the other. Similarly, check the 1756-OB16D or 1756-IB16 digital I/O modules in adjacent slots for any backplane communication errors logged in the controller’s fault table.

For facilities maintaining older ControlLogix systems, the 1756-L63 or 1756-L71 controller module firmware version must be compatible with the 1756-CNB revision installed. Mismatched firmware revisions between the controller and the ControlNet bridge are a documented source of scheduled connection failures. Always cross-reference the Product Compatibility and Download Center (PCDC) before finalizing the replacement.

Finally, document the replacement in your CMMS (Computerized Maintenance Management System) and update the spare parts register. A single 1756-CNB failure event is a signal to review the broader ControlNet segment health — including termination resistors, network length, and node count — as part of the post-incident corrective action.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the failed 1756-CNB, record the module’s node address, scheduled connection list, and any RSNetWorx for ControlNet configuration files. Export the controller project from Studio 5000 / RSLogix 5000 as a backup. Confirm the replacement unit’s catalog number and firmware revision match the system requirements.

Step 2 — Safe Module Removal: Place the ControlLogix controller in Program mode to inhibit scheduled ControlNet connections. Remove the 1756-CNB from the chassis slot. Inspect the backplane connector on both the module and the chassis for bent pins or contamination.

Step 3 — Replacement Installation: Insert the new 1756-CNB into the same chassis slot. The module will power up and initialize. Using RSNetWorx for ControlNet, assign the correct node address and re-schedule connections as per the saved configuration. Verify that all remote I/O adapters and peer controllers re-establish scheduled connections within the expected NUT cycles.

Step 4 — System Validation: Return the controller to Run mode. Monitor the ControlNet network status indicators on the 1756-CNB front panel (MS and NS LEDs) for solid green status. Confirm all I/O data is updating correctly in the controller tag database. Log the replacement event with part number, serial number, date, and technician ID.

Step 5 — Spare Stock Replenishment: Immediately initiate a purchase order to replenish the consumed spare. For critical ControlNet bridge positions, a minimum of one on-shelf spare per ControlNet segment is the recommended MRO inventory posture. KNMKS supports long-term supply agreements for 1756-CNB and related ControlLogix spare modules.

Spare Parts Support FAQ

Q1: Is the 1756-CNB supplied by KNMKS an original Allen-Bradley module?
Yes. All 1756-CNB units supplied by KNMKS are sourced from verified industrial supply channels. Each module is functionally tested prior to dispatch and supplied with a support terms confirmed by quotation covering defects in materials and workmanship. We do not supply counterfeit, refurbished-without-disclosure, or unverified grey-market components.

Q2: How do I confirm compatibility between the 1756-CNB and my existing ControlLogix controller firmware?
Compatibility is determined by the controller firmware revision and the 1756-CNB module revision. Use Rockwell Automation’s Product Compatibility and Download Center (PCDC) to cross-reference your controller catalog number and firmware version against the supported 1756-CNB revisions. KNMKS technical support can assist with compatibility verification prior to order confirmation.

Q3: What is the lead time and shipping process for the 1756-CNB?
In-stock units are dispatched within 1–3 business days. Each unit is individually tested, packaged in anti-static protection, and shipped with a test report. For urgent breakdown situations, expedited dispatch options are available — contact [email protected] or call +86 18359268345 to confirm stock availability and arrange priority shipment.

Q4: Can KNMKS support long-term supply of 1756-CNB for multi-year MRO programs?
Yes. KNMKS maintains ongoing inventory of ControlLogix 1756 series spare modules, including the 1756-CNB, to support plant maintenance programs with multi-year procurement horizons. We offer blanket order arrangements, reserved stock agreements, and consistent supply for facilities that cannot risk sourcing interruptions for critical automation spare parts.
