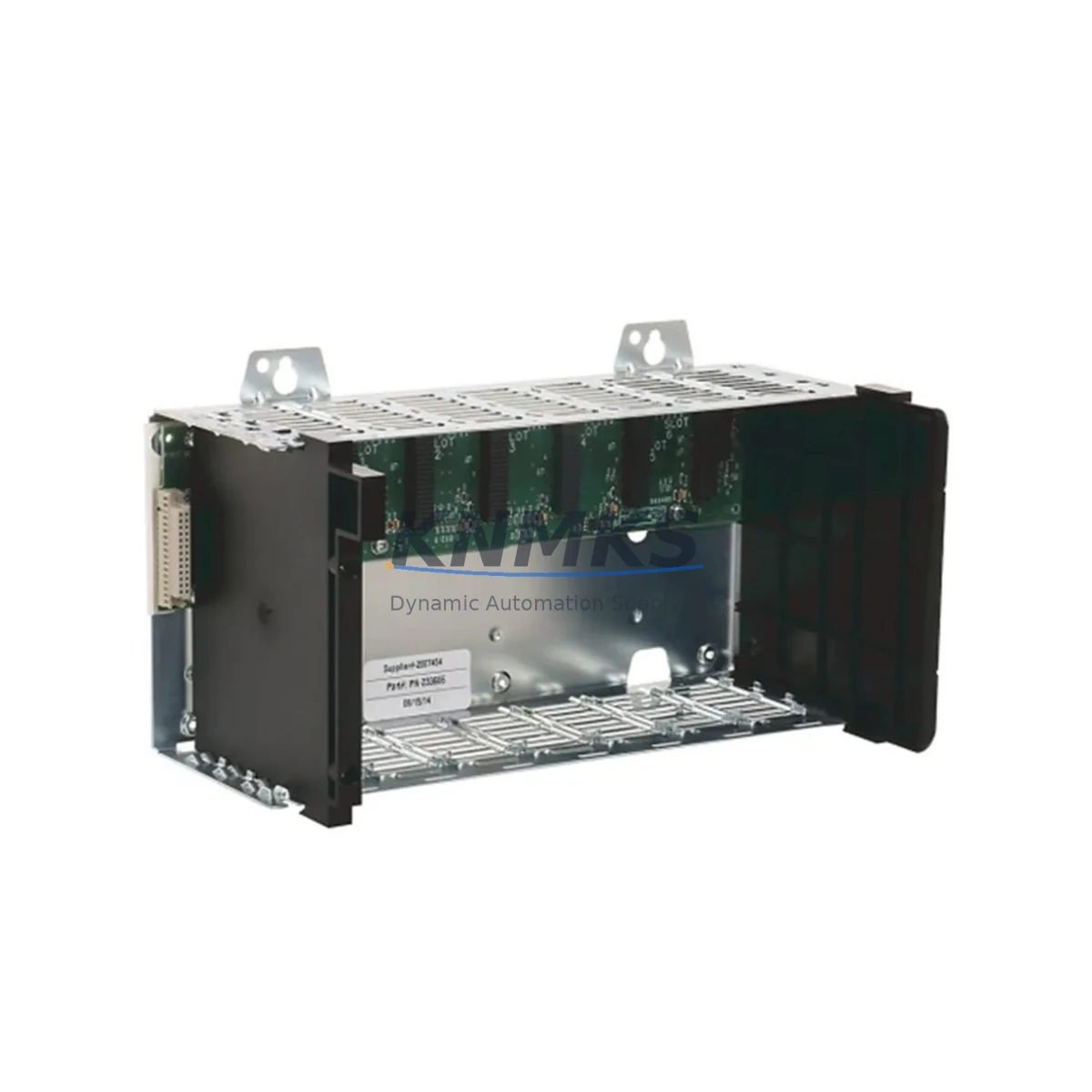

Allen-Bradley 1756-A7 Maintenance-Proven Spare Part for Factory Uptime
The Allen-Bradley 1756-A7 is a 7-slot backplane chassis designed for the ControlLogix platform — one of the most widely deployed programmable automation controller (PAC) architectures in discrete manufacturing, process control, and critical infrastructure. As a maintenance-proven spare part, the 1756-A7 chassis serves as the structural and electrical backbone of any ControlLogix control cabinet, housing the processor, power supply, I/O modules, and communication cards that keep production lines running continuously.
For maintenance engineers managing aging ControlLogix systems, having a verified 1756-A7 chassis in the spare parts inventory is a fundamental risk-reduction strategy. Backplane failures are rare but catastrophic — when a chassis fails, every module seated in it goes offline simultaneously, resulting in a full control system shutdown. A pre-staged, tested replacement chassis allows site teams to restore full system operation within the time it takes to transfer modules and re-seat connections, rather than waiting days or weeks for emergency procurement.
Each 1756-A7 unit supplied by KNMKS is sourced from verified channels, visually inspected, electrically tested, and shipped with a support terms confirmed by quotation. All units are packaged to IPC standards to prevent ESD damage and physical shock during transit. global delivery details confirmed by RFQ is available with full tracking and export documentation.
Spare Maintenance Table
| Part Number / SKU | 1756-A7 |
| Brand | Allen-Bradley (Rockwell Automation) |
| Series | ControlLogix 1756 |
| Product Type | PLC Backplane Chassis |
| Slot Count | 7 Slots |
| Backplane Current (5 VDC) | 10 A max |
| Backplane Current (24 VDC) | 2 A max |
| Compatible Power Supplies | 1756-PA72, 1756-PB72, 1756-PA75, 1756-PB75 |
| Compatible Processors | 1756-L61, 1756-L62, 1756-L63, 1756-L71, 1756-L72, 1756-L73, 1756-L74, 1756-L75, 1756-L81E, 1756-L82E, 1756-L83E, 1756-L84E, 1756-L85E |
| Operating Temperature | 0 °C to 60 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting | DIN rail or panel mount |
| Origin | USA |
| Condition | Original / Surplus / Refurbished (tested) |
| Support terms | 12 Months |
| Shipping | Global, tracked, ESD-safe packaging |
| Application | Discrete manufacturing, process control, utilities, automotive, oil & gas |
Maintenance Planning for Continuous Operation
When a 1756-A7 chassis is flagged for replacement during a scheduled outage or emergency fault isolation, the replacement workflow extends beyond the chassis itself. A thorough site assessment should include inspection and potential replacement of the following components to ensure the restored system is fully reliable:
The 1756-PA72 or 1756-PB72 power supply module should be tested under load before being re-seated into the new chassis. Power supply degradation is a leading cause of intermittent backplane faults and is frequently misdiagnosed as a chassis issue. If the power supply is more than five years old or shows any signs of capacitor bulge or output voltage drift, replace it concurrently with the chassis.
All 1756-EN2T or 1756-EN3TR EtherNet/IP communication modules seated in the chassis should be inspected for firmware version compatibility with the replacement chassis and the current Logix Designer project. Communication module firmware mismatches can cause unexpected I/O tree faults after chassis replacement.
The 1756-IB16 and 1756-OB16E digital I/O modules should be removed, inspected for terminal block integrity, and re-seated with verified torque on all field wiring connections. Loose field wiring is a common source of nuisance faults that surface after a chassis swap due to vibration during the maintenance activity.
If the control cabinet includes a 1756-RM or 1756-RM2 redundancy module, the redundancy configuration must be verified after chassis replacement to ensure the primary and secondary chassis are synchronized before returning the system to automatic mode.
For cabinets with analog I/O, inspect the 1756-IF16 or 1756-OF8 analog modules and any associated signal isolators or loop-powered transmitters. Analog signal integrity should be verified with a calibrated loop calibrator before the system is returned to closed-loop control.
Finally, review the 1756-L7x or 1756-L8x processor battery status (for battery-backed models) and confirm that the project file stored on the SD card or internal memory is current and matches the deployed configuration. A chassis replacement is an ideal checkpoint to validate that the backup project file is synchronized with the live program.
Site Replacement Workflow
Step 1 — Pre-Replacement Preparation: Download and save the current Logix Designer project from the processor to a laptop. Confirm the project revision matches the last known-good backup. Document all module slot assignments, I/O addresses, and communication module IP configurations before powering down.
Step 2 — Controlled Shutdown: Place the system in a safe state per site LOTO (Lockout/Tagout) procedures. Power down the chassis via the 1756-PA72/PB72 power supply. Disconnect field wiring from I/O modules using labeled terminal blocks or pre-photographed wiring documentation.
Step 3 — Module Extraction and Inspection: Remove all modules from the failed chassis in slot order. Inspect each module’s backplane connector for bent pins, corrosion, or debris. Clean connectors with approved contact cleaner if necessary.
Step 4 — Chassis Installation: Mount the replacement 1756-A7 chassis on the DIN rail or panel using the original hardware. Re-seat all modules in their original slot positions. Reconnect field wiring per the documented configuration.
Step 5 — Power-Up and Verification: Apply power via the power supply. Confirm all module status LEDs indicate normal operation (solid green). Download the saved project to the processor and verify I/O tree status in Logix Designer. Confirm all analog and digital I/O points are reading correctly before releasing the system to production.
Step 6 — Documentation Update: Update the site maintenance log with the chassis serial number, replacement date, and technician name. Update the spare parts inventory to trigger reorder of a replacement 1756-A7 chassis to maintain minimum stock levels.
Spare Parts Support FAQ
Q: Is the 1756-A7 chassis compatible with both older 1756-L6x and newer 1756-L8x processors?
A: Yes. The 1756-A7 backplane chassis is mechanically and electrically compatible with all ControlLogix processors across the L6x, L7x, and L8x generations. The chassis itself does not contain firmware — compatibility is determined by the modules seated in it, not the chassis revision.
Q: What is the lead time and how is the unit tested before shipment?
A: In-stock units typically ship within 1–3 business days. Each 1756-A7 chassis undergoes visual inspection for physical damage, backplane connector integrity check, and functional power-up test before packaging. A test report is available upon request. Units are shipped in ESD-safe, anti-static packaging with foam cushioning.
Q: Can KNMKS support long-term supply for multi-site maintenance programs?
A: Yes. KNMKS maintains ongoing inventory of the 1756-A7 and related ControlLogix components to support annual maintenance contracts, multi-site spare parts programs, and emergency procurement. Contact our team to discuss blanket order arrangements, reserved stock agreements, and volume pricing.
Q: What does the support terms confirmed by quotation cover?
A: The support terms confirmed by quotation cover defects in materials and workmanship under normal operating conditions. If a unit fails within the confirmed support period due to a manufacturing or component defect, KNMKS will provide a replacement unit or documented resolution support. The support terms does not cover damage caused by incorrect installation, overvoltage, or physical impact. All support requests are processed within 5 business days of unit receipt.
