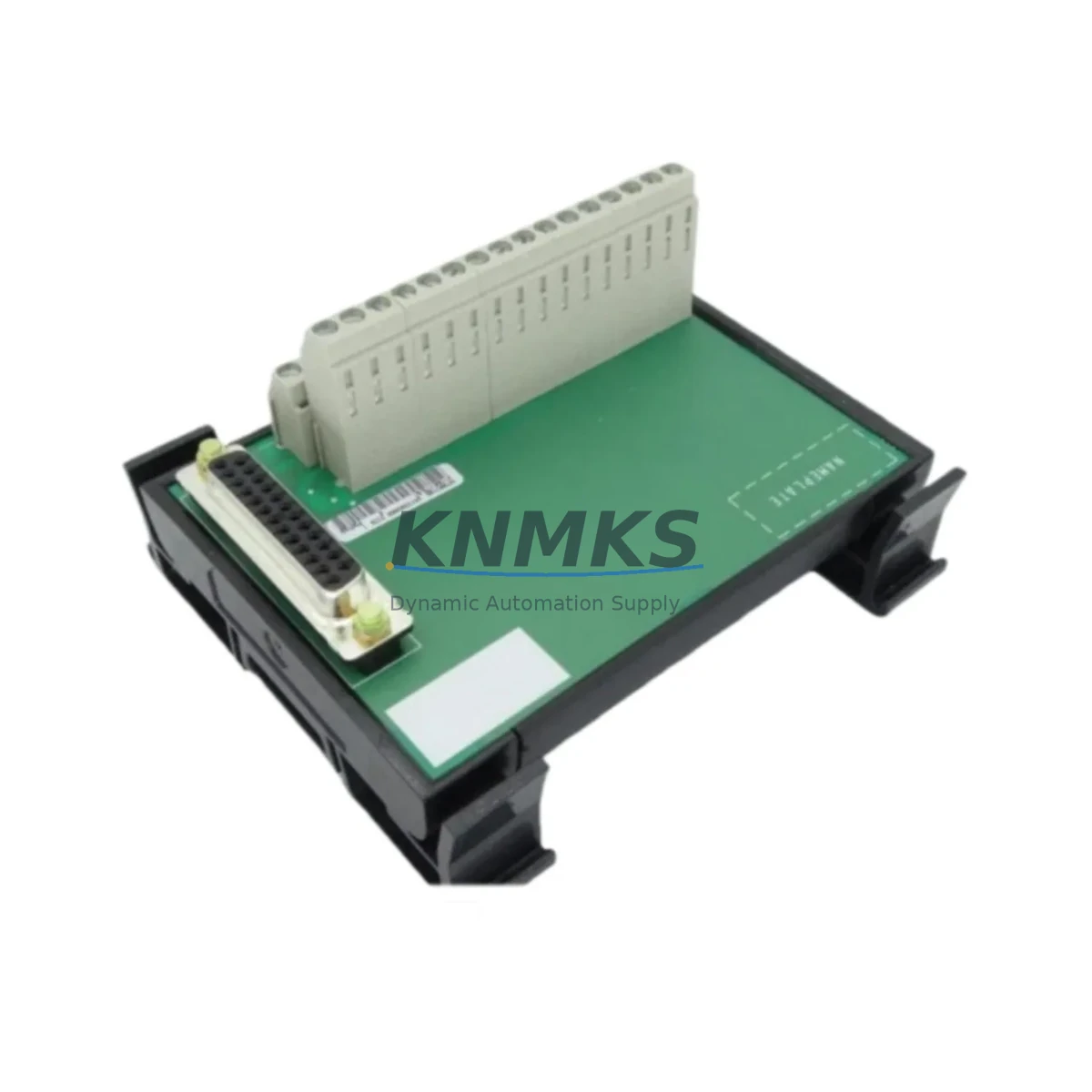

Allen-Bradley 1492-AIFM8-3 Analog Interface Module

Overview

Allen-Bradley 1492-AIFM8-3 Analog Interface Module: Migration-Ready Upgrade for Legacy Control Systems

The Allen-Bradley 1492-AIFM8-3 is an 8-channel analog interface module designed to bridge legacy wiring infrastructure with modern ControlLogix, CompactLogix, and SLC 500 analog I/O systems. As industrial facilities face increasing pressure to modernize aging control architectures, the 1492-AIFM8-3 provides a reliable, drop-in-compatible solution that minimizes rewiring effort, reduces downtime risk, and preserves existing field wiring investments during panel upgrades and system migrations.

This module is engineered for direct compatibility with Allen-Bradley 1492-AIFM series analog interface modules, making it a preferred choice for maintenance engineers and system integrators managing end-of-life PLC replacements, control cabinet retrofits, and I/O expansion projects across manufacturing, energy, petrochemical, and infrastructure sectors.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 1492-AIFM8-3 into a legacy control system requires careful pre-migration planning. Engineers replacing aging analog interface modules must first audit the existing field wiring layout, confirm terminal numbering against the original panel drawings, and verify that the replacement module’s channel configuration matches the legacy unit’s signal assignments.

In SLC 500-based systems, the 1492-AIFM8-3 is commonly paired with the 1746-NI8 analog input module, which handles 8-channel voltage and current signal acquisition. When migrating to a ControlLogix platform, the module interfaces cleanly with the 1756-IF8 analog input card, provided that channel scaling parameters are re-verified in Studio 5000 after migration. For mixed analog/digital panel layouts, the 1492-IFM20F interface module may be used in adjacent slots to consolidate discrete I/O wiring without disrupting the analog signal paths.

Power supply capacity is a critical checkpoint during any retrofit. The 1606-XLP power supply series is widely used in ControlLogix and CompactLogix panel upgrades and should be sized to accommodate the additional current draw introduced by new analog modules. In older SLC 500 cabinets, the 1746-P4 power supply may require replacement if the existing unit is operating near its rated capacity.

For systems requiring communication protocol migration — such as transitioning from DH+ to EtherNet/IP — the 1761-NET-ENI serial-to-Ethernet adapter or a 1756-ENBT EtherNet/IP bridge module may be required to maintain HMI connectivity and SCADA data exchange during the transition period. HMI screen tag remapping should be completed and validated in a staging environment before live cutover to avoid process interruptions.

Installation space confirmation is essential before ordering. Measure available DIN rail length, verify module width clearances, and confirm that cable management channels can accommodate the existing field cable bundle alongside the new interface module. All analog signal cables should be routed separately from power conductors to prevent electromagnetic interference from affecting signal integrity.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing analog interface modules in active production environments. A structured migration approach — including pre-staging, parallel testing, and phased cutover — significantly reduces the risk of process interruption.

Before removing the legacy 1492-AIFM module, document all existing terminal wiring connections using labeled photographs and as-built drawings. Export the current PLC program from the controller using RSLogix 5000 or Studio 5000 and archive it to a secure backup location. If the system uses a 1756-L series ControlLogix controller, verify that the program backup includes all analog scaling routines, alarm setpoints, and PID loop parameters associated with the channels served by the interface module.

Where process continuity is critical, consider implementing a temporary bypass using portable signal simulators to maintain analog feedback to the controller while the physical module is being replaced. This approach is particularly effective in continuous process industries where analog loop interruption triggers automatic shutdowns or safety interlocks.

After installing the 1492-AIFM8-3, perform a point-by-point signal verification for all 8 channels before returning the system to automatic control. Confirm that each channel reads within the expected engineering unit range, that alarm thresholds are correctly configured, and that any PID loops dependent on the analog inputs are tuned and stable. Field commissioning should be completed during a scheduled maintenance window to allow adequate time for verification without production pressure.

Shipment testing is performed on every unit prior to dispatch. Each 1492-AIFM8-3 is functionally verified to confirm terminal integrity and signal path continuity, reducing the risk of installation failures caused by transit damage or manufacturing defects.

Retrofit Support FAQ

Q1: Is the 1492-AIFM8-3 a direct replacement for the 1492-AIFM8 and 1492-AIFM8-2?
A: Yes. The 1492-AIFM8-3 is designed as a compatible replacement for earlier 1492-AIFM8 variants. Terminal layout and channel count are consistent across the series. Verify signal type configuration (voltage vs. current) and confirm channel wiring assignments against your existing panel drawings before installation.

Q2: Does this module require any firmware updates or software configuration?
A: No. The 1492-AIFM8-3 is a passive wiring interface module with no onboard firmware. It does not require software configuration. All analog signal scaling and channel parameters are managed within the connected PLC analog I/O module (e.g., 1746-NI8 or 1756-IF8) using RSLogix or Studio 5000.

Q3: What should I verify before wiring the 1492-AIFM8-3 into an existing panel?
A: Confirm terminal numbering matches your existing field wiring documentation. Verify signal type (4–20 mA current loop or voltage), check shielding and grounding continuity, and ensure the power supply can support the additional load. Review the analog module’s channel address mapping in the PLC program to confirm no re-addressing is required after replacement.

Q4: What support terms and stock availability does KNMKS provide for the 1492-AIFM8-3?
A: KNMKS provides a support terms confirmed by quotation on all 1492-AIFM8-3 units. Each module is tested and verified before shipment. Stock is maintained to support urgent replacement and MRO procurement requirements. Contact our team for lead time confirmation and volume pricing.

—
© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1492-AIFM8-3
ControlLogix Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Allen-Bradley 1492-AIFM8-3
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
