ABB NLWC-05 Migration-Ready DDCS Fibre Optic Cable

Overview

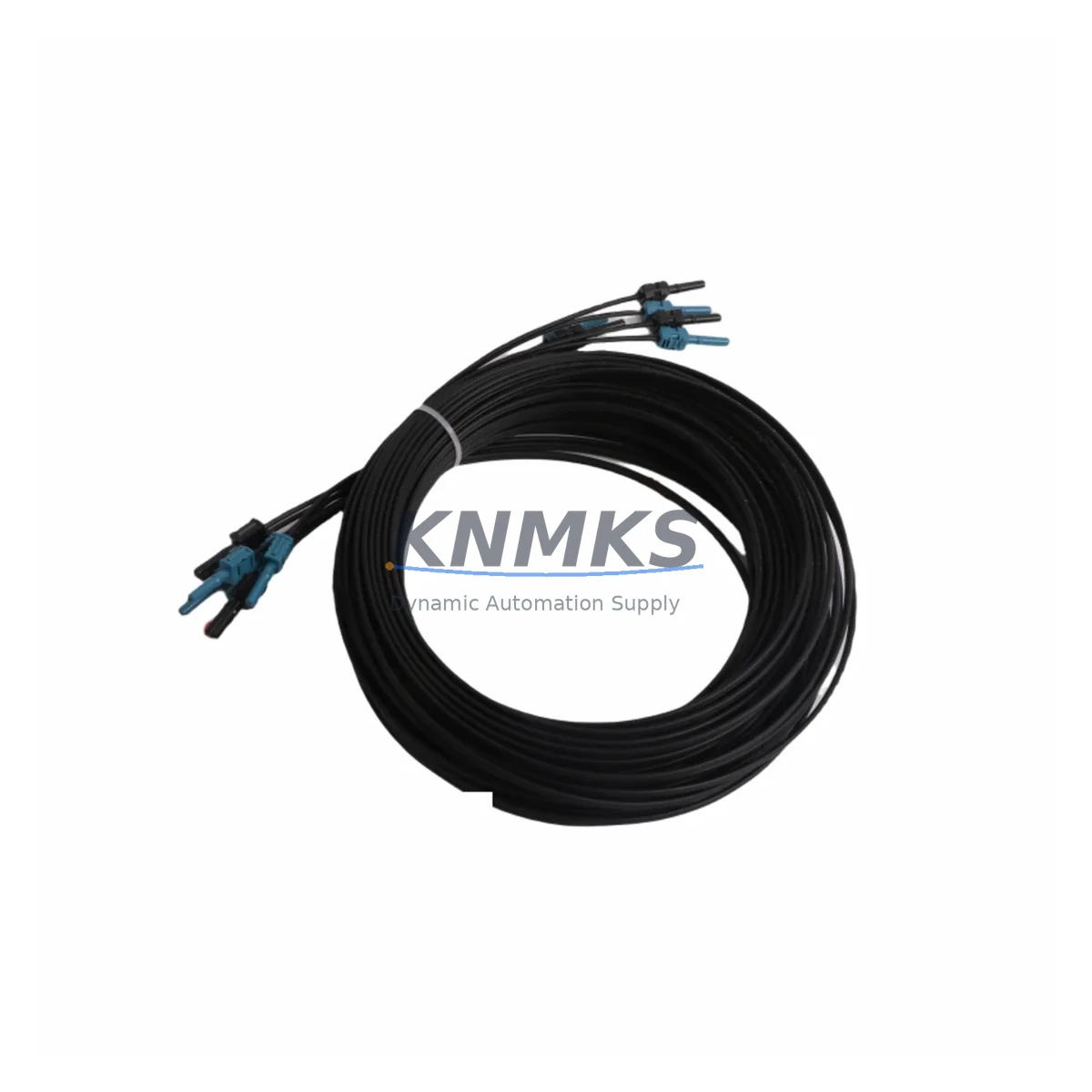

ABB NLWC-05 Migration-Ready DDCS Fibre Optic Cable for Legacy Control Systems

The ABB NLWC-05 is a DDCS (Distributed Drive Control System) fibre optic cable engineered for high-speed, noise-immune communication between ABB drive modules and master controllers. As legacy ACS600 and ACS800 drive installations approach end-of-service milestones, the NLWC-05 remains a critical link in maintaining system integrity during phased modernisation projects. Whether you are executing a direct replacement of a failed cable or planning a structured migration to ACS880 architecture, the NLWC-05 provides the optical signal path required to sustain drive-to-controller communication without interrupting production continuity.

In retrofit scenarios, engineers frequently encounter degraded or broken fibre links as the primary cause of DDCS communication faults. The NLWC-05 is compatible with the NDCO-0x optical converter boards and NAMC-xx application modules commonly installed in ACS800 multi-drive cabinets. Before replacement, technicians should verify the fibre channel address assignments configured in the drive’s parameter group 70 (DDCS Control), confirm the optical power budget against the installed NDCO board specifications, and inspect the ferrule condition at both the drive and master adapter ends. Incorrect channel addressing after cable swap is a leading cause of post-replacement communication errors and must be validated during commissioning.

For sites running ABB’s AC500 PLC or Symphony Plus DCS as the supervisory layer, the DDCS fibre link established by the NLWC-05 bridges the drive-level I/O to the control network. During cabinet upgrades that introduce the RDCO-0x DDCS communication option board into an ACS880 frame, the NLWC-05 cable routing and bend radius constraints must be respected to prevent signal attenuation — particularly in high-density multi-drive enclosures where cable management space is limited. Alongside the NLWC-05, projects typically require the NAMC-11 or NAMC-03 application module for master/follower drive coordination, and the NPOW-4x power supply module to maintain auxiliary voltage stability during the transition period.

When migrating from ACS600 to ACS880, the DDCS topology may shift from a ring configuration to a star or daisy-chain layout depending on the number of follower drives. This topological change directly affects how the NLWC-05 cables are routed and terminated. Project engineers should map the existing DDCS node addresses, document the master drive’s DDCS channel assignments, and prepare a parameter backup using the ABB Drive Composer or DriveWindow tool before any physical cable work begins. Preserving the original programme logic in the NAMC module and validating HMI tag mappings tied to drive status words will significantly reduce commissioning time after the fibre infrastructure is replaced.

Stock availability for the NLWC-05 is maintained for immediate dispatch to support emergency replacement scenarios where drive communication loss has caused an unplanned production stoppage. Each unit undergoes pre-shipment optical continuity and attenuation testing to confirm signal integrity before leaving the warehouse. A support terms confirmed by quotation cover manufacturing defects and optical performance, providing procurement teams with the supply assurance needed for both emergency and planned maintenance programmes.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DDCS fibre retrofit begins well before the maintenance window opens. The NLWC-05 cable replacement is rarely an isolated task — it typically occurs alongside broader drive cabinet upgrades that may include swapping the NAMC-11 application module for a newer firmware revision, replacing the NPOW-41 or NPOW-42 power supply module to meet updated auxiliary load requirements, or installing an RDCO-02 DDCS communication board in a newly introduced ACS880 drive frame. In multi-drive systems, the NINT-72 or NINT-73 inverter control boards may also require parameter re-initialisation after the fibre topology is modified.

For sites where the supervisory system communicates via PROFIBUS or Modbus RTU, the DDCS fibre layer managed by the NLWC-05 operates independently of the fieldbus layer, but drive status words and reference values passed through the DDCS link must be re-mapped if the master drive’s application module is changed during the same retrofit window. HMI screens built on ABB’s Panel Builder or third-party SCADA platforms should be audited for drive status tag dependencies before the fibre cable work is scheduled. Signal isolators on analogue I/O channels connected to the drive’s standard I/O board should also be checked for compatibility with the replacement drive’s input impedance specifications.

Downtime Control During System Migration

Minimising production downtime during a DDCS fibre replacement requires a structured pre-outage preparation process. Before the maintenance window, technicians should complete a full parameter upload from all affected drives using Drive Composer, document the existing DDCS ring or chain topology with node addresses, and prepare labelled replacement cables — including the NLWC-05 — staged at the cabinet location. During the outage, the recommended sequence is: isolate the drive system safely, replace the fibre cable, restore power to the master drive first, verify DDCS communication status on the master adapter, then bring follower drives online sequentially while monitoring the DDCS status word for each node.

If the retrofit also involves an application module swap, the previously backed-up programme should be downloaded and verified against the original I/O mapping before the system is released to production. Keeping the original NAMC module as a tested spare during the transition period provides a rapid fallback option if unexpected firmware incompatibilities arise. With proper pre-staging, a single NLWC-05 cable replacement in a standard ACS800 multi-drive cabinet can typically be completed within a two-hour planned maintenance window.

Retrofit Support FAQ

Q: Is the NLWC-05 a direct replacement for all NLWC-series DDCS cables in ACS800 systems?
A: The NLWC-05 is compatible with the DDCS fibre optic ports on NDCO-0x and RDCO-0x option boards used across ACS600, ACS800, and ACS880 platforms. Confirm the cable length and connector type match your installation before ordering. Contact our team with your drive model and cabinet layout for a pre-order compatibility check.

Q: What commissioning steps are required after replacing the NLWC-05 cable?
A: After physical installation, verify the DDCS channel address in parameter group 70 of the master drive, check the optical power level at the receiving board, and confirm the node count matches the pre-replacement topology. Run a DDCS communication test from the master adapter before releasing the system to automatic control.

Q: Can the NLWC-05 be used in a DDCS ring topology with more than two drives?
A: Yes. The NLWC-05 supports multi-node DDCS ring and chain configurations. Each cable segment connects one DDCS port to the next node in the chain. Ensure the total optical path loss across all cable segments and connectors remains within the NDCO or RDCO board’s specified optical budget.

Q: What support terms and testing does the NLWC-05 include?
A: Every NLWC-05 unit is pre-shipment tested for optical continuity and attenuation before dispatch. A support terms confirmed by quotation cover manufacturing defects and optical performance. In-stock units are available for same-day or next-business-day dispatch to support emergency replacement requirements.
