ABB HP-HP/AA-7676-91-0050 Fail-Safe Fiber Optic Cable

Overview

ABB HP-HP/AA-7676-91-0050 Fail-Safe Fiber Optic Cable: Fault Protection and Critical Industrial Field Reliability

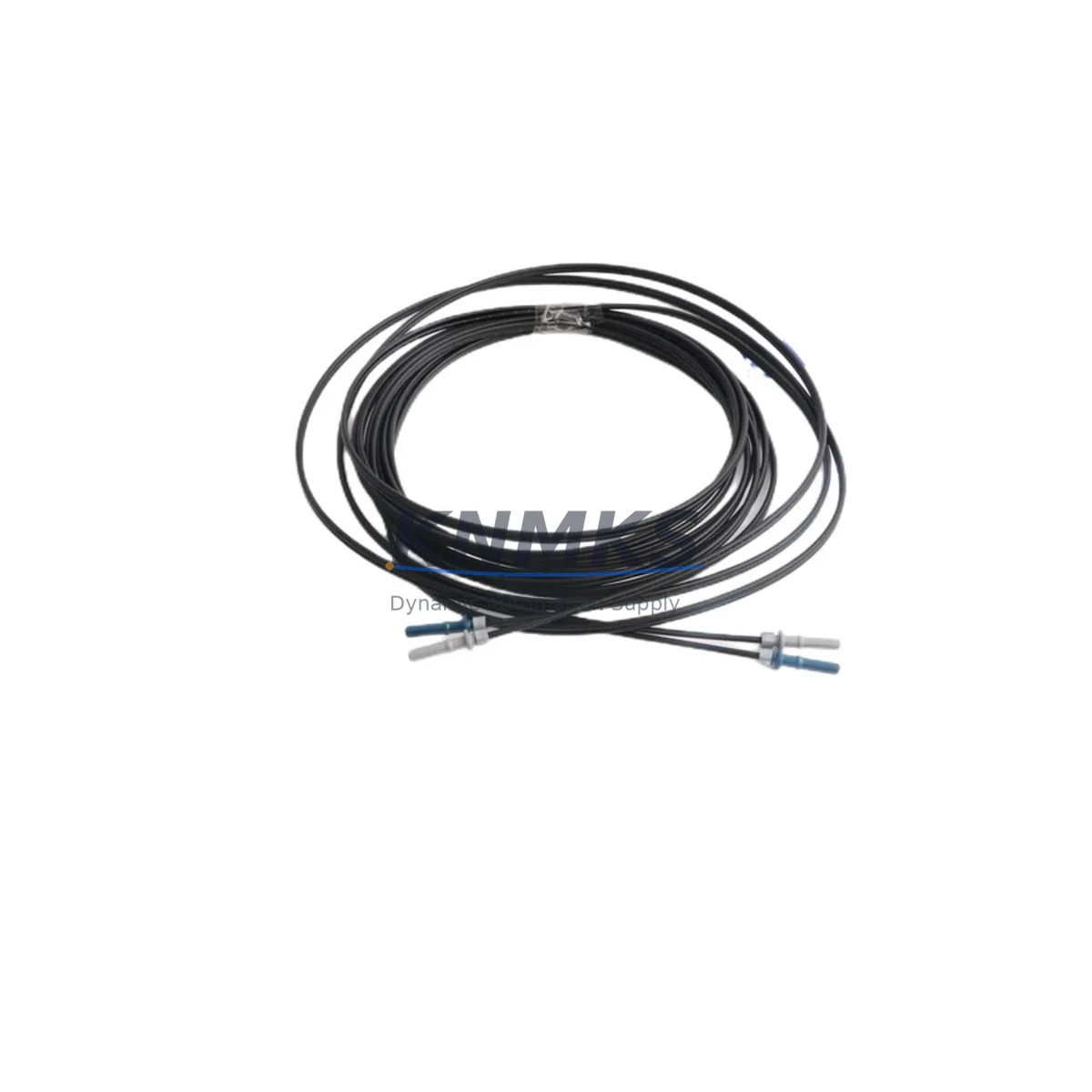

The ABB HP-HP/AA-7676-91-0050 is a ruggedized, industrial-grade fiber optic cable engineered for fail-safe signal transmission in demanding automation environments. Designed to serve as the communication backbone between ABB drives, controllers, and distributed control systems, this cable eliminates the risk of electromagnetic interference (EMI), signal drift, and ground loop faults that routinely compromise copper-based communication links in high-noise industrial cabinets.

In continuous production facilities — including petrochemical plants, power generation stations, metallurgical smelters, and port logistics systems — unplanned communication interruptions between drive systems and PLCs can trigger cascading shutdowns, safety interlock failures, and costly process upsets. The HP-HP/AA-7676-91-0050 addresses these risks by providing a fully galvanically isolated, EMI-immune optical link that maintains signal integrity regardless of cabinet-level electrical noise, high-frequency switching transients, or surge events from adjacent power equipment.

This cable is specifically engineered for ABB’s DDCS (Distributed Drives Communication System) and PROFIBUS optical ring architectures, making it a direct, validated replacement for ABB ACS800, ACS600, DCS800, and ACS550 drive systems. Its plastic optical fiber (POF) construction provides the mechanical flexibility required for tight cabinet routing while maintaining the optical performance specifications demanded by ABB’s DriveWindow and DriveOPC communication protocols.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered ABB drive control cabinet, the HP-HP/AA-7676-91-0050 fiber optic cable operates as part of a layered fault-protection architecture. It connects the ABB RDCO-02 or RDCO-03 DDCS communication option board — mounted on the ACS800 or DCS800 drive — to the upstream PLC or DCS controller, forming an optically isolated communication ring that is immune to the high-frequency switching noise generated by IGBT inverter stages.

Within the same cabinet, the RINT-5611C or RINT-6611C interface board manages the internal DDCS ring topology, while the APBU-44C or APBU-12C branching unit distributes the fiber ring to multiple drive nodes. Power supply stability for the control electronics is typically maintained by an ABB UNS0881b or equivalent 24 VDC SMPS module, which must itself be protected against input voltage fluctuations and conducted surges from the main bus. For cabinets operating in high-vibration or thermally stressed environments — common in mining hoists, steel rolling mills, and offshore pump stations — the combination of optical communication links and properly rated control power supplies is the primary defense against nuisance trips and unplanned downtime.

Where PROFIBUS DP optical segments are used alongside DDCS rings, the NMBP-01 or NPBA-12 PROFIBUS adapter modules interface with the same HP-connector fiber infrastructure, allowing a single cable standard to serve multiple protocol layers within one cabinet. This reduces spare-parts complexity and ensures that maintenance teams can restore communication links quickly using a single validated cable type.

Critical Industrial Safety Applications

The HP-HP/AA-7676-91-0050 is deployed across a wide range of critical industrial safety and process control applications where communication reliability is a prerequisite for safe operation:

Petrochemical and Refinery Plants: In hazardous area drive rooms adjacent to process units, optical fiber communication between the DCS and variable speed drives eliminates the risk of spark-inducing ground faults on copper signal cables. The cable supports safe interlock signal transmission for emergency shutdown (ESD) sequences coordinated through ABB 800xA or Symphony Plus DCS platforms.

Power Generation and Grid Infrastructure: In turbine control and excitation systems, where high-voltage switching events create intense electromagnetic environments, the HP-HP/AA-7676-91-0050 maintains clean DDCS communication between the ACS800 auxiliary drive systems and the plant DCS, preventing nuisance trips during load transients or grid disturbances.

Mining and Mineral Processing: Hoist drives, conveyor systems, and crusher drives in underground and surface mining operations are subject to extreme vibration, dust ingress, and wide temperature swings. The plastic optical fiber construction of this cable tolerates mechanical flexing during installation and maintenance without degrading optical performance, supporting continuous operation of safety-critical drive systems.

Water and Wastewater Treatment: In pump stations and aeration blower control panels operating in high-humidity environments, optical isolation prevents moisture-induced leakage currents from corrupting PROFIBUS or DDCS communication frames, ensuring reliable pump sequencing and level control without false fault trips.

Metallurgy and Steel Production: Rolling mill drives and ladle crane systems demand zero-tolerance communication reliability. The HP-HP/AA-7676-91-0050 supports the high-speed DDCS polling cycles required for coordinated multi-drive tension control, where a single communication fault can cause strip breaks or crane load drops.

Port and Marine Applications: Container crane drives and ship-to-shore equipment operate in salt-air, high-humidity environments where copper communication cables corrode rapidly. Fiber optic links using this cable type provide long-term corrosion immunity and maintain drive communication integrity across the full operational life of the equipment.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the HP-HP/AA-7676-91-0050?
The support terms confirmed by quotation cover manufacturing defects, optical connector integrity, and cable assembly quality. If the cable fails to meet ABB’s specified optical attenuation limits under normal operating conditions within the confirmed support period, a replacement will be provided. The confirmed support period begins from the date of shipment.

Q2: What pre-shipment testing is performed on each cable?
Each HP-HP/AA-7676-91-0050 cable undergoes a pre-shipment inspection that includes visual connector inspection, optical continuity verification, and attenuation spot-check testing. This ensures that every unit dispatched meets the optical performance requirements for DDCS and PROFIBUS optical communication at the specified link distances.

Q3: Is this cable compatible with all ABB drives using HP-type fiber connectors?
Yes. The HP-HP/AA-7676-91-0050 is compatible with all ABB drive and controller products that use the standard HP simplex fiber connector, including the ACS800, ACS600, DCS800, ACS550, and ACS400 series, as well as ABB DDCS option boards such as the RDCO-02 and RDCO-03. It is also compatible with APBU branching units and RINT interface boards that use the same connector standard.

Q4: Can long-term supply and replacement support be guaranteed for this part?
Yes. This part is maintained as a stocked item to support both new installation projects and ongoing maintenance programs. For facilities operating ABB drive systems with extended service life requirements — common in power, mining, and petrochemical applications — we recommend holding a minimum of two spare cables per DDCS ring segment as part of a structured critical-spares inventory strategy. Our team can support planned procurement schedules and blanket order arrangements to ensure supply continuity.
