ABB HIEE205014R0001 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB HIEE205014R0001 Maintenance-Proven Spare Part for Factory Uptime

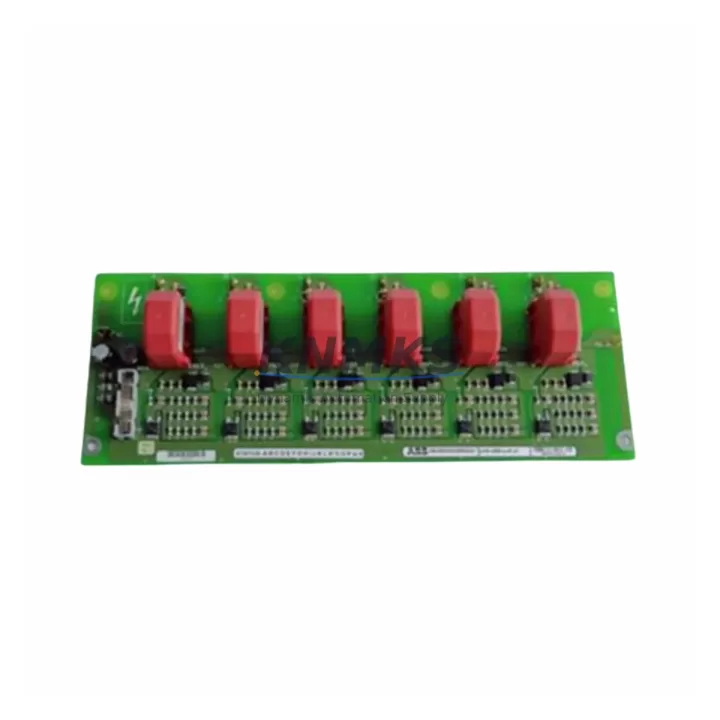

The ABB HIEE205014R0001 is an original Measuring Interface Unit designed for the AC800M Distributed Control System (DCS) platform — one of ABB’s most widely deployed process automation architectures in power generation, oil & gas, chemical processing, and heavy manufacturing. As a critical signal conditioning and measurement interface component, the HIEE205014R0001 bridges field instrumentation with the AC800M controller backplane, ensuring accurate analog signal acquisition, isolation, and transmission to the process control layer.

For maintenance engineers managing aging DCS infrastructure, sourcing a verified original spare for the HIEE205014R0001 is essential. Counterfeit or incompatible substitutes risk signal drift, I/O mapping errors, and unplanned shutdowns. Every unit supplied by KNMKS is sourced from authorized channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation — giving procurement teams the confidence to build long-term spare parts inventory without lifecycle risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the HIEE205014R0001 in an AC800M cabinet, a disciplined maintenance engineer will not stop at the interface unit alone. The surrounding electrical environment must be evaluated to prevent repeat failures and ensure system integrity after restoration.

Begin with the AC800M PM891 or PM865 processor module — confirm firmware compatibility and verify that the backplane communication bus is free of errors before reinserting the new HIEE205014R0001. A faulty processor module can mask interface unit faults or generate false diagnostics post-replacement.

Next, inspect the TB820 or TB840 Termination Unit associated with the measuring interface. Corroded or loose terminal connections on the TB-series termination boards are a leading cause of signal instability that is often misdiagnosed as an interface unit failure. Clean and re-torque all field wiring terminals during the replacement window.

Check the SD821 or SD822 power supply module feeding the AC800M rack. Voltage ripple or marginal output from an aging power supply can degrade the HIEE205014R0001’s measurement accuracy. Use a calibrated multimeter to verify 24 VDC rail stability under load before closing the cabinet.

For systems with CI854 or CI857 PROFIBUS/PROFINET communication interface modules, confirm that the fieldbus segment connected to the measuring loop is operating within normal diagnostic parameters. A degraded communication module can cause the DCS to lose process variable updates even after a successful hardware replacement.

If the plant uses ABB S800 I/O modules in conjunction with the AC800M, verify that the I/O configuration in the engineering tool (Control Builder M) correctly maps to the new HIEE205014R0001 slot address. Incorrect I/O mapping after a hardware swap is a common commissioning error that delays production restart.

Finally, review the fuse protection on the 24 VDC supply rail and the field loop circuit. A blown fuse upstream of the measuring interface is frequently the root cause of the original failure — replacing the HIEE205014R0001 without addressing the fuse condition will result in immediate repeat failure. Maintain a stock of appropriately rated fuses alongside the interface unit spare.

Site Replacement Workflow

The HIEE205014R0001 is designed for hot-swap or cold-swap replacement depending on the AC800M system configuration and plant safety procedures. Follow this structured workflow to minimize downtime and ensure a clean restoration:

Step 1 — Pre-Replacement Verification: Confirm the replacement unit’s part number and revision against the installed unit. Verify that the HIEE205014R0001 firmware or hardware revision is compatible with the target AC800M rack configuration. Document the current I/O channel assignments and process variable tags before removal.

Step 2 — Safe Isolation: Follow plant LOTO (Lockout/Tagout) procedures. Isolate the field loop signals connected to the measuring interface. If the system supports redundant I/O, switch control to the redundant path before removing the faulty unit.

Step 3 — Physical Replacement: Remove the HIEE205014R0001 by releasing the backplane locking mechanism. Insert the replacement unit firmly until the backplane connector is fully seated. Reconnect field wiring to the termination unit, verifying polarity and shielding continuity.

Step 4 — System Commissioning: Power up the rack and observe the module status LEDs. Use ABB Control Builder M or the DCS diagnostic interface to confirm that the HIEE205014R0001 is recognized, configured, and reporting valid process values. Perform a loop calibration check against a known reference signal.

Step 5 — Documentation & Return to Service: Update the maintenance log with the replacement date, unit serial number, and post-replacement test results. Return the system to automatic control and monitor for 30 minutes before closing the work order.

This workflow applies equally to scheduled annual overhauls and emergency breakdown recovery scenarios, ensuring that the HIEE205014R0001 replacement is executed safely, efficiently, and with full traceability.

Spare Parts Support FAQ

Q1: Is the HIEE205014R0001 compatible with all AC800M rack configurations?
The HIEE205014R0001 is designed for the ABB AC800M DCS platform. Compatibility depends on the specific rack generation, backplane revision, and firmware version of the PM processor module in use. KNMKS recommends providing your AC800M system configuration details at the time of inquiry so our technical team can confirm slot and firmware compatibility before shipment.

Q2: What pre-shipment testing is performed on each HIEE205014R0001 unit?
Every HIEE205014R0001 supplied by KNMKS undergoes functional verification including power-on self-test, signal channel integrity check, and backplane communication validation. Units that fail any test parameter are quarantined and not shipped. A test report is available upon request for critical spare applications.

Q3: Can KNMKS support long-term supply of the HIEE205014R0001 for multi-year maintenance contracts?
Yes. KNMKS maintains strategic inventory of AC800M series components including the HIEE205014R0001 to support long-term maintenance agreements. We offer blanket order arrangements and reserved stock programs for customers with annual overhaul schedules or multi-site DCS fleets. Contact our sales team to discuss volume pricing and supply continuity terms.

Q4: What does the support terms confirmed by quotation cover for the HIEE205014R0001?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions as specified in the ABB AC800M system documentation. Support requests are processed with priority support, including advance replacement where stock permits. Physical damage caused by incorrect installation, overvoltage, or environmental exposure outside rated parameters is excluded from support terms coverage.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

HIEE205014R0001
AC800M Series

Product Family

Relays & Interface

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Interface range

Relays, isolation and signal modules

Common needs

Coil voltage and contact rating

Project support

Panel wiring and signal protection

Inquiry Support

• Relay base and module matching
• Signal isolation and protection options
• Panel accessory inquiry support

What to Send Us

• Brand and exact model number: ABB HIEE205014R0001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
