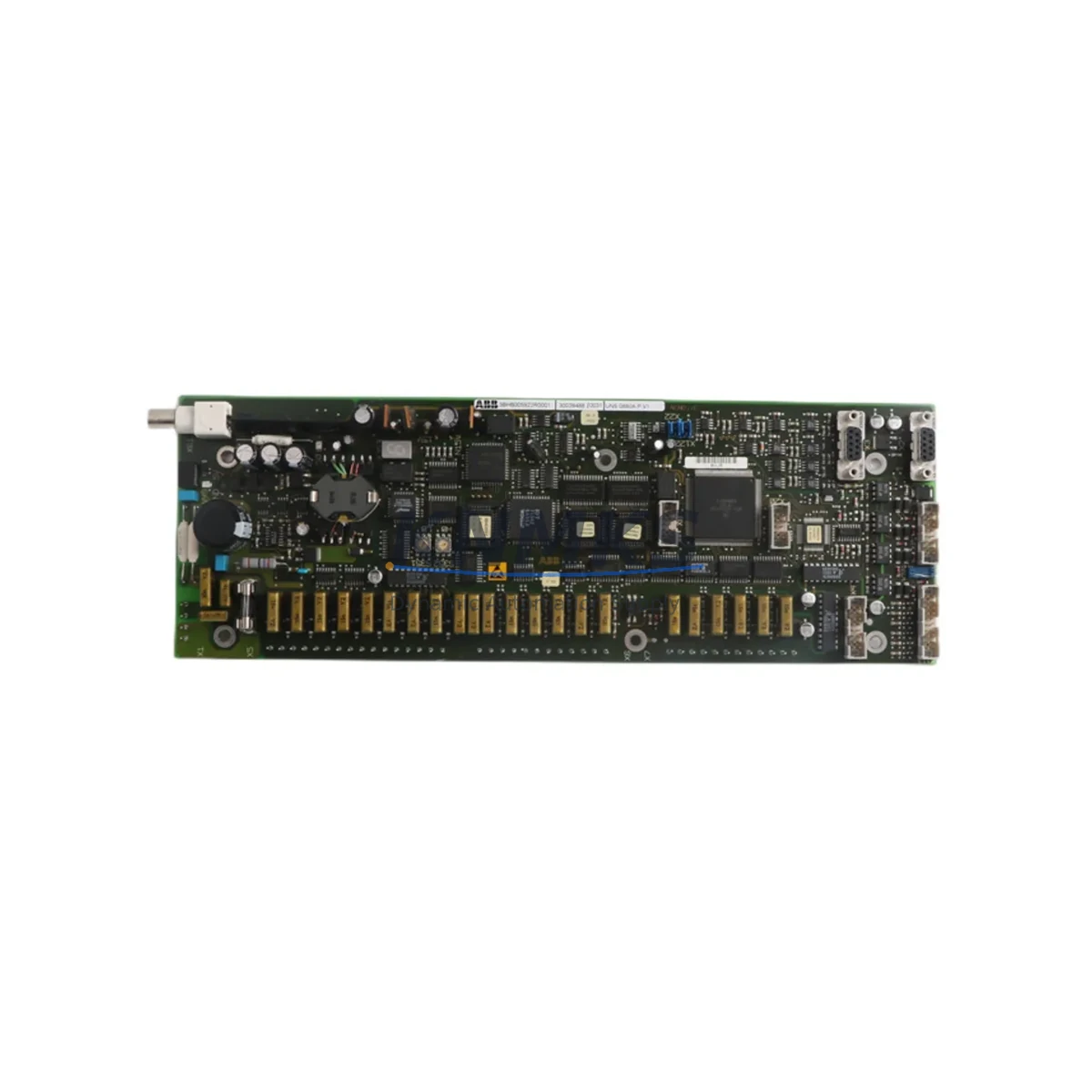

ABB 3BHB005922R0001 Migration-Ready DCS Interface Board

Overview

ABB 3BHB005922R0001 Migration-Ready DCS Interface Board for Legacy Control Systems

The ABB 3BHB005922R0001 (UNS0880A-P) is a DCS interface board engineered for seamless integration into ABB’s AC800M and AC450 distributed control system platforms. As legacy automation infrastructure ages and OEM support windows close, this board has become a critical component in retrofit projects, emergency spare-part sourcing, and planned system modernization programs across power generation, oil & gas, pulp & paper, and heavy manufacturing sectors.

Whether you are executing a like-for-like replacement of a failed board, extending the operational life of an existing control cabinet, or bridging a legacy system toward a phased migration, the 3BHB005922R0001 provides the electrical and logical compatibility required to restore control continuity without forcing a full platform overhaul. Each unit in our inventory has been inspected, function-tested, and verified against ABB’s published interface specifications before dispatch.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit involving the ABB 3BHB005922R0001 requires a structured pre-installation audit of the surrounding control architecture. Before the board is physically installed, engineers should confirm the available power budget on the 24 VDC rail feeding the I/O rack — particularly in cabinets where additional modules such as the ABB AI810 analog input module or the ABB DI810 digital input module have been added since the original system commissioning. Overloaded power rails are a common cause of intermittent faults after board replacement and are frequently misdiagnosed as module failure.

Terminal block wiring should be documented photographically and verified against the original loop drawings before any module is removed. In systems where the ABB TB820 Modulebus Optical Port has been used to extend the I/O bus across cabinet boundaries, the optical link budget and fiber connector condition should be inspected as part of the retrofit scope. Degraded fiber connections can cause communication timeouts that appear as board faults after installation of a new interface module.

For sites running PROFIBUS DP as the field communication backbone, the bus termination resistors at both ends of the segment must be confirmed active and correctly valued. When the 3BHB005922R0001 is installed in a segment that also includes third-party PROFIBUS slaves or ABB CI854 PROFIBUS DP Interface modules, the GSD file library on the engineering station should be reviewed to ensure all device descriptions are current. Mismatched GSD versions are a known source of configuration errors during commissioning.

Where the existing system uses an ABB PM864A or PM865A processor module as the AC800M controller, the application program stored in the controller’s non-volatile memory should be backed up to the engineering workstation before the interface board is replaced. This backup protects against accidental program loss during power cycling and provides a verified restore point if the new board requires a full cold-start initialization sequence.

In control cabinets where physical space is constrained, the installation footprint of the 3BHB005922R0001 should be measured against available rack slots. If the adjacent slot is occupied by an ABB AO810 analog output module or a signal isolator barrier, confirm that the module extraction and insertion sequence does not disturb live I/O channels connected to critical process loops. Partial I/O shutdown procedures should be agreed with the process control team before work begins.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any DCS interface board replacement. For the ABB 3BHB005922R0001, the recommended approach is a cold-swap procedure executed during a scheduled maintenance window, with the application program pre-loaded and verified on the engineering workstation before the maintenance window opens.

Prior to shutdown, all active control loops that depend on I/O channels routed through the interface board should be placed in manual mode at the operator station. HMI faceplates and alarm group assignments linked to the affected I/O tags should be documented so that post-swap verification can be completed systematically rather than reactively. In facilities using ABB System 800xA as the supervisory layer, the Asset Optimization and Event Log functions provide a structured record of pre-swap baseline conditions that simplifies post-swap comparison.

After physical installation, the board address switches or software node address configuration — depending on the firmware revision of the host controller — must be set to match the original module address before the controller is powered on. Address conflicts with other modules on the same Modulebus segment will prevent the controller from completing its startup sequence and will generate a hardware fault alarm that can be misread as a defective replacement board.

Once the controller has completed its startup sequence, the application program should be downloaded from the engineering workstation and a full I/O channel scan performed to verify that all analog and digital signals are reading within expected ranges. Any channel that returns an out-of-range or fault status should be investigated at the field terminal before the loop is returned to automatic control. This structured verification sequence typically adds 30 to 90 minutes to the maintenance window but eliminates the risk of returning a process loop to automatic control with an undetected wiring or configuration fault.

Our pre-shipment testing protocol ensures that each 3BHB005922R0001 unit is powered, initialized, and verified for correct bus communication before dispatch, reducing the probability of a board-related fault during the commissioning phase of the maintenance window.

Retrofit Support FAQ

Q1: Is the ABB 3BHB005922R0001 a direct replacement for the original UNS0880A-P installed in my AC800M system?
Yes. The 3BHB005922R0001 is the ABB part number for the UNS0880A-P interface board. Both designations refer to the same hardware revision. Before ordering, confirm the revision suffix on the label of the board being replaced to ensure full compatibility with your specific firmware version.

Q2: What commissioning steps are required after installing the replacement board?
After physical installation and address configuration, download the application program from the AC800M Engineering Workplace, perform a full I/O channel scan, verify HMI tag assignments, and confirm PROFIBUS or Modulebus communication status on all connected segments. Place each affected control loop in manual mode before the swap and return to automatic only after channel verification is complete.

Q3: Can this board be used in an ABB AC450 system as well as an AC800M system?
The 3BHB005922R0001 is primarily specified for AC800M applications. Use in AC450 environments requires verification of backplane connector compatibility and firmware support. Contact our technical team with your AC450 system revision details for a compatibility assessment before ordering.

Q4: What does the support terms confirmed by quotation cover, and what is your stock availability?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of dispatch. We maintain ready stock of the 3BHB005922R0001 to support urgent replacement requirements. Units are dispatched with a test report and packing list. Contact our team for current lead time and quantity availability.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHB005922R0001 UNS0880A-P
AC800M Series

Product Family

Relays & Interface

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Interface range

Relays, isolation and signal modules

Common needs

Coil voltage and contact rating

Project support

Panel wiring and signal protection

Inquiry Support

• Relay base and module matching
• Signal isolation and protection options
• Panel accessory inquiry support

What to Send Us

• Brand and exact model number: ABB 3BHB005922R0001 UNS0880A-P
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
