ABB 3BHE004573R0143 UFC760 BE143 Maintenance-Proven Spare Part

Overview

ABB 3BHE004573R0143 UFC760 BE143 Maintenance-Proven Spare Part for Factory Uptime

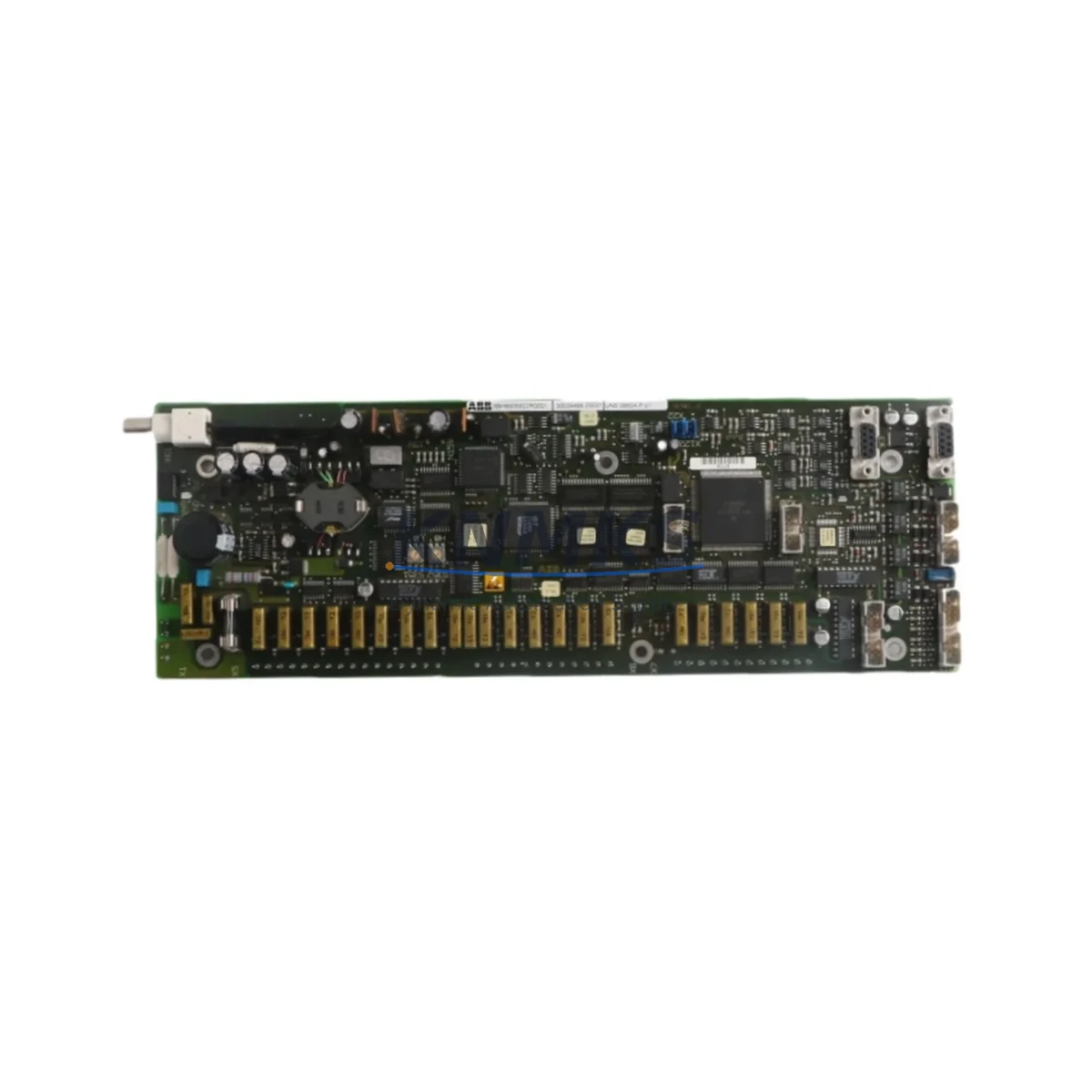

The ABB 3BHE004573R0143 — designated UFC760 BE143 — is an original DCS interface board engineered for the ABB AC800M controller platform. Designed for continuous-duty industrial environments, this board serves as the critical communication and I/O interface layer between the AC800M processor module and field-level instrumentation, actuators, and distributed I/O clusters. For maintenance engineers managing process automation systems in power generation, oil & gas, pulp and paper, or chemical processing, maintaining a verified spare of this board is a non-negotiable element of any uptime-first maintenance strategy.

When a UFC760 BE143 interface board fails or degrades, the consequences extend beyond a single controller: entire process segments can lose visibility, alarm management becomes unreliable, and emergency shutdown sequences may be compromised. Rapid replacement with a pre-tested, original ABB spare eliminates the diagnostic uncertainty that comes with counterfeit or refurbished alternatives. Every unit dispatched from our inventory undergoes pre-shipment functional verification, ensuring the board arrives ready for immediate installation without additional bench testing on-site.

Our stock of the ABB 3BHE004573R0143 UFC760 BE143 is maintained as a forward buffer specifically to support emergency callouts, planned annual shutdowns, and long-term supply agreements. With global dispatch capability and a support terms confirmed by quotation covering manufacturing defects and operational failure under normal use conditions, procurement engineers can close purchase orders with confidence — knowing that lead-time risk is absorbed at the supplier level, not passed back to the plant.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ABB 3BHE004573R0143 UFC760 BE143 in the field is rarely an isolated task. Experienced maintenance engineers treat an interface board replacement as a trigger for a broader control cabinet inspection. Before declaring the system restored, the following associated components should be verified or replaced as part of the same maintenance window:

The ABB PM856 or PM864 processor module seated on the same AC800M rack should be inspected for firmware currency and battery backup status — a degraded processor module can cause recurring interface board faults that are misdiagnosed as hardware failures. The TB820 or TB840 termination board connected to the UFC760 BE143 should be checked for terminal corrosion, loose field wiring, and correct shield grounding, as poor termination is a leading cause of premature interface board failure.

The 24 VDC power supply module feeding the AC800M backplane — typically an ABB SD831 or SD832 — should be load-tested during the maintenance window. Voltage ripple or marginal output capacity accelerates wear on interface board logic circuits. If the cabinet includes an ABB CI854 or CI857 PROFIBUS communication interface module, its diagnostic LEDs and bus termination resistors should be confirmed operational, as communication faults on the fieldbus can cascade into false interface board alarms.

For systems using distributed I/O, the ABB S800 I/O modules (AI810, AO810, DI810, DO810 series) connected downstream of the UFC760 BE143 should be scanned for channel faults and calibration drift. Fuse holders and miniature circuit breakers on the 24 VDC distribution rail should be inspected for thermal discoloration indicating sustained overcurrent events. Finally, if the cabinet includes an ABB CP430 or CP600 HMI panel communicating with the AC800M, a communication link test should be performed post-replacement to confirm end-to-end system integrity before returning the process loop to automatic control.

Site Replacement Workflow

The UFC760 BE143 interface board is a hot-swap-capable module on supported AC800M configurations, but site replacement procedures must follow the plant’s management-of-change protocol. The recommended workflow for minimizing downtime is as follows:

Step 1 — Pre-replacement verification: Confirm the replacement board part number (3BHE004573R0143) matches the installed unit exactly. Cross-reference the AC800M hardware configuration file in ABB Control Builder to confirm the slot assignment and I/O mapping. Download and archive the current controller configuration before any hardware change.

Step 2 — Safe isolation: Place the affected controller in manual or fallback mode per your site’s safety procedures. Notify the control room of the impending maintenance action. For redundant AC800M configurations, verify that the standby controller has assumed control before proceeding.

Step 3 — Board extraction and installation: Release the module locking lever, extract the UFC760 BE143 from its backplane slot, and insert the replacement unit until the locking lever engages. Avoid touching the board’s edge connectors. Confirm the module LED status sequence matches the expected power-on diagnostic pattern described in ABB document 3BSE036351.

Step 4 — Post-installation validation: Monitor the AC800M diagnostic log in Control Builder for any residual fault codes. Verify all downstream S800 I/O channels report correct values. Confirm PROFIBUS or Modulebus communication is re-established with all connected field devices. Return the controller to automatic mode only after all channel statuses are confirmed healthy.

Step 5 — Documentation: Record the replacement in the plant’s maintenance management system (CMMS), including the new board serial number, installation date, and pre-shipment test certificate reference. Update the spare parts inventory to trigger reorder of a replacement buffer unit.

Spare Parts Support FAQ

Q1: Is the 3BHE004573R0143 UFC760 BE143 compatible with all AC800M controller variants?
The UFC760 BE143 is designed for the ABB AC800M platform and is compatible with PM851, PM856, PM860, PM861, PM864, and PM866 processor modules when used with the corresponding S800 I/O backplane. Compatibility with specific firmware versions should be confirmed against the AC800M hardware compatibility matrix in ABB document 3BSE036351 or by contacting our technical support team prior to installation.

Q2: What does the support terms confirmed by quotation cover, and how is a support terms claim initiated?
The support terms confirmed by quotation cover manufacturing defects and operational failure under normal operating conditions as specified in ABB’s published environmental and electrical ratings for the UFC760 BE143. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the rated operating envelope. To initiate a support terms claim, contact [email protected] with the purchase order reference, installation date, and a description of the observed failure mode. Replacement or repair will be coordinated within 5 business days of claim receipt.

Q3: How should procurement engineers manage long-term supply risk for the 3BHE004573R0143?
The AC800M platform, while still supported by ABB, is a mature architecture and original spare availability will tighten over time as production volumes decline. Procurement engineers are advised to establish a minimum buffer stock of 1–2 units per installed AC800M rack and to consider a long-term supply agreement (LTSA) for guaranteed allocation. We maintain forward stock specifically to support LTSA customers with priority dispatch and price stability over 12–36 month contract periods. Contact [email protected] to discuss LTSA terms.

Q4: Can the UFC760 BE143 be used as a direct replacement for earlier UFC760 board revisions?
The BE143 revision designation indicates a specific hardware revision of the UFC760 board. In most AC800M installations, later revisions are backward-compatible with earlier revision slots, but this must be verified against the installed firmware version and the AC800M hardware release notes. If you are replacing a UFC760 board with a different revision suffix, we recommend confirming compatibility with ABB’s technical support or your system integrator before installation. Our team can assist with revision cross-reference checks prior to dispatch.
