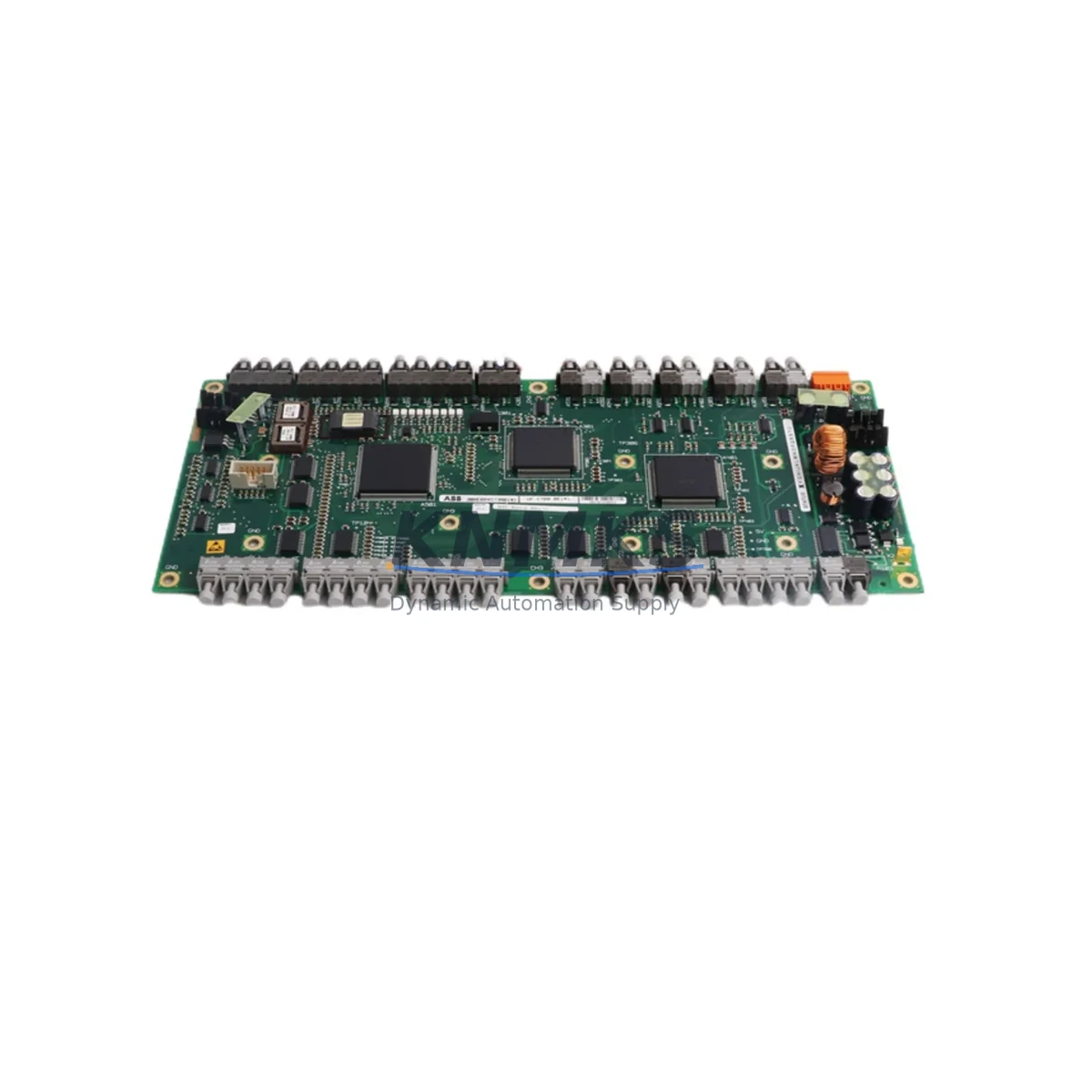

ABB 3BHE004573R0141 Migration-Ready Interface Board

Overview

ABB 3BHE004573R0141 Migration-Ready Interface Board for Legacy Control Systems

The ABB 3BHE004573R0141 (UFC760 BE141) is a migration-ready interface board engineered for industrial facilities undertaking legacy control system modernization, discontinued spare replacement, and control cabinet upgrades. Designed for integration within ABB’s AC800M and UNITROL control platforms, this interface board serves as a reliable drop-in replacement for aging or end-of-life components in power generation, drive control, and process automation environments.

As industrial plants extend the operational life of existing automation infrastructure, sourcing verified replacements for discontinued ABB modules becomes a critical procurement challenge. The 3BHE004573R0141 addresses this need directly — providing a functionally equivalent, tested interface board that supports continuity of control logic, signal integrity, and backplane communication without requiring full system redesign.

Whether your facility is replacing a failed UFC760 board in a running UNITROL excitation system, upgrading a legacy AC800M rack to extend service life, or consolidating spare inventory ahead of a planned shutdown, this module is stocked, tested, and ready for immediate deployment.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 3BHE004573R0141 into a legacy control environment requires systematic pre-installation verification across several interdependent system layers. Engineers and maintenance teams should approach the retrofit in structured phases to minimize risk and protect existing program logic.

Power and Cabinet Audit: Before installation, audit the control cabinet’s 24 VDC power supply — typically an ABB DSQC661 or equivalent PSU module — to confirm available current headroom. Adding or replacing an interface board in a densely populated rack can shift load distribution. Verify that the cabinet’s power budget accommodates the replacement without triggering under-voltage conditions on adjacent I/O modules or communication cards.

Backplane and Rack Verification: The 3BHE004573R0141 seats into the ABB S800 I/O backplane. Confirm the target rack slot address matches the module address configured in the existing AC800M project. Slot misassignment is a common commissioning error during legacy retrofits and will prevent the controller from recognizing the new board. If the original rack is an older TB820 or CI857 carrier, verify mechanical and electrical compatibility before insertion.

Terminal Wiring and Signal Integrity: The UFC760 BE141 interface board retains the original terminal block layout, simplifying field wiring reconnection. However, on systems that have been in service for 10 or more years, inspect all field cables for insulation degradation, terminal corrosion, and shield continuity. Signal isolation between the interface board and connected field instruments — particularly for analog inputs routed through legacy signal isolators — should be verified with a loop calibrator before returning the system to automatic control.

Communication Link Validation: In AC800M architectures, the interface board participates in the internal communication fabric alongside modules such as the CI854 PROFIBUS DP master or the CI856 FOUNDATION Fieldbus interface. After physical installation, use ABB Control Builder M to confirm that the module appears online in the hardware tree and that all configured I/O channels report valid process values. For UNITROL excitation applications, validate the communication link between the UFC760 board and the excitation controller before enabling automatic voltage regulation.

HMI Screen and Tag Mapping: If the plant HMI — whether an ABB Operate IT panel or a third-party SCADA system — references tags sourced from this interface board, verify that tag addresses remain consistent after replacement. A board swap that changes module slot assignment can silently break HMI data subscriptions, leading to stale or missing process displays without generating controller alarms.

Firmware and Project Download: After hardware installation, compare the firmware version on the replacement 3BHE004573R0141 against the version documented in the original project baseline. If a firmware update is required, perform it via Control Builder M in offline mode before downloading the application project. Avoid performing firmware updates and project downloads simultaneously on a live system.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any legacy control system retrofit. For facilities replacing the 3BHE004573R0141 in a running production environment, the following practices reduce exposure and protect control continuity.

Pre-Staging and Bench Verification: Configure and bench-test the replacement board before the scheduled maintenance window. Where possible, load the existing AC800M project onto a test rack and verify that the new interface board initializes correctly, reports expected I/O channel states, and communicates cleanly with the controller. This eliminates firmware and configuration surprises during the live replacement window.

Program Logic Backup: Export a full backup of the AC800M application project — including all function block diagrams, structured text routines, and hardware configuration — immediately before beginning physical work. Store the backup on an isolated engineering workstation, not on the controller itself. This ensures that if the replacement introduces unexpected behavior, the original program state can be restored within minutes.

Controlled Shutdown Sequence: For UNITROL excitation systems, coordinate the interface board replacement with the plant’s electrical operations team. The excitation system must be de-energized and the generator taken offline before the UFC760 board is removed. Attempting a hot-swap on an energized excitation rack risks damage to the replacement board and connected field equipment.

Phased Return to Service: After installation, return the system to service in manual control mode first. Verify all I/O channel readings against field instrument values before switching to automatic control. This phased approach catches wiring errors, address conflicts, and signal scaling issues before they affect the controlled process.

Post-Commissioning Documentation: Update the plant’s as-built documentation to reflect the replacement, including the new module serial number, firmware version, installation date, and commissioning engineer sign-off. Accurate records reduce diagnostic time during future maintenance events and support support terms claim processing if required within the 12-month coverage period.

Retrofit Support FAQ

Q1: Is the 3BHE004573R0141 a direct replacement for the original UFC760 BE141 interface board?
Yes. The 3BHE004573R0141 is the manufacturer part number for the UFC760 BE141 interface board. It is a direct form-fit-function replacement for failed or end-of-life units in AC800M and UNITROL control systems. No hardware modifications or wiring changes are required, provided the replacement is installed in the correct rack slot with the correct module address configured in the AC800M project.

Q2: What pre-shipment testing is performed on each unit?
Each 3BHE004573R0141 unit undergoes functional testing prior to dispatch. Testing verifies board initialization, communication interface integrity, and I/O channel response. A test record is available upon request. All units are shipped with support terms confirmed by quotation coverage against manufacturing defects and functional failure under normal operating conditions.

Q3: How do I confirm firmware compatibility before installation?
Check the firmware version label on the replacement board and compare it against the firmware version documented in your existing AC800M project baseline or the original board’s asset record. If the versions differ, use ABB Control Builder M to perform a firmware update in offline mode before downloading the application project. Contact our technical team with your project version details if you require pre-shipment firmware alignment.

Q4: What is the typical lead time and do you maintain stock?
The 3BHE004573R0141 is maintained availability confirmed by RFQ for immediate dispatch. Standard lead time for stocked units is 1–3 business days for domestic shipments. For urgent replacement requirements — including emergency breakdown situations — contact our sales team directly to confirm availability and arrange expedited shipping. All units are covered by a support terms confirmed by quotation from the date of shipment.
