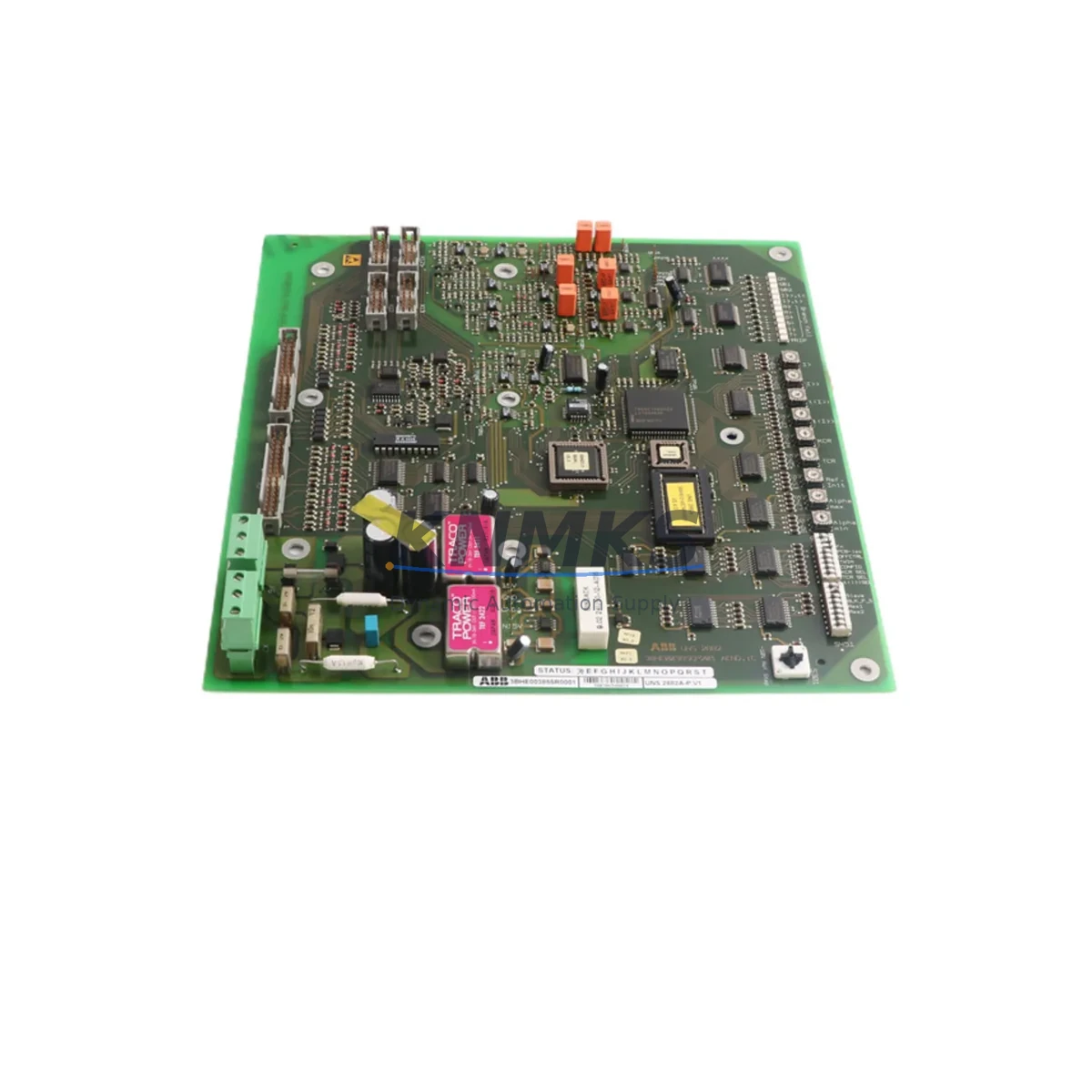

ABB 3BHE003855R0001 Migration-Ready Excitation Interface Board

Overview

ABB 3BHE003855R0001 Migration-Ready Excitation Interface Board for Legacy Control Systems

The ABB 3BHE003855R0001 (UNS2882A-P, V1) is a critical excitation interface board designed for use within ABB’s AC800M Distributed Control System (DCS) platform. As industrial facilities face increasing pressure to modernize aging control infrastructure, this module serves as a direct, migration-ready replacement for obsolete or end-of-life excitation interface components in power generation, drive control, and process automation environments. Whether you are executing a full DCS migration, restoring a failed control cabinet, or extending the operational life of an existing automation system, the 3BHE003855R0001 provides a verified, compatible solution that minimizes engineering risk and reduces unplanned downtime.

This board interfaces directly with ABB’s excitation control architecture, managing the signal conditioning and interface functions between the excitation controller and the broader DCS backplane. Before installing this module as a replacement, engineers should confirm the following: available backplane slot addressing, terminal wiring compatibility with existing field cables, power supply rail capacity (typically 24 VDC auxiliary), firmware version alignment with the host controller, and HMI faceplate mapping if excitation status signals are displayed on operator workstations. Failure to verify these parameters prior to installation can result in address conflicts, signal loss, or extended commissioning time.

In retrofit projects involving the ABB AC800M controller family, the 3BHE003855R0001 is commonly deployed alongside the PM865 or PM866 processor modules, which serve as the central processing units for the control rack. I/O expansion is typically handled through S800 I/O modules such as the AI810 analog input or DI810 digital input cards, which may also require replacement or reconfiguration during a system upgrade. Communication continuity is maintained through the CI854 PROFIBUS DP communication interface or the CI857 HART interface module, depending on the field device protocol in use. Ensuring that these communication modules are firmware-compatible with the replacement excitation board is essential before energizing the upgraded rack.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ABB 3BHE003855R0001 into an existing control system requires a structured retrofit plan that accounts for both hardware and software dependencies. In most legacy AC800M installations, the excitation interface board occupies a dedicated slot within the main control rack, and its replacement must be coordinated with the rack’s module addressing scheme to avoid conflicts with adjacent I/O or communication modules.

Power budget verification is a mandatory first step. The existing 24 VDC power supply module — often an ABB SD821 or SD822 — must have sufficient headroom to support the replacement board without triggering overcurrent protection. If the power rail is already near capacity due to added I/O expansion modules or signal isolators, a supplementary power supply may be required before the retrofit can proceed safely.

Terminal wiring compatibility must also be confirmed against the original as-built drawings. In many legacy installations, field cables are terminated using ABB TB820 or TB825 termination boards, and the wiring scheme must match the pinout of the replacement excitation interface board. Any discrepancy in terminal assignment will require rewiring or the use of signal adapter cables, which adds time to the commissioning phase.

For facilities running PROFIBUS DP networks, the CI854 communication interface module must be checked for firmware compatibility with the replacement board. Similarly, if HART-enabled field instruments are connected through a CI857 module, the HART pass-through configuration should be validated in the engineering workstation before the system is returned to service. In some cases, the ABB Control Builder M engineering software will require a project download to the PM865 or PM866 processor after the hardware swap to re-establish module recognition and I/O mapping.

Signal isolation requirements should also be reviewed. If the existing installation includes third-party signal isolators between the excitation board and field transmitters, their input/output ranges must be verified against the replacement module’s signal specifications to prevent range mismatches that could affect control accuracy or trigger process alarms during startup.

Downtime Control During System Migration

Minimizing production downtime during an excitation interface board replacement is a primary concern for plant engineers and maintenance teams. The ABB 3BHE003855R0001 is supplied pre-tested and ready for installation, which eliminates the need for bench-level hardware verification and reduces the time between module receipt and rack installation.

Before initiating the physical swap, the existing control program should be backed up from the PM865 or PM866 processor using ABB Control Builder M. This backup preserves all function block configurations, I/O assignments, and communication parameters, ensuring that the program can be restored immediately if the replacement module requires a re-download. Maintaining a current program backup is the single most effective measure for protecting against extended downtime during any hardware replacement activity.

Where process conditions permit, a hot-standby or redundant control path should be activated before the defective module is removed. In AC800M systems configured with redundant processor pairs, the standby processor can assume control while the primary rack is serviced, maintaining field control continuity without a process shutdown. If redundancy is not available, a planned maintenance window should be scheduled during a low-demand production period to limit the operational impact of the outage.

After installation, the replacement board should be powered up with the rack in a controlled state, with all output modules held in manual or safe-state mode until the module is recognized by the processor and all I/O signals are verified against the process values recorded before the shutdown. This staged commissioning approach reduces the risk of spurious output signals or unexpected actuator movement during the initial power-on sequence, protecting both personnel and process equipment.

All replacement modules supplied by KNMKS are subject to outgoing functional testing prior to shipment, which includes power-on verification and basic signal path checks. This pre-shipment testing reduces the probability of receiving a non-functional module and supports faster on-site commissioning. In-stock units are typically dispatched within 1–3 business days, supporting urgent maintenance and emergency replacement requirements.

Retrofit Support FAQ

Q1: Is the ABB 3BHE003855R0001 a direct drop-in replacement for the original UNS2882A-P V1 board?
Yes. The 3BHE003855R0001 carries the UNS2882A-P, V1 designation and is designed as a form-fit-function replacement for the original module. However, engineers should verify the firmware version of the host AC800M processor and confirm that the slot address configuration matches the original installation before powering up the replacement board.

Q2: What wiring checks are required before installing this excitation interface board?
Verify terminal assignments against the original as-built drawings and confirm compatibility with the existing termination board (e.g., TB820 or TB825). Check that field cable shielding is intact and that all signal wires are correctly landed before energizing the module. If the original wiring documentation is unavailable, a point-to-point continuity check is recommended before installation.

Q3: Does KNMKS provide functional testing before shipment?
Yes. All modules are subject to outgoing inspection and functional testing prior to dispatch. Units are verified for power-on operation and basic signal integrity. Each module is supplied with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Support requests are supported by KNMKS technical staff.

Q4: What is the typical lead time and availability for the 3BHE003855R0001?
KNMKS maintains inventory of the ABB 3BHE003855R0001 for immediate dispatch. In-stock units are typically shipped within 1–3 business days. For urgent requirements or bulk procurement, contact the sales team directly to confirm current stock levels and expedited shipping options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHE003855R0001 UNS2882A-P,V1
AC800M Series

Product Family

Relays & Interface

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Interface range

Relays, isolation and signal modules

Common needs

Coil voltage and contact rating

Project support

Panel wiring and signal protection

Inquiry Support

• Relay base and module matching
• Signal isolation and protection options
• Panel accessory inquiry support

What to Send Us

• Brand and exact model number: ABB 3BHE003855R0001 UNS2882A-P,V1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
