ABB CI840 3BSE022457R1 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB CI840 3BSE022457R1 Maintenance-Proven Spare Part for Factory Uptime

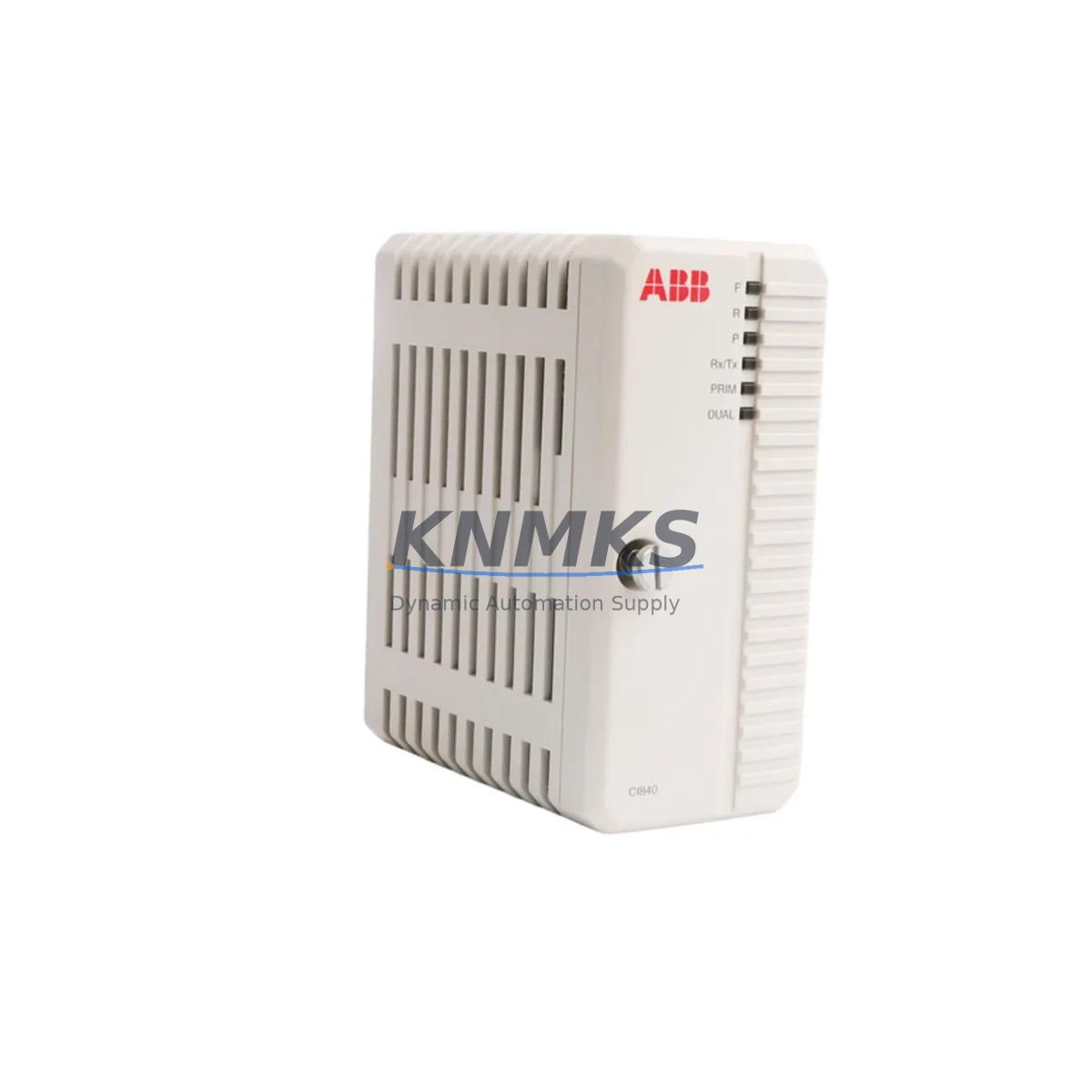

The ABB CI840 (3BSE022457R1) is a PROFIBUS DP interface module designed for the AC800M Distributed Control System platform. As a critical communication bridge between the AC800M controller and field devices, this module plays a central role in maintaining uninterrupted process control across manufacturing, power generation, chemical processing, and oil & gas facilities. Sourced directly from verified supply channels, each unit is inspected and tested prior to shipment, backed by a support terms confirmed by quotation, and available for global delivery details confirmed by RFQ to minimize your plant downtime.

For maintenance engineers managing aging DCS infrastructure, the CI840 3BSE022457R1 represents one of the highest-priority spare parts to hold availability confirmed by RFQ. PROFIBUS DP communication faults are among the most disruptive failure modes in process automation — a single failed interface module can isolate entire I/O segments, triggering unplanned shutdowns. Keeping a verified replacement on the shelf is the most effective insurance against extended outages.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling preventive maintenance or responding to a PROFIBUS DP segment fault involving the CI840 3BSE022457R1, a thorough site inspection should extend beyond the module itself. Maintenance engineers should simultaneously verify the condition of the AC800M processor module (such as the PM864 or PM866) to rule out upstream controller faults that may have contributed to the communication failure. The TB840 PROFIBUS DP termination board and associated PROFIBUS cable connectors should be inspected for impedance issues, loose termination resistors, or cable shielding breaks that can cause intermittent segment dropouts.

The SD821 or SD822 power supply modules feeding the AC800M rack should be load-tested; an under-voltage condition on the 24 VDC backplane rail is a common root cause of spurious module resets. If the control cabinet houses S800 I/O modules (such as AI810, AO810, DI810, or DO810), their status LEDs and diagnostic registers should be reviewed during the same maintenance window — a CI840 replacement is an ideal opportunity to audit the entire I/O segment health.

For systems with redundant PROFIBUS configurations, the CI840A redundancy cable and the secondary CI840 module should both be inspected to ensure failover capability is intact. Communication modules such as the CI854 IEC 61850 interface or CI857 HART interface installed in adjacent slots should also be checked for firmware version compatibility following any controller or OS upgrade. Finally, review the cabinet ventilation filters and fan units — thermal stress is a leading cause of premature module failure in high-density AC800M installations.

Site Replacement Workflow

Replacing the CI840 3BSE022457R1 in an active AC800M system requires careful sequencing to minimize process impact. Begin by exporting the current PROFIBUS DP configuration from ABB Control Builder M and documenting all slave device GSD files and node addresses. If the system supports hot-swap, verify that the redundant CI840 (if fitted) has assumed master control before removing the faulty unit.

Power down the affected module slot using the rack’s local isolation procedure. Remove the CI840 and inspect the backplane connector for bent pins or contamination. Insert the replacement 3BSE022457R1, ensuring the module locks firmly into the backplane. Restore power and observe the module’s RUN LED — a solid green indicates successful initialization. Re-download the PROFIBUS DP configuration via Control Builder M and verify all slave devices return to cyclic data exchange. Conduct a full I/O loop check on critical signals before releasing the segment back to process control.

This workflow is compatible with AC800M systems running Advant Controller firmware and is applicable to both simplex and redundant PROFIBUS DP configurations. The CI840 3BSE022457R1 is a direct OEM replacement for earlier CI840 revisions, requiring no hardware modification or GSD file update in most installations.

Spare Parts Support FAQ

Q1: Is the CI840 3BSE022457R1 compatible with all AC800M controller variants?
The CI840 is designed for the AC800M platform and is compatible with PM851, PM856, PM860, PM861, PM864, and PM866 processor modules. Compatibility with specific firmware versions should be verified against the ABB AC800M Hardware Unit Manual. Units supplied by KNMKS are OEM-grade and carry the original ABB hardware revision.

Q2: How is each CI840 3BSE022457R1 tested before shipment?
Every unit undergoes a pre-shipment functional inspection covering backplane connector integrity, LED diagnostic verification, and communication port continuity. Units that do not pass inspection are not shipped. A support terms confirmed by quotation cover all hardware defects from the date of delivery.

Q3: Can the CI840 replace older PROFIBUS DP interface modules in legacy AC800M systems?
Yes. The CI840 3BSE022457R1 is backward-compatible with earlier CI840 hardware revisions and can be used as a direct replacement in existing AC800M racks without requiring backplane or wiring modifications. For systems running older Control Builder M versions, a firmware compatibility check is recommended prior to installation.

Q4: What is the long-term supply availability for the CI840 3BSE022457R1?
KNMKS maintains ongoing stock of the CI840 3BSE022457R1 to support long-term maintenance programs and annual inspection schedules. For customers managing large AC800M installations, we recommend establishing a blanket order or consignment stock arrangement to ensure availability during critical maintenance windows. Contact our team to discuss volume pricing and dedicated inventory reservation.
