ABB ACS141-K37-1 Migration-Ready VFD for Legacy Control Systems

Overview

ABB ACS141-K37-1 Migration-Ready VFD for Legacy Control Systems

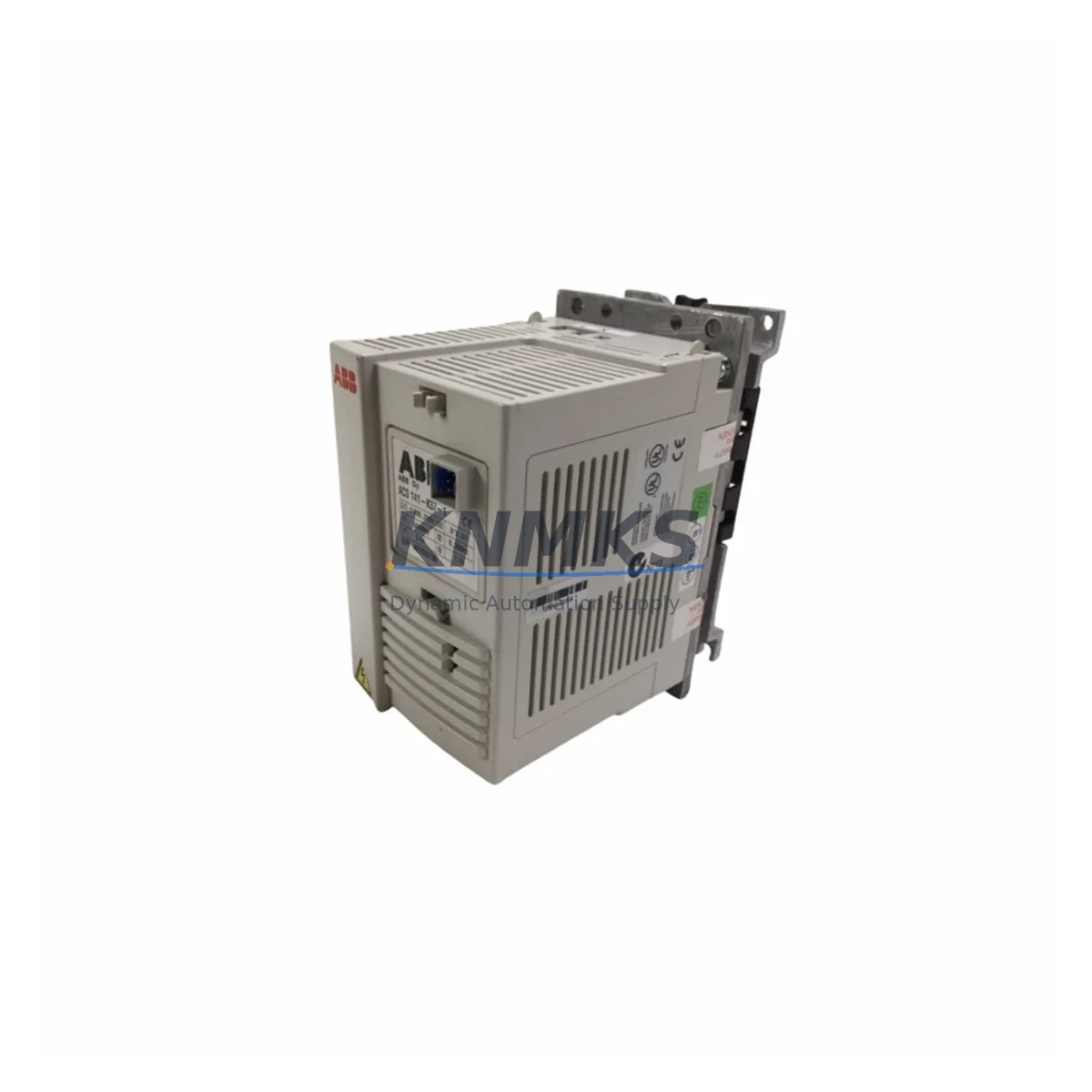

The ABB ACS141-K37-1 is a 0.37 kW single-phase input variable frequency drive designed as a direct migration-ready replacement for legacy ACS141 series installations. As ABB has progressively phased out the ACS141 product line, facilities running aging conveyor systems, pump stations, HVAC units, and light-duty motor control panels face increasing pressure to source verified replacement units before scheduled maintenance windows close. The ACS141-K37-1 addresses this gap with a pre-tested, warehouse-stocked unit that ships globally with a support terms confirmed by quotation and full pre-shipment functional verification.

Engineers planning a retrofit or emergency replacement will find the ACS141-K37-1 particularly valuable in scenarios where the original drive has failed mid-cycle and downtime must be contained within a single shift. Because the ACS141 series uses a compact DIN-rail or panel-mount form factor, installation space is typically constrained — the ACS141-K37-1 preserves the original footprint, eliminating the need for enclosure modification or new cable tray routing. Terminal block layout follows the standard ACS141 wiring convention, meaning existing motor cables, control signal wiring (0–10 V or 4–20 mA analog references), and digital I/O connections can be reconnected without re-termination in most cases.

Before powering up the replacement unit, commissioning teams should verify the incoming supply voltage (230 V AC single-phase), confirm that the motor nameplate data matches the drive’s output rating, and check that any upstream ABB ACS55 or ACS150 drives sharing the same control panel bus are not introducing ground loop interference. Parameter migration from the failed unit — including acceleration ramp time, deceleration ramp time, minimum and maximum frequency limits, and motor protection thresholds — should be re-entered manually or restored from a previously saved parameter backup if the original drive’s keypad or PC tool export is available.

For sites transitioning from older ABB ACS100 or ACS140 series drives to the ACS141-K37-1, the migration path is straightforward but requires attention to control terminal mapping differences. The ACS141 series introduced revised digital input logic compared to the ACS100, so relay output wiring and external fault reset circuits should be re-verified against the ACS141 wiring diagram before energizing. If the control system includes an ABB CP600 HMI panel or a third-party SCADA interface communicating via Modbus RTU, the drive address, baud rate, and parity settings must be reconfigured to match the existing network topology.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ACS141-K37-1 retrofit begins with a thorough audit of the existing control cabinet. Engineers should document the current wiring scheme, including the 24 V DC control power supply feeding the drive’s logic board, the analog reference signal source (typically from a PLC analog output module or a dedicated setpoint potentiometer), and the status of any external braking resistor connections. In multi-drive panels where the ACS141-K37-1 shares a common DC bus or a shared EMC filter with adjacent drives, the filter’s rated current capacity must be re-confirmed after the swap to avoid nuisance tripping.

Sites running ABB ACS310 or ACS355 drives in adjacent control zones often use the same Modbus RTU segment, and the ACS141-K37-1 must be assigned a unique node address before being brought online to prevent address conflicts. If the facility uses an ABB AC500 PLC as the master controller, the function block library used for drive communication should be validated against the ACS141 Modbus register map — minor register offset differences between the ACS141 and older ACS100 series can cause incorrect speed reference scaling if not corrected in the PLC program.

For installations where the original drive was connected to an ABB ACS-AP-I assistant control panel or a basic keypad, the replacement unit should be verified for keypad compatibility before the outage window begins. Signal isolators installed between the PLC analog output and the drive’s AI1 terminal should be checked for output range compatibility (0–10 V vs 4–20 mA) to ensure the speed reference signal is correctly scaled after the replacement. Where a programming cable (USB-to-RS485 or the ABB OPCA-01 adapter) is used for parameter backup and restore, the cable driver compatibility with the site’s laptop OS should be confirmed in advance to avoid delays during the commissioning phase.

Downtime Control During System Migration

Minimizing downtime during an ACS141-K37-1 swap requires pre-staging the replacement unit with all parameters pre-loaded before the maintenance window opens. Where the original drive’s parameter set is recoverable — either from a keypad upload, a Drive Composer PC tool export, or a handwritten commissioning record — the replacement unit can be pre-configured on the bench and verified against a test motor before being transported to the installation site.

During the physical swap, the recommended sequence is: isolate and lock out the incoming supply, photograph the existing terminal wiring before disconnection, remove the failed drive, install the ACS141-K37-1 in the same mounting position, reconnect all terminals in reverse order of removal, and perform a low-speed no-load test run before restoring the process to full speed. This sequence protects the original program logic in the upstream PLC — since the drive swap does not affect the PLC’s internal program, the control system can resume normal operation immediately after the drive is confirmed functional.

For critical processes where even a brief interruption is unacceptable, a bypass contactor scheme can be pre-wired to allow the motor to run across-the-line during the drive swap interval. Once the ACS141-K37-1 is installed and verified, the bypass is removed and the drive resumes speed control. This approach is particularly effective in water treatment, HVAC, and food processing applications where continuous motor operation is a process requirement. All units are pre-tested at our facility before dispatch, and each ACS141-K37-1 ships with a test report confirming output voltage balance, current draw at rated load, and control terminal functionality.

Retrofit Support FAQ

Q: Is the ACS141-K37-1 a direct drop-in replacement for my existing ACS141 series drive?
A: Yes. The ACS141-K37-1 shares the same power rating, input supply specification, mounting footprint, and terminal layout as the original ACS141 series. In most installations, existing motor cables and control wiring can be reconnected without modification. If you are migrating from an ACS100 or ACS140, minor terminal mapping differences apply — contact our technical team with your existing wiring diagram for a pre-swap verification.

Q: Has the unit been tested before shipment?
A: Every ACS141-K37-1 unit undergoes pre-shipment functional testing at our facility, including output voltage verification, control terminal response, and no-load run confirmation. A test report is included with each shipment. Units are covered by a support terms confirmed by quotation from the date of dispatch.

Q: What parameters do I need to re-enter after installing the replacement drive?
A: At minimum, you will need to re-enter motor nameplate data (rated voltage, current, frequency, speed), acceleration and deceleration ramp times, minimum and maximum frequency limits, and any analog input scaling values. If the drive communicates via Modbus RTU, the node address, baud rate, and parity settings must also be reconfigured. We recommend backing up the original drive’s parameter set before removal if the drive is still partially functional.

Q: Do you hold stock for immediate dispatch?
A: Yes. The ACS141-K37-1 is maintained in multi-region stock to support emergency replacement and scheduled outage requirements. Standard lead time for in-stock units is 1–3 business days for international express shipment. Contact us at [email protected] or +86 18359268345 to confirm current availability and arrange priority dispatch.
