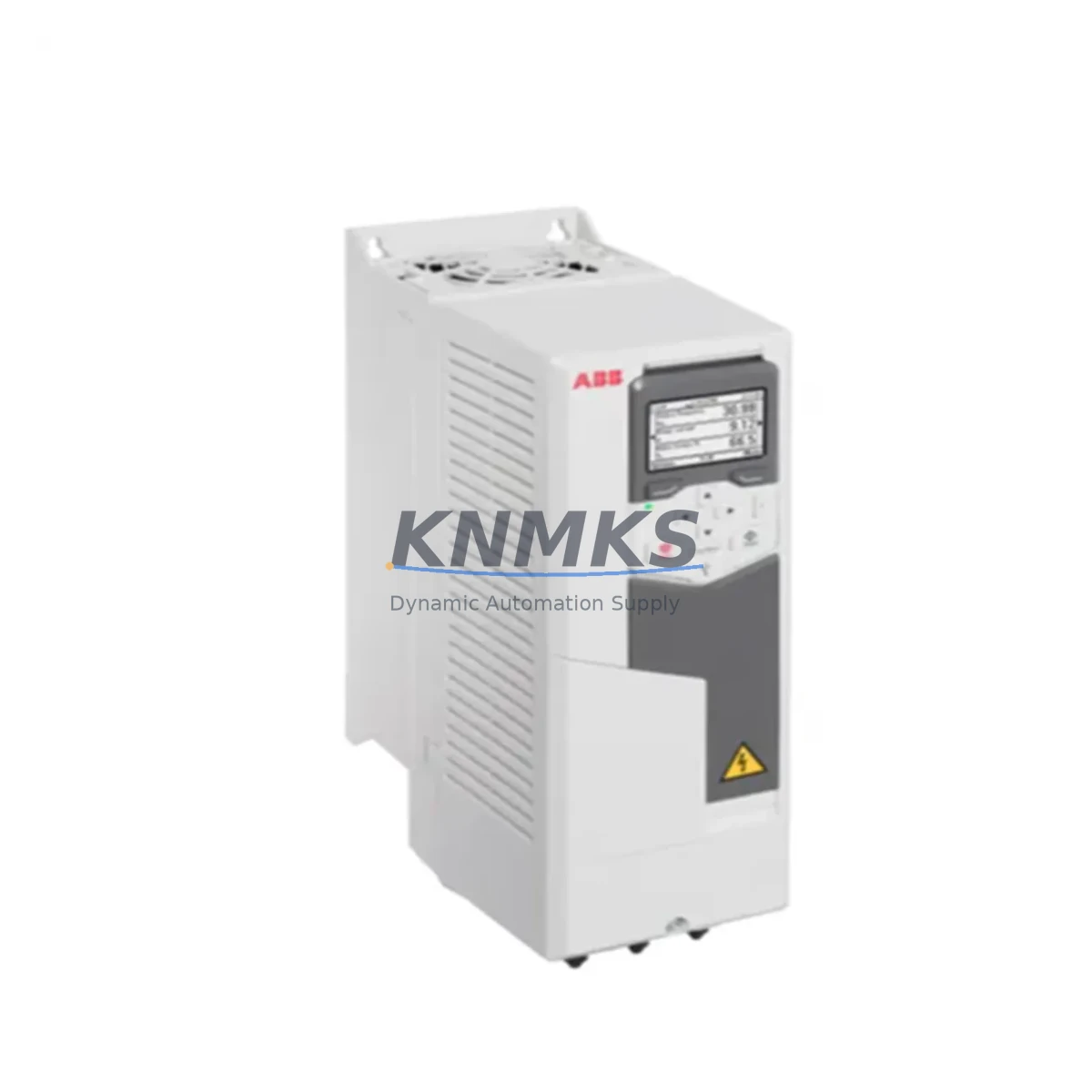

ABB ACH580-PDR-027A-4+B056 Migration-Ready VFD for Legacy Control Systems

Overview

ABB ACH580-PDR-027A-4+B056 Migration-Ready VFD for Legacy Control Systems

The ABB ACH580-PDR-027A-4+B056 is a 27A, 480V three-phase variable frequency drive from ABB’s ACH580 PDR Series, factory-configured with the B056 fused disconnect option. Designed as a migration-ready replacement for aging HVAC and pump drive platforms, this unit supports direct substitution for legacy ABB ACS550, ACS310, and ACS355 series drives that have reached end-of-life or are no longer supported under active firmware maintenance. For facilities managing multi-drive control cabinets, the ACH580-PDR-027A-4+B056 provides a structured upgrade path that preserves existing motor wiring, conduit routing, and panel footprint while delivering modern energy optimization, embedded I/O, and fieldbus connectivity.

Before initiating a retrofit, engineers should verify the existing panel’s available power capacity against the ACH580’s input current draw at full load. The B056 fused disconnect simplifies NEC compliance and eliminates the need for an external upstream disconnect in many installations. Terminal block compatibility should be confirmed against the legacy drive’s wiring diagram — the ACH580 PDR Series uses a standard terminal layout that aligns with most ACS550 and ACS310 field wiring, but wire gauge and torque specifications must be re-verified per the ACH580 hardware manual. If the existing system uses an ABB RDNA-01 DeviceNet adapter or RPBA-01 PROFIBUS module, these are not forward-compatible with the ACH580 platform; replacement with the ACH580-compatible FDNA-01 or FPBA-01 fieldbus adapters is required to maintain communication with the upstream PLC or DCS.

For sites running Modbus RTU or BACnet MS/TP over RS-485, the ACH580 natively supports both protocols without additional hardware, which significantly reduces migration complexity when replacing older ACS310 or ACS355 units that required external protocol converters. The drive’s embedded assistant control panel (ACS-AP-I) allows parameter cloning from a previously configured ACH580 unit, reducing commissioning time when deploying multiple identical drives across a facility. Parameter sets from legacy ACS550 drives can be partially migrated using ABB’s Drive Composer PC tool, though parameter group mapping must be reviewed manually due to differences in parameter numbering between platforms.

Backplane and mounting rail compatibility should be assessed early in the retrofit plan. The ACH580-PDR-027A-4+B056 is designed for wall or panel mounting and does not require a dedicated backplane, making it suitable for both standalone cabinet installations and multi-drive lineups. When replacing drives in an existing MCC (motor control center) or control cabinet, installation space must be confirmed — the ACH580 frame size for 27A/480V is R3, and the physical envelope differs from older ACS550 R4 or R5 frames that may have occupied the same current rating in legacy configurations. Adapter mounting plates are available to bridge frame size differences without full cabinet modification.

Firmware compatibility is a critical checkpoint during migration. The ACH580 ships with current firmware and supports field upgrades via the ACS-AP-I panel or Drive Composer. If the replacement is part of a larger system where other ACH580 units are already deployed, firmware version alignment across all drives is recommended to ensure consistent behavior under the site’s SCADA or BMS supervisory layer. HMI screen updates may also be required if the existing operator interface references drive-specific parameter addresses from the legacy ACS550 or ACS310 platform — BACnet object mapping and Modbus register addresses differ between generations and must be remapped in the HMI project before go-live.

On-site commissioning should follow a structured sequence: confirm input power phasing and voltage at the drive terminals, verify motor nameplate data entry (kW, RPM, power factor, efficiency class), run the motor identification routine (ID run) in stationary or rotating mode depending on load type, and validate control signal wiring from the BMS or PLC analog output. For pump and fan applications, the ACH580’s built-in energy optimizer and flow/pressure PID controller can be configured during commissioning to replace external PID controllers that may have been used with the legacy drive. This reduces panel wiring complexity and eliminates a potential point of failure in the control loop.

All units are pre-shipment tested under load conditions prior to dispatch. Each ACH580-PDR-027A-4+B056 is verified for correct power-up, parameter initialization, and I/O response before packaging. Stock is maintained for immediate dispatch, supporting urgent replacement scenarios where production downtime must be minimized. A support terms confirmed by quotation is included from the date of shipment, covering manufacturing defects and component failures under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ACH580-PDR-027A-4+B056 retrofit begins with a complete audit of the existing control cabinet. In multi-drive installations, the ACH580 is commonly deployed alongside the ABB ACS880 industrial drive series for higher-power motor circuits, while the ACH580 PDR handles HVAC fan and pump loads in the 15–22kW range. When the control system includes a PLC — such as an Allen-Bradley CompactLogix or Siemens S7-300 — the drive’s Modbus RTU or BACnet MS/TP interface connects directly to the controller’s communication module without requiring a dedicated gateway, provided the RS-485 wiring is correctly terminated and the baud rate matches the existing network configuration.

For installations where the legacy drive was controlled via a 4–20mA analog speed reference from a building automation system, the ACH580’s analog input terminals (AI1, AI2) accept the same signal range with configurable scaling, preserving the existing BMS wiring without modification. Digital I/O wiring from the legacy ACS550 — including run/stop, fault reset, and speed preset inputs — maps directly to the ACH580’s standard DI terminal block, though terminal numbering differs and must be cross-referenced against the ACH580 wiring diagram before reconnection.

In systems where an ABB NXPP-01 or NXPP-02 panel-mounted keypad was used for local speed control, the ACH580’s ACS-AP-I assistant panel provides equivalent local control functionality with an improved user interface. For remote monitoring integration, the ACH580 supports connection to ABB Ability™ cloud diagnostics, enabling predictive maintenance data collection without additional hardware when the site has an available Ethernet connection. Signal isolators — such as DIN-rail mounted 4–20mA loop isolators — may be required between the BMS analog output and the drive’s AI terminals if ground loop interference was present in the legacy installation, a common issue in older facilities with mixed-voltage control cabinets.

Programming cable access for Drive Composer PC tool connection is via the drive’s front USB port (USB-A to USB-B cable, standard), eliminating the need for the legacy OPCA-01 or OPCA-02 serial programming adapters used with older ACS310 and ACS355 units. This simplifies on-site parameter backup and restore operations during commissioning and reduces the tooling inventory required for field service teams managing mixed-generation drive fleets.

Downtime Control During System Migration

Minimizing production or facility downtime during an ACH580-PDR-027A-4+B056 installation requires advance preparation of the replacement unit before the maintenance window begins. Parameter pre-loading via Drive Composer allows the new drive to be fully configured on the bench — including motor data, control mode, PID setpoints, and communication addresses — before the legacy unit is de-energized. This reduces in-cabinet commissioning time to terminal reconnection, power-up verification, and a final ID run, typically achievable within a two- to four-hour maintenance window for a single drive replacement.

To protect existing program logic in the upstream PLC or BMS, the control system should be placed in manual or local control mode before the legacy drive is isolated. This prevents the supervisory system from generating fault alarms or initiating automatic restart sequences during the drive swap. If the site uses a Modbus or BACnet network with multiple drives on the same RS-485 bus, the new ACH580 must be assigned the same device address as the legacy unit before the network is re-enabled — failure to do so will cause communication faults on the supervisory layer and may trigger interlock sequences in the control program.

For critical HVAC applications where continuous airflow or pump pressure must be maintained, a temporary bypass contactor arrangement — using the existing motor starter or a portable bypass panel — allows the motor to run across-the-line during the drive replacement interval. Once the ACH580 is installed and verified, the bypass is removed and the drive assumes speed control. This approach eliminates process interruption entirely and is recommended for hospital, data center, and pharmaceutical facility retrofits where even brief airflow interruptions are operationally unacceptable.

Post-installation, a structured verification checklist should confirm: input voltage and phase sequence at drive terminals, motor rotation direction under drive control, analog reference signal scaling and response, digital I/O status under BMS command, communication link status on the Modbus or BACnet network, and fault log clearance. All ACH580-PDR-027A-4+B056 units shipped from stock have been pre-tested and are ready for immediate installation, reducing the risk of commissioning delays caused by hardware defects.

Retrofit Support FAQ

Q: Is the ACH580-PDR-027A-4+B056 a direct replacement for the ACS550-01-027A-4?
A: The ACH580-PDR-027A-4+B056 matches the ACS550-01-027A-4 in current rating (27A) and voltage class (480V 3-phase), making it the recommended upgrade path for ACS550 units at end-of-life. The frame size differs (R3 vs. R4/R5), so cabinet space and mounting arrangement must be verified. Terminal wiring is compatible in signal type but terminal numbering differs — cross-reference the ACH580 wiring diagram before reconnection. Fieldbus adapters (RDNA-01, RPBA-01) are not forward-compatible and must be replaced with ACH580-series equivalents if DeviceNet or PROFIBUS connectivity is required.

Q: What commissioning steps are required after installation?
A: After mechanical installation and terminal wiring, enter motor nameplate data (kW, voltage, current, RPM, power factor), run the motor ID routine (stationary or rotating per load type), configure the analog reference input scaling to match the BMS output signal, set the Modbus or BACnet device address to match the legacy drive’s network address, and verify digital I/O response under BMS command. Pre-loaded parameter sets from Drive Composer reduce on-site configuration time significantly.

Q: Is stock available for immediate shipment, and what support terms is included?
A: Yes — the ACH580-PDR-027A-4+B056 is maintained availability confirmed by RFQ for immediate dispatch. All units undergo pre-shipment load testing covering power-up, parameter initialization, and I/O verification before packaging. A support terms confirmed by quotation is included from the date of shipment, covering manufacturing defects and component failures under normal operating conditions. Contact [email protected] or +86 18359268345 for current stock confirmation and lead time.

Q: Can the existing motor cable and conduit be reused during the retrofit?
A: In most cases, yes. The ACH580 output terminals accept the same wire gauges used with ACS550 and ACS310 drives in the 27A current class. Verify that the existing cable insulation rating is compatible with VFD output (dV/dt stress) — cables rated for VFD use (e.g., shielded motor cable per IEC 60034-17) are preferred. If the existing cable is unshielded or of unknown specification, adding a dV/dt output filter between the drive and motor is recommended to protect motor winding insulation, particularly in installations with cable runs exceeding 50 meters.
