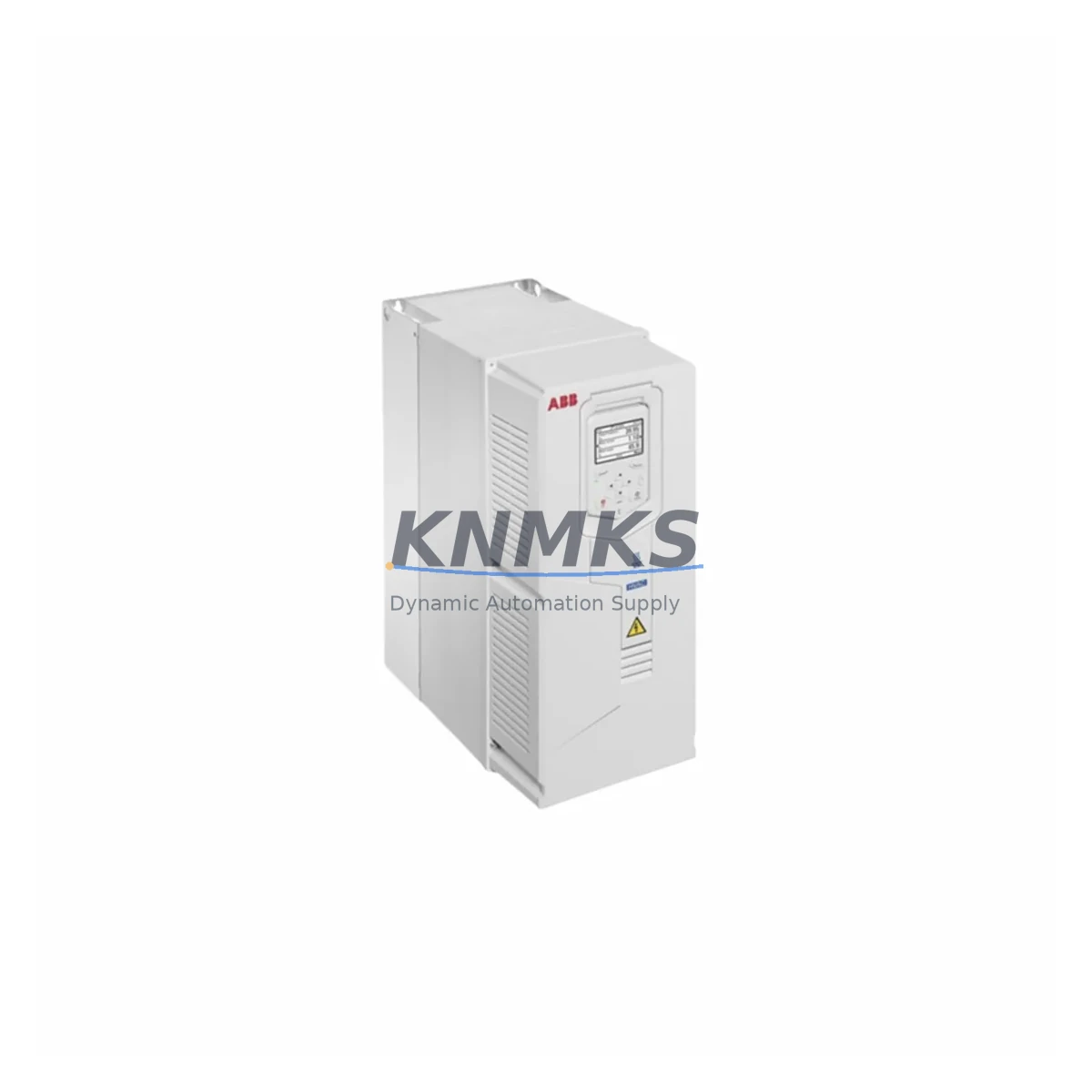

ABB ACQ580-01-07A2-4 Migration-Ready VFD for Legacy Control Systems

Overview

ABB ACQ580-01-07A2-4 Migration-Ready VFD for Legacy Control Systems

The ABB ACQ580-01-07A2-4 is a 2.2 kW, 400 V three-phase variable frequency drive engineered for direct replacement of end-of-life and discontinued drives within the ACQ580 series and compatible legacy platforms. As pump and fan control systems age beyond their supported lifecycle, engineering teams face increasing pressure to source verified drop-in replacements that preserve existing wiring infrastructure, maintain PLC program logic, and eliminate the need for full panel redesigns. The ACQ580-01-07A2-4 addresses this challenge with a pre-tested, migration-ready configuration that minimizes commissioning time and reduces unplanned downtime during scheduled outages or emergency replacements.

This unit ships from multi-region stock and is backed by a support terms confirmed by quotation covering manufacturing defects and functional performance. Every unit undergoes pre-shipment functional testing to verify output frequency accuracy, control terminal response, and communication link integrity before dispatch. For facilities managing aging water treatment, HVAC, or process pump systems, the ACQ580-01-07A2-4 provides a reliable, immediately deployable solution that bridges the gap between legacy infrastructure and modern drive technology.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ACQ580-01-07A2-4 into an existing control cabinet begins well before the physical swap. Engineering teams should start by auditing the current drive’s parameter set using ABB Drive Composer or the ACS-AP-I control panel, exporting a full parameter backup that captures acceleration and deceleration ramp times, PID controller gains, motor thermal model settings, and any application macro configurations. This backup becomes the restoration baseline for the replacement unit.

On the power side, confirm that the upstream circuit breaker or fuse is rated for the ACQ580-01-07A2-4’s 7.2 A nominal output current and that the existing cable cross-section meets IEC 60364 requirements for the installation category. If the legacy drive was equipped with an external EMC filter or a du/dt output filter to protect older motor windings, verify whether the ACQ580-01-07A2-4’s built-in EMC Class C2 filter is sufficient or whether the external filter should be retained.

For sites running PROFIBUS DP networks, the FPBA-01 PROFIBUS DP adapter module must be installed in option slot 1 of the ACQ580-01-07A2-4 before commissioning. The PLC’s GSD file should be updated to reflect the new drive’s node address, and the PROFIBUS master’s cyclic data mapping must be verified against the process data word (PDW) assignments used by the existing control program. Sites using Modbus RTU over RS-485 can connect directly to the drive’s standard EIA-485 port without additional hardware, provided the baud rate, parity, and slave address are configured to match the existing network parameters.

Control terminal wiring on the ACQ580-01-07A2-4 follows the standard ACQ580 I/O layout, which is electrically compatible with the ACS580 series terminal assignments. Analog input AI1 (0–10 V or 4–20 mA) typically carries the speed reference from the PLC or building management system; analog output AO1 provides the motor speed feedback signal. Digital inputs DI1–DI6 handle start/stop, direction, and fault reset commands. If the legacy installation used a separate signal isolator — such as an ABB NAIO-01 or a third-party DIN-rail isolator — between the PLC analog output and the drive AI terminal, retain this isolator to protect against ground loop interference in the new installation.

Where the control cabinet also houses an ACS580 general-purpose drive on an adjacent axis, or an ACH580 HVAC drive sharing the same DC bus bar arrangement, confirm that the total harmonic distortion (THD) budget for the panel remains within acceptable limits after the replacement. If the site uses a shared ACQ580 control panel (ACS-AP-W) for multi-drive monitoring, the panel’s drive-to-drive communication link should be re-established after the swap and verified against the HMI screen assignments in the SCADA or BMS system. For installations where the drive communicates with a Siemens S7-300 or S7-1200 PLC via PROFINET, the FENA-21 Ethernet adapter provides the required PROFINET IO device interface and supports the same cyclic data exchange structure used by the legacy drive.

Downtime Control During System Migration

Minimizing production interruption during a drive replacement requires a structured pre-outage preparation protocol. At least 48 hours before the planned maintenance window, complete the parameter backup, prepare the replacement ACQ580-01-07A2-4 with the restored parameter set, and verify that all required accessories — including the fieldbus adapter, control panel, and any external filters — are on-site and confirmed functional. Pre-staging the replacement unit with the correct parameter file eliminates the most time-consuming commissioning step and reduces the live outage window to the physical swap and verification sequence.

During the outage, follow a documented isolation procedure: de-energize the panel, verify absence of voltage at the drive’s DC bus terminals (allow a minimum 5-minute discharge period after power-off), photograph the existing terminal wiring before disconnection, and label each conductor against the as-built drawing. Retain the original wiring photograph as a reference for the post-installation verification step. The physical replacement of an R1-frame ACQ580 unit typically requires 20–40 minutes for an experienced technician, including terminal reconnection and torque verification.

After power-up, perform a no-load motor rotation test at low speed (5–10 Hz) to confirm correct phase rotation and absence of fault codes before connecting the mechanical load. Verify that the PLC is receiving the correct speed feedback signal on its analog input and that all digital output status bits — run, fault, ready — are mapping correctly to the SCADA or DCS system. If the site uses an ABB Ability™ Drive Manager or a third-party condition monitoring platform, re-register the replacement drive’s serial number and confirm that the communication link is active before closing the maintenance record. This structured approach consistently achieves full system restoration within a single 4–8 hour planned outage window, protecting process continuity and reducing the risk of secondary faults caused by rushed commissioning.

Retrofit Support FAQ

Q1: Is the ACQ580-01-07A2-4 a direct drop-in replacement for other ACQ580 2.2 kW variants?
Yes. The ACQ580-01-07A2-4 is the standard 400 V, 2.2 kW variant within the ACQ580 series and is dimensionally and electrically compatible with other ACQ580 R1-frame units of the same power rating. Parameter files created on any ACQ580 2.2 kW unit can be restored directly to this replacement without modification. If replacing an older ACS355 or ACS550 drive of equivalent power, a terminal mapping comparison is required before wiring.

Q2: What pre-shipment testing is performed on each unit?
Every ACQ580-01-07A2-4 dispatched by KNMKS undergoes a functional pre-shipment test covering power-on self-diagnostics, output frequency accuracy across the 0–50 Hz range, control terminal I/O response verification, and communication port integrity check. Test records are retained and available upon request. Units are shipped in original or equivalent protective packaging to prevent transit damage.

Q3: Can the existing control panel (ACS-AP-I or ACS-AP-W) be reused with the replacement drive?
Yes. Both the ACS-AP-I and ACS-AP-W control panels are fully compatible with the ACQ580-01-07A2-4 and can be transferred directly from the legacy unit. The panel retains its display configuration and language settings. No re-programming of the panel is required provided the parameter backup has been restored to the new drive before the panel is connected.

Q4: What is the support terms coverage and what does it include?
All ACQ580-01-07A2-4 units supplied by KNMKS carry a support terms confirmed by quotation from the date of dispatch. The support terms covers manufacturing defects, component failures under normal operating conditions, and functional performance deviations from ABB published specifications. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the drive’s rated environmental conditions. Support requests are processed directly through KNMKS; replacement units are dispatched from multi-region stock to minimize lead time.
