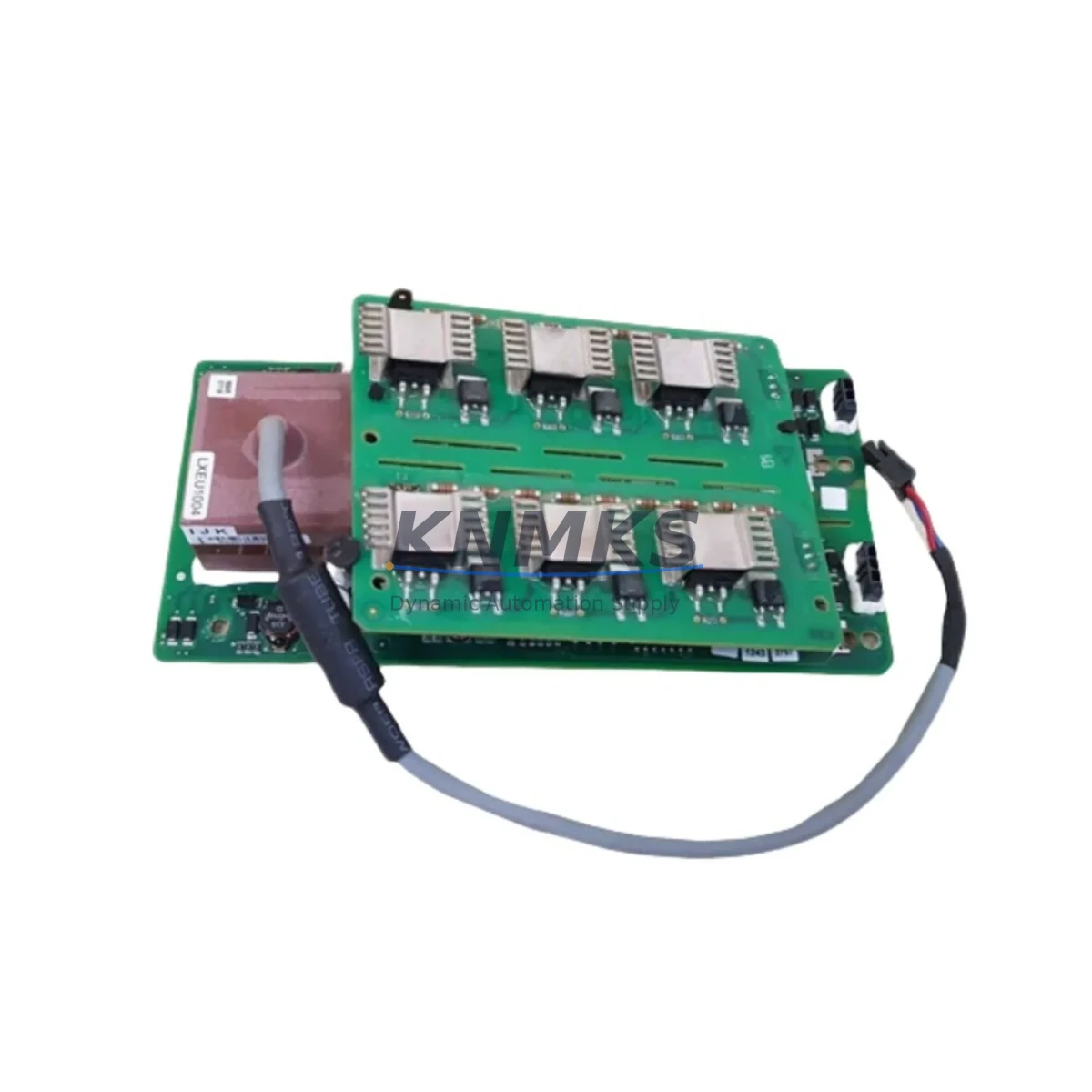

ABB 3BHE041294R010 Migration-Ready Drive Control Board for Legacy Control Systems

Overview

ABB 3BHE041294R010 Migration-Ready Drive Control Board for Legacy Control Systems

The ABB 3BHE041294R010 is a migration-ready drive control board engineered for the GDC806 series, designed to serve as a direct replacement in legacy variable-speed drive systems and aging DCS-integrated motor control architectures. As ABB progressively phases out older drive platforms, maintenance engineers and automation managers face increasing pressure to source verified replacement boards that preserve existing wiring configurations, backplane interfaces, and firmware compatibility without triggering a full drive replacement cycle. The 3BHE041294R010 addresses this challenge by offering a functionally equivalent, factory-tested control board that slots into existing GDC806 drive enclosures with minimal modification.

This board governs the core pulse-width modulation logic, gate drive signal generation, and closed-loop speed regulation functions within the GDC806 drive platform. When the original control board fails or degrades — symptoms typically include erratic speed reference tracking, IGBT fault codes, or loss of communication with the supervisory PLC — replacing the 3BHE041294R010 restores full drive functionality without disturbing the power stage, DC bus capacitors, or field wiring. Engineers working on retrofit projects should verify the firmware revision label on the existing board before installation, as GDC806 drives deployed across different production years may carry distinct firmware branches that affect parameter set compatibility and fault code mapping.

Before committing to a board swap, the retrofit planning team should audit the drive’s terminal block layout, confirm the 24 VDC auxiliary supply rail capacity, and document the existing parameter set using the ABB DriveWindow or Drive Composer tool. Parameter backup is non-negotiable: the 3BHE041294R010 does not retain the previous board’s parameter memory, and restoring the speed reference scaling, acceleration ramp profiles, and PID tuning values from a saved file eliminates the risk of uncontrolled motor behavior during the first power-on sequence after replacement.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful GDC806 control board retrofit begins well before the replacement unit arrives on site. The engineering team should pull the drive’s full configuration printout — including all parameter groups, fault history, and I/O assignment maps — and store it in the plant’s document management system. This record becomes the reference baseline for post-installation verification.

In many legacy installations, the GDC806 drive operates alongside an ABB AC500 PLC or an older S800 I/O module cluster that handles process interlocks and speed reference signals over a PROFIBUS-DP segment. When the control board is replaced, the PROFIBUS node address stored in the drive’s parameter set must be re-entered manually, and the PLC’s GSD file configuration should be cross-checked to confirm that the data exchange telegram structure has not changed between firmware versions. If the site uses an ABB NMBP-01 PROFIBUS adapter mounted on the drive’s option slot, the adapter itself should be inspected for corrosion or connector wear before reuse with the new board.

For installations where the GDC806 drives are integrated into an ABB Freelance DCS or a third-party SCADA system via Modbus RTU, the communication link parameters — baud rate, parity, stop bits, and slave address — must be re-confirmed after board replacement. The SCADA historian may log a communication fault during the replacement window; coordinating the maintenance window with the control room operator prevents false alarms from propagating to the alarm management system.

Sites running multiple GDC806 drives in a coordinated multi-drive configuration — for example, in a winder, extruder, or pump station application — should plan the board replacement sequence carefully. Replacing the master drive’s control board while follower drives remain online requires the control system to handle a temporary loss of the speed reference master signal. In such cases, placing the follower drives in local speed control mode before beginning the swap reduces the risk of process upsets. An ABB ACS880 or ACS580 drive installed as a parallel unit on the same motor bus may serve as a temporary reference source during the transition if the site’s electrical design permits.

The physical installation process requires ESD precautions throughout. The 3BHE041294R010 board carries sensitive gate drive and signal processing components that are vulnerable to electrostatic discharge. Technicians should use a grounded wrist strap and place the board on an anti-static mat during handling. After seating the board in the GDC806 control section, verify that all ribbon cable connectors and the backplane edge connector are fully engaged before applying power. A loose connector at the fiber optic interface between the control board and the IGBT gate driver board is a common source of nuisance faults during initial power-on.

Downtime Control During System Migration

Minimizing production downtime during a GDC806 control board replacement requires a structured pre-outage preparation protocol. The most effective approach is to complete all parameter backup, spare parts staging, and procedure review activities during a planned maintenance window rather than responding reactively to an unplanned board failure. Keeping a 3BHE041294R010 in local stock — particularly for critical pump, fan, compressor, or conveyor applications — reduces the mean time to repair from days to hours.

Before initiating the board swap, the technician should confirm that the drive’s main contactor can be opened safely and that the DC bus has discharged to a safe voltage level — typically below 50 VDC — before touching any internal components. The discharge time for GDC806 drives varies with frame size and DC bus capacitance; consult the drive’s hardware manual for the specific wait time applicable to the installed unit.

Once the new 3BHE041294R010 is installed and the parameter set has been restored from the backup file, the commissioning sequence should follow a structured test protocol: verify auxiliary power supply voltages, confirm digital and analog I/O signal levels against the I/O assignment map, perform a no-load motor run at low speed to confirm rotation direction and speed reference tracking, and then step through the full speed range under load while monitoring the drive’s current and temperature readings. Logging the post-commissioning fault history baseline provides a reference point for future maintenance cycles.

For sites where the GDC806 drive controls a critical process with no bypass capability, coordinating the replacement with the process control team to arrange a temporary manual control mode — or routing the process through a redundant drive if available — preserves production continuity during the commissioning phase. Documenting the actual downtime duration and commissioning steps in the plant’s maintenance management system supports future planning and support terms claim processing if required.

Retrofit Support FAQ

Q1: Is the ABB 3BHE041294R010 a direct drop-in replacement for the original GDC806 control board?
Yes, the 3BHE041294R010 is designed as a functionally equivalent replacement for the GDC806 series control board. Physical dimensions, backplane connector layout, and I/O interface positions are compatible with standard GDC806 drive enclosures. However, firmware version alignment should be verified before installation, as drives manufactured in different production periods may require a firmware update to ensure full parameter set compatibility.

Q2: What commissioning steps are required after installing the 3BHE041294R010?
After physical installation, the technician must restore the full parameter set from a pre-saved backup file, re-enter the fieldbus node address (PROFIBUS-DP or Modbus RTU as applicable), verify all digital and analog I/O signal assignments, and perform a supervised test run at low speed before returning the drive to full production duty. Clearing the fault log and recording the post-commissioning baseline is recommended for support terms and maintenance documentation purposes.

Q3: How is the board tested before shipment, and what does the support terms confirmed by quotation cover?
Each 3BHE041294R010 unit undergoes functional testing prior to shipment, including power-on verification and gate drive signal integrity checks. The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions. Support requests require the original purchase documentation and a description of the fault condition; field damage resulting from incorrect installation, ESD mishandling, or overvoltage events is excluded from support terms coverage.

Q4: Can this board be sourced for emergency orders, and what is the typical lead time?
Yes, the 3BHE041294R010 is maintained in inventory to support emergency and planned maintenance requirements. Standard orders are processed and dispatched within 1–3 business days. For critical applications where unplanned downtime carries significant production cost, maintaining a site spare in the control room or electrical workshop is strongly recommended. Contact the sales team to confirm current stock availability and expedited shipping options for urgent requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHE041294R010
Legacy Control Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB 3BHE041294R010
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
