ABB ACS141-2K-I Migration-Ready VFD for Legacy Control Systems

Overview

ABB ACS141-2K-I Migration-Ready VFD for Legacy Control Systems

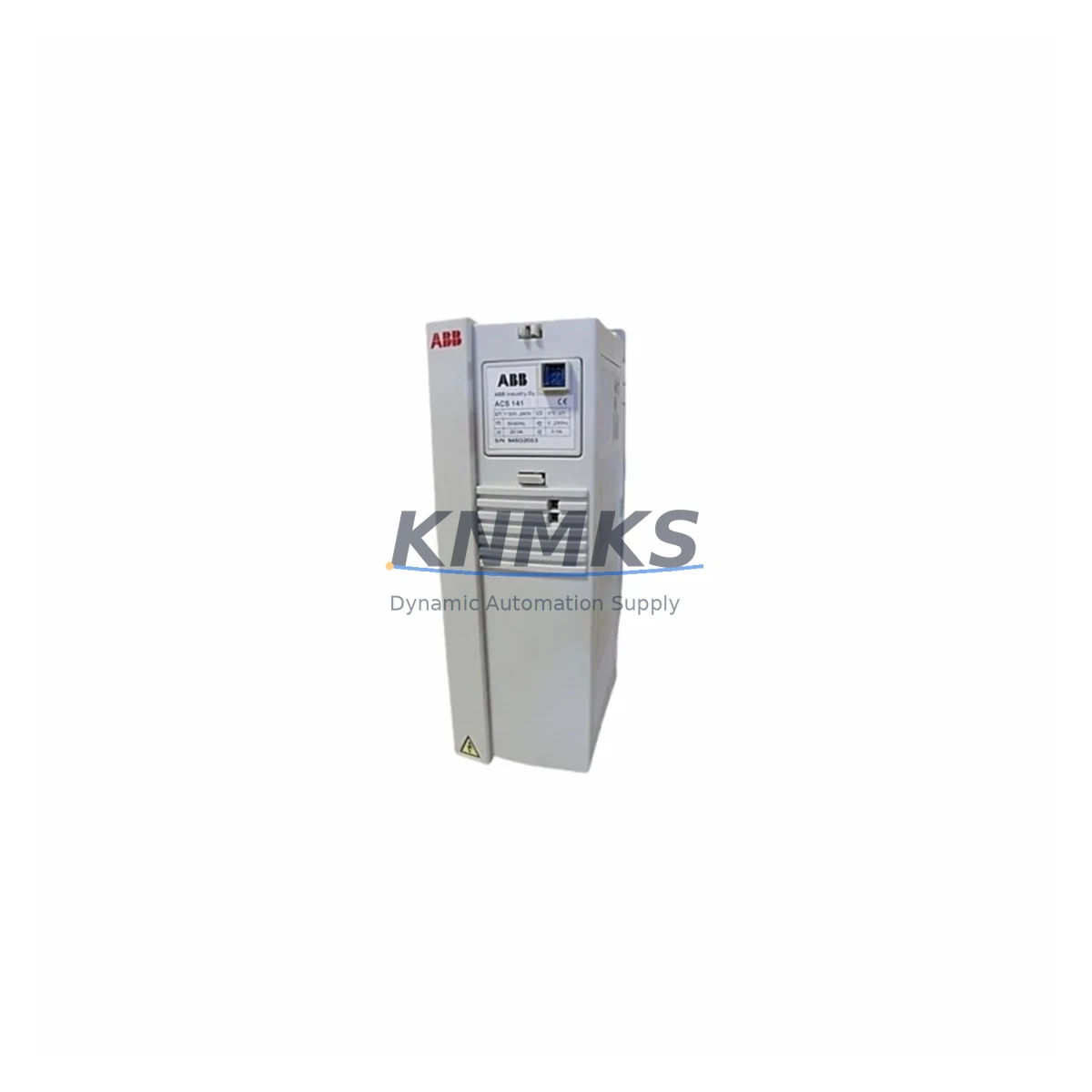

The ABB ACS141-2K-I is a migration-ready variable frequency drive engineered as a direct replacement for end-of-life ACS141 series drives deployed across legacy motor control centers, pump stations, conveyor lines, and HVAC systems. As ABB phases out the original ACS141 platform, facilities relying on these drives face increasing risk of unplanned downtime due to unavailable spare parts, discontinued firmware support, and aging power electronics. The ACS141-2K-I addresses this risk with a pre-tested, warehouse-stocked unit that ships ready for immediate installation, backed by a support terms confirmed by quotation and full compatibility verification against the original ACS141 electrical and mechanical specification.

Before committing to a retrofit, engineering teams must confirm several critical parameters. Power supply compatibility is the first checkpoint: the ACS141-2K-I operates on a single-phase or three-phase input depending on the variant, and the incoming supply voltage, frequency tolerance, and upstream fuse or circuit breaker rating must match the replacement unit’s input specification. Terminal wiring is the next priority — the original ACS141 terminal block layout uses a standard ABB low-voltage drive pinout, and the ACS141-2K-I preserves this arrangement, but field teams should verify PE grounding conductor sizing, motor cable shielding continuity, and the presence of any EMC filter or line reactor in the existing installation. If the original drive was fitted with an ABB NEMA 1 or IP21 enclosure kit, the same mounting footprint applies to the ACS141-2K-I, simplifying panel space confirmation.

Control wiring requires careful attention. The ACS141-2K-I supports standard analog reference inputs (0–10 V, 4–20 mA) and digital I/O compatible with the original ACS141 control terminal strip. If the existing system uses an ABB RMIO control board or an external PLC — such as an ABB AC500 series controller — for speed reference and run/stop commands, the signal wiring can be transferred directly without re-engineering. However, if the legacy installation used a fieldbus adapter such as the NPBA-12 PROFIBUS module or the NCAN-01 CANopen adapter, the replacement drive must be fitted with the equivalent communication option board before commissioning. Teams should also confirm the motor nameplate data — rated voltage, current, frequency, and power factor — against the drive’s motor parameter settings to ensure correct motor model identification during startup.

Program logic compatibility is a key concern for sites where the ACS141 was integrated into a broader automation architecture. If the drive’s parameter set was backed up using the ABB DriveWindow or DriveStudio software tool, the parameter file can be restored to the ACS141-2K-I after initial power-up, significantly reducing commissioning time. For sites without a saved parameter backup, the standard ACS141 parameter list — including acceleration ramp, deceleration ramp, minimum and maximum frequency limits, and current limit — must be re-entered manually. HMI screens that display drive status via Modbus RTU or via a dedicated ABB CDP control panel should be verified for correct register mapping after parameter restoration.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ACS141-2K-I retrofit begins with a complete audit of the existing control cabinet. In most legacy installations, the ACS141 drive shares a panel with an ABB ACS55 or ACS150 series drive on adjacent motor circuits, and the replacement schedule should account for the interaction between these drives on the common DC bus or shared power supply. If the panel includes an ABB ACSM1 motion control module for coordinated axis control, the ACS141-2K-I’s speed reference output must be verified against the ACSM1’s follower input specification before the retrofit is finalized.

For sites using ABB’s Advant OCS or System 800xA distributed control system, the ACS141-2K-I communicates via Modbus RTU or PROFIBUS DP, and the DCS tag database should be updated to reflect the new drive’s node address and register map. If the original ACS141 was connected to an ABB SAMI GS or SAMI Star soft starter on the same motor feeder as a bypass option, the interlock wiring between the drive and the soft starter must be preserved during the swap. Signal isolators — such as the ABB AI523 or a third-party DIN-rail isolator — may be required if the analog reference signal from the PLC or DCS has a different ground reference than the drive’s control circuit.

I/O expansion is a common requirement during ACS141 retrofits. If the original installation used only the drive’s onboard digital inputs for run/stop and fault reset, but the new control strategy requires additional process interlocks, an ABB RDIO-01 digital I/O extension module can be fitted to the ACS141-2K-I’s option slot. For sites migrating from a relay-based control panel to a PLC-based architecture using an ABB AC500 PM573 or PM583 CPU, the ACS141-2K-I’s fieldbus interface simplifies the integration by eliminating the need for hardwired analog speed references. Programming cables and parameter cloning tools should be staged at the site before the maintenance window begins to minimize the time the motor circuit is de-energized.

Downtime Control During System Migration

Minimizing downtime during an ACS141-2K-I swap requires a structured pre-outage preparation protocol. Before the maintenance window opens, the field team should complete a full parameter backup of the existing drive using DriveWindow Light or DriveStudio, photograph the existing terminal wiring, and confirm the replacement unit’s firmware version against the site’s control system compatibility matrix. A pre-staged parameter file loaded onto a laptop or USB drive eliminates the need for manual parameter entry during the outage, typically reducing drive commissioning time from 45–90 minutes to under 15 minutes.

During the swap, the original motor cable should be labeled at both ends before disconnection, and the PE grounding conductor should be the last wire removed and the first wire reconnected on the replacement unit. If the site operates a redundant motor circuit — for example, a duty/standby pump arrangement — the standby motor should be confirmed in service before the duty drive is de-energized, ensuring process continuity throughout the replacement. After the ACS141-2K-I is powered up, a no-load motor run at low speed (5–10 Hz) should be performed to verify correct motor rotation direction and absence of fault codes before the process load is reconnected.

For sites where the ACS141 is integrated into a safety-rated circuit — such as a Safe Torque Off (STO) function connected to a safety relay or safety PLC — the STO wiring and function test must be completed and documented before the drive is returned to service. The ACS141-2K-I’s STO input is compatible with standard two-channel STO architectures, and the function test procedure follows the same sequence as the original ACS141. All commissioning steps, parameter settings, and test results should be recorded in the site’s maintenance management system to support future audits and support requests.

Retrofit Support FAQ

Q1: Is the ACS141-2K-I a direct drop-in replacement for the original ABB ACS141?
Yes. The ACS141-2K-I is dimensionally and electrically compatible with the original ACS141 in the same power class. The control terminal pinout, mounting footprint, and parameter structure are preserved, allowing direct substitution without panel modification in most installations. Field teams should verify the input voltage variant and confirm the presence of any optional communication or I/O modules before ordering.

Q2: What pre-shipment testing is performed on the ACS141-2K-I?
Each unit undergoes a full functional test prior to shipment, including input power-up verification, output voltage and frequency sweep, digital I/O function check, and analog reference response test. A test report is available on request. Units are shipped in anti-static packaging with all protective covers and terminal guards in place.

Q3: Can the original ACS141 parameter set be restored to the ACS141-2K-I?
Yes, provided the parameter backup was created using ABB DriveWindow or DriveStudio software. The backup file can be uploaded to the ACS141-2K-I via the PC tool connection on the drive’s control board. If no backup exists, KNMKS can provide a standard ACS141 parameter template for the 2.2 kW power class as a starting point for manual commissioning.

Q4: What does the support terms confirmed by quotation cover, and how is a claim initiated?
The support terms confirmed by quotation cover manufacturing defects, component failures under normal operating conditions, and any fault confirmed to originate from the unit itself rather than external wiring or supply issues. The confirmed support period begins from the date of shipment. To initiate a claim, contact KNMKS with the order reference, unit serial number, and a description of the fault. Replacement units are dispatched from stock to minimize site downtime during the support terms resolution process.
