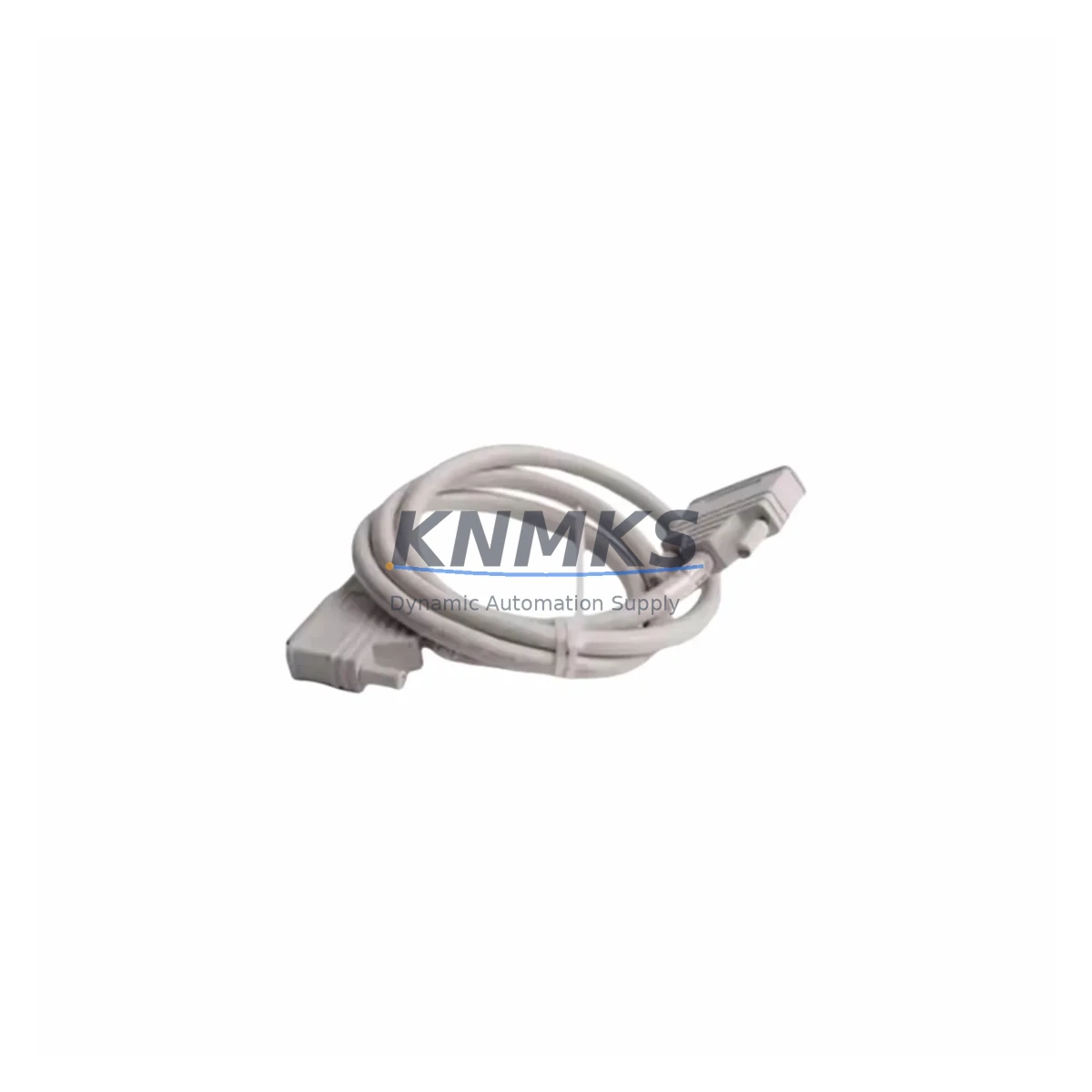

ABB 3BSC950089R3 TK801V012 Migration-Ready Modulebus Cable

Overview

ABB 3BSC950089R3 TK801V012 Migration-Ready Modulebus Cable for Legacy Control Systems

The ABB 3BSC950089R3 TK801V012 is a Modulebus communication cable engineered for the AC800M controller platform, one of ABB’s most widely deployed distributed control system (DCS) architectures in process industries including oil and gas, pulp and paper, power generation, and chemical manufacturing. As legacy AC800M installations age and original cable assemblies reach end-of-service life, sourcing a verified, drop-in replacement becomes a critical priority for maintenance engineers managing unplanned downtime risk and long-term spare parts supply continuity.

This cable serves as the physical communication backbone between the AC800M controller unit and its remote I/O expansion modules, specifically within the Modulebus topology. The Modulebus protocol governs high-speed, deterministic data exchange between the PM8xx series processor modules and S800 I/O stations. Any degradation or failure in this cable path directly impacts loop control integrity, alarm response, and process data acquisition across the connected I/O clusters. Replacement planning must therefore account for cable routing, connector seating, and signal integrity verification before the system is returned to service.

When integrating the 3BSC950089R3 TK801V012 into an existing AC800M cabinet, engineers should confirm the following prior to installation: the available Modulebus port on the PM851, PM856, or PM860 processor module; the physical cable routing path within the control cabinet and any conduit or trunking constraints; the total Modulebus segment length relative to the maximum supported distance for the installed firmware version; and the connector orientation at both the controller and the S800 I/O station termination point. Incorrect seating of the Modulebus connector is a common source of intermittent communication faults that can be misdiagnosed as processor or I/O module failures.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofit projects involving the AC800M platform typically extend well beyond a single cable replacement. In most legacy installations, the Modulebus cable is one component within a broader I/O expansion architecture that includes S800 I/O station base units, TB820V2 or TB840A termination boards, CI854 PROFIBUS communication interface modules, and SD802F or SD831 power supply modules mounted within the same S800 cabinet. When planning a cable replacement or system upgrade, maintenance teams should audit the full Modulebus segment — including all intermediate I/O stations — to identify any additional components approaching end-of-life.

In installations where the AC800M system interfaces with a PROFIBUS DP network, the CI854 or CI854A communication interface module manages the gateway function between the Modulebus I/O cluster and the field device network. Cable replacement work in this environment should be coordinated with PROFIBUS segment health checks to avoid introducing communication latency or address conflicts during the maintenance window. Similarly, where the AC800M communicates upstream to an ABB System 800xA supervisory layer via OPC or HSE, the engineering team should verify that the Control Builder M project configuration remains consistent with the physical I/O mapping after any hardware change.

For sites operating older AC800M installations with PM851 or PM856 processors, the retrofit window also presents an opportunity to evaluate processor module currency. The PM864A and PM866A represent the current-generation AC800M processors and offer expanded memory, faster scan cycles, and improved diagnostics compared to earlier variants. Where budget and downtime windows permit, combining a Modulebus cable replacement with a processor module upgrade reduces the total number of future maintenance interventions and extends the effective service life of the control system by several years.

Power supply integrity is another critical factor in Modulebus retrofit planning. The SD802F and SD831 24 VDC power supply modules that feed S800 I/O stations should be inspected for capacitor aging and output voltage stability before the system is returned to service after any cable work. A marginal power supply can cause intermittent Modulebus communication errors that are difficult to distinguish from cable faults, leading to unnecessary repeat maintenance cycles.

Downtime Control During System Migration

Minimizing control system downtime during a Modulebus cable replacement requires a structured pre-outage preparation process. Before the maintenance window opens, the engineering team should export a full backup of the AC800M project from Control Builder M, including all function block diagrams, signal lists, and hardware configuration files. This backup serves as the recovery baseline if any configuration discrepancy is identified during post-replacement commissioning.

Where the AC800M is configured with redundant Modulebus paths — using dual cable connections between the processor module and the I/O station — it is possible to replace one cable while the redundant path maintains communication continuity. This approach eliminates the need for a full process shutdown in many applications and is strongly recommended for critical control loops where even brief interruptions carry significant process or safety risk.

After physical cable replacement, the recommended commissioning sequence includes: visual inspection of connector seating at both ends; power-on of the I/O station and verification of Modulebus link status LEDs; connection of a Control Builder M session to the live controller; execution of the Modulebus diagnostic routine to confirm all I/O station addresses are correctly resolved; and a channel-by-channel I/O verification scan to confirm that all analog and digital signals are reading correctly before the process is returned to automatic control. This sequence typically requires 30 to 90 minutes depending on the number of I/O stations on the affected Modulebus segment and the complexity of the process interlocks involved.

Maintaining a documented record of the pre- and post-replacement Modulebus diagnostic output provides an audit trail for maintenance management systems and supports future troubleshooting by establishing a verified baseline for normal system communication performance.

Retrofit Support FAQ

Q: Is the 3BSC950089R3 TK801V012 a direct replacement for the original ABB Modulebus cable in AC800M systems?
A: Yes. The 3BSC950089R3 TK801V012 is a direct drop-in replacement for the original TK801V012 Modulebus cable assembly. No wiring modifications or configuration changes are required. The cable is compatible with all PM8xx series processor modules and S800 I/O stations running AC800M firmware 5.x and 6.x. Pre-shipment continuity and connector integrity testing is completed before dispatch.

Q: Can this cable be used in redundant Modulebus configurations?
A: Yes. In AC800M installations configured with dual Modulebus paths for redundancy, the 3BSC950089R3 TK801V012 can be used for both the primary and redundant cable positions. It is recommended to replace both cables simultaneously during a planned maintenance window to ensure matched cable characteristics across the redundant pair and to reset the maintenance interval for both paths at the same time.

Q: What commissioning steps are required after installing this cable?
A: After installation, connect a Control Builder M session to the AC800M controller and run the Modulebus diagnostic routine to confirm that all I/O station addresses on the segment are correctly resolved. Verify Modulebus link status LEDs on both the processor module and the I/O station termination board. Complete a channel-by-channel I/O scan to confirm signal integrity before returning the process to automatic control. No firmware update or hardware configuration change is required for a like-for-like cable replacement.

Q: What support terms and stock availability does this product carry?
A: The 3BSC950089R3 TK801V012 carries a support terms confirmed by quotation from the shipment date, covering manufacturing defects and connector integrity. Stock is maintained across multiple regional warehouses to support emergency replacement requirements with short lead times. Pre-shipment testing is completed on every unit before dispatch to minimize the risk of installation delays caused by cable defects.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BSC950089R3 TK801V012
AC800M Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: ABB 3BSC950089R3 TK801V012
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
