ABB 3BHE024855R0103 UFC921A103 Spare Part for Factory Uptime

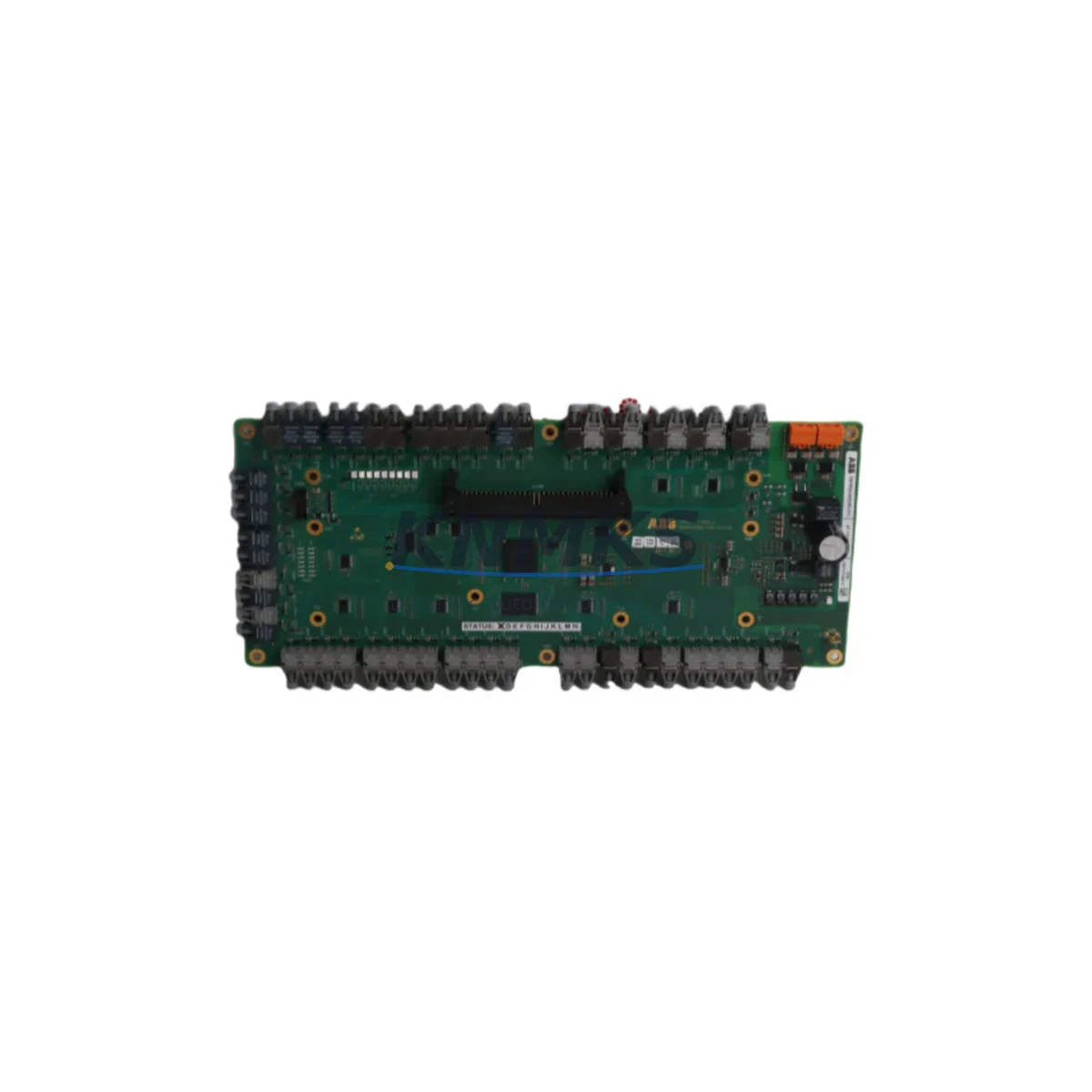

The ABB 3BHE024855R0103 (UFC921A103) is a critical DCS interface board designed for the ABB Symphony Plus AC800M controller platform. Engineered for continuous industrial operation, this module serves as a primary communication and I/O interface layer within distributed control system cabinets across power generation, oil & gas, pulp & paper, and chemical processing facilities. Sourced as an original ABB component, each unit supplied by KNMKS undergoes pre-shipment functional verification and ships with a support terms confirmed by quotation — ensuring your maintenance team receives a ready-to-install replacement with zero compromise on reliability.

For maintenance engineers managing aging Symphony Plus installations, the 3BHE024855R0103 is frequently the first board to be flagged during fault isolation routines. Its role in bridging controller backplane signals to field I/O and communication buses makes it a high-priority spare in any AC800M cabinet. Procurement engineers sourcing long-cycle spare parts for multi-year maintenance agreements will find this module available for immediate dispatch or scheduled delivery under framework supply contracts.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 3BHE024855R0103 UFC921A103 during a scheduled or emergency maintenance event, a thorough cabinet inspection is essential to prevent repeat failures and ensure system stability. Maintenance engineers should treat this board replacement as an opportunity to audit the surrounding control architecture.

Begin by verifying the AC800M power supply module (such as the SD802F or equivalent ABB 24 VDC rail supply) — a marginal power supply is a leading cause of interface board degradation. Inspect the backplane and rack assembly for signs of corrosion, loose seating, or damaged connector pins, as poor backplane contact can cause intermittent faults that mimic board failure. Check all I/O modules connected downstream of the UFC921A103, particularly any AI810, AO810, DI810, or DO810 series I/O cards, to confirm signal integrity is restored after board swap.

Communication continuity should be validated at the CI854A or CI858 communication interface modules if the system uses PROFIBUS or FOUNDATION Fieldbus segments — a board-level fault can sometimes corrupt bus parameters stored in adjacent communication modules. Review terminal block wiring and field cable shields at the marshalling cabinet to rule out ground loops introduced during the replacement procedure. If the installation includes signal isolators or barriers on analog loops, verify their output ranges post-replacement, as some isolators require re-ranging after a controller restart.

For sites running legacy Symphony Plus configurations, it is advisable to maintain a minimum spare holding of the UFC921A103 alongside the PM865 or PM866 processor module — these two components share the highest replacement frequency in AC800M cabinets during annual overhauls. Fuse holders and miniature circuit breakers on the 24 VDC distribution rail should also be inspected and replaced on a 5-year cycle as part of the same maintenance window.

Site Replacement Workflow

Step 1 — Pre-replacement preparation: Download and archive the current AC800M project configuration from Control Builder M before any hardware change. Confirm the replacement 3BHE024855R0103 firmware revision matches the installed base; ABB Symphony Plus systems are sensitive to firmware mismatches between interface boards and the processor module.

Step 2 — Safe isolation: Place the affected controller in manual or backup control mode via the DCS operator station. Follow site-specific LOTO (Lockout/Tagout) procedures for the control cabinet. Do not hot-swap this board without confirming the specific AC800M variant supports hot insertion — most UFC921A series boards require a cold swap.

Step 3 — Physical replacement: Remove the faulty board by releasing the front-panel locking levers and sliding the module clear of the backplane. Insert the replacement 3BHE024855R0103 firmly until the backplane connector is fully seated. Secure locking levers. Restore cabinet power and observe the module status LEDs for normal initialization sequence (typically green RUN LED within 60 seconds).

Step 4 — System verification: From Control Builder M, perform a full download to the controller and verify all I/O channels report correct values. Cross-check field instrument readings against the DCS display. Confirm communication bus status on any connected CI854A or CI858 modules. Log the replacement in the site maintenance management system (CMMS) with the new board serial number and support terms start date.

Step 5 — Post-replacement audit: Run the system in supervised automatic mode for a minimum of 2 hours before returning to unattended operation. Archive the updated project configuration. Update the site spare parts register to trigger reorder of a replacement UFC921A103 to restore buffer stock.

Spare Parts Support FAQ

Q1: Is the 3BHE024855R0103 UFC921A103 compatible with all AC800M controller variants?
The UFC921A103 is designed for the ABB Symphony Plus AC800M platform. Compatibility depends on the specific controller generation and firmware revision in your installation. KNMKS recommends providing your existing controller model (e.g., PM865, PM866) and firmware version when ordering to allow pre-shipment compatibility verification. Our technical team can cross-reference ABB compatibility matrices before dispatch.

Q2: What pre-shipment testing does KNMKS perform on this board?
Every 3BHE024855R0103 unit is functionally tested prior to shipment to verify power-on initialization, backplane communication response, and I/O channel integrity. Units that fail any test parameter are quarantined and not dispatched. A test report is available upon request. All units ship with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions.

Q3: Can KNMKS support long-term supply agreements for this part?
Yes. KNMKS offers 12–36 month framework supply agreements for the 3BHE024855R0103 and related Symphony Plus spare parts. This is particularly suited to power utilities, petrochemical operators, and OEMs managing multi-site AC800M installations who require guaranteed stock availability and fixed pricing over extended maintenance cycles. Contact [email protected] to discuss volume and scheduling terms.

Q4: What is the recommended spare holding quantity for a typical AC800M installation?
For a single AC800M cabinet installation, a minimum of one UFC921A103 board is recommended as on-site emergency stock. For multi-cabinet or multi-site installations, a ratio of one spare per three installed units is a common industry practice. Given the 12–36 month lead time risk for legacy ABB DCS components, procurement engineers are advised to review spare holdings annually and place forward orders during scheduled budget cycles rather than waiting for failure events.
