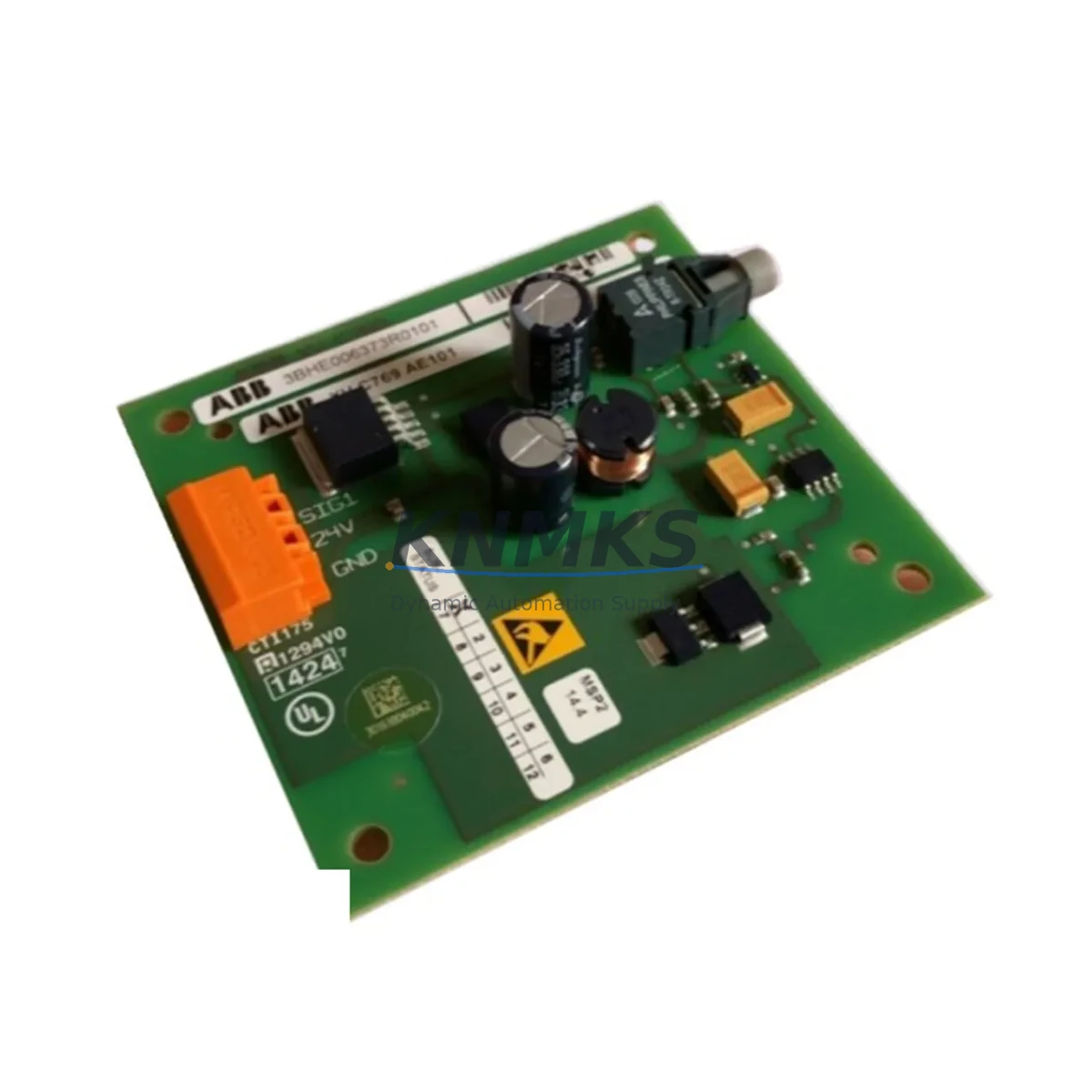

ABB 3BHE006373R0101 Migration-Ready Interface Board

Overview

ABB 3BHE006373R0101 Migration-Ready Interface Board: Legacy System Retrofit & Compatibility Upgrade

The ABB 3BHE006373R0101 is a critical interface board designed for the AC800M controller platform — one of ABB’s most widely deployed Distributed Control System (DCS) architectures in power generation, oil & gas, pulp & paper, and chemical processing industries. As legacy AC800M installations age and original spare parts reach end-of-life, the 3BHE006373R0101 serves as a verified drop-in replacement that enables control engineers to extend system lifespan, restore failed nodes, and execute phased modernization without full panel replacement.

This board interfaces directly with the AC800M controller backplane, managing communication between the CPU module and downstream I/O subsystems. When a legacy system experiences board-level failure — whether from capacitor degradation, firmware corruption, or physical damage — replacing the 3BHE006373R0101 restores full controller functionality without requiring reprogramming of the application logic stored in the PM865 or PM866 processor modules. This makes it an essential stocking item for any facility running AC800M-based control loops.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 3BHE006373R0101 into an existing AC800M installation requires systematic pre-installation planning. Before removing the failed board, engineers should document the current module address configuration and verify that the replacement unit carries a compatible hardware revision. In multi-controller cabinets where several PM865 processor modules share a common backplane, it is essential to confirm that the interface board’s slot assignment does not conflict with adjacent modules such as the CI854 PROFIBUS communication interface or the CI857 INSUM communication interface.

Power supply capacity is a frequent oversight during retrofit projects. The AC800M rack draws regulated 24 VDC from dedicated power supply units — typically the SD821 or SD822 — and adding or replacing interface boards can shift the load balance. Before commissioning the replacement 3BHE006373R0101, verify that the installed power supply unit has sufficient headroom to support the full rack load, particularly in cabinets that also house S800 I/O modules such as the AI810 analog input module or DI810 digital input module connected via the TB820 ModuleBus modem.

Terminal wiring on the field side should be photographed and labeled before any board swap. In legacy installations, field wiring may not match current as-built drawings, and the replacement process provides an opportunity to reconcile discrepancies. If the control system communicates with a third-party SCADA or HMI via OPC DA or OPC UA, confirm that the communication driver on the operator workstation remains mapped to the correct controller node address after the board replacement — a node address mismatch is a common cause of post-maintenance communication loss.

For facilities planning a broader migration from AC800M to a newer control platform, the 3BHE006373R0101 replacement can serve as an interim measure that buys time for a structured cutover. During this window, engineering teams can complete the parallel configuration of the new system, validate I/O lists, and prepare HMI graphics updates without forcing an emergency shutdown driven by hardware failure.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing interface boards in live production environments. The 3BHE006373R0101 replacement procedure is designed to be executed during a planned maintenance window, typically requiring less than 30 minutes of controller downtime when the replacement unit has been pre-staged and verified. To protect the existing application program, ensure that a current backup of the AC800M project has been exported from ABB Control Builder M and stored on a secure engineering workstation before beginning any hardware work.

Where the process cannot tolerate a full controller shutdown, consider whether the affected controller is part of a redundant pair. AC800M supports hot-standby redundancy through paired PM866 modules, and in a properly configured redundant system, the standby controller can assume control while the primary is taken offline for board replacement. This approach eliminates process interruption entirely, provided the redundancy switchover has been tested and validated prior to the maintenance event.

After reinserting the replacement board and restoring power, perform a structured commissioning sequence: confirm module status LEDs, verify I/O channel mapping in the engineering tool, check communication link status to field devices, and validate that all control loops are operating within expected parameters before releasing the controller back to automatic mode. Document the replacement in the site maintenance log, including the serial number of the removed board and the replacement unit, to support future lifecycle planning and support requests.

Retrofit Support FAQ

Q1: Is the 3BHE006373R0101 a direct drop-in replacement for the original ABB part?
Yes. The 3BHE006373R0101 is sourced and tested to match the original ABB specification. Each unit undergoes functional verification prior to shipment. Confirm the hardware revision suffix on your existing board and contact our technical team if you require revision-matched units for strict compatibility environments.

Q2: What commissioning steps are required after installation?
After physical installation, restore the module address settings, power up the controller, and use ABB Control Builder M to verify that the board is recognized and all configured I/O channels report correctly. Check communication status to any connected CI854 or CI857 interface modules and confirm that field device signals are within expected ranges before returning to automatic control.

Q3: Can this board be used in a system that has been upgraded to a newer firmware version?
In most cases, yes. The 3BHE006373R0101 is compatible across the standard AC800M firmware release range. However, if your site has applied a major firmware upgrade to the PM module, verify the hardware compatibility matrix in the ABB AC800M Hardware Unit Manual before installation. Our team can assist with compatibility verification based on your site’s firmware version.

Q4: What support terms and stock availability does KNMKS provide?
All units ship with a support terms confirmed by quotation covering functional defects. We maintain ready stock of the 3BHE006373R0101 to support urgent replacement requirements. Orders placed before the daily cut-off are processed for same-day dispatch. Contact our sales team for volume pricing, lead time confirmation, and expedited shipping options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHE006373R0101
AC800M Series

Product Family

Relays & Interface

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Interface range

Relays, isolation and signal modules

Common needs

Coil voltage and contact rating

Project support

Panel wiring and signal protection

Inquiry Support

• Relay base and module matching
• Signal isolation and protection options
• Panel accessory inquiry support

What to Send Us

• Brand and exact model number: ABB 3BHE006373R0101
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
