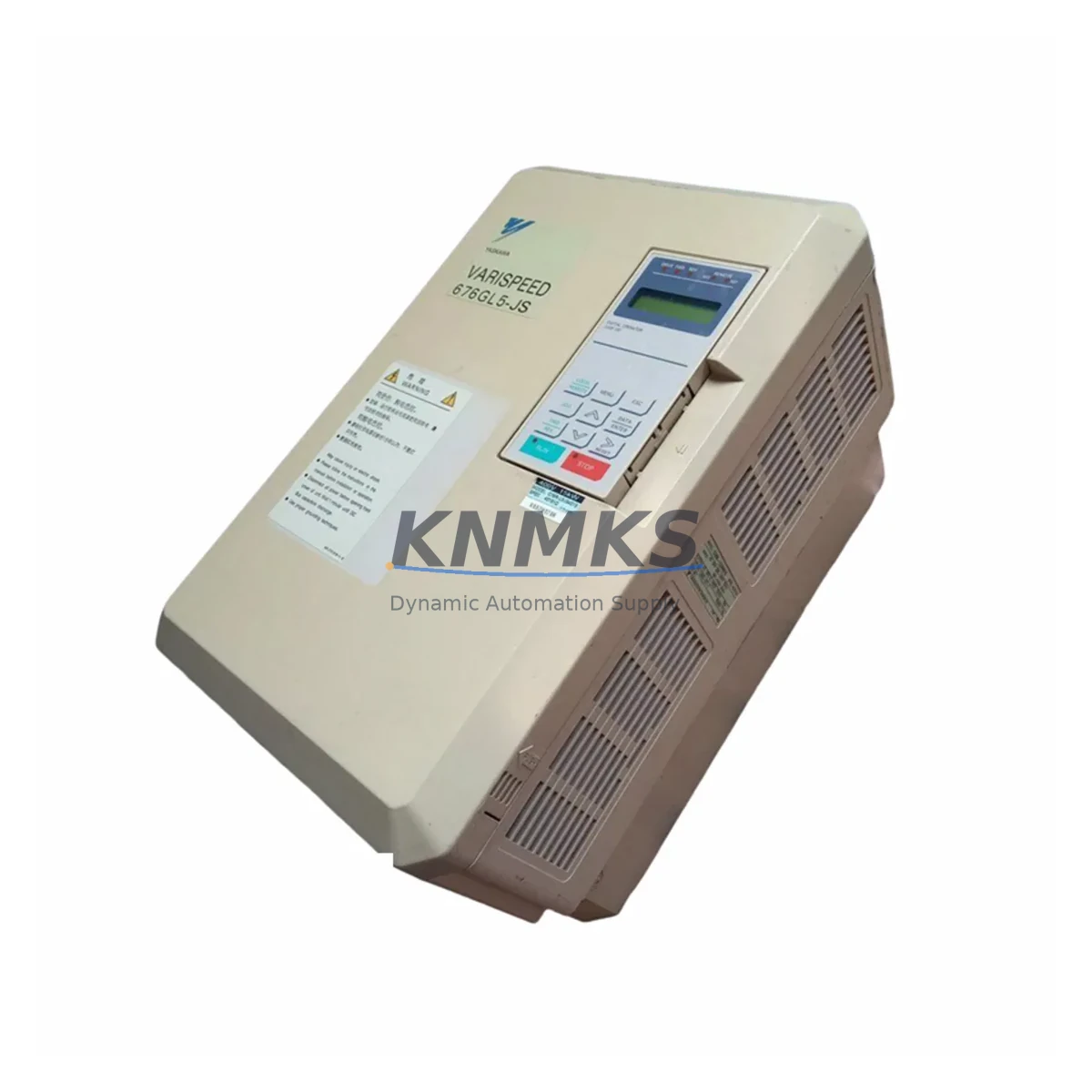

YASKAWA CIMR-L5JJ4011 Migration-Ready AC Drive for Legacy Systems

Overview

YASKAWA CIMR-L5JJ4011 Migration-Ready AC Drive for Legacy Control Systems

The YASKAWA CIMR-L5JJ4011 is a 15kW, 400V three-phase AC variable frequency drive from the L5 Series, engineered for high-cycle industrial applications including conveyors, pumps, fans, compressors, and general-purpose motor control. As the L5 Series approaches end-of-life and original spare parts become increasingly scarce, the CIMR-L5JJ4011 remains one of the most sought-after migration-ready replacements for aging automation lines that were originally built around YASKAWA’s G5, G7, or earlier L5 platform architectures.

For maintenance engineers managing legacy control cabinets, the CIMR-L5JJ4011 offers a well-documented retrofit path. Its RS-485 serial communication interface supports MEMOBUS/Modbus RTU protocol, making it compatible with existing SCADA supervisory layers and PLC communication networks without requiring protocol gateway hardware. Engineers replacing failed or end-of-life drives on production lines can retain existing parameter sets with minor adjustments, significantly reducing commissioning time and the risk of unplanned downtime.

When planning a retrofit around the CIMR-L5JJ4011, the following technical checkpoints are critical: verify that the incoming power supply delivers stable 380–415V three-phase within ±10% tolerance; confirm that the existing terminal block wiring — including forward/reverse run commands, multi-function digital inputs, and analog speed reference — maps correctly to the L5 terminal layout; check that the control cabinet provides adequate ventilation clearance (minimum 50mm top and bottom) for the drive’s cooling airflow; and validate that the motor nameplate current does not exceed the drive’s rated output current of 30A at 400V. If the existing installation uses a braking resistor for deceleration control, confirm the resistor’s resistance and wattage rating against YASKAWA’s L5 Series braking specifications before reconnection.

Parameter migration from a predecessor drive such as the CIMR-G5A4015 or CIMR-G7A4015 requires careful mapping of acceleration/deceleration ramp times, carrier frequency settings, V/f pattern selection, and motor auto-tuning data. In applications where the original drive was integrated with a YASKAWA MP2300 or MP2600 machine controller via MECHATROLINK-II, engineers should verify that the replacement drive’s communication card slot is populated with the correct SI-T3 or SI-ET3 option card to maintain the high-speed motion network link. Failure to confirm this before installation can result in axis communication faults and unplanned line stoppages.

For facilities running mixed-vendor control architectures — for example, a Siemens S7-300 PLC communicating to YASKAWA drives over Profibus DP, or an Allen-Bradley ControlLogix system using DeviceNet — the CIMR-L5JJ4011 supports optional communication cards that enable seamless integration without replacing the host controller. This flexibility makes it a practical choice for phased modernization projects where the PLC platform is being retained while the drive layer is upgraded incrementally.

All units supplied by KNMKS are sourced from verified supply channels, subjected to pre-shipment functional testing under load conditions, and shipped with a support terms confirmed by quotation covering manufacturing defects and operational failures. Global dispatch is available with typical lead times of 3–7 business days for in-stock units. Emergency replacement orders are prioritized for facilities facing unplanned production stoppages.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centered on the CIMR-L5JJ4011 typically involves coordinating several interdependent components within the control cabinet. In most legacy installations, the drive is mounted alongside a YASKAWA JVOP-182 digital operator panel or a remote keypad extension cable — both of which remain compatible with the L5 Series interface port, allowing operators to retain familiar parameter navigation without retraining. Where the original installation used a YASKAWA DR2 regenerative converter unit for energy recovery on high-inertia loads, engineers should verify that the DC bus interface and braking chopper configuration remain within the L5 drive’s input rectifier specifications.

On the I/O side, facilities that rely on analog speed reference signals (0–10V or 4–20mA) from a DCS such as a Honeywell Experion PKS or Emerson DeltaV should confirm that the analog input terminal on the CIMR-L5JJ4011 is configured for the correct signal range and that the input impedance matches the DCS analog output card’s drive capability. Multi-function digital input terminals — used for run/stop, fault reset, multi-step speed selection, and external fault inputs — should be mapped and verified against the original wiring diagram before energizing the replacement drive.

For installations where the CIMR-L5JJ4011 is part of a larger drive train that includes a YASKAWA CIMR-G7A4022 or CIMR-G7A4030 on adjacent axes, parameter consistency across the drive group — particularly carrier frequency, dead-time compensation, and slip compensation settings — is important for maintaining balanced load sharing and avoiding resonance on shared mechanical shafts. Signal isolators between the PLC analog output and the drive analog input are recommended in electrically noisy environments to prevent reference signal drift.

Where HMI screens built on a Pro-face GP4000 or Schneider Electric Magelis panel display drive status via Modbus RTU, the existing register map should be validated against the CIMR-L5JJ4011 Modbus register table. Minor register address offsets between the G5/G7 and L5 generations may require HMI screen updates for fault code display, output frequency monitoring, and run status indication.

Downtime Control During System Migration

Minimizing production downtime during a drive replacement requires a structured pre-commissioning checklist completed before the maintenance window begins. Before removing the failed or end-of-life drive, record all parameter settings using the JVOP-182 operator or a laptop running YASKAWA DriveWizard Industrial software — this preserves the complete parameter set including motor nameplate data, V/f pattern, PID settings, and communication node address, enabling rapid restoration if the replacement drive requires parameter adjustment during commissioning.

During the physical swap, confirm that the incoming power supply is fully isolated and locked out before disconnecting the main circuit terminals. Label all control wiring before removal to prevent miswiring on the replacement unit. After mounting the CIMR-L5JJ4011 and reconnecting power and control wiring, perform a no-load test run at low speed (5–10Hz) to verify rotation direction, analog reference response, and digital input function before returning the drive to full production speed. If the application uses a PID feedback loop for pressure or flow control, verify the feedback sensor signal at the drive’s analog input terminal before enabling PID mode.

For critical production lines where even a brief unplanned stoppage carries significant cost, KNMKS recommends maintaining a pre-tested spare CIMR-L5JJ4011 on-site as part of a proactive spare parts strategy. Units supplied by KNMKS are pre-configured to factory defaults and include a commissioning checklist, reducing the time from shelf to operational to under two hours for experienced maintenance teams.

Retrofit Support FAQ

Q: Is the CIMR-L5JJ4011 a direct drop-in replacement for the CIMR-G5A4015?
A: The CIMR-L5JJ4011 is functionally equivalent in power rating (15kW, 400V) and supports the same RS-485 Modbus RTU communication protocol. Terminal layouts differ between the G5 and L5 generations, so a wiring diagram comparison is required before installation. Parameter migration is straightforward but requires remapping of acceleration/deceleration times, V/f pattern, and motor auto-tune data. KNMKS can provide a parameter migration checklist on request.

Q: Can the CIMR-L5JJ4011 communicate with a Siemens S7 PLC over Profibus DP?
A: Yes, with the SI-P3 Profibus DP option card installed in the drive’s option card slot. The SI-P3 enables the CIMR-L5JJ4011 to appear as a standard Profibus DP slave device, compatible with Siemens S7-300, S7-400, and S7-1500 master controllers. GSD file configuration in STEP 7 or TIA Portal is required. Contact KNMKS to confirm option card availability alongside the drive order.

Q: What pre-shipment testing is performed on units supplied by KNMKS?
A: Every CIMR-L5JJ4011 unit undergoes functional load testing prior to dispatch, verifying output voltage balance across all three phases, digital and analog I/O response, communication port function, and fault detection logic. A test report is available on request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q: What is the typical lead time and do you hold stock for emergency orders?
A: In-stock units are dispatched within 3–7 business days with global shipping options. For facilities facing unplanned production stoppages, KNMKS prioritizes emergency replacement orders and can advise on expedited freight options. Contact the sales team directly for urgent requirements.
