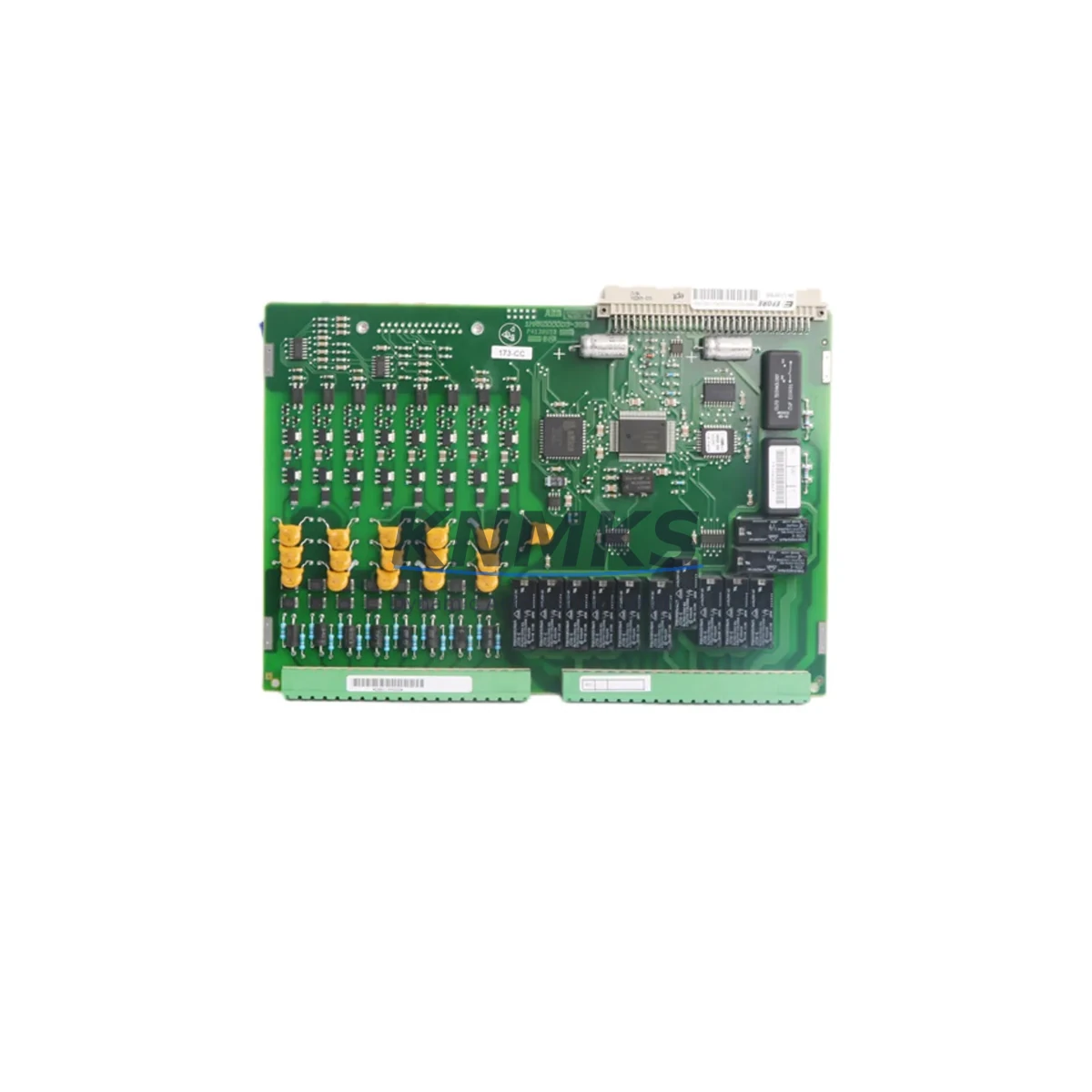

ABB 1MRK000173 Migration-Ready Binary I/O for Legacy Systems

Overview

ABB 1MRK000173 Migration-Ready Binary I/O Module for Legacy Control Systems

The ABB 1MRK000173 is a Binary I/O Module engineered for the Relion protection and control platform, purpose-built to serve as a direct replacement for discontinued or end-of-life I/O modules in legacy substation automation and industrial control systems. Whether you are managing a scheduled control cabinet upgrade, responding to an unplanned component failure, or executing a phased migration from an older ABB SPACOM or REB500 architecture to the current Relion 670 or 650 series, the 1MRK000173 provides a verified, wiring-compatible solution that minimizes engineering rework and reduces total downtime exposure.

Sourced directly from authorized distribution channels and subject to pre-shipment functional testing, each unit is validated against ABB’s published I/O specifications before dispatch. The module supports both digital input and binary output configurations consistent with the Relion hardware architecture, making it suitable for integration into existing REC, REF, REL, and RET IED families without requiring backplane redesign or terminal block rewiring in most standard retrofit scenarios.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the ABB 1MRK000173 begins well before the module arrives on site. Engineers should start by auditing the existing Relion chassis to confirm available module slots, verifying that the backplane bus revision is compatible with the 1MRK000173 hardware generation. In multi-IED installations, it is common to find that the chassis also houses an ABB LDCM (Line Data Communication Module) or an LMBRB (module bus repeater board) — both of which must remain undisturbed during the I/O module swap to preserve inter-IED communication continuity.

Terminal block wiring is one of the most time-sensitive steps in any binary I/O replacement. The 1MRK000173 uses the standard Relion X100/X110 terminal layout, but site-specific wiring modifications made during original commissioning — such as jumpered commons, added surge suppressors, or non-standard signal groupings — must be documented and replicated. Cross-referencing the existing wiring diagram against the module’s terminal assignment table in the ABB Technical Reference Manual (TRM) is mandatory before energizing the replacement unit.

For sites migrating from legacy SPACOM or REB500 architectures, the I/O signal mapping will require re-engineering in ABB PCM600. Engineers should export the existing IED configuration as a backup before making any changes. The binary output logic, including trip commands, alarm relay assignments, and interlocking signals, must be re-verified in the PCM600 Application Configuration tool. If the site uses an ABB MicroSCADA or Relion-compatible HMI, the associated HMI display pages referencing the replaced I/O module’s signal tags will also need to be updated to reflect the new module’s signal database.

Power supply capacity is another critical checkpoint. The Relion chassis power supply — typically an ABB PSMB or equivalent DC/DC converter module — must have sufficient headroom to support the 1MRK000173’s auxiliary power draw alongside all other installed modules. In aging control cabinets where additional modules such as signal isolators or communication gateways have been added over time, the total load budget should be recalculated before the retrofit proceeds.

For sites that also need to extend I/O capacity beyond what the 1MRK000173 provides, the ABB RBIO (Remote Binary I/O) module family or an additional Relion I/O expansion chassis may be considered as part of the same upgrade scope. Similarly, if the migration involves a protocol transition — for example, moving from IEC 60870-5-103 serial communication to IEC 61850 Ethernet-based GOOSE — the site’s communication module (such as an ABB COM600 gateway or an onboard Ethernet module) must be configured in parallel with the I/O replacement to avoid communication gaps during cutover.

Downtime Control During System Migration

Minimizing unplanned downtime during a binary I/O module replacement requires a structured pre-outage preparation process. Before the maintenance window opens, the full IED configuration should be exported from PCM600 and stored offline. All binary input and output signal states should be recorded — either via the IED’s local HMI or through MicroSCADA event logs — so that post-replacement verification can be performed against a known baseline.

During the physical swap, the IED should be taken out of service in a controlled sequence: trip outputs should be blocked or bypassed at the protection relay level, and the associated circuit breaker control circuits should be isolated to prevent inadvertent tripping during the module exchange. The 1MRK000173 can typically be removed and reinserted without disturbing adjacent modules in the Relion chassis, provided the chassis is de-energized at the module bus level first.

After reinsertion, the IED firmware should be allowed to complete its self-test sequence before PCM600 is reconnected. Signal mapping verification — confirming that each binary input responds correctly to its field device and each binary output drives its intended load — should be completed before the IED is returned to service. For critical protection applications, a staged energization approach, where the IED is placed in monitoring mode before full protection functions are re-enabled, is strongly recommended to protect both the equipment and the control program logic integrity.

With proper pre-outage preparation, the physical replacement of the 1MRK000173 can typically be completed within a two-to-four-hour maintenance window, with signal verification and PCM600 recommissioning adding additional time depending on the complexity of the site’s I/O configuration.

Retrofit Support FAQ

Q: Is the ABB 1MRK000173 a direct drop-in replacement for older Relion Binary I/O modules?
A: In most Relion 670 and 650 series installations, the 1MRK000173 is slot-compatible with earlier Binary I/O module generations. However, firmware version compatibility should be confirmed via PCM600 before installation, as some older IED firmware versions may require an update to recognize the module’s hardware revision.

Q: What wiring changes are required when replacing a legacy I/O module with the 1MRK000173?
A: The 1MRK000173 uses the standard Relion terminal block layout. In most cases, existing field wiring can be reconnected without modification. Site-specific wiring deviations — such as added surge protection devices or jumpered signal commons — should be documented and replicated. Always verify against the site wiring diagram and the module’s TRM terminal assignment table before energizing.

Q: Does each unit undergo testing before shipment?
A: Yes. Every ABB 1MRK000173 unit dispatched from our inventory undergoes pre-shipment functional I/O verification to confirm that all binary inputs and outputs operate within specification. Units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the typical lead time and stock availability for the 1MRK000173?
A: We maintain in-stock inventory of the 1MRK000173 to support urgent replacement and planned retrofit projects. Contact our team for current stock levels and lead time confirmation. For large-quantity or project-based procurement, we recommend early engagement to reserve allocation and coordinate staged delivery aligned with your retrofit schedule.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

1MRK000173 1MRK000005-396 1MRK000173-BC
Legacy Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 1MRK000173 1MRK000005-396 1MRK000173-BC
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
