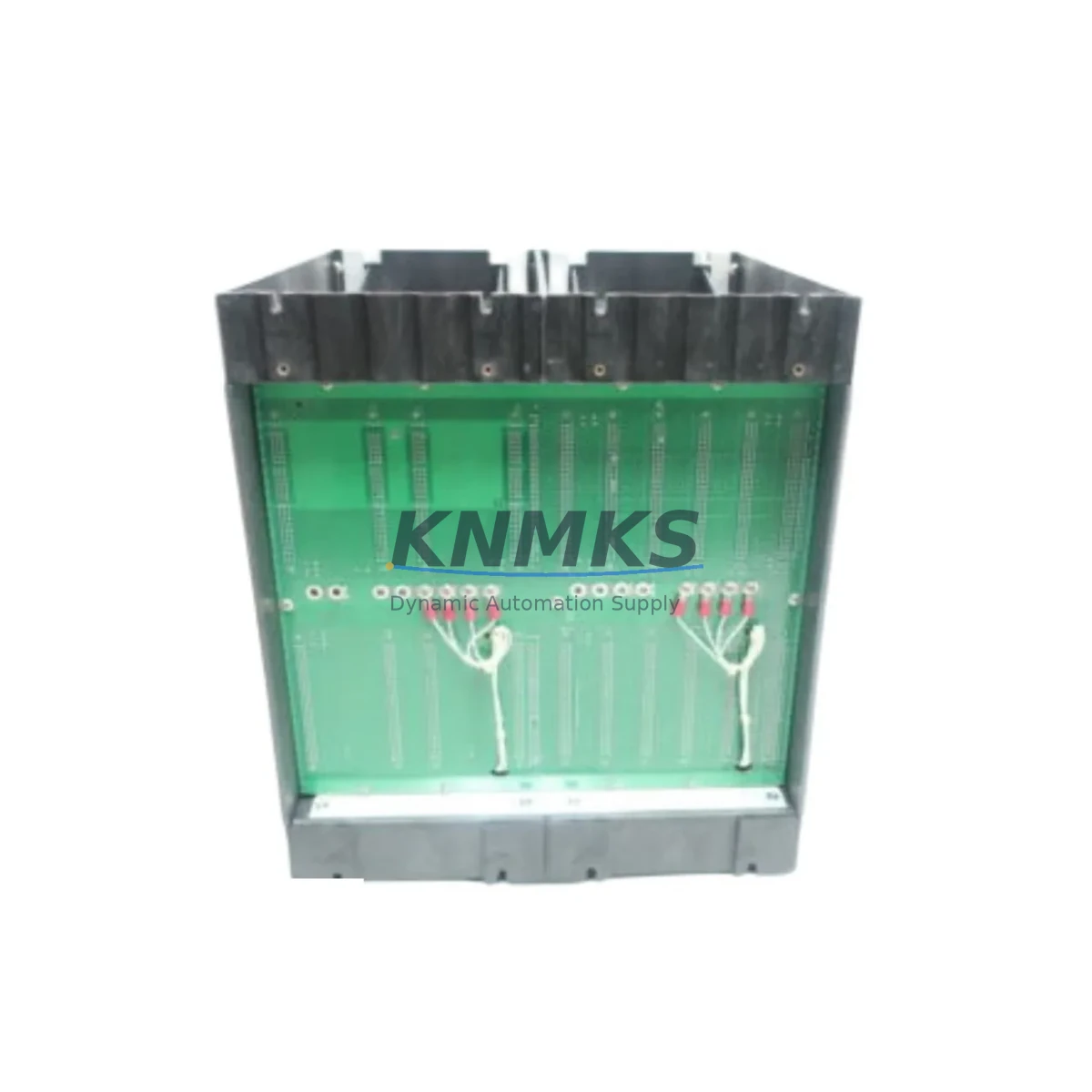

WOODWARD 5437-843 Migration-Ready Chassis for Legacy Systems

Overview

WOODWARD 5437-843 Migration-Ready Chassis for Legacy Control Systems

The WOODWARD 5437-843 is a 6-slot backplane chassis engineered for the Micronet control platform, widely deployed in turbine governor, compressor control, and power generation applications. As legacy Micronet systems approach end-of-support milestones, the 5437-843 chassis remains the structural backbone for both direct replacement and phased migration strategies. Whether you are restoring a failed control cabinet, extending the operational life of an aging turbine control system, or executing a full platform upgrade, the 5437-843 provides the mechanical and electrical foundation required to maintain control continuity without forcing a complete system redesign.

In retrofit scenarios, the 5437-843 chassis accepts the full range of Micronet I/O modules, including analog input cards, digital output modules, and speed/frequency measurement boards. Engineers planning a migration from an older single-slot or 4-slot Micronet chassis to the 6-slot 5437-843 configuration must verify backplane slot addressing, module seating orientation, and inter-module communication bus compatibility before powering up the replacement assembly. The chassis power distribution rail supports the Micronet power supply module — typically the 5437-835 or equivalent — and correct power sequencing is critical to avoid inrush faults during first energization after a chassis swap.

Terminal wiring compatibility is one of the most time-sensitive concerns during a chassis replacement. Field wiring connected to I/O termination boards must be documented and labeled before removal. In many legacy installations, the termination assemblies are mounted directly to the chassis rear panel, meaning that a chassis swap requires temporary disconnection of all field cables. Technicians should prepare a point-to-point wiring record and verify signal polarity, shielding continuity, and ground reference before reconnecting. Where the original installation used Micronet communication modules for Modbus RTU or proprietary serial links to the HMI, the communication cable routing and baud rate configuration must be preserved exactly to avoid loss of supervisory visibility during commissioning.

For sites running WOODWARD ToolKit or NetCon configuration software, the application program stored in the Micronet controller module — such as the 5437-820 or 5437-825 — is independent of the chassis hardware. The program image can be backed up prior to the chassis swap and reloaded after the replacement chassis is installed and powered. This approach eliminates the risk of losing tuned PID parameters, setpoint tables, and sequence logic that have been refined over years of field operation. Firmware version alignment between the controller module and any communication or I/O expansion modules seated in the new chassis should be confirmed before going online.

In control cabinet upgrade projects where the 5437-843 chassis is being installed alongside newer platform components — for example, where a site is transitioning part of its control architecture to a WOODWARD MicroNet TMR or a third-party safety PLC — the chassis must be mounted with adequate clearance for airflow and cable management. DIN rail or panel-mount configurations should be verified against the original mechanical drawings. Where the original chassis occupied a specific vertical position in the cabinet, the replacement must maintain the same physical envelope to avoid interference with adjacent relay panels, terminal strips, or HMI mounting brackets.

Downtime planning for a chassis replacement on a running turbine or compressor train typically requires a scheduled outage window. Pre-staging the replacement 5437-843 chassis with all required I/O modules, power supply, and communication cards — fully assembled and bench-tested before the outage — is the most effective way to compress the on-site replacement time. A pre-tested assembly allows the field team to focus on wiring reconnection and functional verification rather than module installation and addressing during the outage window itself.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 5437-843 chassis retrofit depends on accurate pre-migration inventory of all modules currently seated in the original chassis. In a typical Micronet turbine control cabinet, the 6-slot chassis may house a combination of the Micronet controller module, an analog I/O board handling 4–20 mA process signals, a digital I/O module for discrete valve and actuator commands, a speed measurement module for magnetic pickup inputs, and a communication module bridging the controller to the plant DCS or SCADA via Modbus. Each of these modules must be individually verified for firmware compatibility with the replacement chassis backplane before the outage begins.

Where the original system included a WOODWARD 5437-835 power supply module, the replacement chassis should be pre-fitted with a verified spare of the same model to avoid introducing a second variable into the commissioning process. If the site is also taking the opportunity to upgrade the power supply to a newer equivalent, the input voltage range, output rail voltages, and inrush current characteristics must be confirmed against the chassis specification. Similarly, if the migration includes adding an I/O expansion module or a signal isolator for thermocouple or RTD inputs, the additional slot consumption must be accounted for in the 6-slot layout before the chassis is assembled.

For sites where the Micronet system communicates with a legacy HMI — whether a dedicated WOODWARD operator panel or a third-party SCADA workstation — the communication link configuration stored in the Micronet communication module must be preserved. Tag names, register addresses, and polling rates configured in the HMI must remain consistent with the controller program after the chassis swap. Any deviation in register mapping will cause HMI display errors or loss of alarm visibility, which can delay return-to-service after the outage.

Downtime Control During System Migration

Minimizing unplanned downtime during a Micronet chassis replacement requires a structured pre-outage preparation protocol. The most effective approach is to assemble the replacement 5437-843 chassis completely — including the controller module with a verified program backup loaded, all I/O modules seated and addressed, the power supply installed, and communication modules configured — and perform a bench power-on test before the scheduled outage. This confirms that the replacement assembly powers up cleanly, that no module faults are present, and that the controller program executes correctly in the new chassis before it is transported to the field.

During the outage, the field team should follow a structured sequence: isolate and de-energize the control cabinet, photograph and label all field wiring, disconnect terminations in a documented order, remove the failed chassis, install the pre-staged replacement, reconnect field wiring using the documented record, energize the chassis, and perform a point-by-point I/O verification before releasing the unit to process control. This sequence, when executed with a pre-tested assembly, typically allows a Micronet chassis replacement to be completed within a single shift, preserving the original control logic, tuning parameters, and HMI configuration without requiring a full recommissioning cycle.

Where the site operates under a safety instrumented system that monitors the turbine or compressor train, the SIS bypass and reinstatement procedure must be coordinated with the chassis replacement sequence to ensure that safety functions remain active or are formally bypassed and documented throughout the outage window.

Retrofit Support FAQ

Q: Is the WOODWARD 5437-843 a direct drop-in replacement for an existing Micronet chassis?
A: The 5437-843 is mechanically and electrically compatible with the Micronet platform. However, slot addressing, module seating order, and backplane communication settings must be verified against the original configuration before powering up the replacement chassis. A bench test with the original modules is strongly recommended before the scheduled outage.

Q: Can the original Micronet controller program be reused after a chassis swap?
A: Yes. The application program resides in the controller module, not the chassis. Provided the controller module is transferred to the replacement chassis or a verified spare controller is loaded with a current program backup, the original logic, PID tuning, and setpoint tables are preserved. Firmware version alignment between the controller and I/O modules should be confirmed before going online.

Q: What pre-shipment testing is performed on the 5437-843?
A: Each unit undergoes functional power-on verification and visual inspection before dispatch. Units are supplied with a support terms confirmed by quotation covering functional performance and workmanship. Documentation of the test result is available upon request for quality records.

Q: What is the typical lead time and stock availability?
A: The 5437-843 is maintained availability confirmed by RFQ for immediate dispatch. Standard international shipping applies. For urgent outage support or volume requirements, contact our sales team directly to confirm availability and expedited shipping options.

© 2026 KNMKS. All rights reserved. Original Source: https://knmks.com | Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

WOODWARD
Assorted Brands

Model / Series

5437-843
Legacy Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: WOODWARD 5437-843
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
