Westinghouse 1C31132G01 Migration-Ready Analog Output for Legacy DCS

Overview

Westinghouse 1C31132G01 Migration-Ready Analog Output for Legacy DCS

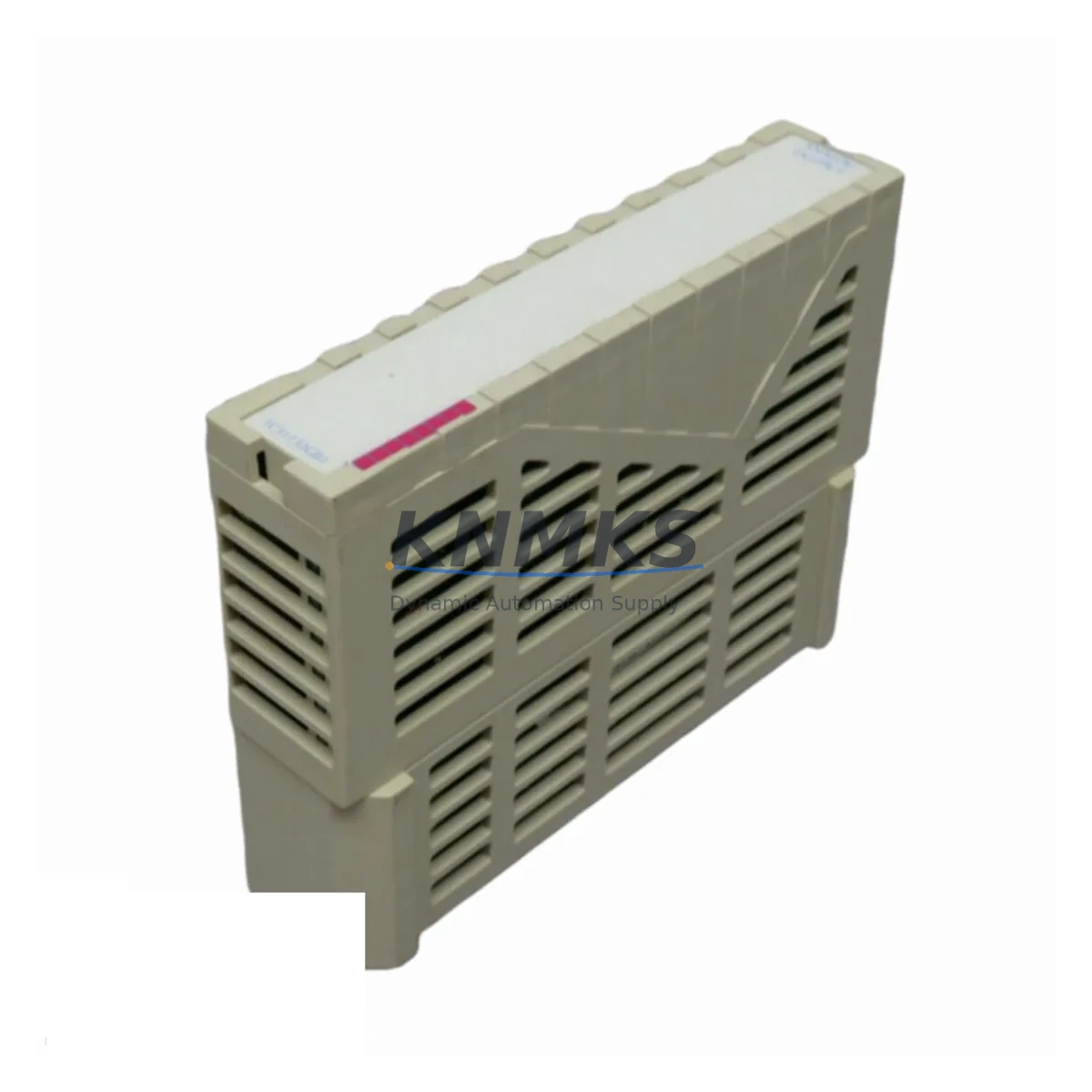

The Westinghouse 1C31132G01 is a 4–20 mA analog output module designed for the OVATION Distributed Control System platform. As legacy OVATION installations approach end-of-life support cycles, the 1C31132G01 remains one of the most frequently requested spare parts for power generation, water treatment, and process automation facilities that continue to operate first- and second-generation OVATION controllers. This module provides a direct, drop-in replacement path for aging analog output cards without requiring changes to the existing control logic, HMI graphics, or field wiring terminations.

For maintenance engineers managing aging control infrastructure, sourcing a verified 1C31132G01 is often the fastest way to restore full system functionality after an unexpected module failure. Unlike generic aftermarket alternatives, each unit supplied through our inventory undergoes pre-shipment functional testing to confirm channel-level output accuracy, loop integrity, and backplane communication handshake with the OVATION controller. This testing protocol is designed to reduce commissioning time on-site and minimize the risk of repeat failures during the critical post-replacement window.

When planning a retrofit or upgrade around the 1C31132G01, engineers should confirm the following before installation: available backplane slot addressing, compatibility with the installed OVATION controller firmware version, field terminal block wiring layout (particularly for 4-wire versus 2-wire loop configurations), and whether the existing I/O configuration file requires a module type re-declaration. In systems where the 1C31132G01 is paired with a Westinghouse 1C31113G01 analog input module on the same I/O nest, the backplane power budget should be recalculated to ensure the combined draw remains within the rated capacity of the installed 1B30035H01 power supply module.

For facilities undertaking a broader control system modernization, the 1C31132G01 is commonly part of a phased migration strategy. In the first phase, critical analog output loops are stabilized using verified spare modules to extend the operational life of the existing OVATION platform. In the second phase, the control architecture is gradually transitioned toward a newer DCS generation or a hybrid configuration, where legacy I/O nests interface with updated controllers via the OVATION network communication module. During this transition, maintaining a documented inventory of 1C31132G01 units ensures that any loop that has not yet been migrated can be restored quickly without impacting the broader upgrade schedule.

Field engineers should also account for installation space when replacing modules in densely populated I/O cabinets. The 1C31132G01 occupies a standard OVATION I/O module slot and does not require additional mounting hardware, but adjacent modules should be inspected for signs of thermal stress or connector wear before the replacement is finalized. If the control cabinet has been in service for more than ten years, it is advisable to inspect the backplane connector pins and clean the slot contacts before inserting the replacement module.

All units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional performance under normal operating conditions. Stock is maintained to support both emergency breakdown orders and planned maintenance schedules.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit around the 1C31132G01 requires a systematic review of the surrounding I/O architecture. In a typical OVATION I/O nest, the analog output module operates alongside components such as the 1C31113G01 analog input module, the 1C31166G01 digital output module, and the 1B30035H01 power supply module. Each of these components contributes to the overall backplane power budget and must be accounted for when adding or replacing modules in an existing nest configuration.

For facilities that are also upgrading their operator interface, the HMI tag assignments linked to the 1C31132G01 output channels must be verified against the current HMI configuration database before the replacement module is brought online. In OVATION systems where the HMI is running on a legacy workstation, it is common to find that tag descriptors and engineering unit ranges were configured during the original commissioning and have not been updated to reflect subsequent process changes. This is an appropriate point in the retrofit process to audit and correct those entries.

Where the retrofit scope includes a communication protocol migration — for example, transitioning from a proprietary OVATION network to a Modbus TCP or PROFIBUS DP interface — the 1C31132G01 output channels will need to be remapped in the new communication module configuration. This remapping should be completed and verified in a simulation environment before the cutover to minimize the risk of unintended output states during the transition.

Signal isolators are recommended for any analog output loop that spans more than 300 meters or crosses electrical noise boundaries within the plant. Installing a DIN-rail-mounted signal isolator between the 1C31132G01 output terminal and the field device provides an additional layer of protection against ground loops and transient interference, which are common in older industrial facilities where cable routing was not originally designed with modern EMC standards in mind.

Downtime Control During System Migration

Minimizing downtime during a module replacement or system migration requires preparation that begins well before the maintenance window opens. For the 1C31132G01, the recommended approach is to pre-configure the replacement module’s slot address and verify the I/O configuration file offline, so that the physical swap can be completed within the shortest possible window. In OVATION systems that support hot-swap or bumpless transfer, the controller should be placed in the appropriate operating mode before the module is removed to prevent unintended output changes to the field devices.

The original control program logic does not need to be modified when replacing a 1C31132G01 with a verified equivalent unit. The module’s backplane interface and channel mapping are identical to the original, which means the controller will resume normal output operations as soon as the replacement module completes its initialization sequence. Engineers should monitor the first scan cycle after power-up to confirm that all output channels are responding correctly and that no fault codes are being generated by the OVATION controller.

For planned maintenance scenarios, it is advisable to schedule the replacement during a low-demand period and to have a second verified 1C31132G01 unit available on-site as a contingency. This approach ensures that if the first replacement unit exhibits any unexpected behavior during commissioning, the maintenance team can complete the repair without extending the downtime window. All units supplied from our inventory are pre-tested and ready for immediate installation, which supports this contingency strategy without requiring additional lead time.

Retrofit Support FAQ

Q: Is the 1C31132G01 a direct replacement for the original module without any program changes?
A: Yes. The 1C31132G01 is a direct drop-in replacement for the original module. No changes to the control program, HMI tag assignments, or field wiring are required, provided the replacement unit is installed in the same backplane slot with the same slot address configuration.

Q: What pre-shipment testing is performed on each unit?
A: Each 1C31132G01 is tested for channel-level output accuracy across the full 4–20 mA range, loop integrity under load, and backplane communication handshake with an OVATION controller. Test results are documented and available upon request.

Q: How should field wiring be verified before installing the replacement module?
A: Before installation, verify that all field terminal connections are secure and correctly mapped to the expected channel assignments. Check for any signs of corrosion or loose terminations at the terminal block. For 2-wire loop configurations, confirm that the loop power supply voltage is within the specified range for the connected field devices.

Q: What does the support terms confirmed by quotation cover?
A: The support terms covers manufacturing defects and functional performance failures under normal operating conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage conditions, or physical mishandling. Support requests are processed promptly with replacement units dispatched from available stock.
