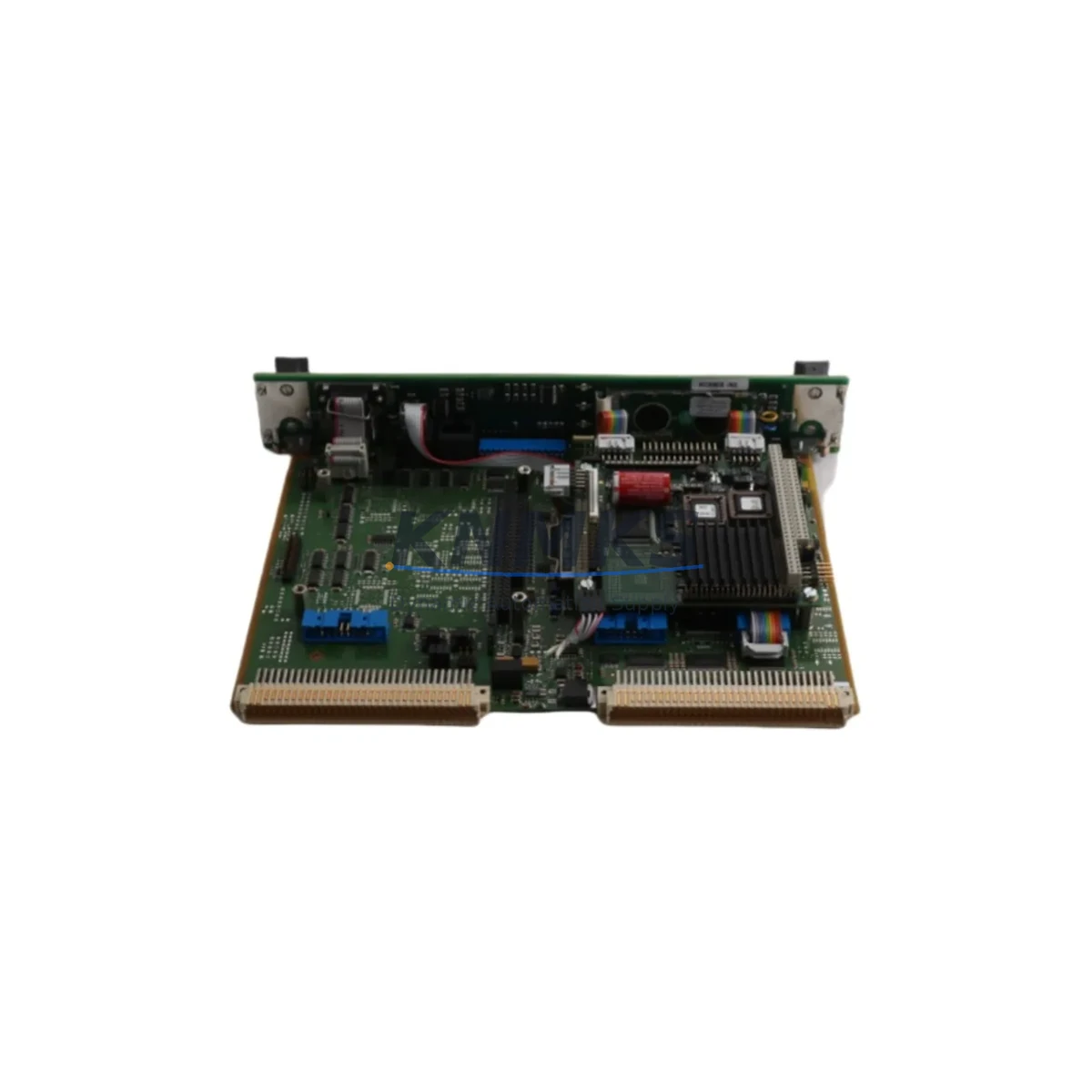

VIBRO-METER VM600-CPU-M-200-595-074-122 Migration-Ready CPU Module for Legacy Control Systems

Overview

VIBRO-METER VM600-CPU-M-200-595-074-122 Migration-Ready CPU Module for Legacy Control Systems

The VIBRO-METER VM600-CPU-M-200-595-074-122 is a central processing unit module designed for the VM600 rack-based vibration monitoring platform. As legacy VM600 installations age and original CPU modules approach end-of-life, this migration-ready replacement enables maintenance teams and system integrators to restore full monitoring capability without redesigning the control cabinet or rewriting existing measurement logic. The module slots directly into the VM600 backplane, preserving existing I/O wiring, channel assignments, and communication links to upstream DCS or SCADA systems.

For plants running continuous rotating machinery — turbines, compressors, pumps, and generators — unplanned CPU failure in a vibration monitoring rack translates directly into production risk. The VM600-CPU-M-200-595-074-122 is stocked as a ready-to-ship spare, pre-tested against VM600 platform specifications, and covered by a support terms confirmed by quotation from the date of shipment. Each unit undergoes functional verification prior to dispatch, reducing the risk of receiving a non-conforming module during an emergency shutdown window.

When planning a CPU swap in an existing VM600 rack, engineers must confirm several compatibility parameters before powering down the system. The backplane connector pinout and slot addressing of the VM600-CPU-M-200-595-074-122 match the original VM600 rack architecture, but the installed firmware version should be verified against the versions expected by co-installed modules such as the VM600 MPC4 machinery protection card or the VM600 AMC8 absolute measurement card. If the rack also houses a VM600 RPS power supply module, confirm that the supply rail voltages remain within tolerance after the CPU is replaced, as aging power modules may exhibit marginal output under the full rack load.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful VM600-CPU-M-200-595-074-122 retrofit begins well before the maintenance window opens. The first step is a full audit of the existing VM600 rack configuration: document every installed module by slot position, including any VM600 MPC4 machinery protection cards, VM600 AMC8 absolute measurement cards, and the VM600 IOC4T I/O concentrator if present. Each of these modules communicates with the CPU through the backplane bus, and their firmware versions must be cross-referenced against the replacement CPU’s supported firmware matrix to avoid post-swap communication faults.

Power budget verification is equally critical. The VM600 RPS rack power supply module must be confirmed capable of sustaining the full rack load after the CPU replacement. In aging installations, power supply modules may have drifted from their original output specifications, and a marginal supply rail can cause intermittent CPU resets or false alarm outputs — symptoms that are difficult to diagnose without a baseline power measurement taken before the swap.

Terminal wiring on the VM600 platform is handled at the I/O module level rather than at the CPU, so field cable connections to transducer inputs, relay outputs, and 4–20 mA signal loops typically do not require re-termination during a CPU-only replacement. However, if the retrofit is being combined with a broader control cabinet upgrade — for example, migrating from a legacy DCS communication card to a modern Ethernet-based gateway — then the communication wiring between the VM600 rack and the plant network will need to be re-routed and re-configured in the CPU’s communication parameter table.

HMI screen updates are another consideration when the CPU firmware version changes. Operator displays that reference VM600 channel data via OPC or Modbus may need tag remapping if the new CPU firmware presents data at different register addresses. Coordinate with the control system integrator to validate all HMI data points against the updated CPU register map before returning the system to service. If the plant uses a VM600 programming cable or dedicated configuration software for parameter upload, confirm that the software version is compatible with the replacement CPU before the maintenance window begins.

Downtime Control During System Migration

Minimizing downtime during a VM600 CPU replacement requires a structured pre-outage preparation protocol. Before isolating the rack, export the full configuration backup from the existing CPU using the VM600 configuration software. This backup captures all channel scaling parameters, alarm setpoints, trip thresholds, and communication settings. If the existing CPU has failed and a configuration backup is unavailable, the channel parameters can often be reconstructed from the original commissioning documentation or from the DCS historian tag database, which typically retains the engineering unit ranges and alarm limits applied at the time of original installation.

During the physical swap, follow the VM600 rack power-down sequence specified in the platform documentation: remove the CPU module only after the rack has been de-energized and the power supply module has been confirmed off. Insert the replacement VM600-CPU-M-200-595-074-122 into the correct slot, secure the module locking mechanism, and restore rack power before attempting any configuration upload. The CPU will perform a self-test on power-up; confirm that the module status indicators show a healthy state before proceeding with parameter restoration.

After configuration upload, perform a channel-by-channel verification pass: confirm that each vibration input channel is reading within the expected engineering unit range, that all alarm and trip outputs are correctly mapped to the downstream protection relay or DCS input card, and that the communication link to the plant network is active and transmitting live data. A structured commissioning checklist — covering firmware version, channel count, alarm setpoint confirmation, communication link status, and a timed observation period under normal operating load — reduces the risk of returning a partially configured system to service and supports the support terms confirmed by quotation claim process if a defect is identified post-installation.

Retrofit Support FAQ

Q: Is the VM600-CPU-M-200-595-074-122 a direct drop-in replacement for all VM600 CPU variants?
A: The VM600-CPU-M-200-595-074-122 is designed for the VM600 rack platform and is compatible with the standard VM600 backplane. However, VM600 CPU modules exist in multiple hardware and firmware revisions. Before ordering, confirm the existing CPU’s part number and firmware version, and cross-reference against the VM600 compatibility matrix to ensure the replacement module supports all co-installed I/O, protection, and communication cards in your rack.

Q: What commissioning steps are required after installing the replacement CPU?
A: After physical installation, upload the saved configuration backup to the new CPU using the VM600 configuration software. Verify firmware version compatibility, confirm channel scaling and alarm setpoints, re-establish the communication link to the DCS or SCADA system, and perform a full channel verification pass. Allow a supervised observation period under normal operating load before returning the system to unattended operation.

Q: Does the replacement CPU require any field wiring changes?
A: For a CPU-only replacement within the same VM600 rack generation, no field wiring changes are required. Transducer inputs, relay outputs, and signal loop connections are terminated at the I/O module level and are unaffected by the CPU swap. If the retrofit includes a communication protocol migration or a rack generation change, additional wiring and configuration work may be required.

Q: What does the support terms confirmed by quotation cover, and how is it supported?
A: Each VM600-CPU-M-200-595-074-122 unit is functionally tested prior to shipment and covered by a support terms confirmed by quotation from the shipment date. The support terms covers manufacturing defects and functional failures under normal operating conditions. To initiate a support terms claim, contact our technical support team with the unit serial number, installation date, and a description of the observed fault. Replacement or repair will be coordinated to minimize system downtime. Stock is maintained for prompt dispatch to support emergency replacement requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

VIBRO-METER
Assorted Brands

Model / Series

VM600-CPU-M-200-595-074-122
Legacy Control Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: VIBRO-METER VM600-CPU-M-200-595-074-122
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
