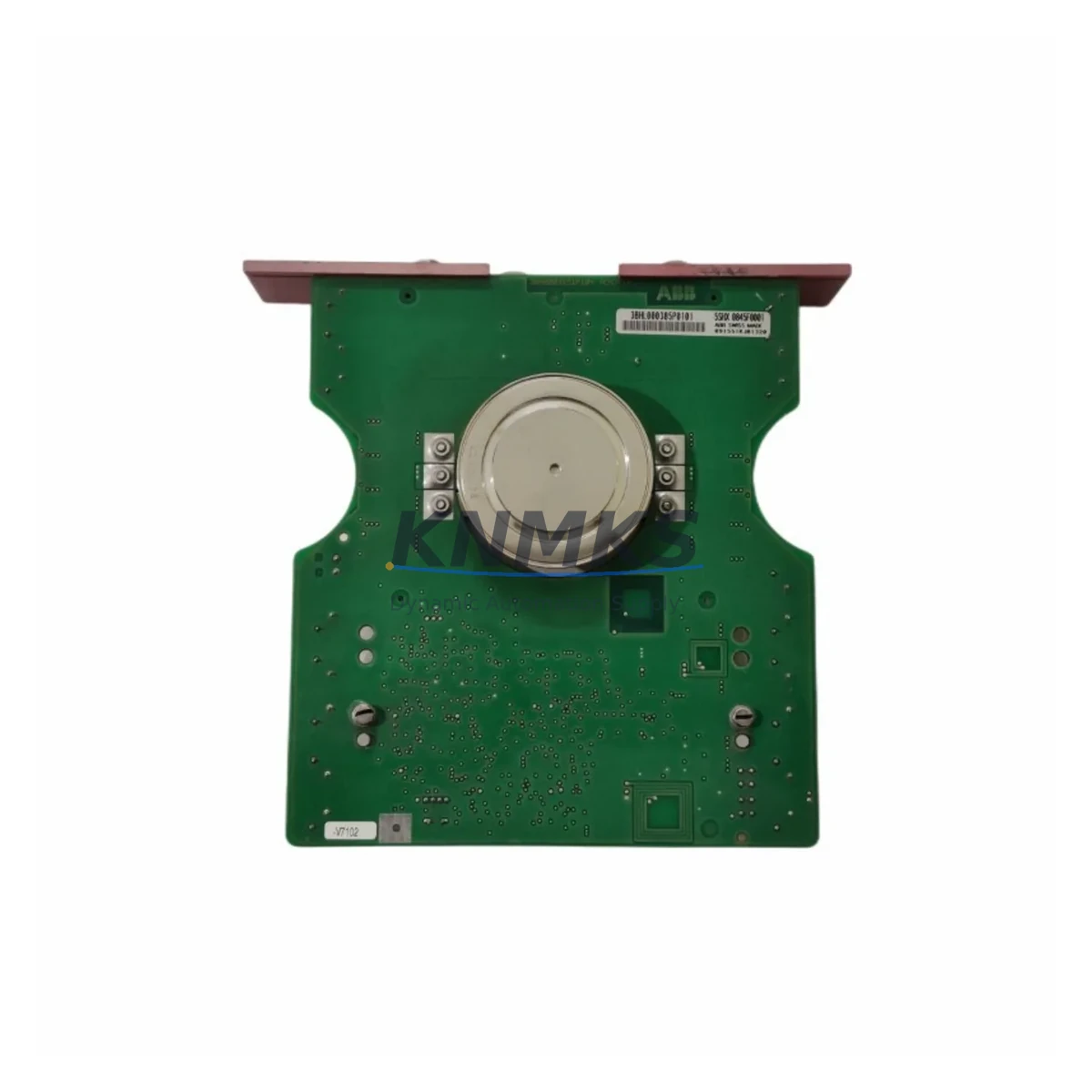

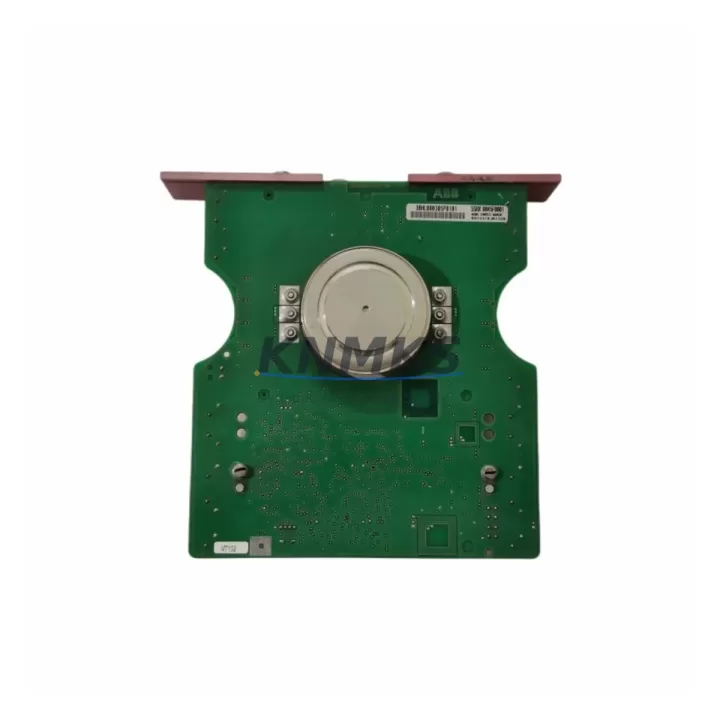

ABB 5SHX0845F0001 Migration-Ready IGBT for Legacy Control Systems

Overview

ABB 5SHX0845F0001 Migration-Ready IGBT for Legacy Control Systems

The ABB 5SHX0845F0001 (cross-reference: 3BHL000385P0101, 5SXE05-0151, 3BHB003387R0101) is a high-power Press-Pack IGBT module engineered for demanding industrial power conversion and drive applications. As legacy ABB ACS and DCS 800 series drive systems approach end-of-life, the 5SHX0845F0001 serves as a verified migration-ready replacement for aging 5SXE-series IGBT stacks, enabling plant engineers to extend system service life without full drive replacement. Its press-pack construction ensures low thermal resistance and high reliability under continuous high-current switching cycles, making it the preferred choice for retrofit projects in steel mills, paper machines, marine propulsion drives, and large-scale HVAC systems.

When planning a retrofit around the 5SHX0845F0001, engineers must confirm that the existing clamp assembly, heat sink geometry, and press-force specification match the module’s mechanical interface. The 5SHX series uses a flat, disc-type package that requires precise clamping torque — deviating from the OEM specification risks uneven contact pressure and premature failure. Before installation, verify that the gate driver board (typically an ABB AGDR-81C or compatible AGDR-71C driver) is firmware-compatible with the 5SHX gate threshold voltage and Miller plateau characteristics. Mismatched gate drive parameters are a leading cause of nuisance trips during commissioning of retrofitted IGBT stacks.

Power supply capacity is a critical checkpoint. The DC bus voltage rating and peak collector current of the 5SHX0845F0001 must be cross-verified against the existing DC link capacitor bank and pre-charge circuit. In many legacy ACS 1000 and ACS 6000 installations, the capacitor bank was sized for the original 5SXE05-0151 module’s switching characteristics. If the replacement module’s switching speed differs, dV/dt stress on the DC link capacitors may increase, requiring a review of the snubber circuit or capacitor derating. Coordinate with the drive OEM documentation or ABB service bulletins before finalizing the bill of materials.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the ABB 5SHX0845F0001 into an existing drive stack requires a structured bill of materials review. Beyond the IGBT module itself, the following components are commonly evaluated or replaced in parallel during a 5SHX-series upgrade project:

The ABB AGDR-81C gate driver unit is the most frequently co-replaced item. When the legacy AGDR-71C driver is retained, engineers must verify that its desaturation detection threshold and soft-turn-off timing are compatible with the 5SHX0845F0001’s short-circuit withstand time (tSC). An incompatible driver can cause destructive failure within microseconds of a fault event. If the existing driver board shows signs of electrolytic capacitor aging — common in systems over 10 years old — proactive replacement during the IGBT retrofit eliminates a second unplanned outage.

The DC link capacitor bank (typically ABB or Epcos film capacitors rated for the ACS 1000 or ACS 6000 platform) should be inspected for capacitance drift and ESR increase. Capacitors that have degraded beyond 10% of nominal capacitance will not adequately suppress voltage spikes generated by the new module’s switching transients. In many legacy installations, the capacitor bank is mounted on a dedicated sub-rack adjacent to the IGBT stack — confirm that the sub-rack’s busbar connection points are clean and torqued to specification before energizing.

For systems that include a fiber-optic communication link between the drive control board and the gate driver (a standard feature in ACS 6000 and ACS 1000 architectures), inspect the plastic optical fiber (POF) cables for brittleness and connector contamination. Degraded fiber links cause intermittent gate pulse loss, which manifests as random overcurrent trips that are difficult to distinguish from IGBT failure. Replacing the POF harness during the IGBT retrofit is low-cost insurance against post-commissioning nuisance faults.

The ABB RDCU-02C or RDCU-12C drive control unit — the brain of the ACS 800 and ACS 1000 platforms — should be checked for firmware currency. ABB has released multiple firmware updates addressing IGBT protection algorithms; running outdated firmware with a new IGBT module can result in suboptimal protection response times. Download the latest firmware package from ABB’s service portal and schedule the flash update as part of the commissioning sequence.

Finally, if the retrofit involves a DDCS (Distributed Drive Control System) communication board such as the NDBU-95C or NDBU-85C, verify that the node address settings and baud rate configuration are preserved after the control board is powered down for the IGBT swap. DDCS node address loss is a common commissioning pitfall that delays restart by hours in multi-drive installations.

Downtime Control During System Migration

Minimizing production downtime during an IGBT stack replacement is the primary concern for plant maintenance teams. A well-executed 5SHX0845F0001 retrofit can be completed within a planned 8–12 hour maintenance window when the following practices are observed.

Pre-work (off-line, before shutdown): Photograph all terminal wiring, fiber connections, and gate driver board positions before disassembly. Export the drive parameter set using ABB DriveWindow or DriveStudio software — this preserves motor control tuning, protection thresholds, and I/O mapping that would otherwise require hours of re-commissioning. Confirm that the replacement 5SHX0845F0001 has been pre-tested at the supplier level (our units ship with outgoing test reports) and that all ancillary components — gate driver, fiber harness, clamp hardware — are on-site before the shutdown begins.

During shutdown: Discharge the DC link capacitors fully before touching any power components — use a calibrated discharge resistor and verify with a high-voltage meter. Remove the IGBT stack following the OEM disassembly sequence; do not improvise the clamping disassembly order, as uneven spring release can damage the heat sink surface. Install the 5SHX0845F0001 with fresh thermal contact surfaces, apply the specified clamp force using a calibrated torque wrench, and reconnect the gate driver and fiber harness in reverse order.

Commissioning: Restore the saved parameter set before first power-up. Perform a no-load test at reduced DC bus voltage to verify gate waveforms and confirm no desaturation faults. Gradually increase load to 25%, 50%, and 100% of rated current while monitoring IGBT junction temperature via the drive’s thermal model. Document the commissioning results and retain the test report alongside the support terms confirmed by quotation certificate for future reference.

This structured approach protects the original program logic, maintains field control continuity, and reduces retrofit risk to the lowest practical level.

Retrofit Support FAQ

Q1: Is the ABB 5SHX0845F0001 a direct drop-in replacement for the 5SXE05-0151?
A: Yes, in terms of mechanical form factor and electrical ratings, the 5SHX0845F0001 is the designated successor to the 5SXE05-0151 in ABB’s press-pack IGBT product line. The gate driver firmware update (AGDR-81C or updated AGDR-71C) is required to ensure optimal switching performance. Our team can provide the relevant ABB service bulletin reference upon request.

Q2: Does the unit ship with an outgoing test report?
A: Yes. Every 5SHX0845F0001 unit supplied by KNMKS is tested prior to shipment. The test report covers gate threshold voltage, leakage current, and forward voltage drop at rated current. The report ships with the unit and is available digitally upon request.

Q3: What wiring changes are required during the retrofit?
A: The 5SHX0845F0001 uses the same press-pack disc interface as the 5SXE05-0151, so no busbar modifications are required. The gate driver connector pinout is compatible with the AGDR-71C and AGDR-81C. Fiber-optic connections use standard HFBR-type connectors. Document all connections photographically before disassembly to ensure accurate reconnection.

Q4: What does the support terms confirmed by quotation cover?
A: The support terms confirmed by quotation cover manufacturing defects under normal operating conditions as defined by ABB’s application guidelines. It does not cover damage resulting from incorrect clamping force, overvoltage events beyond the module’s rated VCES, or gate driver misconfiguration. Support requests are processed within 5 business days of receipt of the returned unit and test report.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

5SHX0845F0001 3BHL000385P0101 5SXE05-0151 3BHB003387R0101
Legacy Control Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 5SHX0845F0001 3BHL000385P0101 5SXE05-0151 3BHB003387R0101
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
