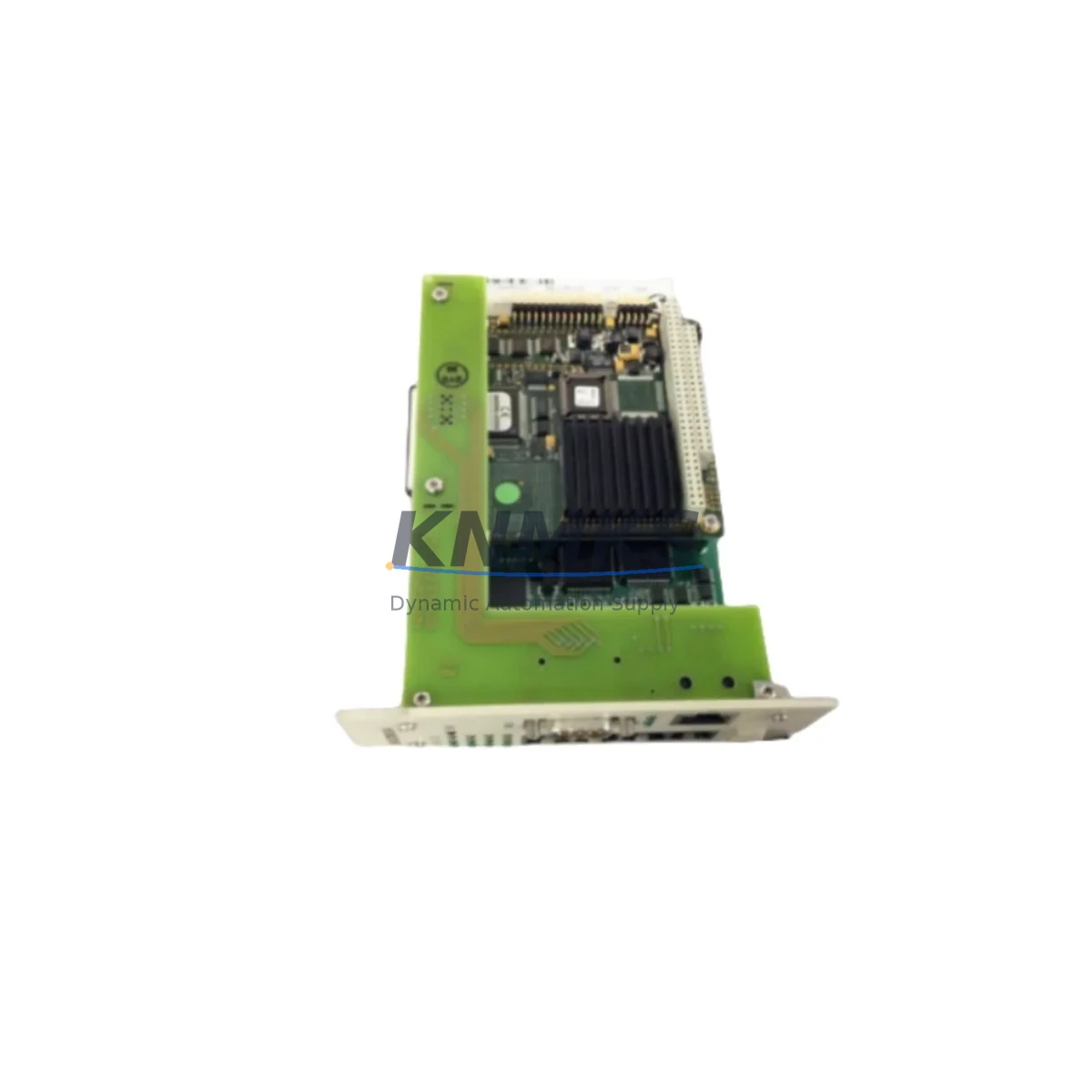

ABB 560CMU04 1KGT011300R0001 Migration-Ready CPU for Legacy Control Systems

Overview

ABB 560CMU04 1KGT011300R0001 Migration-Ready CPU for Legacy Control Systems

The ABB 560CMU04 (part number 1KGT011300R0001) is a central processing unit designed for the ABB Freelance DCS platform, widely deployed in process automation, power generation, and chemical plant control environments. As legacy Freelance 560 installations approach end-of-life, the 560CMU04 serves as the primary migration-ready replacement for discontinued CPU variants including the 560CMU01 and 560CMU02, enabling engineers to restore full system functionality without redesigning the control architecture. Each unit is sourced from verified stock, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation to support both emergency replacement and planned maintenance cycles.

When integrating the 560CMU04 into an existing Freelance DCS cabinet, engineers must verify several critical parameters before commissioning. Power supply capacity within the rack — typically provided by a 560PSU01 or compatible 24 VDC power supply module — must be confirmed to support the CPU’s load alongside co-installed I/O modules. Terminal wiring on the backplane connectors should be inspected for corrosion or loose contacts, particularly in installations exceeding ten years of continuous operation. The backplane interface between the CPU and the 560ACN01 AC800F controller node must be validated for slot addressing compatibility, as firmware revisions introduced after 2015 altered default module addressing schemes.

Program logic compatibility is a key concern during any CPU swap. Control programs developed in the Freelance Engineering Tool (FET) and stored on the outgoing CPU must be exported and validated against the 560CMU04’s firmware version prior to download. In systems where the HMI layer is managed through ABB’s 800xA or a third-party SCADA platform via OPC-DA or OPC-UA, the communication link configuration — including node addresses and redundancy settings — must be re-verified after the CPU replacement to prevent process data gaps. PROFIBUS-DP segment integrity should be confirmed using a bus analyzer before returning the system to automatic mode, especially where field devices such as valve positioners, flow transmitters, and motor starters are connected on the same DP segment as the 560CMU04.

Physical installation requires confirmation that the replacement CPU fits the existing rack slot dimensions. The Freelance 560 rack accepts standard-width modules, but installations that have been retrofitted with third-party I/O expanders or signal isolators may have modified slot spacing. Firmware version alignment between the 560CMU04 and co-installed communication modules — including the 560NET01 Ethernet interface module and any 560DIO series digital I/O modules — is essential to avoid initialization errors during system startup. Where the existing installation uses a 560RCM01 redundancy controller module, the redundancy switchover logic must be re-tested after the CPU replacement to confirm bumpless transfer behavior.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the ABB 560CMU04 into a live Freelance DCS environment requires a structured pre-migration audit. Begin by documenting the current rack configuration, including the positions of all installed modules: 560DIO digital I/O modules, 560AIO analog I/O modules, the 560NET01 Ethernet communication module, and any 560ACN01 controller nodes operating in a multi-controller topology. Capture the existing PROFIBUS-DP segment map, noting device addresses, baud rates, and GSD file versions for all connected field devices.

Signal isolators installed between field wiring and I/O module terminals should be inspected and replaced if degraded, as signal integrity issues that were masked by the previous CPU’s error-correction routines may become visible after the upgrade. Where the control cabinet includes a 560PSU01 power supply module, verify that the supply’s output capacity has not been derated due to age or thermal stress. Programming cables used to connect the engineering workstation to the CPU — typically a standard Ethernet patch cable for FET-based systems — should be tested for continuity before the maintenance window begins.

For installations where the Freelance DCS communicates upstream to an ABB 800xA system or a third-party DCS via Modbus TCP or PROFIBUS-DP, the communication gateway configuration must be exported and preserved before the CPU is removed. Re-importing this configuration after the 560CMU04 is installed and initialized will restore the upstream data exchange without requiring manual re-entry of tag mappings or alarm thresholds.

Downtime Control During System Migration

Minimizing unplanned downtime during a CPU replacement on a live Freelance 560 system requires preparation at three levels: program backup, hardware staging, and communication verification. Before removing the outgoing CPU, export the full control program from the Freelance Engineering Tool, including all function block libraries, loop configurations, and alarm setpoints. Store this backup on an isolated engineering workstation and verify the export is complete and uncorrupted.

Where the system supports hot-standby redundancy via the 560RCM01 module, initiate a controlled switchover to the standby CPU before beginning the replacement procedure. This preserves process control continuity and allows the replacement to proceed without interrupting field device communication. In non-redundant installations, coordinate the replacement window with the process operations team to align with a planned shutdown or low-throughput period.

After installing the 560CMU04 and downloading the validated control program, perform a staged startup: bring the CPU online in manual mode, verify all I/O module communications are established, confirm PROFIBUS-DP segment health, and validate HMI tag updates before switching to automatic control. Document the commissioning steps and retain the pre-replacement program backup for a minimum of 90 days as a rollback reference. Each 560CMU04 unit shipped by KNMKS has been pre-tested to power on and communicate correctly, reducing the risk of DOA failures during the commissioning window.

Retrofit Support FAQ

Q: Is the ABB 560CMU04 a direct drop-in replacement for the 560CMU01 and 560CMU02?
A: The 560CMU04 is mechanically and electrically compatible with the Freelance 560 rack backplane and occupies the same CPU slot as the 560CMU01 and 560CMU02. However, firmware and program compatibility should be verified using the Freelance Engineering Tool before download, as later firmware versions may require minor configuration adjustments for older program libraries.

Q: What pre-shipment testing is performed on each unit?
A: Every 560CMU04 unit undergoes a functional power-on test and a basic communication initialization check before shipment. Units that fail any stage of testing are quarantined and not dispatched. A support terms confirmed by quotation cover all units from the date of shipment against manufacturing defects and functional failures.

Q: How do I verify wiring compatibility before installation?
A: The 560CMU04 connects to the Freelance 560 rack via the standard backplane — no field wiring connects directly to the CPU module. Verify that the rack backplane connectors are clean and undamaged, and that the power supply module (560PSU01 or equivalent) is delivering stable 24 VDC before inserting the replacement CPU.

Q: What is the typical lead time and stock availability?
A: KNMKS maintains multi-region stock of the ABB 560CMU04 to support emergency replacement requirements. Standard dispatch is within 1–3 business days for in-stock units. Contact the sales team to confirm current availability and arrange expedited shipping for critical maintenance situations.
