VACON 60VB00459 Maintenance-Proven Spare Part for Factory Uptime

Overview

VACON 60VB00459 Maintenance-Proven Spare Part for Factory Uptime

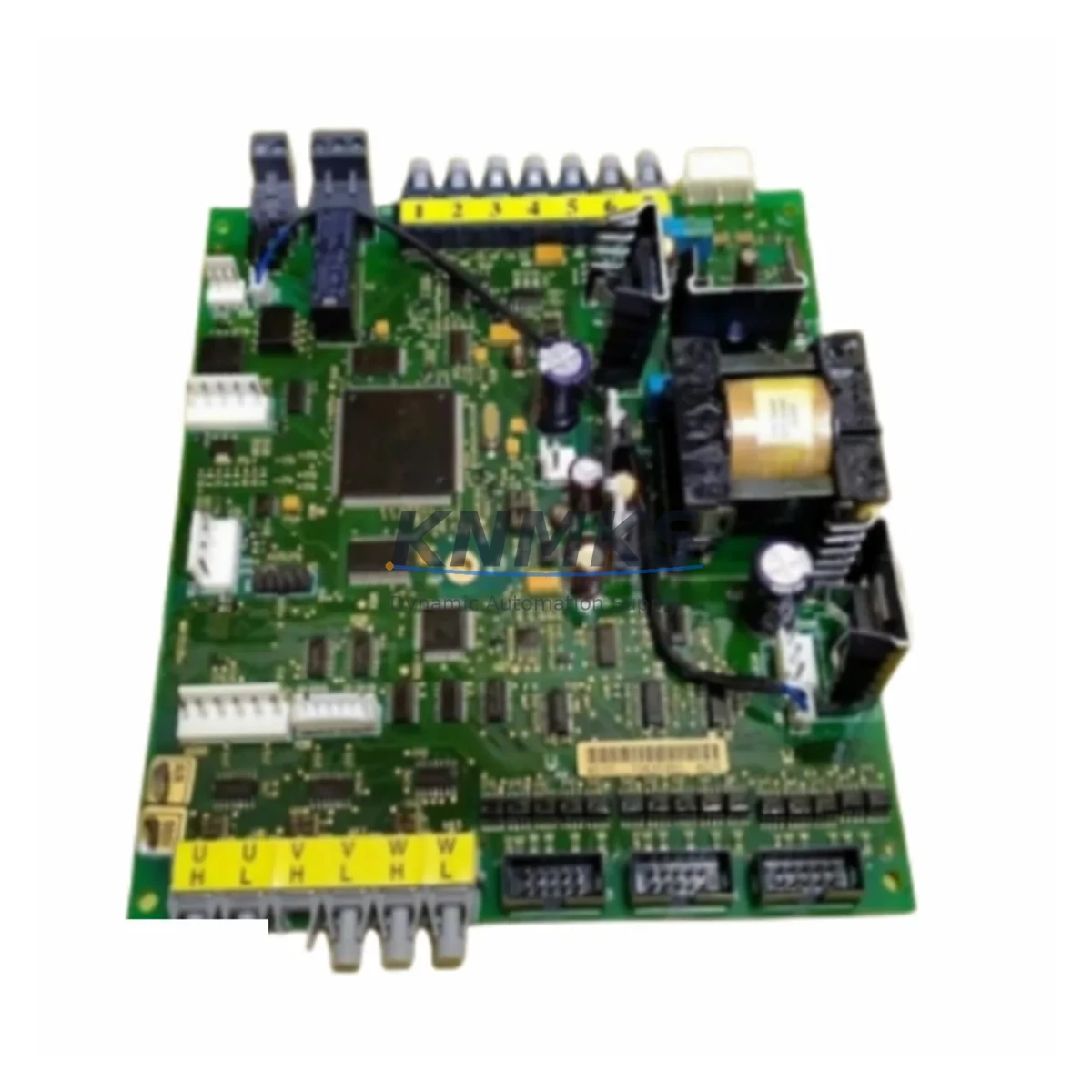

The VACON 60VB00459 is an original control board designed for VACON NX and NX100 series variable frequency drives, widely deployed in industrial automation, pump control, conveyor systems, HVAC, and process manufacturing environments. As a maintenance-proven spare part, the 60VB00459 is a critical component for maintenance engineers managing aging drive infrastructure, ensuring continuous production uptime and reducing mean time to repair (MTTR) during unplanned drive failures.

For facilities operating VACON NX-series drives, maintaining at least one 60VB00459 control board in the local spare parts inventory is a recognized best practice. Drive control board failures are among the most common causes of unplanned VFD downtime, and sourcing a replacement under emergency conditions from the open market introduces significant lead-time risk. Stocking this board eliminates that risk and supports a proactive maintenance posture aligned with IEC 60364 and ISO 55001 asset management standards.

Each unit supplied by KNMKS is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial use conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a VACON NX drive trips on a control board fault — typically indicated by fault codes F53 (control board fault), F1 (overcurrent), or persistent communication loss — the 60VB00459 replacement procedure should be part of a broader cabinet inspection protocol. Maintenance engineers should not limit the inspection to the control board alone.

Before or during a 60VB00459 replacement, the following associated components should be inspected or tested as part of the same maintenance window:

• VACON NX Power Unit / IGBT Stack: A failed control board is sometimes a downstream symptom of a power stage fault. Verify the power unit (e.g., VACON NX power module for the relevant frame size) for gate drive integrity before commissioning the replacement board.
• 24 VDC Internal Power Supply: The control board logic supply is derived from the drive’s internal SMPS. If the SMPS output is out of tolerance, a new control board will fail prematurely. Measure and confirm 24 VDC rail stability.
• Fieldbus / Communication Option Board: If the drive uses a PROFIBUS DP, MODBUS RTU, or DeviceNet option board installed in the NX option slot, remove and inspect it for corrosion, connector damage, or firmware incompatibility before reinstalling on the replacement control board.
• Digital and Analog I/O Wiring: Inspect all field wiring at the control terminal strip. Loose, corroded, or mis-wired terminals are a common root cause of control board stress. Verify signal levels on analog inputs (0–10 V or 4–20 mA) and confirm digital input logic levels are within specification.
• Relay Output Modules: If the drive controls external contactors or safety relays via its relay outputs, verify relay coil continuity and contact condition. Relay output faults can generate spurious fault signals that are misdiagnosed as control board failures.
• Control Cabinet Fusing and Protection: Inspect the control circuit fuse (typically 2A–6A, depending on cabinet design) and any surge protection devices on the control wiring. A blown fuse or degraded SPD can cause intermittent control board resets that mimic hardware failure.

For facilities with multiple VACON NX drives in service, a recommended spare parts kit should include the 60VB00459 control board alongside the relevant NX option board for the installed fieldbus protocol, a set of control terminal fuses, and at minimum one spare relay output module. This kit approach reduces diagnostic time during emergency callouts and supports a structured annual inspection cycle.

Site Replacement Workflow

The 60VB00459 is a direct replacement for the original VACON NX control board. The replacement procedure is designed to minimize downtime and does not require drive reconfiguration from scratch, provided the parameter backup has been saved prior to the failure event.

1. Isolate and de-energize the drive following LOTO (Lockout/Tagout) procedures. Allow a minimum of 5 minutes for DC bus capacitors to discharge before opening the drive enclosure.
2. Document existing wiring at the control terminal strip using photographs or a wiring diagram. Label all field cables before disconnection.
3. Remove the faulty control board by disconnecting the ribbon cable to the power board, the option board connector (if fitted), and all control terminal wiring.
4. Install the 60VB00459 replacement board, reconnecting all cables in reverse order. Ensure the ribbon cable is fully seated and the locking tab is engaged.
5. Restore drive parameters from backup (via VACON PC Tool or keypad upload). If no backup is available, re-enter parameters manually from the commissioning record.
6. Perform a no-load test run before reconnecting the driven load. Verify all I/O signals, fieldbus communication, and relay outputs are functioning correctly.
7. Return to service and monitor the drive for the first 30 minutes of operation for any residual fault codes or thermal anomalies.

This workflow is applicable to VACON NX frame sizes NX0001 through NX0300 (400V class) and equivalent 690V variants. For NX100 series drives, confirm the control board hardware revision matches the drive firmware version to avoid compatibility issues. KNMKS technical support can assist with revision verification prior to shipment.

Spare Parts Support FAQ

Q1: Is the VACON 60VB00459 compatible with all NX series frame sizes?
The 60VB00459 control board is designed for the VACON NX platform and is compatible with a range of NX and NX100 frame sizes. However, compatibility depends on the specific drive hardware revision and installed firmware version. We recommend providing your drive nameplate data (model number, serial number, and firmware version) when placing an order so our team can confirm compatibility before shipment.

Q2: What pre-shipment testing is performed on the 60VB00459?
Each 60VB00459 unit undergoes functional verification testing before dispatch. This includes power-on logic testing, I/O signal verification, and communication interface checks where applicable. A test report is available upon request. All units are shipped with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial use conditions.

Q3: How should the 60VB00459 be stored as a long-term spare?
For long-term spare parts storage, the 60VB00459 should be kept in its original anti-static packaging in a dry, temperature-controlled environment (recommended: 10°C–30°C, relative humidity below 70%, non-condensing). Avoid storage near strong magnetic fields or in environments with high particulate contamination. Inspect the board annually for signs of corrosion or component degradation if stored for more than 24 months.

Q4: Can KNMKS support long-term supply commitments for the 60VB00459?
Yes. KNMKS maintains supply relationships for end-of-life and legacy VACON NX components, including the 60VB00459. For facilities with multiple drives in service, we offer long-term supply agreements and can reserve stock against a forward purchase commitment. Contact our sales team to discuss volume pricing, lead-time guarantees, and multi-year supply arrangements suited to your maintenance planning cycle.
