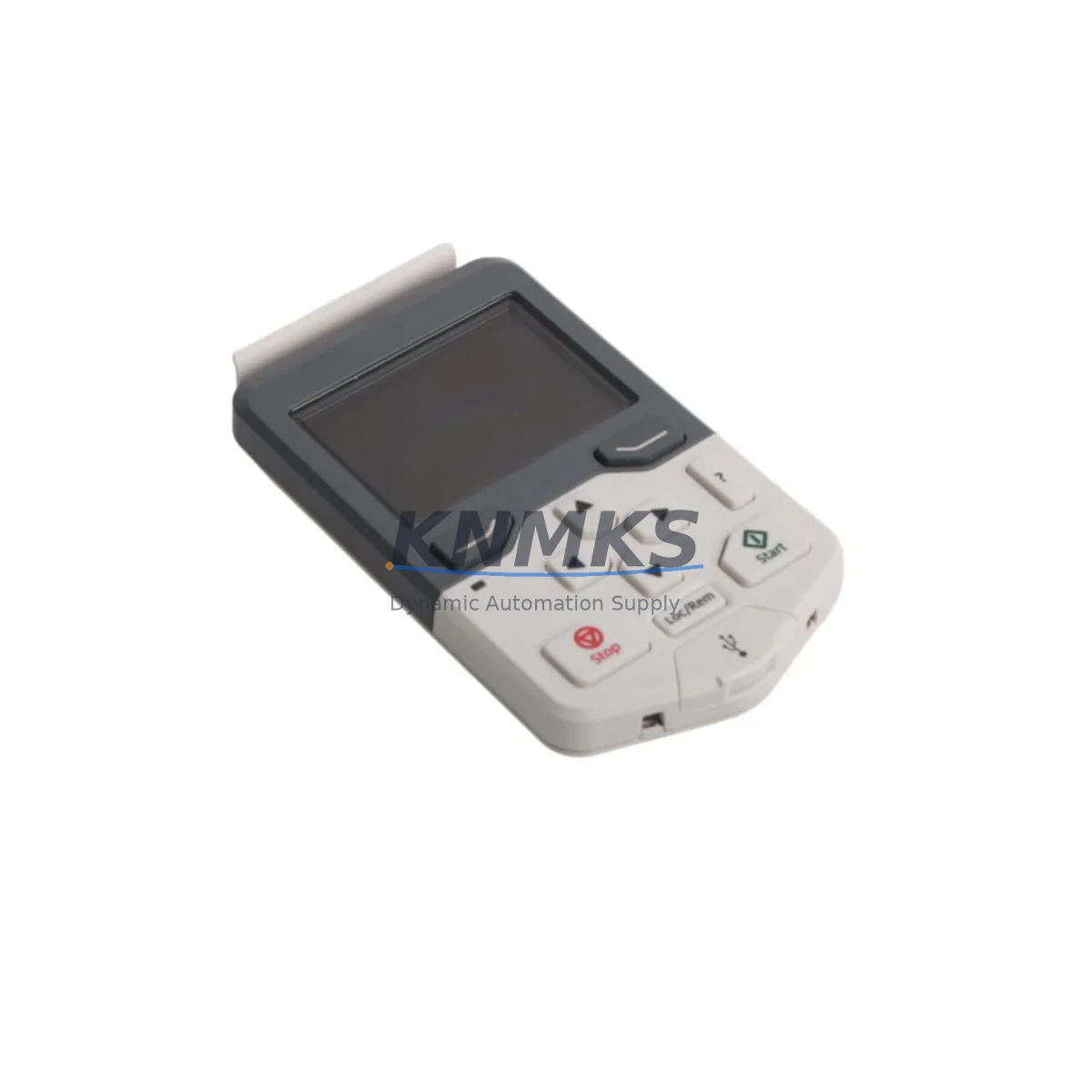

ABB ACS-AP-S Migration-Ready VFD Keypad for ACS Series

Overview

ABB ACS-AP-S Migration-Ready VFD Keypad for ACS Series Legacy Control Systems

The ABB ACS-AP-S is a migration-ready operator panel designed for engineers and maintenance teams managing legacy variable frequency drive (VFD) infrastructure. As ABB’s ACS series drives continue to serve critical production lines well beyond their original design life, the ACS-AP-S provides a reliable, drop-in replacement keypad that eliminates the need for full drive replacement during control system modernization. Whether you are upgrading a standalone ACS355 in a pump station, retrofitting an ACS550 in a legacy HVAC cabinet, or restoring operator interface capability on an ACS800 in a paper mill or steel plant, the ACS-AP-S delivers consistent performance with minimal commissioning overhead.

The panel supports full parameter read/write, fault history review, and real-time monitoring across compatible ACS platform drives. Its compact form factor and standardized mounting interface make it a practical choice for control cabinet upgrades where installation space is constrained. Engineers replacing failed or discontinued keypads on ACS880 multi-drive systems will find the ACS-AP-S particularly effective, as it retains compatibility with the drive’s existing communication bus without requiring firmware reconfiguration on the drive side.

For sites running mixed-generation ABB drive fleets — including ACS355, ACS550, ACS580, ACS800, and ACS880 — the ACS-AP-S simplifies spare parts standardization. Stocking a single keypad model across multiple drive generations reduces inventory complexity and shortens mean time to repair (MTTR) during unplanned downtime events. Each unit is pre-shipment tested against live drive communication protocols before dispatch, ensuring field-ready performance upon arrival.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ACS-AP-S into an existing automation environment requires a structured pre-retrofit assessment. Before removing the legacy keypad, document all active parameter groups stored in the drive — particularly motor control parameters (Group 99), reference limits (Group 20), and any application macro settings that govern process-specific behavior. If the site uses an ACS800 or ACS880 with a fieldbus adapter such as an FCAN-01 CANopen module or FPBA-01 PROFIBUS adapter, confirm that the panel bus connection does not share interrupt priority with the fieldbus communication channel, as simultaneous parameter writes during live fieldbus polling can cause transient faults.

For control cabinets housing multiple drive modules — such as an ACS880 multi-drive cabinet with a common DC bus and shared ACS880-104 inverter modules — verify that the ACS-AP-S is connected to the correct drive unit before initiating any parameter changes. In multi-drive configurations, the panel address must be set to match the target drive’s node ID to avoid cross-drive parameter corruption. This is particularly relevant when the cabinet also contains an ACQ810 pump drive or an ACS580 configured as a bypass unit, as these drives share physical rack space but maintain independent parameter sets.

When the retrofit involves replacing a failed ACS-CP-A or CDP312R keypad on an ACS355 or ACS550, confirm the drive’s supply voltage range and ensure the replacement panel’s display contrast is adjusted for the ambient temperature of the installation environment. In cold storage or outdoor enclosure applications, display response time may differ from factory defaults. Additionally, if the site’s control system includes an ABB AC500 PLC communicating with the drive via Modbus RTU over an RS-485 link, the panel replacement does not affect the serial communication channel — the ACS-AP-S operates independently on the panel bus and does not interfere with existing PLC-to-drive communication.

For HMI integration, if the existing SCADA or HMI panel — such as an ABB CP600 or a third-party Weintek or Siemens TP700 — displays drive status via OPC or Modbus, the ACS-AP-S replacement does not require HMI screen reconfiguration. Drive parameter addresses remain unchanged after keypad replacement, preserving all existing HMI tag mappings and alarm display logic.

Downtime Control During System Migration

Minimizing production downtime during keypad replacement requires preparation before the maintenance window begins. The recommended procedure is to perform a full parameter backup using the existing keypad (if still functional) or via the ABB Drive Composer PC tool connected through the drive’s USB or RS-232 service port. This backup preserves the complete parameter set, including application macros, PID tuning values, and fault history, and can be restored to the replacement drive or used as a reference during commissioning verification.

If the existing keypad has failed and parameter backup is not possible, reconstruct the critical parameter set from the site’s commissioning records or the drive’s nameplate data. At minimum, confirm motor rated voltage, current, frequency, speed, and power (parameter group 99) before energizing the drive with the new ACS-AP-S installed. For drives controlling critical process equipment — such as boiler feed pumps, compressors, or conveyor systems — perform a no-load test run before reconnecting the mechanical load to verify that speed reference, acceleration ramp, and fault response behavior match pre-retrofit specifications.

The ACS-AP-S supports parameter copy functionality, allowing the panel to store a complete drive parameter set and transfer it to a replacement drive of the same type. This feature is particularly valuable in multi-drive installations where a spare drive must be commissioned rapidly to restore production. By pre-loading the parameter set onto the ACS-AP-S before the maintenance window, commissioning time can be reduced to under 15 minutes for a like-for-like drive replacement, significantly reducing the impact on production schedules.

Retrofit Support FAQ

Q1: Is the ACS-AP-S a direct replacement for the ACS-CP-A and CDP312R keypads?
The ACS-AP-S is compatible with the same drive series as the ACS-CP-A and CDP312R, including ACS355, ACS550, ACS580, ACS800, and ACS880. However, the physical connector and mounting format differ between panel generations. Confirm your drive’s panel slot type before ordering. For ACS355 and ACS550 drives manufactured before 2010, verify the panel bus connector pinout against the ACS-AP-S datasheet to ensure mechanical compatibility.

Q2: Will replacing the keypad affect the drive’s existing parameter settings?
No. Replacing the ACS-AP-S does not alter the drive’s stored parameter set. Parameters are retained in the drive’s non-volatile memory independently of the keypad. However, if the replacement panel is used to perform a parameter restore operation, existing parameters will be overwritten. Always confirm the parameter set version before initiating a restore to avoid unintended configuration changes.

Q3: What pre-shipment testing is performed on each ACS-AP-S unit?
Each ACS-AP-S unit is tested for display function, keypad input response, and panel bus communication before dispatch. Units that fail any test criterion are quarantined and not shipped. A test record is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and communication failures under normal operating conditions.

Q4: What is the typical lead time and stock availability?
The ACS-AP-S is maintained availability confirmed by RFQ for immediate dispatch. Standard lead time for in-stock units is 3–7 business days for international shipments. For urgent requirements — such as unplanned drive failures on critical production lines — contact the sales team directly to confirm current stock levels and expedited shipping options. Long-term supply agreements covering 12–36 months of forward inventory are available for multi-site maintenance programs.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

ACS-AP-S
Assorted Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB ACS-AP-S
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
