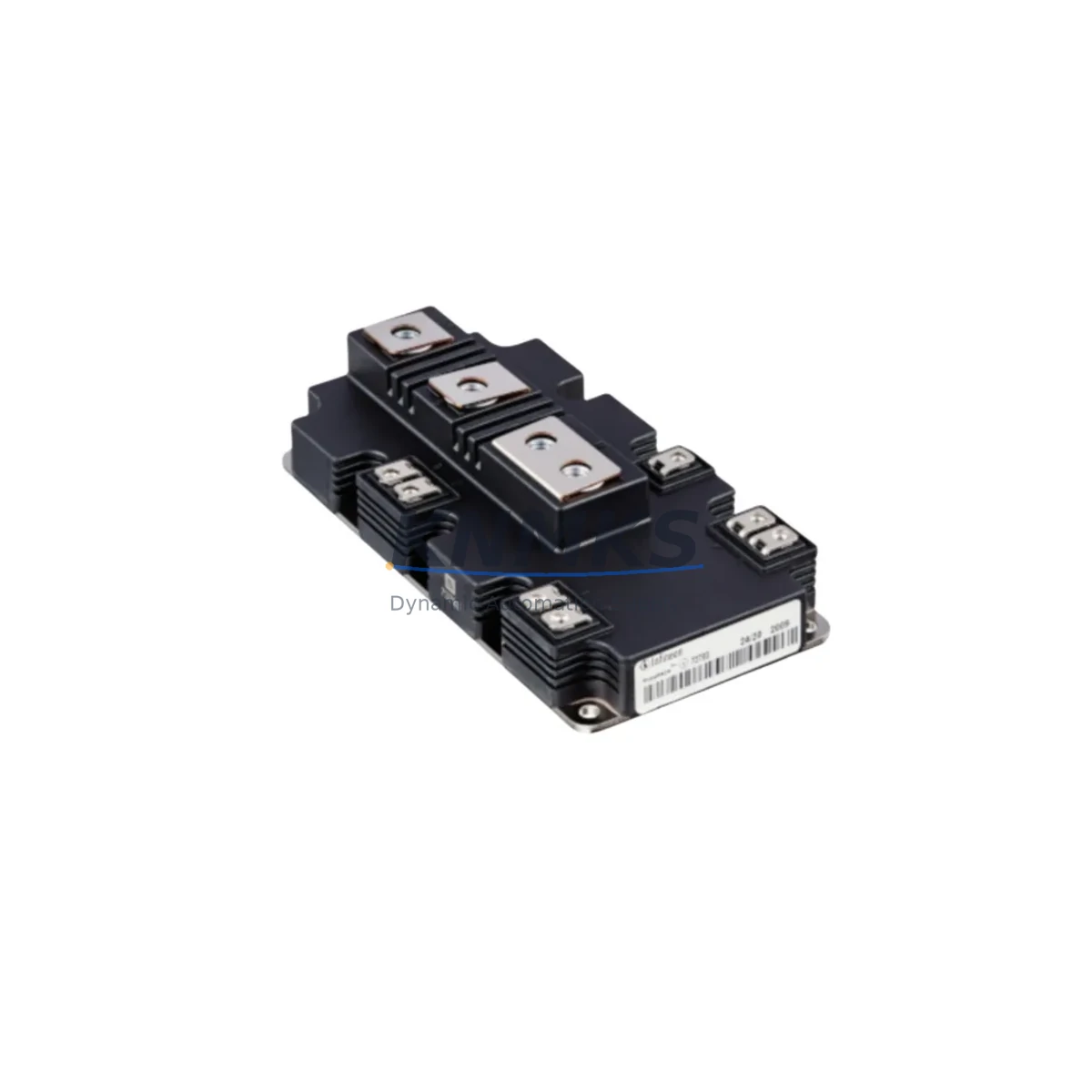

ABB FF900R12IP4 Migration-Ready IGBT Module for IP4 Series

Overview

ABB FF900R12IP4 Migration-Ready IGBT Module for IP4 Series: Legacy Drive Retrofit and Control System Upgrade

The ABB FF900R12IP4 is a 1200V / 900A high-power IGBT module engineered for demanding industrial drive applications within the ABB IP4 Series platform. As legacy variable frequency drives and motor control centers approach end-of-life, the FF900R12IP4 has become a critical spare part for engineers managing retrofit projects, unplanned shutdowns, and long-cycle maintenance programs across process industries. Whether you are replacing a failed power stage in an existing IP4 drive cabinet or executing a planned modernization of an aging automation system, this module provides a direct, drop-in compatible solution that preserves your existing control architecture and minimizes engineering rework.

The FF900R12IP4 is a dual IGBT module in a standard Infineon housing format, making it compatible with a wide range of ABB IP4 Series drive frames. Before installation, engineers must verify the DC bus voltage rating, gate driver board compatibility, and thermal interface requirements. The module mounts directly to the heatsink assembly using the existing fastener pattern, but thermal compound must be renewed and torque specifications followed precisely to ensure long-term junction temperature stability. Gate resistor values on the driver board should be confirmed against the original drive documentation to avoid switching loss mismatches that can cause premature failure under high-cycle load profiles.

In retrofit scenarios involving older ABB ACS600 or ACS800 drive platforms that share similar power stage architectures, the FF900R12IP4 is frequently evaluated as part of a broader power module replacement strategy. Engineers working on these projects typically also address the gate driver board, DC link capacitor bank, and snubber circuit integrity as part of a comprehensive power stage overhaul. The ABB RDCU-02C control unit and RINT-5514C rectifier interface board are commonly reviewed during the same maintenance window to ensure the full drive stack is restored to a reliable operating baseline.

For installations where the IP4 drive is integrated into a DCS or SCADA environment via PROFIBUS-DP or Modbus RTU, the communication link must be verified after power stage replacement. Drive parameter sets stored in the RMIO-11C main control board or equivalent should be backed up before any hardware intervention. If the drive’s parameter memory is lost during the replacement process, re-commissioning will require access to the original drive configuration file or a full parameter survey of the motor nameplate data, encoder feedback settings, and process control references.

Wiring adaptation is rarely required when replacing the FF900R12IP4 on a like-for-like basis, but terminal block condition, bus bar torque, and phase current sensor alignment should all be inspected during the replacement procedure. In cases where the drive cabinet has experienced a catastrophic failure event — such as a DC bus overvoltage or a sustained overcurrent condition — the gate driver board, current measurement board, and fiber optic interface cables should be tested independently before the new IGBT module is energized. This prevents secondary damage to the replacement module caused by undetected upstream faults.

Firmware compatibility is another key consideration in IP4 Series retrofit projects. If the drive control board has been updated to a newer firmware revision during a previous service event, the gate timing parameters and protection thresholds may differ from the original factory settings. Confirming firmware version alignment between the control board and the power stage configuration is essential before returning the drive to automatic operation. In multi-drive systems where several IP4 units share a common DC bus, the replacement sequence and bus pre-charge logic must be coordinated to avoid inrush events that could stress the newly installed module.

All FF900R12IP4 units supplied by KNMKS are sourced from verified distribution channels and undergo pre-shipment functional testing that includes gate threshold voltage measurement, collector-emitter leakage current verification, and diode forward voltage characterization. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and is packaged in ESD-protective materials with humidity indicator cards to ensure integrity during international transit. Global stock is maintained to support emergency replacement requirements with short lead times.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IP4 Series power stage retrofit requires a structured approach that addresses the full signal and power chain, not just the IGBT module itself. Before ordering the FF900R12IP4, maintenance engineers should audit the condition of the gate driver board, DC link capacitors, and the fiber optic interface cables that carry switching signals between the control board and the power module. In many aging IP4 installations, the RINT-5514C rectifier interface board and the RDCU-02C drive control unit will also require inspection, as these components share the same service life as the power stage and may exhibit degraded performance even if they have not yet failed outright.

I/O expansion modules connected to the drive’s control network should be verified for address conflicts after the replacement, particularly in systems where the drive communicates with a distributed I/O rack or a remote terminal unit. If the installation includes an ABB Panel 800 HMI or a third-party operator interface, the drive status tags and alarm mappings should be tested after recommissioning to confirm that the HMI display reflects the restored drive state correctly. Signal isolators on analog speed reference and feedback channels should also be checked, as these components can mask wiring faults that only become apparent under load.

For installations where rack space is constrained, the physical dimensions of the FF900R12IP4 must be confirmed against the available mounting envelope in the drive cabinet. In multi-frame IP4 configurations, the module position within the power stack affects the bus bar connection sequence and the order in which the DC bus must be discharged before safe access is possible. A programming cable connection to the drive control board during the final commissioning phase allows real-time monitoring of gate pulse timing and current feedback signals, providing confidence that the replacement module is operating within specification before the drive is returned to automatic control.

Downtime Control During System Migration

Minimizing production downtime during an IP4 Series power stage replacement requires advance preparation that begins well before the maintenance window opens. The original drive parameter set should be exported and stored in a secure location as soon as a power stage fault is identified, so that recommissioning can proceed immediately after the FF900R12IP4 is installed. If the drive is part of a redundant or hot-standby configuration, the switchover sequence should be tested and documented before the primary drive is taken offline.

During the replacement procedure, the DC bus must be fully discharged and verified with a calibrated voltmeter before any work begins on the power module. The existing gate driver board connections should be photographed and labeled before disconnection to ensure correct reassembly. Once the new module is installed and the drive is powered up, a no-load test at reduced speed reference should be performed before the drive is reconnected to the motor and process load. This staged recommissioning approach protects the replacement module from stress caused by undetected wiring errors or parameter mismatches and allows the control system to confirm normal operation before full production load is applied.

In facilities where the IP4 drive controls a critical process — such as a compressor, pump, or conveyor in a continuous production line — a spare FF900R12IP4 held in local inventory provides insurance against extended downtime caused by international shipping delays. KNMKS maintains global stock of the FF900R12IP4 and can support emergency dispatch requirements, but on-site spare inventory remains the most effective downtime mitigation strategy for mission-critical applications.

Retrofit Support FAQ

Q: Is the FF900R12IP4 a direct replacement for the original ABB IP4 Series power module?
A: Yes. The FF900R12IP4 is a direct form-fit-function replacement for the original IP4 Series IGBT module. No mechanical modification is required. Gate driver board compatibility and thermal interface preparation should be verified before installation as standard practice.

Q: What pre-shipment testing is performed on each FF900R12IP4 unit?
A: Each unit undergoes gate threshold voltage measurement, collector-emitter leakage current verification, and diode forward voltage characterization before shipment. Units that do not meet specification are rejected. All shipped units include a support terms confirmed by quotation from the date of shipment.

Q: How do I verify wiring compatibility before installing the replacement module?
A: Compare the gate driver board connector pinout and bus bar terminal positions against the original drive documentation. Photograph all connections before disassembly. Verify DC bus discharge before handling the module. Renew thermal compound and follow OEM torque specifications for all fasteners.

Q: What is the lead time and stock availability for the FF900R12IP4?
A: The FF900R12IP4 is maintained in global stock by KNMKS. Standard orders are dispatched promptly. Emergency replacement support is available — contact [email protected] or +86 18359268345 to confirm current availability and shipping options for your region.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

FF900R12IP4
Assorted Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB FF900R12IP4
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
