Tokyo Electron TVB3001-1 Migration-Ready PCB for Legacy Control Systems

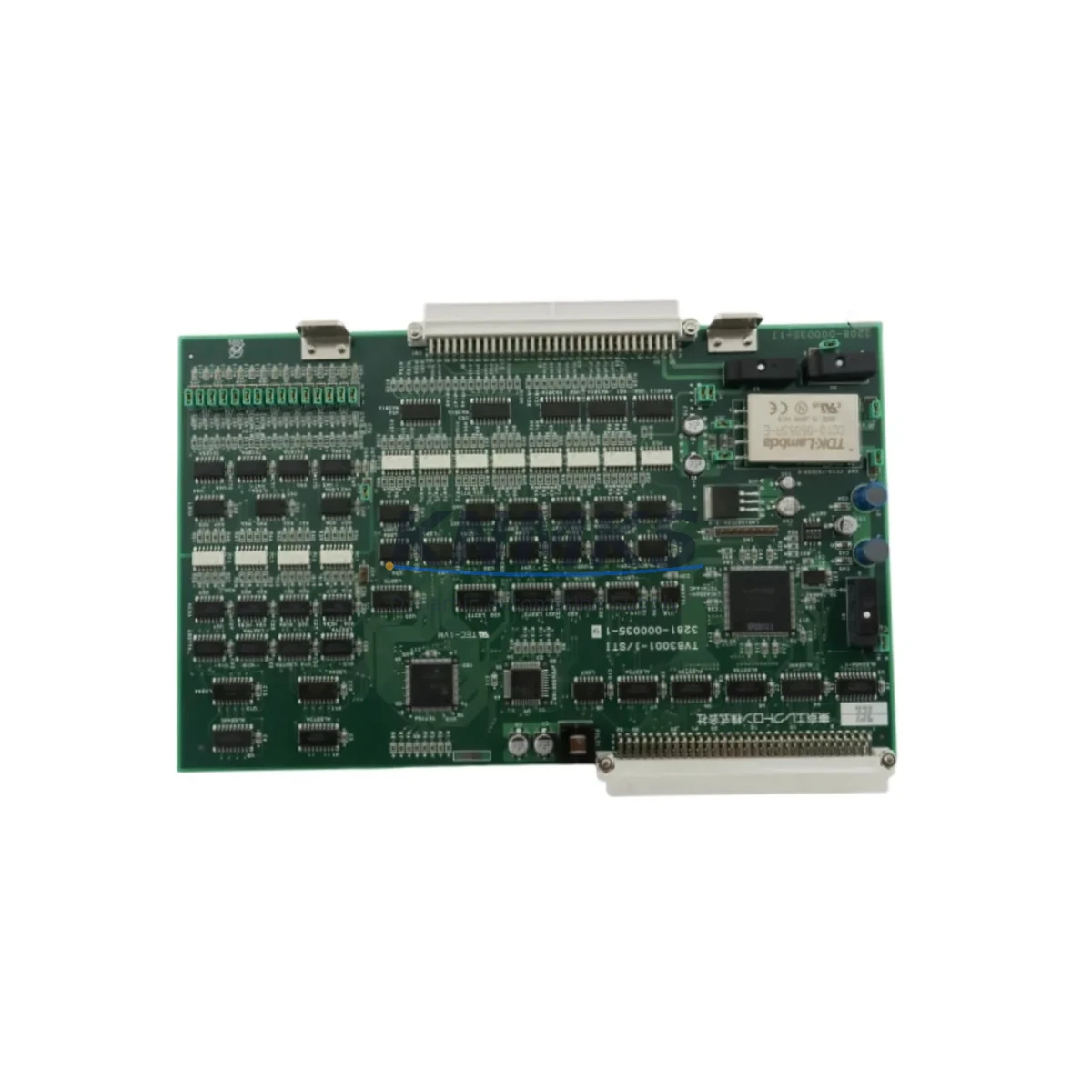

The Tokyo Electron TVB3001-1 (cross-reference: STI 3281-000035-19 / 1D86-006761-41) is a migration-ready printed circuit board assembly engineered for direct replacement within Honeywell HPM (High-Performance Manager) Distributed Control Systems. As legacy HPM installations approach end-of-support milestones, plant engineers and automation teams face increasing pressure to source reliable, tested spare parts that preserve existing control logic, minimize retrofit risk, and extend system service life without committing to a full platform migration.

This PCB is fully compatible with the HPM5F4F4F6S468 controller configuration and is designed to slot into existing HPM backplane racks without requiring structural modifications to the control cabinet. Before installation, engineers should verify available backplane slot assignments, confirm that the existing power supply module — typically a Honeywell MC-PDPY22 or equivalent HPM power distribution unit — can support the board’s rated current draw, and review terminal block wiring diagrams to ensure signal continuity across all I/O channels. Particular attention should be paid to analog input loop integrity, especially where 4–20 mA field instruments are wired directly to the HPM I/O termination assemblies.

For sites running Honeywell Experion PKS or TDC 3000 supervisory layers, the TVB3001-1 replacement does not require changes to the communication link configuration between the HPM and the Application Module (AM) or History Module (HM). The existing UCN (Universal Control Network) or LCN (Local Control Network) topology remains intact, and no re-addressing of the HPM node is necessary when performing a like-for-like board swap. However, engineers should confirm the firmware revision loaded on the HPM processor module — such as the MC-TDPR22 or MC-TDPR12 — is compatible with the replacement PCB’s hardware revision level before powering up the chassis.

During retrofit planning, it is common to simultaneously audit adjacent modules within the same HPM chassis. Components such as the Honeywell MC-TAIH12 analog input module, MC-TAOH22 analog output module, and MC-TDID12 digital input module are frequently replaced in the same maintenance window to reduce future downtime exposure. If the site is also upgrading communication infrastructure, the MC-TSTIM12 serial interface module or MC-TSTIM22 may be relevant depending on whether Modbus RTU or HART pass-through is required for field device integration.

Installation space within the HPM chassis should be confirmed prior to ordering. The TVB3001-1 occupies a standard HPM card slot and does not require additional mounting hardware. Technicians should document the original board’s DIP switch settings, jumper configurations, and any site-specific calibration offsets before removal, as these parameters will need to be replicated or re-entered during commissioning of the replacement board.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful HPM retrofit begins well before the replacement board arrives on site. The first step is a thorough audit of the existing control cabinet layout, including rack population, power budget, and available spare slots. In many aging HPM installations, the backplane itself — particularly the HPM I/O Link interface — may show signs of connector wear or oxidation that should be addressed during the same maintenance window.

When planning the replacement of the TVB3001-1, it is advisable to simultaneously review the condition of the HPM’s power supply redundancy configuration. Sites running dual MC-PDPY22 power modules in a redundant arrangement should verify that both units are within their rated service life before relying on them to support the newly installed PCB. A failing power module can introduce intermittent faults that are difficult to distinguish from board-level defects during post-installation commissioning.

For control systems that interface with third-party SCADA platforms or historian servers via OPC DA or OPC UA, the replacement of the TVB3001-1 should not affect the data acquisition path, provided the HPM node address and tag database remain unchanged. However, if the site is using a Honeywell PHD (Process History Database) or Uniformance historian, it is good practice to verify that all HPM tags associated with the replaced board are correctly mapped and returning valid process values after the swap is complete.

Sites that are simultaneously upgrading their HMI layer — for example, migrating from legacy Honeywell GUS (Global User Station) consoles to Experion Flex Station or a third-party SCADA — should coordinate the PCB replacement with the HMI reconfiguration schedule to avoid conflicting change windows. HMI display faceplates that reference specific HPM channel assignments may require updates if any I/O re-mapping is performed during the retrofit.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern during any HPM board replacement. The TVB3001-1 is supplied fully tested and ready for installation, which eliminates the need for bench-level burn-in testing on site and reduces the total time the control loop is offline. A typical like-for-like board swap in an HPM chassis can be completed within a planned maintenance window of two to four hours, assuming all pre-installation checks — firmware verification, wiring documentation, and power budget confirmation — have been completed in advance.

To protect existing control logic during the replacement, engineers should export a full backup of the HPM control database using Honeywell’s Control Builder or equivalent engineering tool before removing the original board. This backup should include all function block configurations, tuning parameters, alarm setpoints, and interlock logic associated with the affected HPM node. If the site operates under a Management of Change (MOC) process, the board replacement should be formally documented and approved before work begins.

During the swap, field instruments connected to the affected I/O channels should be placed in manual mode or bypassed at the DCS level to prevent spurious outputs or false alarms from propagating to the process. After the replacement board is installed and the HPM chassis is powered up, a systematic loop check should be performed on all channels before returning the loops to automatic control. Any discrepancies in signal scaling, engineering unit conversion, or alarm threshold behavior should be investigated and resolved before the maintenance window is closed.

For sites where continuous process operation is critical, a hot-standby HPM configuration — where a redundant HPM controller takes over control during the swap — can reduce the effective downtime to near zero. In this scenario, the replacement of the TVB3001-1 can be performed on the standby HPM while the primary controller remains in service, followed by a controlled switchover once the replacement board has been verified.

Retrofit Support FAQ

Q: Is the TVB3001-1 a direct drop-in replacement for the STI 3281-000035-19?
A: Yes. The TVB3001-1 is cross-referenced to STI 3281-000035-19 and 1D86-006761-41. It is designed for direct installation in the same HPM card slot without chassis modification. Customers should verify the hardware revision level against their HPM processor firmware version before installation.

Q: What pre-installation checks are required before swapping the board?
A: Before installation, confirm the HPM power supply module capacity, document all DIP switch and jumper settings on the original board, verify firmware compatibility with the HPM processor module, and back up the full HPM control database. A wiring diagram review for all connected I/O termination assemblies is also recommended.

Q: Is the TVB3001-1 tested before shipment?
A: Yes. Every unit is functionally tested before shipment. The board is supplied with a support terms confirmed by quotation covering defects in materials and workmanship. Customers requiring additional documentation — such as test reports or certificates of conformance — should contact our sales team at the time of order.

Q: What is the typical lead time and stock availability?
A: We maintain inventory of the TVB3001-1 to support urgent replacement requirements. Standard orders are processed and dispatched within 1–3 business days. For large-quantity orders or long-term supply agreements, please contact our sales team to discuss availability and scheduling.
