TMEIC ARND-3119 Migration-Ready Drive Control Board

Overview

TMEIC ARND-3119 Migration-Ready Drive Control Board: Legacy System Retrofit & Compatibility Upgrade

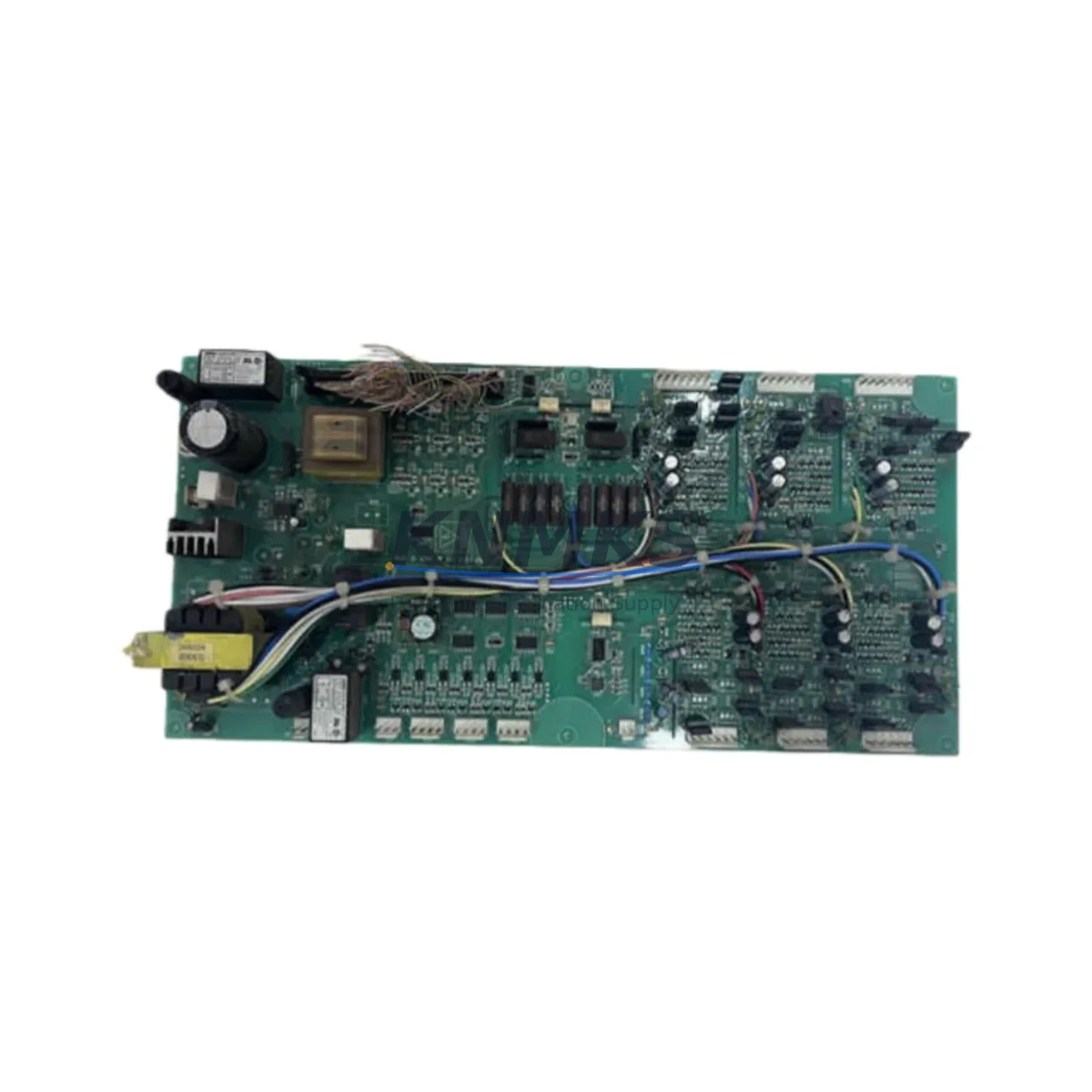

The TMEIC ARND-3119 is a migration-ready drive control board engineered for direct replacement in TMdrive series variable frequency drive systems. As legacy TMdrive units approach end-of-life and OEM support windows close, the ARND-3119 provides a validated, wiring-compatible upgrade path that minimizes engineering rework and eliminates the need for full drive cabinet replacement. This board is sourced from verified supply channels, pre-tested prior to shipment, and backed by a support terms confirmed by quotation — making it a reliable choice for maintenance engineers managing aging automation infrastructure in energy, petrochemical, steel, and heavy manufacturing environments.

Before committing to a retrofit, engineers must confirm several critical parameters: available power supply capacity within the existing drive cabinet, terminal block wiring compatibility (particularly for analog reference signals and digital I/O assignments), backplane connector pinout alignment, module address configuration in the drive’s parameter set, and firmware version compatibility with the existing control software. In many TMdrive installations, the ARND-3119 interfaces directly with the drive’s gate driver board and current feedback circuits — any mismatch in signal scaling or reference voltage must be resolved before commissioning.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ARND-3119 retrofit requires a structured approach that accounts for the full control architecture surrounding the drive. In most legacy TMdrive installations, the control board does not operate in isolation — it communicates upstream with a PLC or DCS (commonly a MELSEC Q-series controller or a Yokogawa CENTUM VP DCS node) via a fieldbus interface, and downstream with the drive’s power section through internal fiber-optic links. Engineers should document the existing communication topology before removing the failed board.

On the I/O side, the ARND-3119 typically manages analog speed references, run/stop commands, fault relay outputs, and encoder feedback signals. When replacing the board, technicians should verify that the TMEIC ARND-3117 or ARND-3120 (adjacent boards in the same TMdrive control rack) are not affected by the swap — particularly if they share a common backplane power rail. It is also advisable to inspect the TMdrive’s power supply module (such as the TMEIC PS-series internal PSU) for output voltage stability before installing the replacement board, as a degraded power supply is a common root cause of repeated control board failures.

For sites running HMI supervision through a TMEIC-compatible operator panel or a third-party SCADA system, the HMI screen assignments linked to drive status words and fault codes should be validated post-replacement. If the site uses a TMEIC GOT-series or equivalent operator terminal, confirm that the screen project file references the correct drive node address. In multi-drive systems, the ARND-3119’s node address must be set to match the original board’s configuration to avoid communication conflicts on the fieldbus segment. Signal isolators installed between the PLC analog output and the drive’s speed reference input should also be checked for calibration drift during the maintenance window.

Where the retrofit involves a broader control cabinet upgrade — for example, replacing multiple TMdrive units alongside updating the MELSEC Q-series CPU or migrating from a legacy PROFIBUS segment to EtherNet/IP — the ARND-3119 replacement should be sequenced as an early step, allowing the drive to be validated independently before the network migration proceeds. Programming cables and parameter backup tools (such as the TMEIC drive loader software) should be on-site before the maintenance window begins.

Downtime Control During System Migration

Minimizing unplanned downtime during a drive control board replacement requires preparation that begins well before the maintenance window. The most effective approach is to back up the complete drive parameter set — including all application-specific tuning values, protection thresholds, and communication settings — using the drive’s built-in parameter save function or an external loader tool. This backup becomes the recovery baseline if commissioning reveals unexpected behavior after the board swap.

Where process continuity is critical (for example, in continuous casting lines, compressor trains, or pump stations), engineers should evaluate whether the affected drive can be temporarily bypassed using a manual bypass contactor or a spare drive unit while the ARND-3119 is replaced and tested offline. This approach eliminates production impact entirely and allows thorough bench testing of the replacement board before it is returned to service.

On-site commissioning after installation should follow a structured sequence: power-up with no load, verify control power and communication link status, restore parameters from backup, perform a no-load run to confirm speed reference tracking and fault-free operation, then gradually reintroduce load while monitoring current feedback and thermal performance. The support terms confirmed by quotation covering the ARND-3119 provides additional assurance during the post-retrofit period, supporting any field adjustments required during the initial weeks of operation.

Retrofit Support FAQ

Q1: Is the ARND-3119 a direct replacement for the original TMEIC board, or are parameter adjustments required?
The ARND-3119 is designed as a direct hardware replacement for the original board in TMdrive series drives. However, parameters must be restored from a backup of the original drive configuration. If no backup exists, parameters will need to be re-entered manually based on the drive’s application data sheet and motor nameplate values.

Q2: What wiring checks are required before installing the replacement board?
Verify that all control wiring — including analog speed reference inputs, digital I/O terminals, encoder feedback connections, and communication cables — is correctly labeled and undamaged before removal. Confirm terminal tightening torque and inspect for any signs of heat damage or corrosion on the connector housing. Re-seat all connectors firmly after installing the new board.

Q3: How is the ARND-3119 tested before shipment?
Each ARND-3119 unit undergoes functional testing prior to shipment, including power-on verification and communication interface checks. Units are inspected for physical integrity and packed with anti-static protection. A support terms confirmed by quotation applies from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the typical lead time and availability?
The ARND-3119 is maintained availability confirmed by RFQ to support urgent maintenance requirements. Standard orders are processed and shipped within 1–3 business days. For large-quantity orders or long-term supply commitments, contact our sales team to discuss inventory reservation and scheduled delivery arrangements.
