Siemens 6SE7034-5HK84-1JC0 Migration-Ready IGBT Gate Drive

Overview

Siemens 6SE7034-5HK84-1JC0 Migration-Ready IGBT Gate Drive for Legacy Control Systems

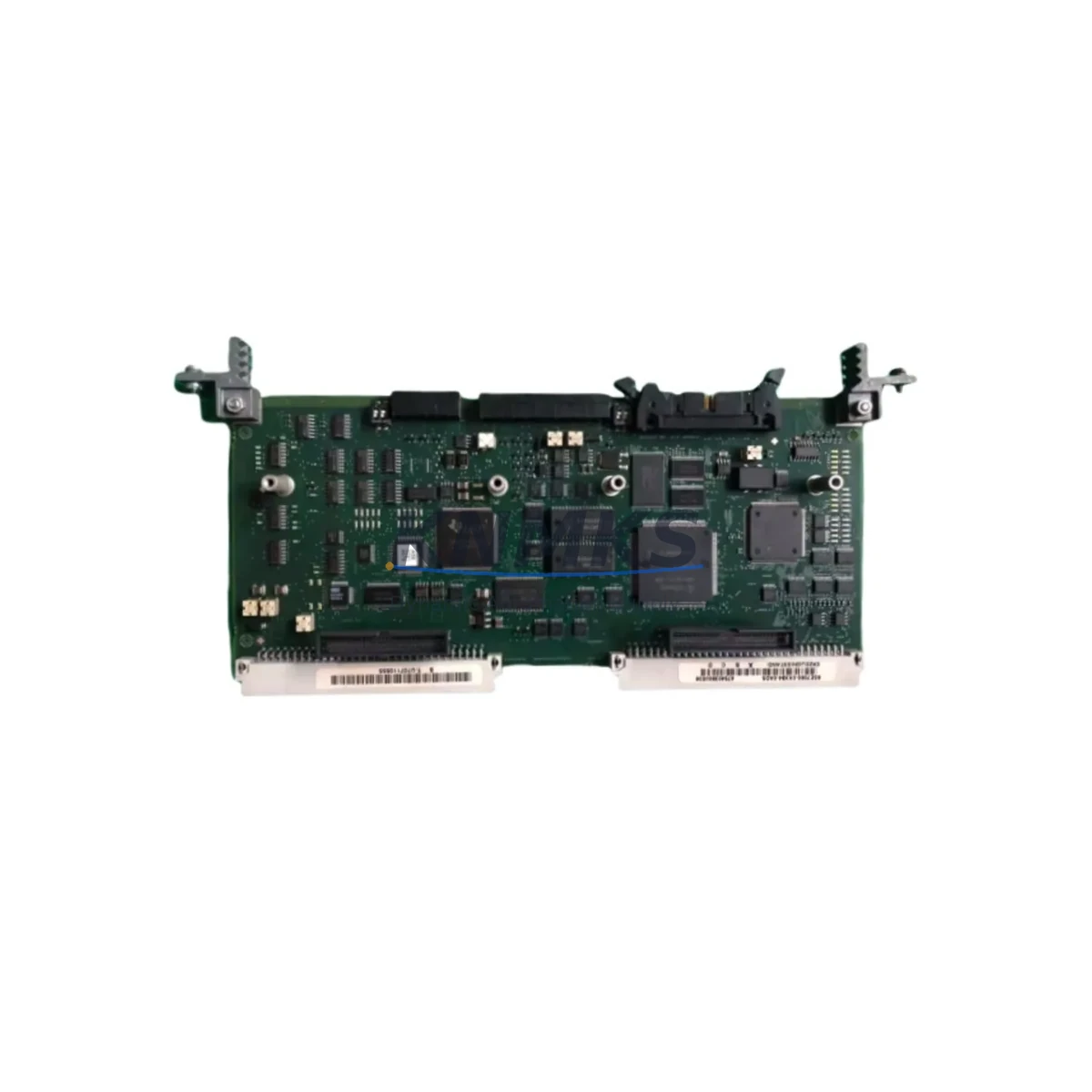

The Siemens 6SE7034-5HK84-1JC0 is a migration-ready IGBT Gate Drive Board engineered for direct replacement and retrofit integration within SIMOVERT MASTERDRIVES MC and VC series drive platforms. As legacy MASTERDRIVES installations approach end-of-support milestones, facilities managing long-lifecycle automation lines increasingly rely on verified spare components like the 6SE7034-5HK84-1JC0 to extend operational continuity without committing to full drive replacement. This board is a critical interface between the control electronics and the power stage, governing IGBT switching sequences that directly affect motor torque, speed regulation, and fault response across medium-voltage drive cabinets.

For engineers planning a controlled retrofit or emergency replacement, the 6SE7034-5HK84-1JC0 addresses the most common failure mode in aging MASTERDRIVES units: degraded gate drive signal integrity leading to IGBT desaturation faults, overcurrent trips, or asymmetric phase output. Replacing this board restores original switching performance without requiring reprogramming of the drive’s CU (Control Unit) or reconfiguration of the connected SIMATIC S7 PLC logic. This makes it an ideal solution for sites where downtime budgets are tight and revalidation of the full control chain is not feasible within the maintenance window.

Before installation, engineers should confirm the following: the DC bus voltage rating and IGBT module type installed in the power stack; the fiber optic cable routing between the gate drive board and the CU board (typically via the CUVC or CUMC); the backplane connector alignment and board slot assignment within the drive chassis; and the firmware version loaded on the CU, as certain gate drive timing parameters are firmware-dependent. Incorrect fiber optic polarity or mismatched IGBT gate resistance values can result in immediate fault codes upon commissioning, so pre-installation bench verification is strongly recommended.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 6SE7034-5HK84-1JC0 within an active production environment requires systematic pre-planning across the full drive cabinet architecture. In most MASTERDRIVES MC/VC installations, the gate drive board operates alongside the CUVC or CUMC control unit, which manages speed setpoints, fault logging, and PROFIBUS-DP communication to the upstream SIMATIC S7-300 or S7-400 controller. Before isolating the drive for board replacement, engineers should export the current parameter set using STARTER or DriveMonitor software to ensure that motor data, ramp times, and PID configurations are preserved.

The power supply module feeding the gate drive board — typically a 24 VDC auxiliary supply derived from the drive’s internal SMPS — should be verified for output stability before the new board is installed. Voltage ripple or transient spikes on the auxiliary rail are a common root cause of premature gate drive failure and must be addressed as part of the retrofit scope. If the existing power supply module shows signs of capacitor aging or output deviation beyond ±5%, replacement of that module in parallel with the gate drive board is advisable to prevent repeat failures.

Terminal wiring to the IGBT module — including gate, emitter, and auxiliary emitter connections — must be inspected for insulation integrity and contact resistance before reconnection. In high-cycle applications, these connections are subject to thermal fatigue and micro-arcing that can introduce impedance mismatches affecting switching waveform quality. Where the existing installation includes a signal isolation module between the CU and the gate drive, verify that the isolation barrier rating remains within specification for the operating voltage class of the drive.

For sites operating multiple MASTERDRIVES units in a common DC bus configuration, the retrofit sequence should be coordinated to avoid disrupting the shared bus pre-charge logic. The I/O expansion modules connected to the CU — such as the SBP (Speed/Position Board) or CBC (Communication Board CBP2 for PROFIBUS) — do not require reconfiguration during a gate drive board swap, but their status should be confirmed via the CU diagnostic LEDs after power-up. HMI panels connected via USS protocol or PROFIBUS should display normal drive status within one communication cycle of successful board initialization.

Where the retrofit is part of a broader control cabinet upgrade — for example, migrating from a MASTERDRIVES VC platform to a SINAMICS S120 architecture — the 6SE7034-5HK84-1JC0 serves as an interim solution to maintain production continuity while the migration project is scoped and validated. In this context, having a verified spare board availability confirmed by RFQ with a support terms confirmed by quotation provides the operational buffer needed to execute a phased migration without emergency procurement risk.

Downtime Control During System Migration

Minimizing unplanned downtime during a gate drive board replacement requires a structured approach to pre-staging, fault isolation, and post-installation verification. The 6SE7034-5HK84-1JC0 is supplied tested and verified, which eliminates the most common source of extended downtime: receiving a board that requires bench calibration or returns a fault on first power-up. Upon receipt, the board should be stored in its ESD packaging in a temperature-controlled environment until the maintenance window is confirmed.

During the replacement window, the recommended sequence is: isolate and lock out the drive; discharge the DC bus to below 50 VDC (verified by measurement, not timer); photograph the existing fiber optic routing and terminal connections before disassembly; remove the faulty board using ESD-safe tools; install the 6SE7034-5HK84-1JC0 with torque-controlled fasteners; reconnect fiber optic cables with correct polarity; restore auxiliary power and verify gate drive LED status before enabling the main contactor; perform a no-load motor run at reduced speed setpoint; and confirm fault-free operation across the full speed range before returning the drive to production.

Preserving the original PLC program logic and HMI screen configurations is straightforward in this replacement scenario, as the gate drive board swap does not alter the drive’s parameter memory or communication address. The PROFIBUS node address, baud rate, and telegram type configured in the CU remain intact, ensuring that the SIMATIC S7 program resumes normal drive control without modification. This is a key advantage of component-level replacement over full drive substitution, where re-engineering of the PLC function blocks and HMI tag mappings would be required.

For sites with strict production continuity requirements, maintaining a second 6SE7034-5HK84-1JC0 as a cold standby spare — alongside a spare CUVC or CUMC control unit — provides a complete fault recovery capability for the most failure-prone components in the MASTERDRIVES platform. Combined with a documented replacement procedure and trained maintenance personnel, this approach reduces mean time to repair (MTTR) to under two hours for most gate drive fault scenarios.

Retrofit Support FAQ

Q1: Is the 6SE7034-5HK84-1JC0 a direct replacement for the original Siemens board in MASTERDRIVES MC/VC drives?
Yes. The 6SE7034-5HK84-1JC0 is a direct board-level replacement for the IGBT gate drive function in compatible SIMOVERT MASTERDRIVES MC and VC frame H units. No drive parameter changes or control unit modifications are required in standard replacement scenarios. Confirm the IGBT module type in your power stack matches the gate resistance specification of this board before installation.

Q2: What commissioning steps are required after installing the new gate drive board?
After installation, restore auxiliary 24 VDC power and verify the gate drive board’s status LED sequence. Perform a DC bus pre-charge test, then run the motor at 10–20% speed setpoint under no-load conditions to confirm correct IGBT switching and absence of fault codes (F001–F035 range). Check fiber optic signal integrity using the CU diagnostic menu before enabling full-load operation. Log the commissioning results for support terms and maintenance records.

Q3: Can this board be used in a common DC bus multi-drive system without disrupting other drives on the bus?
Yes, provided the replacement is performed with the affected drive fully isolated from the common DC bus. The bus pre-charge and discharge sequence must be completed for the individual drive before board removal. Other drives sharing the DC bus can remain operational during the replacement if the bus architecture includes individual drive isolation contactors. Confirm bus voltage is below 50 VDC on the isolated drive before proceeding.

Q4: What support terms and supply terms apply to this board?
All 6SE7034-5HK84-1JC0 units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional performance. Each board is tested and verified prior to shipment. Stock is maintained for immediate dispatch to minimize procurement lead time for emergency replacement scenarios. Contact our technical sales team to confirm current inventory availability and lead time for your region.
