Siemens 6SE6440-2AD22-2BA1 Migration-Ready VFD for Legacy Control Systems

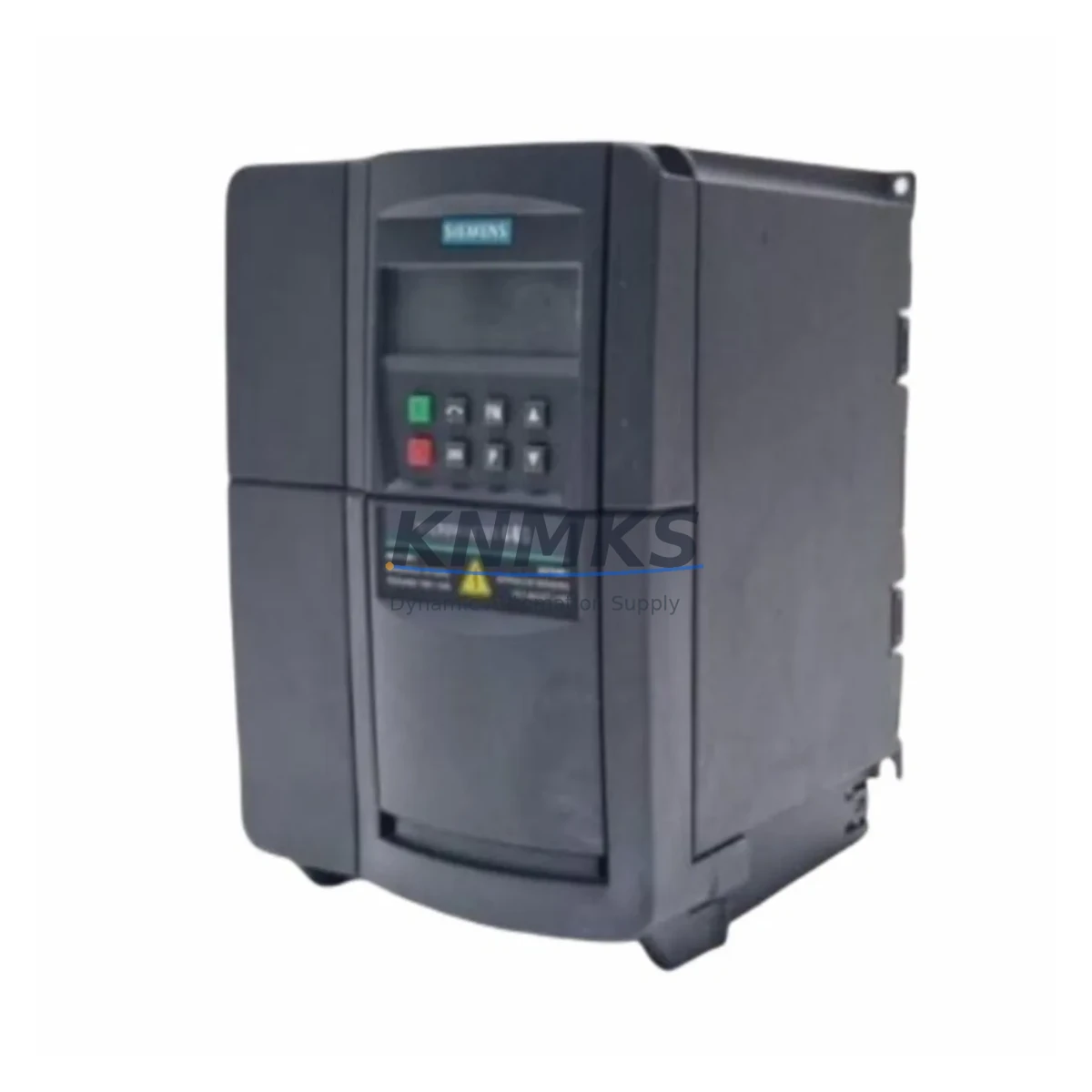

The Siemens 6SE6440-2AD22-2BA1 is a 2.2 kW / 3 HP MICROMASTER 440 series variable frequency drive engineered for three-phase AC motor control in demanding industrial environments. As legacy automation systems approach end-of-life and OEM support windows close, the 6SE6440-2AD22-2BA1 has become a primary retrofit candidate for engineers managing aging control cabinets, obsolete drive platforms, and discontinued inverter lines. This unit supports direct drop-in replacement of earlier MM420 and MM430 series drives where mechanical footprint and terminal layout permit, and it integrates cleanly into existing Siemens S7-300 and S7-400 PLC architectures via USS protocol or PROFIBUS DP with the appropriate 6SE6400-1PB00-0AA0 PROFIBUS option board.

For facilities running legacy Siemens SIMOREG DC Master or older 6SE70 series drives, the 6SE6440-2AD22-2BA1 provides a cost-effective AC drive migration path without requiring full motor replacement. Engineers should verify supply voltage (3AC 380–480 V ±10%), output current rating (5.9 A continuous), and confirm that existing motor cable lengths remain within EMC-compliant limits before commissioning. The integrated STO (Safe Torque Off) function supports safety circuit continuity during panel upgrades, reducing the need for external safety relays in many retrofit scenarios.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 6SE6440-2AD22-2BA1 into a legacy control system requires a structured pre-retrofit audit. Begin by documenting the existing drive’s parameter set using the Siemens BOP-2 operator panel or the STARTER commissioning software — parameter upload before removal protects motor ramp times, PID setpoints, and fault response configurations that may not be recoverable from site documentation alone.

Power supply capacity is the first mechanical checkpoint. Confirm that the existing 24 VDC control supply — typically sourced from a Siemens SITOP PSU100S or equivalent — can sustain the additional inrush demand during drive initialization. In multi-drive cabinets, a shared DC bus arrangement using a 6SE6400-3CC00-4CA0 line filter and common DC link may require rebalancing after the new unit is installed.

Terminal wiring adaptation is frequently the most time-consuming step. The MM440 uses a 10-terminal analog/digital I/O block (terminals 1–10) and a separate relay output block. If the legacy installation used a 6SE70 series drive with a different terminal numbering convention, a wiring cross-reference table should be prepared before any disconnection work begins. Shielded cable continuity to the PE terminal must be maintained to preserve EMC compliance, particularly in installations near Siemens ET 200S distributed I/O or PROFIBUS DP segments.

For systems using a Siemens OP7 or OP17 HMI panel with drive status screens, verify that the USS communication address (P0700, P1000 parameter group) matches the address configured in the HMI project. Address conflicts between the new drive and existing nodes on the same RS-485 segment — which may also include a 6GK7 343-1EX30 PROFIBUS CP module — will cause communication faults that appear as drive errors rather than network errors, complicating diagnosis.

Backplane and rack considerations apply where the drive is integrated into a Siemens SIMATIC ET 200M or similar modular I/O station. Confirm that the rack slot assignment and module address in the PLC hardware configuration (HW Config in STEP 7 or TIA Portal Device Configuration) reflects the new drive’s node address before going online. Failure to update the hardware configuration will trigger a rack fault on the CPU, preventing the program from entering RUN mode.

Downtime Control During System Migration

Minimizing production downtime during a drive replacement requires parallel preparation before the maintenance window opens. The recommended approach is to pre-configure the replacement 6SE6440-2AD22-2BA1 offline using STARTER or the BOP-2 panel, loading all motor nameplate data (P0304–P0311), application-specific ramp times (P1120, P1121), and PID parameters (P2200 group) before the unit reaches the cabinet. This offline pre-commissioning step alone can reduce on-site commissioning time from several hours to under 30 minutes for a straightforward replacement.

Program logic protection is equally critical. Before disconnecting the legacy drive, export the full PLC program from the S7-300 or S7-400 CPU to an offline backup using SIMATIC Manager or TIA Portal. Verify that the OB35 cyclic interrupt block — which often contains drive speed reference calculations — is not dependent on drive-specific diagnostic data blocks that may change address after the hardware swap. If the existing program uses a Siemens FC58 USS driver block, confirm the block version is compatible with the replacement drive’s firmware revision.

During the physical swap, label all field wiring before disconnection and photograph the terminal block layout. Restore power in stages: control voltage first, then main power, verifying that the drive displays the correct ready state (display: 0.00 Hz, no active faults) before issuing the first run command from the PLC. Conduct a no-load motor test at low speed (5–10 Hz) before returning the system to full production speed, confirming motor rotation direction and verifying that all analog feedback signals — including any 4–20 mA process sensors wired to the drive’s analog input — are reading correctly in the HMI.

Retrofit Support FAQ

Q1: Is the 6SE6440-2AD22-2BA1 a direct replacement for the MM420 and MM430 series?
For the same power rating and frame size, the MM440 shares a compatible mechanical footprint with MM420 and MM430 units. Terminal layout differences exist — particularly for relay outputs and analog inputs — so a wiring cross-reference is required. The MM440 offers expanded functionality including built-in PID, extended I/O, and STO safety function not present in MM420.

Q2: What commissioning steps are required after installation?
After physical installation, perform a motor data identification run (P1910 = 1) to allow the drive to auto-tune to the connected motor. Verify USS or PROFIBUS communication by monitoring the drive status word in the PLC. Confirm all digital inputs (DI0–DI5) are mapped correctly to the application’s start/stop, fault reset, and speed reference functions. Run a full-speed test under no-load conditions before returning to production.

Q3: Does the unit ship pre-tested, and what support terms is provided?
Yes. Every 6SE6440-2AD22-2BA1 unit is function-verified before dispatch. A support terms confirmed by quotation from the date of shipment covers manufacturing defects and operational failures under normal industrial use conditions. Units are dispatched from verified global inventory with full traceability documentation available on request.

Q4: What if the existing cabinet wiring uses a different terminal pitch or connector type?
The MM440 uses standard screw-clamp terminals compatible with 0.5–4 mm² conductors. If the legacy installation used ferrule-terminated wiring or a different conductor cross-section, terminal adapters or re-termination will be required. Confirm conductor sizing against the drive’s input/output current ratings and local wiring regulations before re-termination. Contact our technical team at [email protected] for wiring adaptation guidance specific to your installation.
