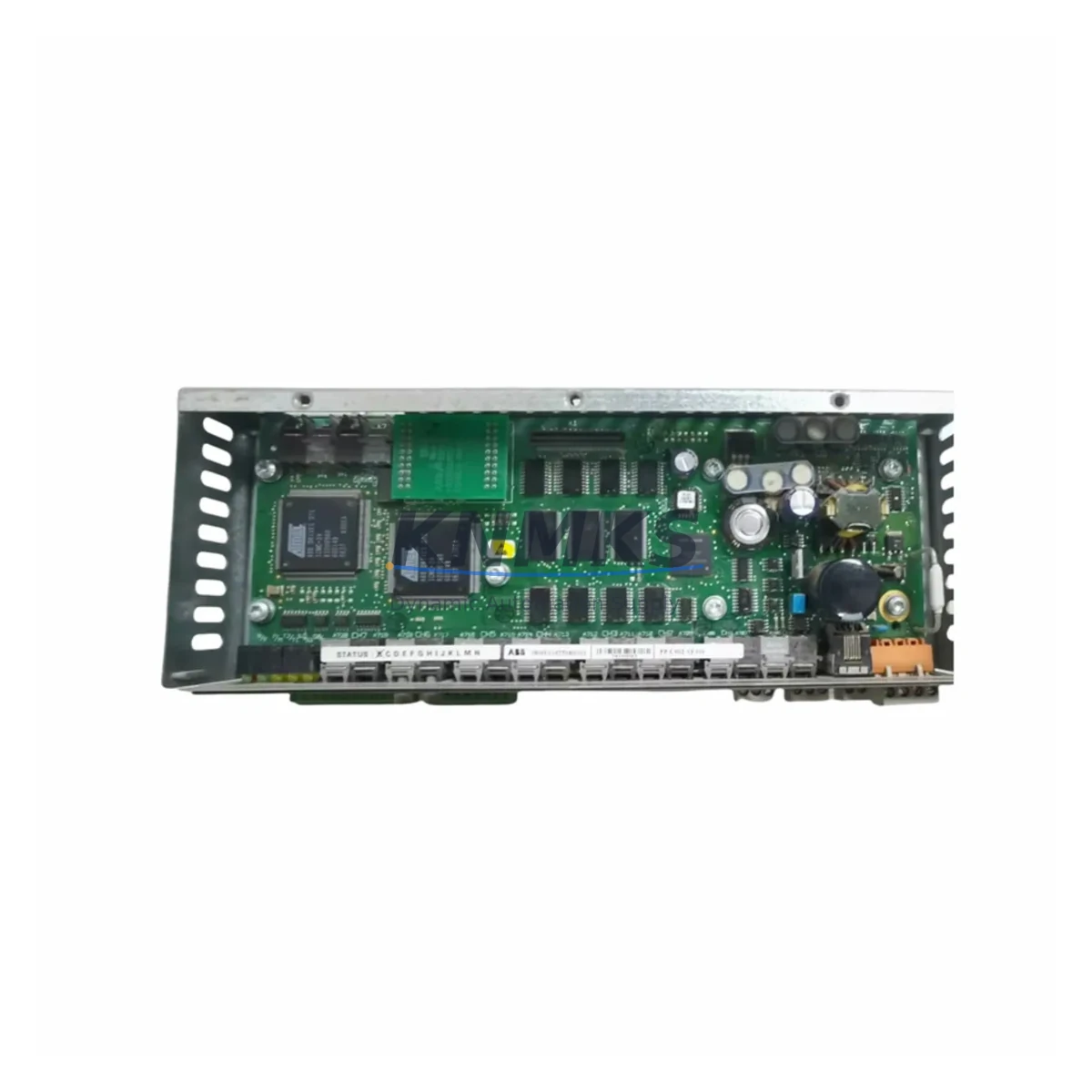

ABB 3010751R0101 Migration-Ready DC Drive Control for Legacy DCS

Overview

ABB 3010751R0101 Migration-Ready DC Drive Control for Legacy DCS Systems

The ABB 3010751R0101 is a migration-ready DC drive control board engineered as a direct replacement for legacy ABB DCS500 and DCS600 series DC drive systems. Designed for industrial environments where continuity of motor control is critical, this module supports seamless retrofit into existing control cabinets without requiring structural modifications to the drive chassis or rewiring of the main power terminals. Engineering teams managing end-of-life DCS500 or DCS600 installations will find the 3010751R0101 to be a reliable, pre-tested solution that minimises commissioning time and reduces unplanned downtime during scheduled outages or emergency replacements.

The board maintains full compatibility with the original DCS500/DCS600 backplane interface, preserving existing terminal wiring layouts and module addressing schemes. Before installation, engineers should verify the DC bus voltage rating, armature current capacity, and field excitation parameters against the original drive specification sheet. Firmware version alignment between the 3010751R0101 and the host drive’s control unit is essential — mismatched firmware can cause parameter set incompatibility and prevent the drive from entering run mode. Where the existing drive uses an ABB SDCS-CON-4 control board or SDCS-POW-4 power supply board, the 3010751R0101 integrates directly into the same rack slot without adapter hardware.

For sites running ABB DCS600 MultiDrive configurations, the 3010751R0101 supports the existing DDCS fibre-optic communication link, allowing the replacement board to participate in the same master-follower topology without reconfiguring the drive line controller. Engineers should confirm the DDCS node address and baud rate settings in the original drive parameters before swapping the board, as these are stored locally and must be re-entered post-replacement. Where the control system interfaces with an ABB AC800M or AC800F DCS via Profibus DP or Modbus RTU, the communication adapter module — typically an NPBA-12 or NMBP-01 — should be inspected and reseated during the retrofit to ensure link integrity.

HMI screen mapping should be reviewed prior to commissioning. Drives operating under ABB DriveWindow or Panel Builder-based operator interfaces may require parameter re-mapping if the replacement board carries a different firmware baseline. Signal isolation between the 3010751R0101 and upstream PLC I/O — particularly for speed reference, torque limit, and fault relay outputs — should be verified using the original I/O wiring diagram. Where signal isolators are in use between the drive and the control panel, confirm that the isolator input impedance remains within the board’s analogue output drive capability.

Installation space confirmation is straightforward for standard DCS500/DCS600 cabinet configurations: the 3010751R0101 occupies the same physical footprint as the original control board and uses the same DIN-rail or chassis mounting points. No additional clearance is required. However, for retrofit projects involving cabinet consolidation or drive replacement alongside a PLC migration — for example, moving from a legacy S5 or S7-300 controller to a current-generation S7-1500 or AC500 V3 platform — the overall cabinet layout should be re-evaluated to accommodate any new communication modules or I/O expansion racks introduced as part of the broader modernisation scope.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the ABB 3010751R0101 into a legacy DC drive installation requires a structured pre-outage checklist. Begin by documenting all existing drive parameters using ABB DriveWindow or the local control panel — parameter backup is non-negotiable before any board swap. Confirm that the SDCS-CON-4 control board or SDCS-POW-4 power supply board in the existing rack is serviceable and does not require concurrent replacement, as a failed power supply will prevent the new control board from initialising correctly.

For sites where the DCS500 or DCS600 drive is integrated into a larger control architecture — such as an ABB Freelance DCS, a Siemens PCS 7 system, or a Honeywell Experion PKS loop — the drive’s role in the process control hierarchy must be mapped before the outage window opens. Speed reference signals, torque limit commands, and drive status feedback to the DCS must all be verified against the original I/O list. Where the drive communicates via a PROFIBUS DP segment shared with other field devices, the segment master’s device database (GSD file) should be confirmed as compatible with the replacement board’s firmware version.

Signal isolators between the 3010751R0101 analogue outputs and the PLC’s analogue input cards — particularly where 4–20 mA speed reference loops are in use — should be tested for correct scaling after commissioning. Programming cables used for parameter upload, such as the ABB RUSB-02 USB adapter, should be on-site before the outage begins. Where the drive feeds a critical process motor — a winder, extruder, or crane hoist — a pre-commissioning no-load run should be completed before reconnecting the mechanical load.

Downtime Control During System Migration

Minimising downtime during a DC drive control board replacement depends on preparation quality, not installation speed. The 3010751R0101 is dispatched pre-tested, which eliminates the risk of receiving a board that fails on first power-up. However, the largest source of unplanned downtime in drive retrofit projects is parameter loss or firmware mismatch — both of which are preventable with a structured pre-outage backup and verification routine.

Where the production schedule cannot accommodate an extended outage, a staged replacement approach is recommended: install and power the 3010751R0101 in a bench test configuration using a spare motor or resistive load, upload the backed-up parameter set, verify communication link establishment with the host DCS or PLC, and confirm fault-free operation before scheduling the live cutover. This approach reduces the live outage window to the time required for physical board swap and final commissioning checks — typically under four hours for a single-drive replacement.

For multi-drive installations where several DCS500 or DCS600 units are being replaced in a single outage, sequence the replacements to maintain partial production capability where the process permits. Retain the original control boards as on-site spares until the replacement units have completed a full production cycle without fault. The 3010751R0101’s support terms confirmed by quotation provides coverage throughout the post-retrofit stabilisation period, supporting both scheduled maintenance intervals and unplanned fault events.

Retrofit Support FAQ

Q: Is the ABB 3010751R0101 a direct drop-in replacement for the original DCS500 control board?
A: Yes. The 3010751R0101 is slot-compatible with the original DCS500 and DCS600 control board rack. Terminal wiring and backplane connections are preserved. Firmware version and drive parameters must be re-entered after installation — parameter backup before the swap is mandatory.

Q: What communication protocols does the 3010751R0101 support?
A: The board supports DDCS fibre-optic communication natively for DCS600 MultiDrive master-follower topologies. Profibus DP and Modbus RTU connectivity is available via the NPBA-12 and NMBP-01 adapter modules respectively, which mount to the board’s fieldbus adapter slot.

Q: Has the unit been tested before shipment?
A: Yes. Every 3010751R0101 unit undergoes functional pre-shipment testing before dispatch. Test records are available on request. The unit is covered by a support terms confirmed by quotation from the date of delivery.

Q: What is the lead time and stock availability?
A: The 3010751R0101 is held in multi-region stock to support both emergency replacements and scheduled outage windows. Global dispatch is available. Contact [email protected] or +86 18359268345 for current stock confirmation and lead time for your region.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3010751R0101
Legacy Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB 3010751R0101
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
