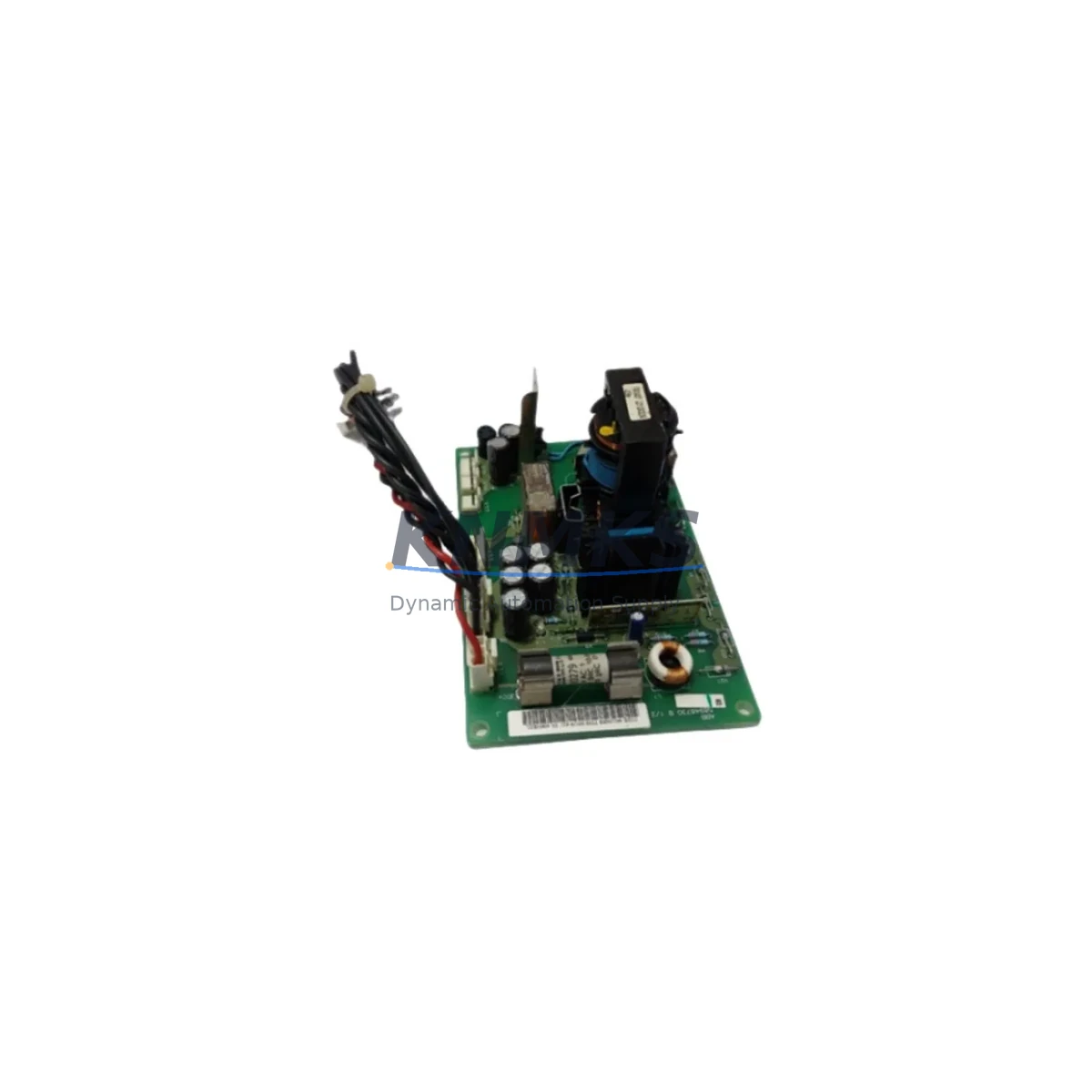

ABB 58948730 B Migration-Ready Control Board for Legacy Systems

Overview

ABB 58948730 B Migration-Ready Control Board for Legacy Control Systems

The ABB 58948730 B is a migration-ready control board engineered for direct replacement and retrofit integration within ABB ACS and DCS series variable frequency drive platforms. As legacy drive systems approach end-of-life and OEM spare parts become increasingly scarce, the 58948730 B provides a verified drop-in solution that preserves existing wiring configurations, terminal layouts, and backplane interface assignments — minimizing engineering rework and unplanned downtime during system modernization.

This control board is commonly deployed in scenarios where the original ABB ACS 400, ACS 600, ACS 800, or DCS 400/600 series drive controllers have failed or are approaching obsolescence. Engineers undertaking control cabinet upgrades, I/O expansion projects, or communication protocol migrations will find the 58948730 B a reliable anchor component that maintains backward compatibility with existing field wiring, motor feedback loops, and supervisory control architectures.

Before installation, engineers should verify power supply rail compatibility — particularly the 24 VDC auxiliary supply and the internal SMPS output tolerances — against the host drive’s power module specifications. Terminal block pinout mapping must be cross-referenced with the original drive’s wiring diagram to confirm signal polarity, shielding continuity, and ground reference integrity. Backplane connector alignment and slot addressing should be confirmed against the drive’s hardware configuration manual prior to board seating.

For sites running PROFIBUS DP, Modbus RTU, or ABB’s proprietary DDCS fiber-optic communication links, the 58948730 B supports the same protocol stack as the original board, allowing the existing PLC program logic — including function block diagrams, drive parameter datasets, and fault response routines — to remain intact without recompilation. HMI screen mappings tied to drive parameter addresses (such as speed reference, torque limit, and fault word registers) will continue to resolve correctly, eliminating the need for panel software updates in most retrofit scenarios.

When integrating the 58948730 B into a broader cabinet upgrade that also involves replacing the ABB AINT-02C or AINT-11C interface boards, or adding an RDNA-01 DeviceNet adapter or RPBA-01 PROFIBUS adapter module, engineers should sequence the firmware validation step before energizing the drive. Firmware version compatibility between the control board and the drive’s IGBT gate driver board must be confirmed to prevent parameter initialization errors on first power-up. In multi-drive installations sharing a common DC bus, the 58948730 B’s current limit and ramp parameters should be re-tuned after replacement to maintain coordinated acceleration profiles across the drive line.

Installation space confirmation is essential in compact control cabinets. The 58948730 B retains the same PCB form factor as the original, but engineers should verify that adjacent components — including the RMIO-11C main I/O board or any installed option slot modules — have not been repositioned during prior maintenance. Adequate clearance for ribbon cable routing and ventilation airflow must be maintained to prevent thermal derating of the replacement board.

All units are pre-shipment tested under simulated drive load conditions, with functional verification of analog I/O channels, digital input/output response, encoder feedback interface, and communication port integrity. Each board ships with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centered on the ABB 58948730 B typically involves coordinating several interdependent components within the same control cabinet or drive line. Engineers should begin by auditing the existing RMIO-11C main I/O board to confirm that analog reference signals, digital interlock wiring, and encoder pulse inputs are correctly mapped before the replacement board is seated. If the site also requires expanding I/O capacity, the RAIO-01 analog I/O extension module can be added to the option slot adjacent to the 58948730 B without requiring changes to the main terminal block wiring.

For installations where the legacy drive communicates with a Siemens S7-300 or Allen-Bradley ControlLogix PLC via PROFIBUS, the existing GSD file and hardware configuration in the PLC project can be retained unchanged, provided the 58948730 B’s PROFIBUS node address is set to match the original board’s DIP switch configuration. Sites migrating from hardwired relay logic to fieldbus control should also verify that the RPBA-01 PROFIBUS adapter is seated correctly in the drive’s option slot and that the fiber-optic DDCS link to the ABB AC 800M controller — if present — is re-terminated after board replacement.

Power supply integrity is a critical pre-commissioning check. The 24 VDC rail feeding the control board should be measured under load before the replacement board is installed, particularly in older cabinets where the original PSU may have degraded. If the site uses an ABB CP-D 24/1.3 or equivalent DIN-rail power supply, output voltage and ripple should be within specification before energizing the new board. Signal isolators on analog input channels — particularly 4–20 mA process variable loops — should also be inspected to confirm that isolation barriers remain intact and that loop resistance is within the acceptable range for the 58948730 B’s input impedance.

Programming cable access is required for initial parameter upload. Engineers should have an ABB OPCA-01 or compatible USB-to-serial programming cable available for connecting a laptop running DriveWindow or Drive Composer to the control board’s serial port. The original drive parameter set — including motor nameplate data, speed controller gains, and protection thresholds — should be backed up from the failed board if possible, or reconstructed from the site’s commissioning records before the replacement board is powered up.

Downtime Control During System Migration

Minimizing production downtime during a control board replacement requires a structured pre-outage preparation protocol. Before the planned maintenance window, engineers should export the complete drive parameter dataset using DriveWindow or Drive Composer and store a verified backup on a local engineering laptop as well as a network-accessible archive. The existing PLC program — including all drive-related function blocks, interlock logic, and HMI tag bindings — should be compiled and saved to a project archive to allow rapid restoration if the replacement sequence encounters an unexpected fault.

During the outage, the recommended sequence is: isolate the drive from the AC supply and DC bus, discharge the DC link capacitors per the drive’s safety procedure, remove the failed 58948730 B, seat the replacement board, verify backplane connector engagement, restore all ribbon cable and fiber-optic connections, and perform a cold-start parameter upload before re-energizing. This sequence typically allows a trained engineer to complete the physical replacement within 30–45 minutes, with an additional 15–30 minutes for parameter verification and test run confirmation.

To protect original program logic, the PLC should remain in RUN mode with the drive in a faulted or disabled state throughout the board replacement. This approach maintains all other process interlocks and HMI communications active, allowing operators to monitor adjacent equipment and confirm that the control system is ready to resume normal operation immediately after the drive is re-enabled. For critical production lines where even a brief interruption is unacceptable, a hot-standby drive with a pre-configured 58948730 B can be staged in advance and swapped as a complete drive unit, reducing field replacement time to under 10 minutes.

Retrofit Support FAQ

Q1: Is the ABB 58948730 B a direct replacement for the original board in ACS 600 and ACS 800 series drives?
Yes. The 58948730 B is a verified replacement for the original control board in compatible ACS 600 and ACS 800 series drives. Terminal pinout, backplane connector, and PCB form factor are identical to the original. Engineers should confirm the drive’s hardware revision and firmware version before installation to ensure full compatibility.

Q2: Can the existing drive parameter set be transferred to the replacement board without re-commissioning?
In most cases, yes. If the original parameter dataset was backed up using DriveWindow or Drive Composer, it can be uploaded directly to the 58948730 B via the serial programming port. Parameters tied to motor nameplate data, speed controller tuning, and protection thresholds will be restored without requiring a full re-commissioning cycle. A test run under no-load conditions is recommended before returning the drive to production service.

Q3: What pre-shipment testing is performed on each 58948730 B unit?
Each unit undergoes functional verification of all analog input and output channels, digital I/O response timing, encoder feedback interface integrity, and communication port operation under simulated drive load conditions. Test results are logged and retained. Units that do not pass all test criteria are not shipped. All shipped units are covered by a support terms confirmed by quotation from the date of delivery.

Q4: What is the typical lead time and inventory availability for the ABB 58948730 B?
Stock is maintained for immediate dispatch. Standard lead time for in-stock units is 3–5 business days for international shipments via DHL Express or FedEx International Priority. For urgent requirements, same-day dispatch is available for orders confirmed before 14:00 CST. Long-term supply agreements covering 12–36 months of forward inventory are available for maintenance contracts and multi-site spare parts programs. Contact [email protected] or +86 18359268345 to discuss volume pricing and supply terms.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

58948730 B
Legacy Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB 58948730 B
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
