ABB ACS350-03E-01A2-4 Migration-Ready VFD for Legacy Systems

Overview

ABB ACS350-03E-01A2-4 Migration-Ready VFD for Legacy Control Systems

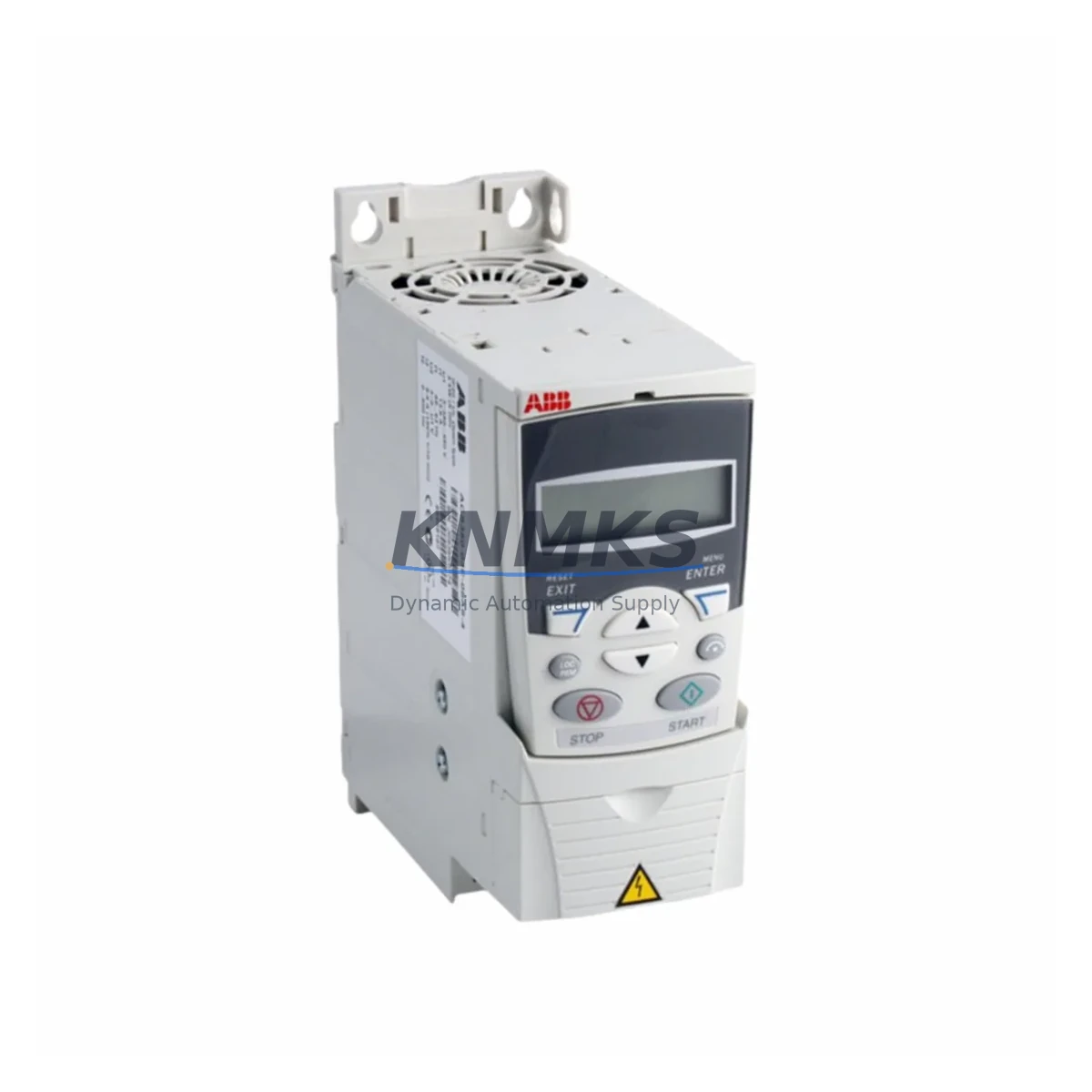

The ABB ACS350-03E-01A2-4 is a compact, migration-ready variable frequency drive rated at 0.37 kW (0.5 HP) for three-phase 380–480 V input applications. Designed as a direct retrofit solution for aging ACS350 series installations, this drive addresses the growing challenge of legacy motor control modernization across manufacturing, water treatment, HVAC, and process automation environments. Whether your existing ACS350 unit has reached end-of-life, suffered a fault condition, or is simply no longer supported under your maintenance contract, the ACS350-03E-01A2-4 provides a verified drop-in replacement path with minimal engineering overhead.

In legacy control cabinet upgrades, engineers frequently encounter the ACS350 series alongside companion components such as the ABB ACS355 series drives, ABB MPOW-01 power supply modules, and ABB REMO-01 remote mounting kits. When migrating from older ACS140 or ACS143 drives to the ACS350 platform, the terminal block layout, control wiring (AI1, AI2, DI1–DI6, AO1, RO1–RO3), and fieldbus adapter slots must all be re-verified. The ACS350-03E-01A2-4 retains the standard ACS350 I/O terminal configuration, which significantly reduces rewiring time during panel replacement.

For sites running ABB’s DriveAP application programming environment or using the ABB CDP312R control panel for parameter backup and restore, the ACS350-03E-01A2-4 is fully compatible. Parameter sets exported from a legacy ACS350 unit can be uploaded directly to the replacement drive, preserving motor tuning data, ramp times, PID configurations, and fault history thresholds. This is particularly valuable in continuous process lines where re-commissioning from scratch would introduce unacceptable downtime risk.

When integrating into PLC-controlled systems — including Siemens S7-300/S7-400 platforms, Allen-Bradley MicroLogix, or ABB AC500 controllers — the ACS350-03E-01A2-4 supports standard analog speed reference (0–10 V or 4–20 mA) and digital run/stop commands via its onboard I/O. For fieldbus-controlled installations, the drive accepts optional FPBA-01 PROFIBUS-DP, FCAN-01 CANopen, or FMBA-01 Modbus RTU adapter modules, enabling seamless integration into existing network topologies without gateway hardware. Verifying the fieldbus node address, baud rate, and telegram type against the PLC program before commissioning is essential to avoid communication faults on startup.

Physical installation requires confirmation of DIN rail or panel mounting clearances. The ACS350-03E-01A2-4 occupies a compact footprint (R0 frame size) and requires a minimum 50 mm clearance above and below for adequate cooling airflow. In retrofit scenarios where the original drive was mounted in a sealed enclosure, thermal recalculation is recommended to ensure the cabinet’s cooling capacity matches the drive’s heat dissipation at full load. If the original installation used an ABB NINT-41 or NINT-43 interface board for encoder feedback, compatibility with the replacement unit’s option slot must be confirmed prior to ordering.

All units are pre-shipment tested under load conditions, verifying output frequency linearity, fault relay operation, and communication link integrity before dispatch. Stock is maintained across multiple warehouse locations to support emergency replacement orders with rapid global dispatch. Each ACS350-03E-01A2-4 unit is covered by a support terms confirmed by quotation from the date of shipment, with technical support available for commissioning guidance, parameter configuration, and fault diagnosis.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ACS350-03E-01A2-4 retrofit begins with a thorough audit of the existing control cabinet. Engineers should document the current drive’s parameter list using the ABB CDP312R control panel before powering down, as this backup will serve as the baseline for the replacement unit’s configuration. In multi-drive panels, the ACS350-03E-01A2-4 is commonly installed alongside ABB ACS355 drives handling higher-power motor loads, ABB MPOW-01 auxiliary power supply modules, and ABB NINT-41 encoder interface boards for closed-loop speed control applications.

Terminal wiring should be mapped against the original ACS350 wiring diagram. The control terminal block (X1) layout on the ACS350-03E-01A2-4 is identical to the standard ACS350, covering analog inputs AI1/AI2, digital inputs DI1–DI6, analog output AO1, and relay outputs RO1–RO3. Power terminals (U1/V1/W1 input, U2/V2/W2 output) follow the same physical arrangement, allowing direct cable transfer in most retrofit scenarios. Where shielded cable is used for analog references, shield grounding at the drive end should be re-verified to prevent noise interference on the speed reference signal.

For installations using PROFIBUS-DP communication via the FPBA-01 adapter, the node address and baud rate must match the PLC’s hardware configuration table. In Siemens Step 7 or TIA Portal environments, the GSD file for the ACS350 should be confirmed as loaded in the hardware catalog before going online. Similarly, for Modbus RTU installations using the FMBA-01 adapter, the drive’s node ID (parameter 5302), baud rate (parameter 5303), and parity settings must be aligned with the master controller’s communication parameters. An ABB RPBA-01 PROFINET adapter is also available for sites migrating toward Ethernet-based control architectures.

Downtime Control During System Migration

Minimizing production downtime during an ACS350-03E-01A2-4 replacement requires a structured changeover plan. The recommended approach is to complete all pre-work — parameter backup, wiring documentation, spare parts staging, and firmware version confirmation — before the maintenance window begins. With the CDP312R control panel, a full parameter backup from the outgoing drive takes under five minutes and can be restored to the replacement unit in the same timeframe, preserving motor tuning, acceleration/deceleration ramps, PID setpoints, and fault response configurations.

During the physical swap, the original control wiring harness can typically be transferred directly to the ACS350-03E-01A2-4 without modification, provided the terminal layout has been verified in advance. Power cables should be re-torqued to specification (refer to the ACS350 hardware manual for terminal torque values) to prevent loose connections that could cause intermittent faults after restart. After parameter restore, a no-load motor run test should be performed to confirm correct rotation direction, output frequency response, and fault relay operation before returning the drive to automatic control from the PLC.

For critical process lines where even brief interruptions are unacceptable, maintaining a pre-configured spare ACS350-03E-01A2-4 unit — with parameters already loaded and communication settings pre-set — reduces the actual changeover window to under 30 minutes in most installations. Our inventory is maintained at multiple stocking locations to support same-day or next-day dispatch for emergency replacement requirements.

Retrofit Support FAQ

Q: Is the ACS350-03E-01A2-4 a direct drop-in replacement for my existing ACS350 unit?
A: Yes. The ACS350-03E-01A2-4 uses the same R0 frame size, identical control terminal layout, and the same parameter structure as the standard ACS350 series. In most installations, the existing control wiring can be transferred directly without modification. Power wiring should be re-verified against the motor nameplate and cable sizing requirements.

Q: Can I upload my existing drive parameters to the replacement unit?
A: Yes. Using the ABB CDP312R control panel or DriveAP software, you can back up the full parameter set from the outgoing drive and restore it to the ACS350-03E-01A2-4. Verify that the firmware version on the replacement unit is compatible with the parameter backup file before uploading. Motor ID run may need to be repeated if motor data has changed.

Q: What fieldbus protocols does the ACS350-03E-01A2-4 support?
A: The drive supports PROFIBUS-DP (via FPBA-01 adapter), CANopen (via FCAN-01), Modbus RTU (via FMBA-01), and PROFINET (via RPBA-01). The appropriate adapter module must be installed in the drive’s option slot. Fieldbus node address, baud rate, and telegram configuration must be set to match the existing PLC program to avoid communication faults on startup.

Q: What support terms and pre-shipment testing is included?
A: Every ACS350-03E-01A2-4 unit undergoes pre-shipment load testing, fault relay verification, and communication link checks before dispatch. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and component failures under normal operating conditions. Technical support for commissioning, parameter configuration, and fault diagnosis is available throughout the confirmed support period.
