Siemens 6SE6400-0AP00-0AA1 Fail-Safe BOP for Drive Reliability

Overview

Siemens 6SE6400-0AP00-0AA1 Fail-Safe BOP for Drive Reliability

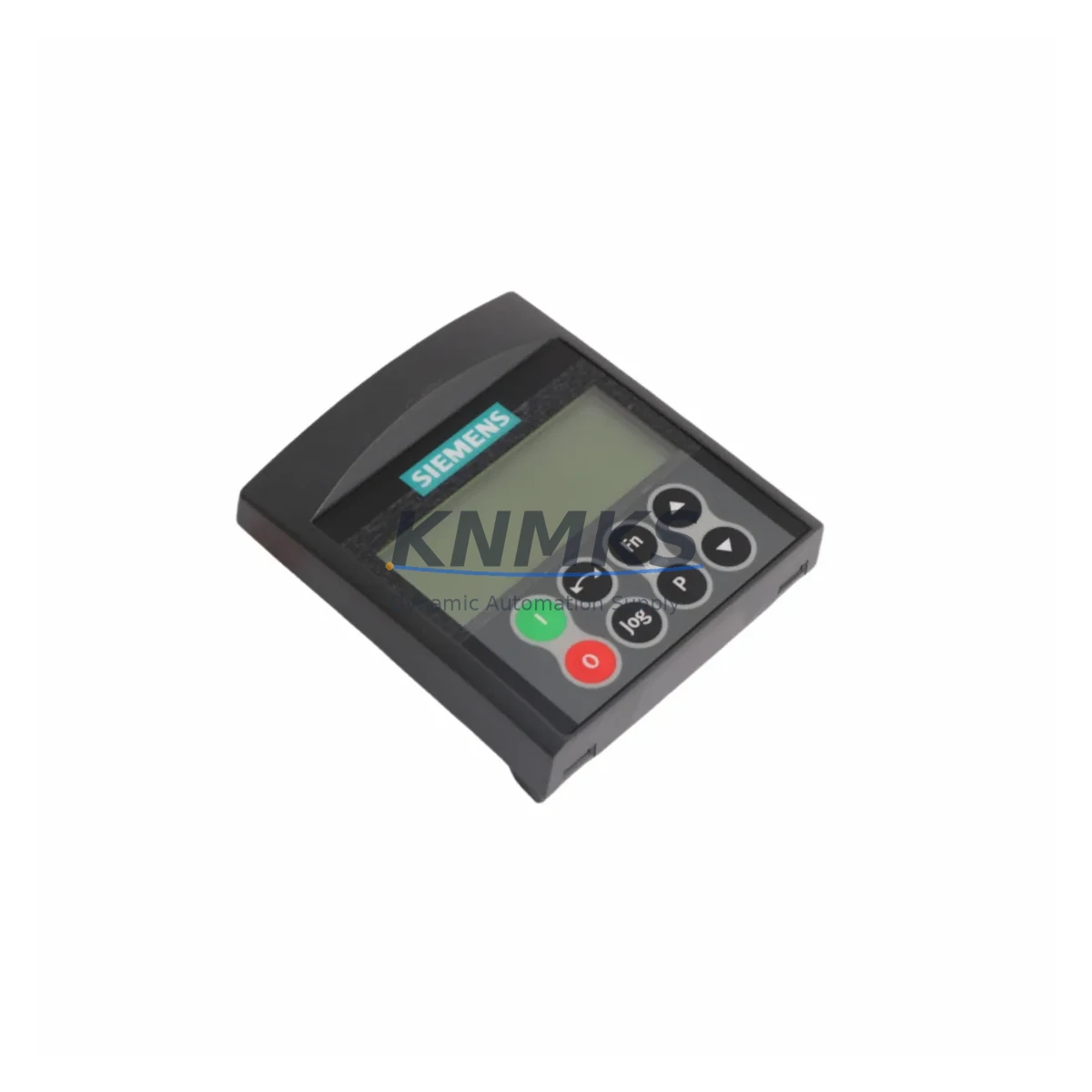

The Siemens 6SE6400-0AP00-0AA1 Basic Operator Panel (BOP) is a mission-critical human-machine interface designed for the MICROMASTER 4 series of variable frequency drives. In continuous production environments — from petrochemical pump stations and power plant auxiliary drives to mining conveyor systems and water treatment blower controls — the BOP serves as the primary local control and parameter access point for the drive. Its fail-safe design ensures that operators can monitor, adjust, and recover drive parameters without interrupting the control loop, even under demanding field conditions including high electromagnetic interference, vibration, dust ingress, and ambient temperature fluctuations.

Unlike generic HMI panels, the 6SE6400-0AP00-0AA1 is engineered specifically for the MICROMASTER 4 platform, providing direct plug-in compatibility with the MM420, MM430, and MM440 drive families. This native integration eliminates signal conversion errors and parameter mismatch risks that commonly arise when third-party panels are used in safety-critical drive applications. The BOP enables real-time fault code readout, motor speed adjustment, and parameter upload/download — capabilities that are essential during emergency response, scheduled maintenance windows, and post-fault recovery in critical industrial facilities.

In high-EMI environments such as heavy motor control centers, arc furnace control cabinets, and variable-speed pump stations, the BOP’s shielded interface and direct drive-bus communication architecture significantly reduce the risk of signal drift, spurious fault trips, and communication anomalies that can cascade into unplanned shutdowns. When deployed alongside the Siemens MICROMASTER 4 MM440 main drive unit, the 6SE6400-0AP00-0AA1 BOP provides a complete local control solution that supports both manual override and automated process integration without compromising the drive’s safety interlock logic.

For control cabinet protection strategies, the BOP is commonly installed in conjunction with the Siemens 6SE6400-0BE00-0AA0 AOP Advanced Operator Panel for remote parameter management, the 6SE6400-1PB00-0AA0 PC connection kit for drive commissioning and diagnostics, and the 6SL3255-0AA00-4CA1 STARTER software for parameter backup and fault analysis. In power-sensitive installations, pairing the BOP with a Siemens SITOP PSU100S 24 VDC stabilized power supply ensures that the drive control circuit remains energized and stable during mains voltage fluctuations, preventing nuisance trips and protecting the integrity of the safety interlock chain. For installations in dusty or humid environments, the 6SE6400-0AP00-0AA1 is typically mounted with an IP54-rated cabinet door cutout adapter to maintain enclosure protection class without compromising BOP accessibility.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered MICROMASTER 4 control cabinet, the 6SE6400-0AP00-0AA1 BOP is one component within a layered protection architecture. The drive itself — whether an MM420 for simple pump and fan applications or an MM440 for complex vector-controlled conveyor and compressor drives — forms the core of the control loop. The BOP provides the local operator interface layer, enabling technicians to read fault codes (F001 through F0999), adjust frequency setpoints, and perform parameter resets without requiring a laptop or SCADA connection.

For cabinet-level surge and transient protection, the Siemens 6SE6400-0AP00-0AA1 is typically deployed alongside a Siemens 5SD7 series surge protective device on the incoming power rail, protecting the drive and its operator panel from voltage transients caused by nearby motor switching, capacitor bank switching, or lightning-induced surges on the supply network. In installations where the drive communicates with a Siemens S7-300 or S7-1200 PLC via USS protocol or PROFIBUS DP, the BOP serves as a local fallback control interface, ensuring that operators retain manual control authority even if the fieldbus communication link is interrupted.

Thermal management within the control cabinet is equally critical. The MICROMASTER 4 drive generates significant heat under full-load operation, and the BOP’s direct-mount interface must remain within its rated operating temperature range. Pairing the drive with a Siemens cabinet cooling unit or a filtered fan-and-filter combination (such as the Siemens 8MR series) ensures that the BOP and drive electronics remain within safe thermal limits, preventing parameter corruption and premature component failure in high-ambient-temperature installations such as outdoor pump stations, steel mill auxiliary drives, and tropical climate process plants.

Critical Industrial Safety Applications

The Siemens 6SE6400-0AP00-0AA1 BOP is deployed across a wide range of critical industrial sectors where drive reliability directly impacts process safety and production continuity:

• Petrochemical & Refinery: Local parameter control for cooling water pump drives, compressor auxiliary motors, and flare gas blower VFDs. The BOP enables rapid fault acknowledgment and speed adjustment during process upsets without requiring DCS intervention.
• Power Generation: Used on boiler feed pump auxiliary drives, cooling tower fan VFDs, and coal conveyor belt drives. The BOP’s direct fault readout capability reduces mean time to repair (MTTR) during forced outages.
• Mining & Mineral Processing: Applied to ore conveyor drives, slurry pump VFDs, and ventilation fan controls in underground and surface mining operations. The BOP’s robust plug-in interface withstands vibration and dust exposure common in mining environments.
• Water & Wastewater Treatment: Installed on aeration blower drives, effluent pump VFDs, and sludge dewatering centrifuge controls. The BOP supports local speed trimming and fault reset without interrupting the automated SCADA control loop.
• Metallurgy & Steel: Used on rolling mill auxiliary drives, furnace atmosphere fan VFDs, and ladle transfer car motor controls. High-EMI immunity is critical in these environments due to proximity to arc furnaces and large transformer installations.
• Port & Marine: Applied to crane hoist auxiliary drives, ballast pump VFDs, and cargo conveyor belt controls. The BOP’s parameter upload/download capability supports rapid drive replacement and recommissioning during vessel turnaround windows.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6SE6400-0AP00-0AA1?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional anomalies that occur under normal operating conditions within the rated environmental and electrical specifications. It does not cover damage resulting from incorrect installation, overvoltage events beyond rated surge immunity, or physical impact. Support requests are supported with direct technical assistance and replacement dispatch.

Q2: What pre-shipment testing is performed on each unit?
Every 6SE6400-0AP00-0AA1 BOP undergoes full functional verification before dispatch, including display segment check, button response test, parameter read/write cycle verification, and plug-in interface continuity check. Units that do not pass all test criteria are quarantined and not shipped.

Q3: Is the 6SE6400-0AP00-0AA1 compatible with all MICROMASTER 4 drive variants?
Yes. The 6SE6400-0AP00-0AA1 BOP is compatible with the full MICROMASTER 4 family, including MM420, MM430, and MM440 drives across all power ratings. It is not compatible with MICROMASTER 3 or SINAMICS G120 series drives, which require their own dedicated operator panels.

Q4: Can long-term supply agreements be arranged for this part?
Yes. Multi-unit and scheduled delivery agreements are available for maintenance contractors, OEMs, and plant operators requiring ongoing BOP supply for fleet maintenance programs. Multi-region stock is maintained to support emergency replacement dispatch and planned outage schedules with short lead times.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6SE6400-0AP00-0AA1

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: Siemens 6SE6400-0AP00-0AA1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
