Siemens 6GK7542-1AX00-0XE0 Migration-Ready PROFINET CP

Overview

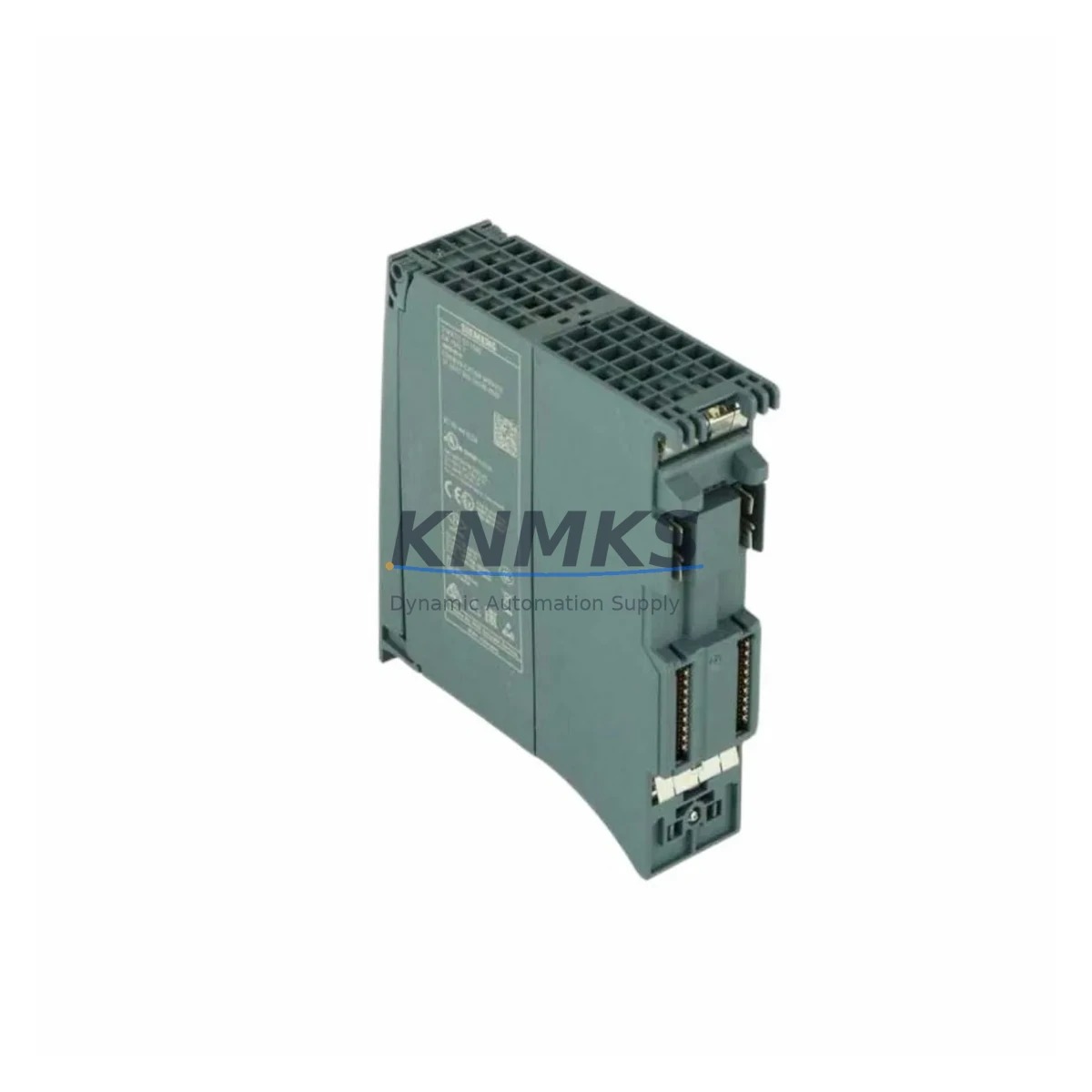

Siemens 6GK7542-1AX00-0XE0 Migration-Ready PROFINET CP for Legacy Control Systems

The Siemens 6GK7542-1AX00-0XE0 (CP 1542-1) is a PROFINET communications processor designed for the S7-1500 controller platform. As legacy S7-300 and S7-400 systems reach end-of-life and spare parts become increasingly scarce, the CP 1542-1 serves as a critical enabler for control system modernization — allowing engineering teams to migrate communication infrastructure while preserving existing program logic, HMI screens, and field device wiring wherever possible.

KNMKS maintains verified in-stock inventory of the 6GK7542-1AX00-0XE0, pre-tested and ready for immediate dispatch. Each unit ships with a support terms confirmed by quotation and full factory documentation. Whether you are executing a planned retrofit, responding to an unplanned failure, or building a strategic spare parts buffer for a long-running production line, this module is available for rapid fulfillment.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 6GK7542-1AX00-0XE0 into an existing automation environment requires systematic pre-migration planning. The first step is a rack audit: confirm that the target S7-1500 rack has an available communication module slot and that the installed power supply module — typically a PM 70W or PM 190W — has sufficient headroom to support the additional CP load. The CP 1542-1 draws power from the backplane, so total rack current consumption must be recalculated before installation.

Terminal wiring for PROFINET uses standard RJ45 connectors, which simplifies field cabling compared to older CP modules that relied on AUI or BNC interfaces. However, if the existing network topology includes legacy CP 343-1 or CP 443-1 modules on S7-300 or S7-400 racks, those controllers must first be migrated to the S7-1500 platform before the 6GK7542-1AX00-0XE0 can be deployed. In such scenarios, the migration typically involves replacing the CPU module, installing a new S7-1500 rack, and re-mapping all I/O module addresses — including any SM 321 digital input modules, SM 322 digital output modules, or SM 331 analog input modules that were previously addressed under the S7-300 hardware configuration.

Communication link reconfiguration is a key milestone. PROFINET device names and IP addresses must be reassigned in TIA Portal to match the new hardware configuration. If the plant network includes SIMATIC ET 200SP or ET 200MP distributed I/O stations connected via PROFINET, their device names must be verified and updated in the new project. Signal isolators installed between field instruments and I/O modules are unaffected by the CP migration and can remain in place, which helps reduce overall retrofit scope.

For sites running SIMATIC WinCC or TP/KP series HMI panels, the HMI project must be updated to reflect the new controller IP address and any tag name changes introduced during the S7-1500 migration. In most cases, existing HMI screen layouts can be preserved, with only the communication connection parameters requiring update. Programming cables and PC adapters used during commissioning should be confirmed compatible with TIA Portal before the migration window begins.

Downtime Control During System Migration

Minimizing production downtime during a CP module replacement or full controller migration requires a structured cutover plan. Where possible, the new S7-1500 rack with the 6GK7542-1AX00-0XE0 installed should be fully configured, programmed, and bench-tested offline before the scheduled maintenance window. This includes loading the migrated program, verifying all PROFINET device assignments, and confirming that the HMI communication connection is functional in a simulated environment.

During the cutover window, the recommended sequence is: power down the existing controller in a controlled manner, document all field terminal connections before disconnecting, install the new rack, reconnect field wiring according to the updated terminal diagram, power up, and perform a structured I/O check before releasing the system to automatic mode. For critical process loops — particularly in petrochemical, energy, or continuous manufacturing environments — consider implementing a manual bypass or temporary hardwired interlock to maintain process safety during the transition period.

The 6GK7542-1AX00-0XE0 supports online diagnostics via TIA Portal, which allows engineers to monitor PROFINET communication status, identify device faults, and verify network topology without interrupting production once the system is live. This capability significantly reduces the time required to resolve post-commissioning issues and supports a faster return to normal operations. All units supplied by KNMKS are pre-tested prior to shipment, reducing the risk of DOA failures during a time-critical cutover.

Retrofit Support FAQ

Q: Can the 6GK7542-1AX00-0XE0 directly replace a CP 343-1 on an existing S7-300 rack?
A: No. The CP 1542-1 is designed exclusively for the S7-1500 backplane and cannot be installed in an S7-300 rack. A full controller migration from S7-300 to S7-1500 is required. KNMKS can advise on the migration path and supply both the CP 1542-1 and compatible S7-1500 CPU modules.

Q: What firmware version is required on the S7-1500 CPU to support this CP module?
A: The CP 1542-1 requires TIA Portal V14 SP1 or later for configuration, and the S7-1500 CPU firmware should be V2.0 or above. It is strongly recommended to update both the CPU firmware and TIA Portal to the latest supported versions before commissioning to ensure full feature compatibility and access to current diagnostic functions.

Q: Does KNMKS provide pre-shipment testing for this module?
A: Yes. All 6GK7542-1AX00-0XE0 units are functionally tested before dispatch. Each module is verified for backplane communication, PROFINET port operation, and firmware integrity. Units are shipped with original packaging and factory documentation. A support terms confirmed by quotation is included from the date of shipment.

Q: What is the typical lead time and are bulk quantities available?
A: KNMKS maintains stock inventory of the 6GK7542-1AX00-0XE0 for immediate dispatch. Standard orders ship within 1–3 business days. For project quantities or long-term supply commitments, contact our sales team to discuss volume pricing and scheduled delivery arrangements.
