Siemens 6ES7 952-1AL00-0AA0 Maintenance-Proven Spare Part for Factory Uptime

Overview

Siemens 6ES7 952-1AL00-0AA0 Maintenance-Proven Spare Part for Factory Uptime

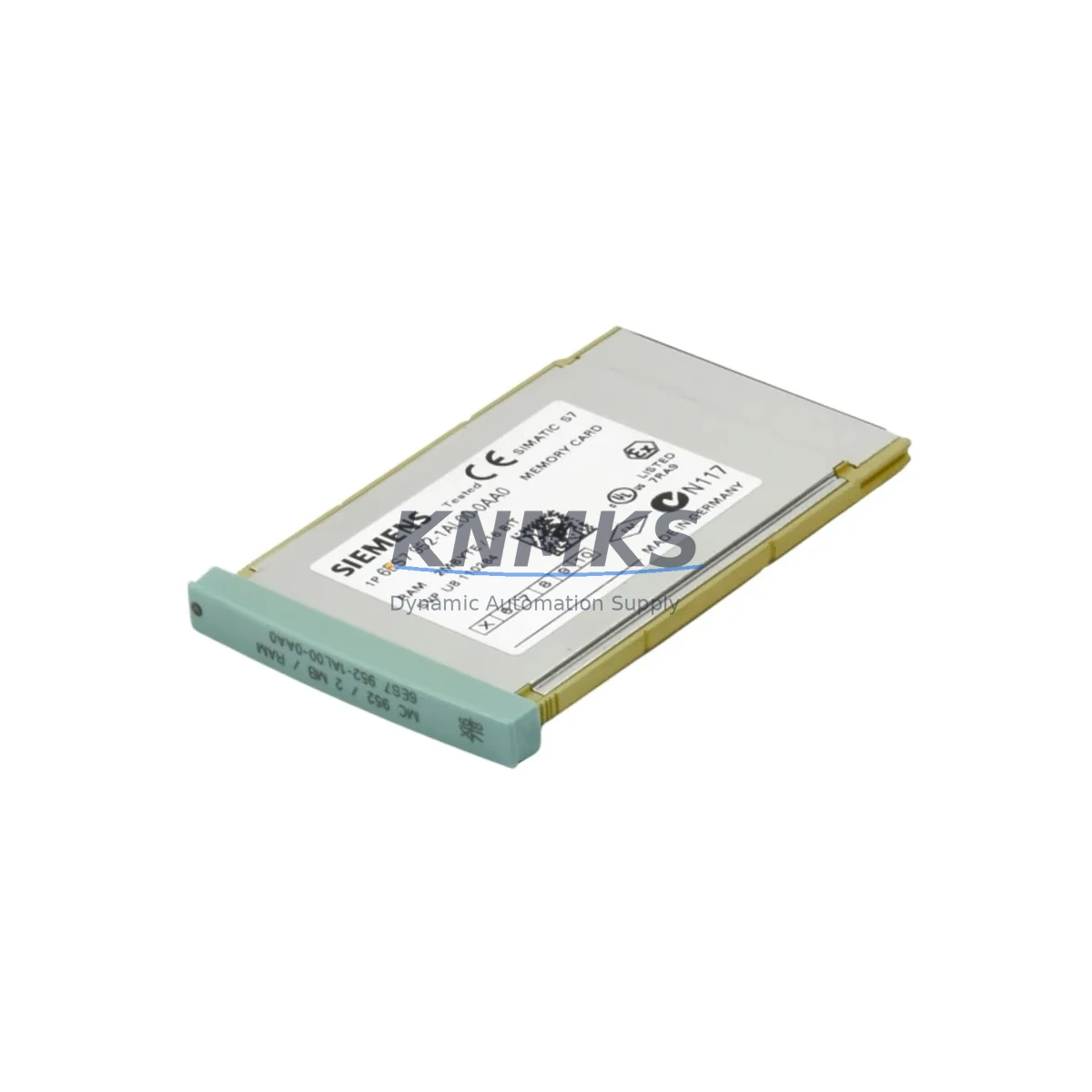

The Siemens 6ES7 952-1AL00-0AA0 is a 1MB RAM memory card designed for the SIMATIC S7-400 programmable logic controller platform — one of the most widely deployed high-availability PLC systems in petrochemical, power generation, metallurgical, and water treatment facilities worldwide. When this memory module fails or degrades, the entire CPU rack loses its program retention capability, making rapid, validated replacement a top priority for maintenance engineers managing continuous-process environments.

At KNMKS, every 6ES7 952-1AL00-0AA0 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and dispatched with a support terms confirmed by quotation. Our stock-backed fulfillment model supports both emergency breakdown orders and planned annual maintenance procurement, reducing the risk of extended unplanned downtime caused by long lead times from OEM channels.

For maintenance planners operating aging S7-400 installations, this memory card is a critical line item in any spare parts strategy. Its role extends beyond simple data storage — it holds the CPU’s user program, retentive data blocks, and configuration parameters. Loss of this module during a fault event can result in full production line stoppage until a replacement is sourced, programmed, and validated on-site.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6ES7 952-1AL00-0AA0 in an S7-400 rack is rarely an isolated task. Experienced maintenance engineers treat this event as an opportunity to inspect the broader CPU environment and reduce the risk of secondary failures. When pulling the memory card for replacement, the CPU module itself — typically a 6ES7 414-2XG04-0AB0 or 6ES7 416-3XR05-0AB0 — should be inspected for capacitor aging, backplane connector wear, and firmware currency.

The S7-400 power supply module, such as the 6ES7 407-0DA02-0AA0 or 6ES7 405-0KA02-0AA0, should be load-tested to confirm stable 5VDC and 24VDC rails, as voltage fluctuations are a leading cause of memory card corruption. Interface modules (IMs) used for distributed I/O expansion — including the 6ES7 460-1BA01-0AB0 and 6ES7 461-1BA01-0AA0 — should be checked for communication faults logged in the CPU diagnostic buffer before the memory card is reloaded.

For facilities running PROFIBUS DP networks alongside the S7-400, the CP 443-5 communication processor (6GK7 443-5DX05-0XE0) should be verified for active connections and correct GSD file alignment after any CPU memory reload. Signal conditioning modules and analog input cards in the same rack — such as SM 431 or SM 432 series — should be confirmed for correct scaling parameters, which are stored in the reloaded program blocks.

Procurement engineers should also consider holding a minimum of one spare 6ES7 952-1AL00-0AA0 per S7-400 CPU rack in the site spare parts cabinet, alongside a spare CPU module and at least one power supply unit, to support a full cold-start recovery scenario without waiting for external sourcing.

Site Replacement Workflow

Replacing the 6ES7 952-1AL00-0AA0 on-site follows a structured sequence to minimize downtime and avoid program loss. Before removing the existing memory card, maintenance engineers should perform a full CPU program backup to a SIMATIC programming device (PG/PC) using STEP 7 or TIA Portal in offline mode. This backup preserves the user program, data blocks, and hardware configuration independently of the memory card.

With the CPU in STOP mode and the rack de-energized at the power supply, the old memory card is removed from the CPU’s memory slot. The replacement 6ES7 952-1AL00-0AA0 is inserted firmly until the card locks into position. On power-up, the CPU will initialize the new RAM card and the previously backed-up program is downloaded from the PG/PC. After a successful download, the CPU is switched to RUN mode and the diagnostic buffer is checked for any residual faults.

For sites migrating from older S7-400 CPU variants that used Flash memory cards (such as the 6ES7 952-1AK00-0AA0 or 6ES7 952-1AM00-0AA0), the 6ES7 952-1AL00-0AA0 RAM card is a direct form-fit replacement within the same CPU slot, requiring no hardware modification. This compatibility makes it a preferred choice for maintenance teams standardizing their spare parts inventory across multiple S7-400 racks on the same site.

KNMKS supports long-term supply continuity for this part number, with stock available for immediate dispatch and a documented support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Spare Parts Support FAQ

Q: Is the 6ES7 952-1AL00-0AA0 compatible with all S7-400 CPU models?
A: This 1MB RAM card is compatible with the majority of SIMATIC S7-400 CPU variants, including the 412, 414, 416, and 417 series. Compatibility should be confirmed against the specific CPU order number and firmware version using the Siemens SIMATIC S7-400 hardware manual before installation.

Q: What does the support terms confirmed by quotation cover?
A: The support terms covers functional failures and manufacturing defects under normal industrial operating conditions for 12 months from the date of shipment. Units that fail within the confirmed support period are replaced or refunded after return inspection. Physical damage caused by incorrect installation or overvoltage events is not covered.

Q: How is the unit tested before shipment?
A: Each 6ES7 952-1AL00-0AA0 unit undergoes pre-shipment functional verification, including memory read/write cycle testing and physical connector inspection. A test report is available upon request for quality-critical procurement processes.

Q: Can KNMKS support long-term or repeat procurement for this part?
A: Yes. KNMKS maintains stock of the 6ES7 952-1AL00-0AA0 and can support scheduled annual procurement, multi-unit orders for site-wide spare parts standardization, and emergency single-unit dispatch. Contact our team at [email protected] or +86 18359268345 to discuss volume pricing and lead time commitments.
