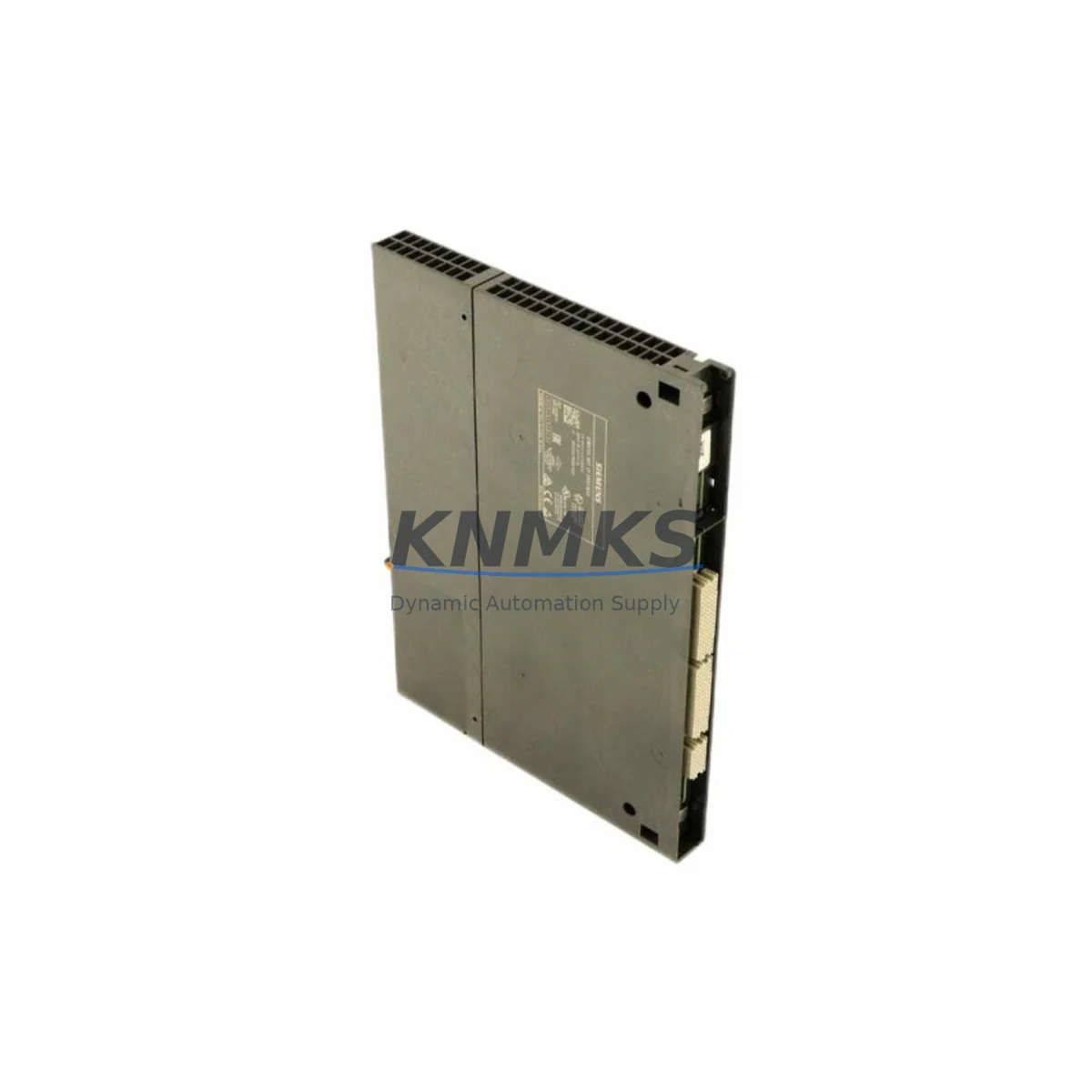

Siemens 6GK7443-5DX05-0XE1 Fail-Safe PROFIBUS CP

Overview

Siemens 6GK7443-5DX05-0XE1 Fail-Safe PROFIBUS CP: Fault Protection and Critical Industrial Field Reliability

The Siemens 6GK7443-5DX05-0XE1 is a CP 443-5 Extended Communication Processor designed for the S7-400 programmable logic controller platform. It provides dual-channel PROFIBUS DP and FMS connectivity, enabling high-speed, deterministic field communication in demanding industrial environments. In continuous production facilities, critical interlock systems, and heavy-duty control cabinets, this module delivers the communication integrity and fault tolerance required to sustain uninterrupted process control.

Engineered for deployment in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical lines, port logistics systems, and continuous manufacturing environments, the 6GK7443-5DX05-0XE1 addresses the full spectrum of field-level communication risks — from signal drift and electromagnetic interference to power fluctuations, surge events, cabinet overheating, and unplanned downtime. Its robust hardware design and Siemens-validated firmware ensure that PROFIBUS network integrity is maintained even under the most adverse operating conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered S7-400 control cabinet, the 6GK7443-5DX05-0XE1 operates as the PROFIBUS communication backbone, but its reliability depends on the integrity of the surrounding system architecture. The Siemens PS 407 power supply module (e.g., 6ES7407-0DA02-0AA0) provides stable 5 VDC and 24 VDC rails to the backplane, ensuring that communication processor operation is not disrupted by upstream power fluctuations or load transients common in heavy industrial environments.

The CPU module — typically a Siemens S7-400 CPU 414 or CPU 416 series — coordinates all PROFIBUS DP master functions through the CP 443-5 Extended. In safety-critical applications, the CPU’s watchdog and diagnostic interrupt handling work in conjunction with the CP module to detect slave failures, bus faults, and communication timeouts before they escalate into process shutdowns. Pairing the 6GK7443-5DX05-0XE1 with a Siemens IM 460 interface module in distributed rack configurations further extends the communication reach without introducing additional latency or fault propagation risk.

For field-level protection, PROFIBUS segment terminators and bus connectors — such as the Siemens 6ES7972-0BB52-0XA0 — must be correctly installed at both ends of each PROFIBUS segment to prevent signal reflection, impedance mismatch, and data corruption under high-speed transmission. In environments with elevated electromagnetic interference from variable frequency drives, arc furnaces, or high-voltage switching equipment, the use of shielded PROFIBUS cables and proper cabinet grounding is essential to maintain the signal integrity that the CP 443-5 Extended is designed to deliver.

Where cabinet thermal management is a concern — particularly in enclosed enclosures operating in high-ambient-temperature zones — the Siemens S7-400 fan/battery module provides active cooling and backup power continuity, protecting both the CPU and the CP 443-5 Extended from thermal-induced communication errors and data loss during power interruptions. This integrated cabinet protection strategy ensures that the 6GK7443-5DX05-0XE1 delivers its rated performance across the full operational lifecycle of the control system.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process environments where PROFIBUS DP networks connect field instruments, valve positioners, and motor control centers, the 6GK7443-5DX05-0XE1 provides the deterministic communication required for emergency shutdown interlock coordination. Any communication delay or bus fault in these environments can trigger unplanned process trips with significant safety and financial consequences. The CP 443-5 Extended’s fast cycle time and robust error detection minimize this risk.

Power Generation and Substation Control: In turbine control systems and substation automation, PROFIBUS FMS and DP networks carry critical status and control data between the S7-400 master and distributed I/O or protection relays. The 6GK7443-5DX05-0XE1’s dual-channel architecture supports redundant communication paths, reducing single-point-of-failure exposure in high-availability power infrastructure.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and humidity. The CP 443-5 Extended’s compliance with IEC 60068 environmental standards and its sealed connector design make it suitable for deployment in mining control rooms and remote junction boxes where standard office-grade hardware would fail prematurely.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on PROFIBUS DP networks to coordinate pump stations, dosing systems, and filtration controls across large geographic areas. The 6GK7443-5DX05-0XE1 supports long-distance PROFIBUS segments with repeaters, enabling reliable communication in distributed plant architectures where cable runs exceed standard segment length limits.

Metallurgy and Steel Production: In electric arc furnace control and rolling mill automation, the electromagnetic environment is among the most hostile in industrial practice. The CP 443-5 Extended’s EMC-hardened design and shielded port architecture maintain PROFIBUS bus integrity even in the presence of high-frequency interference generated by large power converters and induction heating systems.

Port Logistics and Crane Control: Container crane and ship-to-shore equipment rely on S7-400 systems with PROFIBUS communication for precise load positioning and safety interlock management. The 6GK7443-5DX05-0XE1’s fast response time and diagnostic transparency support the real-time control demands of high-cycle crane operations where communication latency directly affects throughput and safety.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 6GK7443-5DX05-0XE1?
All units are covered by a support terms confirmed by quotation from the date of shipment. This covers hardware defects, functional failures under normal operating conditions, and communication interface faults. Support requests are processed with priority to minimize field downtime.

Q2: Is pre-shipment functional testing performed on each unit?
Yes. Every 6GK7443-5DX05-0XE1 undergoes a full functional test prior to dispatch, including PROFIBUS communication verification, backplane interface check, and power consumption validation. A test record is available upon request.

Q3: Is this module compatible with all S7-400 CPU and rack configurations?
The CP 443-5 Extended is compatible with the full S7-400 rack family, including UR1, UR2, and ER1/ER2 expansion racks. It is supported by STEP 7 V5.x and TIA Portal with the appropriate hardware configuration package. Compatibility with specific CPU firmware versions should be verified against the Siemens product compatibility matrix for your project revision.

Q4: Can long-term supply be guaranteed for maintenance and spare parts planning?
Yes. We maintain dedicated stock of the 6GK7443-5DX05-0XE1 to support long-term maintenance contracts and planned replacement programs. For facilities managing end-of-life S7-400 infrastructure, we offer supply commitment agreements to ensure spare part availability beyond standard product lifecycle windows. Contact our sales team to discuss volume and scheduling requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6GK7443-5DX05-0XE1
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6GK7443-5DX05-0XE1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
