Siemens 6GK7443-5DX05-0XE0 Maintenance-Proven Spare Part

Overview

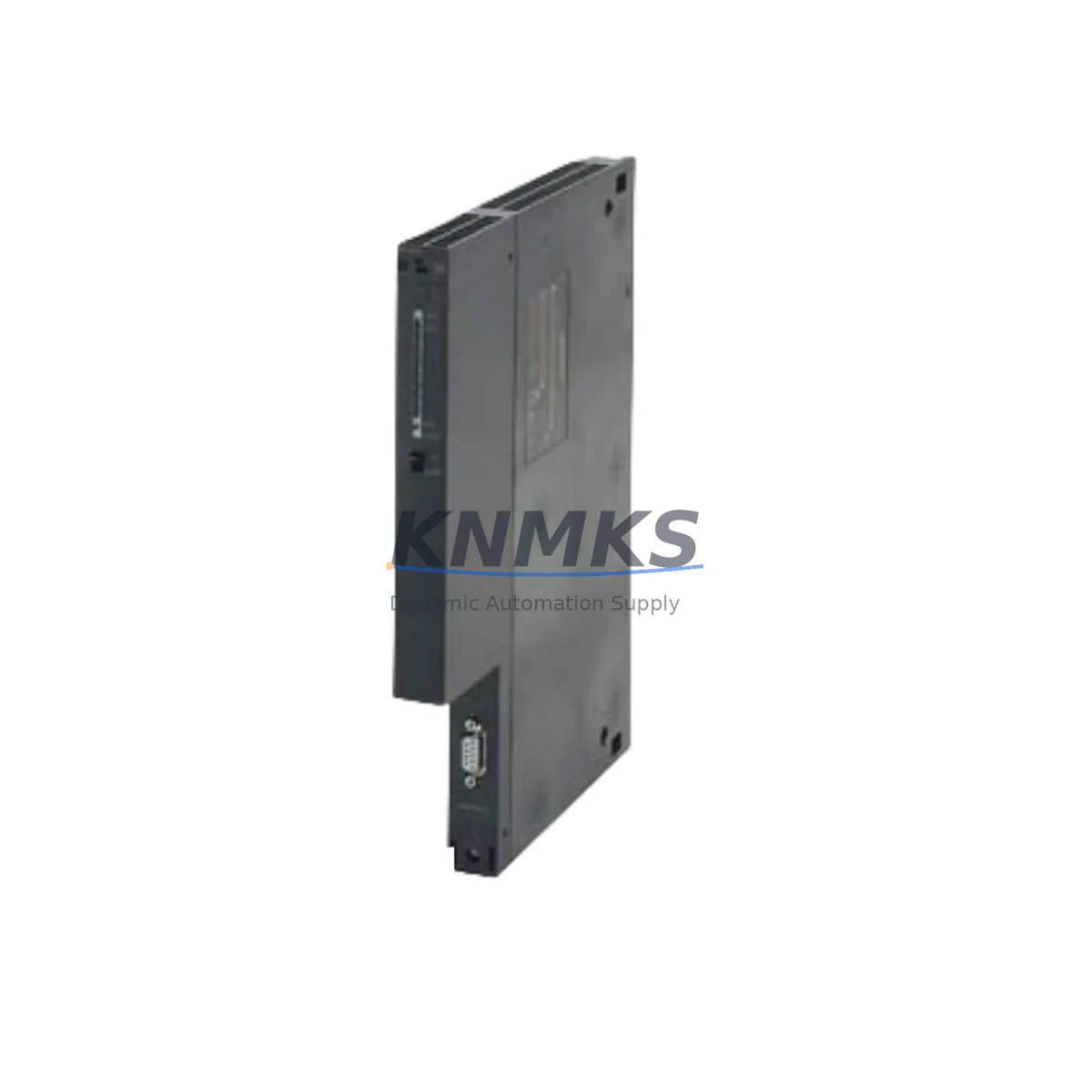

Siemens 6GK7443-5DX05-0XE0 Maintenance-Proven Spare Part for Factory Uptime

The Siemens 6GK7443-5DX05-0XE0 is the CP 443-5 Extended PROFIBUS communication processor module designed for the SIMATIC S7-400 programmable logic controller platform. As a critical network interface between the S7-400 CPU and PROFIBUS DP/FMS field devices, this module is a high-priority spare in any industrial maintenance inventory. Its role in managing real-time fieldbus communication makes it a single point of failure risk — one that maintenance engineers and spare parts procurement teams must proactively address before unplanned downtime occurs.

At KNMKS, every 6GK7443-5DX05-0XE0 unit is sourced from verified supply channels, pre-shipment tested for communication integrity and slot compatibility, and backed by a support terms confirmed by quotation. We support long-term supply agreements for multi-site operations requiring consistent access to legacy S7-400 communication spares.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When the 6GK7443-5DX05-0XE0 is flagged during a control cabinet inspection or routine PROFIBUS diagnostic scan, the replacement process should not be treated in isolation. A communication processor failure in an S7-400 system typically cascades across the entire fieldbus segment, affecting all connected PROFIBUS DP slaves — including remote I/O stations, variable frequency drives, and distributed process instruments.

Maintenance engineers should simultaneously inspect the S7-400 PS 407 or PS 405 power supply module to confirm stable 5 VDC and 24 VDC backplane rail voltages before inserting the replacement CP 443-5. A degraded power supply is a common root cause of intermittent communication faults that are misdiagnosed as module failure. Alongside the power supply, the S7-400 CPU 414 or CPU 416 should be checked for active diagnostic buffer entries related to PROFIBUS segment errors, as these entries will persist after module swap if the underlying network issue is not resolved.

The PROFIBUS cable termination resistors and the PROFIBUS DP bus connector (6ES7972-0BA52-0XA0 or equivalent) at both ends of the segment should be verified — a missing or double-terminated segment is a frequent cause of communication instability that survives a module replacement. For installations using optical PROFIBUS links, the OLM (Optical Link Module) fiber connections should be cleaned and signal levels confirmed.

In cabinets where the S7-400 communicates with SIMATIC ET 200M or ET 200S distributed I/O, the IM 153-x interface modules on those remote stations should be inspected for firmware compatibility with the replacement CP 443-5 firmware version. Procurement teams managing multi-site spare inventories should also stock the 6GK1500-0FC10 PROFIBUS bus terminal and relevant SIMATIC S7-400 slot covers to maintain cabinet integrity during module exchange procedures.

For sites running parallel PROFIBUS and Industrial Ethernet architectures, the CP 443-1 Advanced (6GK7443-1EX30-0XE0) should be reviewed as part of the same cabinet audit, as both communication processors share the same backplane slot format and are often maintained on the same replacement cycle.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Export the current STEP 7 or TIA Portal hardware configuration. Document the slot number, PROFIBUS address, and DP master system assignment of the existing 6GK7443-5DX05-0XE0. Capture the active diagnostic buffer from the CPU before powering down the rack segment.

Step 2 — Safe Removal: The S7-400 supports hot-swap for communication modules in most configurations. Confirm with the site safety procedure whether a controlled CPU STOP state is required. Remove the module by releasing the front panel locking mechanism and sliding it from the rack. Inspect the backplane connector pins for corrosion or mechanical damage.

Step 3 — Replacement Installation: Insert the KNMKS-supplied 6GK7443-5DX05-0XE0 into the same slot. The module does not require manual address configuration — PROFIBUS address and DP master parameters are downloaded from the CPU via the hardware configuration. Perform a full download of the HW Config to the CPU after insertion.

Step 4 — Communication Verification: Monitor the PROFIBUS diagnostic LEDs on the module front panel. Confirm BF (Bus Fault) LED extinguishes within 30 seconds of CPU restart. Use STEP 7 NetPro or TIA Portal online diagnostics to verify all DP slaves return to active data exchange state. Log the replacement event in the site maintenance record.

Step 5 — Legacy System Compatibility: For S7-400 systems running firmware older than V6.0, confirm that the replacement module firmware is backward compatible. KNMKS provides firmware version documentation with each unit on request. This workflow reduces mean time to repair (MTTR) and ensures the production line returns to full operation without requiring a full system reconfiguration.

Spare Parts Support FAQ

Q1: Is the 6GK7443-5DX05-0XE0 compatible with all S7-400 CPU variants?
The CP 443-5 Extended is compatible with all S7-400 CPUs that support PROFIBUS DP master operation, including the CPU 412, 414, 416, and 417 families. Slot assignment and DP master system configuration are managed through STEP 7 HW Config or TIA Portal. For CPU variants with integrated PROFIBUS interfaces, the CP 443-5 adds an independent second PROFIBUS segment — confirm your HW Config supports the additional DP master system before installation.

Q2: How does KNMKS verify the module before shipment?
Every 6GK7443-5DX05-0XE0 unit undergoes pre-shipment functional testing including backplane communication verification, PROFIBUS interface continuity check, and firmware version confirmation. A test report is available on request. All units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions.

Q3: Can KNMKS support long-term supply agreements for this part?
Yes. KNMKS offers long-term supply agreements for the 6GK7443-5DX05-0XE0 and related S7-400 communication spares, with lead times and stock reservation tailored to your annual maintenance schedule. This is particularly relevant for facilities operating legacy S7-400 systems beyond Siemens’ standard product lifecycle, where open-market availability is increasingly constrained.

Q4: What is the recommended spare inventory quantity for a multi-line facility?
For facilities with 3 or more S7-400 racks containing CP 443-5 modules, a minimum of 1–2 units per site is recommended as a cold standby. For critical production lines with zero-tolerance downtime requirements, a hot standby strategy with pre-configured hardware configuration backup is advised. KNMKS can assist with inventory planning based on your installed base count and annual maintenance cycle.
