Siemens 6GK7343-5FA00-0XE0 Migration-Ready PROFIBUS CP

Overview

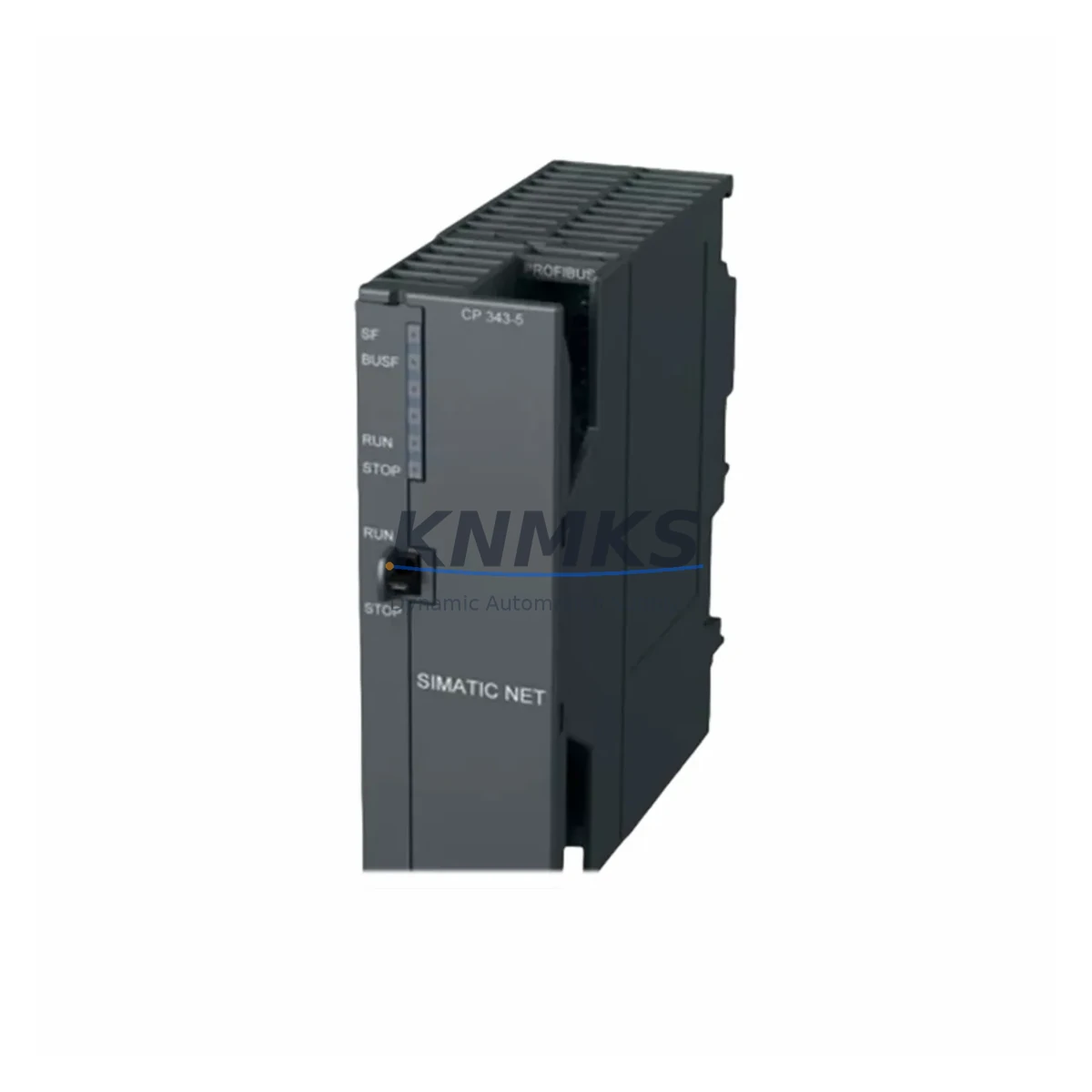

Siemens 6GK7343-5FA00-0XE0 Migration-Ready PROFIBUS CP for Legacy S7-300 Control Systems

The Siemens 6GK7343-5FA00-0XE0 (CP 343-5) is a PROFIBUS DP/FMS communication processor engineered for the SIMATIC S7-300 rack. As S7-300 installations reach end-of-support and original spare parts become increasingly scarce, the CP 343-5 remains a mission-critical component for plants that must sustain PROFIBUS network continuity while executing a phased migration to modern control architectures. Every unit supplied by KNMKS is pre-tested, backed by a support terms confirmed by quotation, and drawn from multi-region stock to support both emergency replacements and scheduled outage windows.

For automation engineers managing aging PROFIBUS networks, the 6GK7343-5FA00-0XE0 provides a direct, slot-compatible replacement for failed or end-of-life CP 343-5 units without requiring changes to the existing S7-300 rack layout, backplane wiring, or STEP 7 project structure. Its support for both PROFIBUS DP master/slave and FMS modes makes it suitable for mixed-protocol environments where legacy field devices — including Siemens ET 200M remote I/O stations, IM 153-x interface modules, and third-party PROFIBUS slaves — must remain online throughout the transition period.

Plants running SIMATIC S7-300 CPUs such as the CPU 315-2 DP or CPU 317-2 DP alongside this CP module should verify that existing MPI/PROFIBUS address assignments and GSD file configurations are preserved in the STEP 7 hardware configuration before hot-swapping the module. Where the original unit has failed without a recent project backup, the CP 343-5’s diagnostic buffer and module identification data can assist in reconstructing the network topology. Engineers should also confirm that the 24 VDC backplane supply from the PS 307 power supply module is within specification, as marginal supply voltage is a common root cause of communication processor faults in aging S7-300 cabinets.

For sites planning a longer-term migration from S7-300 to S7-1500 or TIA Portal-based architectures, the 6GK7343-5FA00-0XE0 serves as a bridge component during Phase 1 of the retrofit — keeping the existing PROFIBUS field layer operational while new S7-1500 hardware, including the CM 1542-5 PROFIBUS communication module, is staged and configured in parallel. This approach avoids a full cutover outage and allows incremental validation of I/O mapping, HMI screen updates in WinCC or WinCC Flexible, and drive parameter migration for connected Siemens SINAMICS G120 or MICROMASTER 440 frequency inverters.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful CP 343-5 replacement begins well before the module arrives on site. Engineers should export the current STEP 7 hardware configuration and create a full project backup — including symbol tables and network configurations — to ensure the replacement module can be re-parameterized without relying on the failed unit. The PROFIBUS station address configured on the original CP 343-5 must be noted and replicated exactly; mismatched addresses will prevent the network from initializing and will generate bus faults across all connected slaves.

In cabinets where the S7-300 rack is densely populated — for example, with multiple SM 321 digital input modules, SM 331 analog input modules, and an IM 360/361 expansion interface for a second rack — physical installation space should be confirmed before ordering. The CP 343-5 occupies a single standard S7-300 slot, but cable routing for the PROFIBUS trunk line and any spur connections to ET 200M stations or PROFIBUS-PA segment couplers must be planned to avoid signal integrity issues, particularly in cabinets with high electromagnetic interference from variable frequency drives such as the SINAMICS G120 or MICROMASTER 440.

Where the plant also operates Siemens S7-400 controllers on the same PROFIBUS segment, the CP 343-5’s FMS capability allows it to participate in multi-master configurations. Engineers should review the GSD files for all slave devices on the segment and confirm that the replacement CP module’s firmware supports the same DP-V1 acyclic services used by intelligent field devices — such as HART-over-PROFIBUS gateways or Siemens SIPART PS2 positioners — that rely on acyclic parameter reads during commissioning.

For sites using WinCC or WinCC Flexible HMI systems connected via MPI or PROFIBUS to the S7-300 CPU, the CP 343-5 replacement does not affect the HMI communication path directly, but engineers should verify that the HMI project’s connection configuration references the correct CPU slot and MPI address after the rack is powered down and back up. A cold restart of the CPU 315-2 DP or CPU 317-2 DP following module replacement is recommended to ensure the hardware configuration is re-read from the memory card. Where signal isolation is required between the PROFIBUS segment and field instrumentation, a dedicated signal isolator or repeater should be verified for compatibility with the restored bus topology.

Downtime Control During System Migration

Minimizing unplanned downtime during a CP 343-5 swap requires a structured approach. The recommended sequence is: (1) export and verify the STEP 7 project backup; (2) document all PROFIBUS cable labels, termination resistor positions, and bus connector settings — speed, termination on/off — at both ends of the trunk; (3) power down the S7-300 rack in a controlled manner using the CPU’s STOP command before removing the failed module; (4) install the replacement 6GK7343-5FA00-0XE0 and restore power; (5) download the hardware configuration from the STEP 7 project to the CPU; (6) verify PROFIBUS bus status via the CP 343-5 diagnostic LEDs (BF, SF, DC) and the STEP 7 online diagnostics view.

Where process continuity is critical and a hot-standby configuration is not available, pre-staging the replacement module with the correct PROFIBUS address and downloading the CP configuration offline before the maintenance window can reduce the active outage to the time required for physical module swap and a single CPU restart — typically under 15 minutes for an experienced engineer with a prepared project file. Plants with redundant PROFIBUS ring topologies using optical bus terminals should also verify that the ring closure is re-established after the swap to restore fault tolerance.

For Phase 2 migrations targeting S7-1500, the CP 343-5 can remain in service on the legacy rack while the new S7-1500 station is commissioned in parallel on a separate PROFIBUS segment or via PROFINET, allowing I/O mapping validation and HMI screen testing to proceed without interrupting production. The cutover can then be executed during a planned outage with a pre-validated configuration, reducing risk and shortening the outage window significantly. KNMKS maintains multi-region inventory of the 6GK7343-5FA00-0XE0 specifically to support this phased approach, ensuring replacement units are available on demand throughout the migration lifecycle.

Retrofit Support FAQ

Q: Is the 6GK7343-5FA00-0XE0 a direct drop-in replacement for my existing CP 343-5?
A: Yes, provided the existing module is also a 6GK7343-5FA00-0XE0 or a compatible CP 343-5 variant. The module is slot-compatible with the S7-300 backplane and uses the same STEP 7 hardware configuration object. If your existing unit carries a different order suffix, verify firmware compatibility before installation. KNMKS can advise on cross-reference compatibility prior to dispatch.

Q: Does the replacement module require re-parameterization in STEP 7?
A: In most cases, downloading the existing hardware configuration from your STEP 7 project to the CPU after module replacement is sufficient. The CP 343-5 receives its PROFIBUS address and network parameters from the CPU during startup. Ensure your project backup is current and that the PROFIBUS station address matches the original before beginning the swap.

Q: What pre-shipment testing is performed on this unit?
A: Each 6GK7343-5FA00-0XE0 unit undergoes functional power-on testing and PROFIBUS communication verification before dispatch. Units are inspected for physical condition, connector integrity, and firmware revision. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the lead time and do you hold stock for emergency orders?
A: KNMKS maintains multi-region stock of the 6GK7343-5FA00-0XE0 to support both emergency replacements and planned outage schedules. Contact [email protected] or call +86 18359268345 to confirm current availability and arrange expedited dispatch if required. Same-day dispatch is available for in-stock units on confirmed orders received before the daily cut-off.
