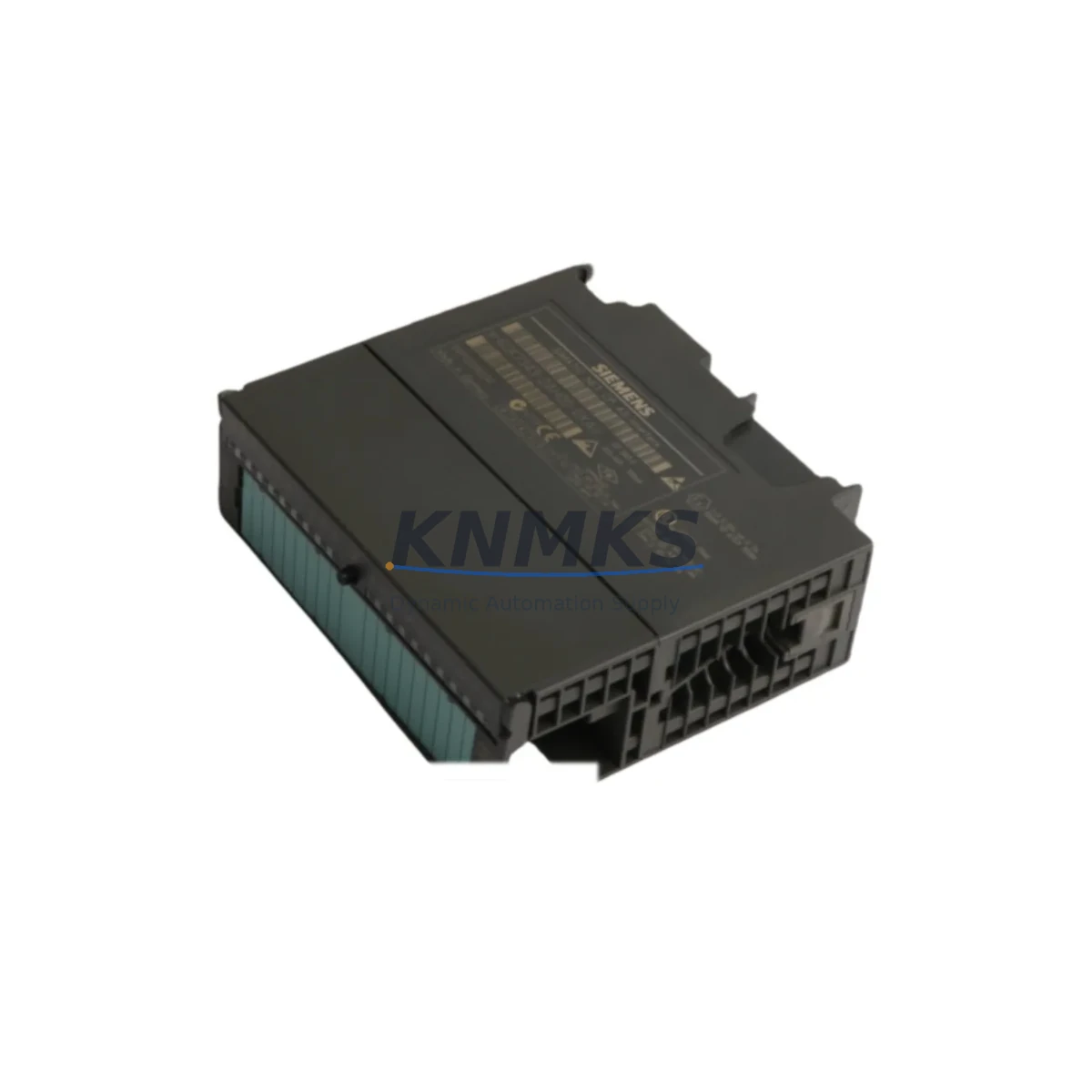

Siemens 6GK7343-2AH00-0XA0 Fail-Safe AS-i Master for S7-300

Overview

Siemens 6GK7343-2AH00-0XA0 Fail-Safe AS-i Master for S7-300: Industrial Control Reliability

The Siemens 6GK7343-2AH00-0XA0 is a CP 343-2 AS-Interface (AS-i) Master Module engineered for the SIMATIC S7-300 platform, delivering fail-safe, high-availability field-level communication in the most demanding industrial environments. Designed to support up to 31 standard AS-i slaves or 62 slaves in extended addressing mode, this module forms the backbone of safety-critical sensor/actuator networks across continuous production lines, hazardous area control cabinets, and high-EMI process plants.

In petrochemical refineries, power generation facilities, and heavy metallurgical plants, unplanned control interruptions carry severe operational and safety consequences. The 6GK7343-2AH00-0XA0 addresses this risk directly: its robust AS-i master architecture maintains deterministic cycle times even under electrical noise, voltage fluctuations, and mechanical vibration — conditions that routinely degrade lesser communication modules. The module’s integrated diagnostics continuously monitor slave status, cable integrity, and power supply health, enabling maintenance teams to detect and isolate faults before they escalate into process shutdowns.

Control cabinet engineers specifying this module benefit from its seamless integration with the SIMATIC S7-300 backplane via the standard S7-300 bus connector. When paired with a Siemens PS 307 power supply module (e.g., 6ES7307-1EA01-0AA0) and a dedicated AS-i Power Conditioner, the system achieves stable 30 VDC AS-i bus voltage even during mains transients — a critical requirement for safety interlock circuits in water treatment and mining dewatering applications. For installations requiring certified functional safety, the 6GK7343-2AH00-0XA0 can be combined with Siemens ASIsafe slaves and a Siemens F-CPU (such as the CPU 315F-2 PN/DP, 6ES7315-2FJ14-0AB0) to form a complete SIL 2-capable safety loop without additional safety relays.

In high-EMI environments — arc furnaces, variable-frequency drives, large motor starters — signal integrity on conventional fieldbus systems is a persistent challenge. The AS-i protocol’s two-wire unshielded cable topology, combined with the 6GK7343-2AH00-0XA0’s noise-immune Manchester encoding, provides inherent immunity to common-mode interference. This makes it a preferred choice for port crane control panels and ship-to-shore equipment where cable routing near high-power conductors is unavoidable. Supplementing the AS-i network with a Siemens SITOP PSU100S stabilized power supply further buffers against voltage dips caused by large inductive loads switching on the same distribution panel.

For facilities operating in dusty, humid, or high-temperature zones — cement plants, food processing lines, offshore platforms — the S7-300 housing’s IP20 protection rating (within a sealed control cabinet) combined with the module’s wide operating temperature range of 0 °C to +60 °C ensures sustained performance without derating. When the control cabinet itself is subject to vibration from nearby compressors or pumps, the module’s solid-state design and conformal-coated PCB options eliminate the mechanical wear points that plague relay-based safety systems. Integrating a Siemens ET 200S distributed I/O station at the field level further reduces cabinet wiring density, lowering the risk of loose terminations that cause intermittent faults in high-vibration installations.

Spare part availability and long-term supply continuity are non-negotiable for critical infrastructure operators. KNMKS maintains verified stock of the 6GK7343-2AH00-0XA0 with full pre-shipment functional testing, including AS-i bus communication verification, slave detection confirmation, and S7-300 backplane interface check. Every unit ships with a support terms confirmed by quotation covering manufacturing defects and functional failures, supported by rapid replacement logistics to minimize mean time to repair (MTTR) for your facility.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust S7-300 control cabinet built around the 6GK7343-2AH00-0XA0 requires a layered protection approach. At the power layer, a Siemens SITOP PSU100S 24 VDC stabilized power supply provides regulated, buffered DC power to the S7-300 CPU and I/O modules, absorbing mains voltage dips that would otherwise cause CPU resets during motor starts. The AS-i bus itself is powered through a dedicated Siemens AS-i Power Conditioner, which decouples the AS-i data signal from the power supply and suppresses conducted interference from variable-frequency drives and contactors sharing the same cabinet.

At the communication layer, the 6GK7343-2AH00-0XA0 master module handles all AS-i slave polling autonomously, offloading the CPU from real-time fieldbus management and ensuring deterministic response even when the CPU is executing complex safety logic. For cabinets requiring Profibus or Ethernet connectivity alongside AS-i, a Siemens CP 343-1 Ethernet module (6GK7343-1EX30-0XE0) can be installed on the same S7-300 rack, enabling simultaneous AS-i field-level control and SCADA/MES integration without protocol conflicts.

Surge and transient protection at the cabinet entry points — using Siemens DEHN surge protection devices or equivalent DIN-rail SPDs — prevents lightning-induced voltage spikes from propagating into the AS-i bus wiring, protecting both the master module and connected field devices. For safety interlock circuits, integrating Siemens 3SK1 safety relays in the output circuit provides a certified hardware-level emergency stop function independent of the PLC program, satisfying EN ISO 13849-1 PLd requirements for machinery safety applications.

Critical Industrial Safety Applications

The Siemens 6GK7343-2AH00-0XA0 is deployed across a wide spectrum of safety-critical industrial sectors. In petrochemical and refinery environments, it manages AS-i-connected solenoid valve position feedback and flame detector status in hazardous area junction boxes, where reliable slave polling within the 5 ms cycle time is essential for burner management system response. In electric power generation plants, it supervises auxiliary equipment interlocks — lube oil pump status, cooling fan feedback, and vibration switch inputs — feeding real-time data to the S7-300 CPU for turbine protection logic.

In underground mining operations, the module’s noise immunity enables reliable AS-i communication despite the high EMI generated by conveyor belt drives and rock-crushing equipment. Water treatment facilities rely on it for pump station automation, where the extended addressing mode supports large arrays of level sensors, flow switches, and valve actuators on a single two-wire AS-i cable, dramatically reducing installation cost and fault points compared to conventional parallel wiring. Port and terminal automation systems use the 6GK7343-2AH00-0XA0 in ship-to-shore crane control panels, where vibration from crane travel and high ambient humidity demand a communication module with proven mechanical and environmental robustness. In continuous steel and aluminum production, it provides real-time feedback from cooling water flow sensors and roll gap position switches, enabling the S7-300 to execute rapid protective shutdowns before equipment damage occurs.

Safety and Quality FAQ

Q1: What support terms does KNMKS provide for the 6GK7343-2AH00-0XA0?
Every unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failures from the date of shipment. Support terms replacement is handled with priority logistics to minimize downtime at your facility.

Q2: What pre-shipment testing is performed before dispatch?
Each 6GK7343-2AH00-0XA0 undergoes functional verification including AS-i bus master communication test, slave detection confirmation across the full address range, and S7-300 backplane interface integrity check. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 6GK7343-2AH00-0XA0 compatible with both standard and ASIsafe slaves?
Yes. The module supports standard AS-i slaves in normal operation and is compatible with ASIsafe (AS-i Safety at Work) slaves when used in conjunction with a Siemens F-CPU, enabling SIL 2-capable safety loops for emergency stop, light curtain, and safety gate applications without requiring a separate safety fieldbus.

Q4: Can KNMKS support long-term or blanket order supply for maintenance programs?
Yes. KNMKS supports blanket purchase orders and scheduled release agreements for facilities requiring guaranteed spare part availability over 12–36 month maintenance cycles. Contact our sales team to discuss stock reservation, lead time commitments, and multi-shipment scheduling tailored to your planned maintenance intervals.
