Siemens 6GK7343-1EX11-0XE0 Fail-Safe Ethernet CP for S7-300

Overview

Siemens 6GK7343-1EX11-0XE0 Fail-Safe Ethernet CP for S7-300 Industrial Control Reliability

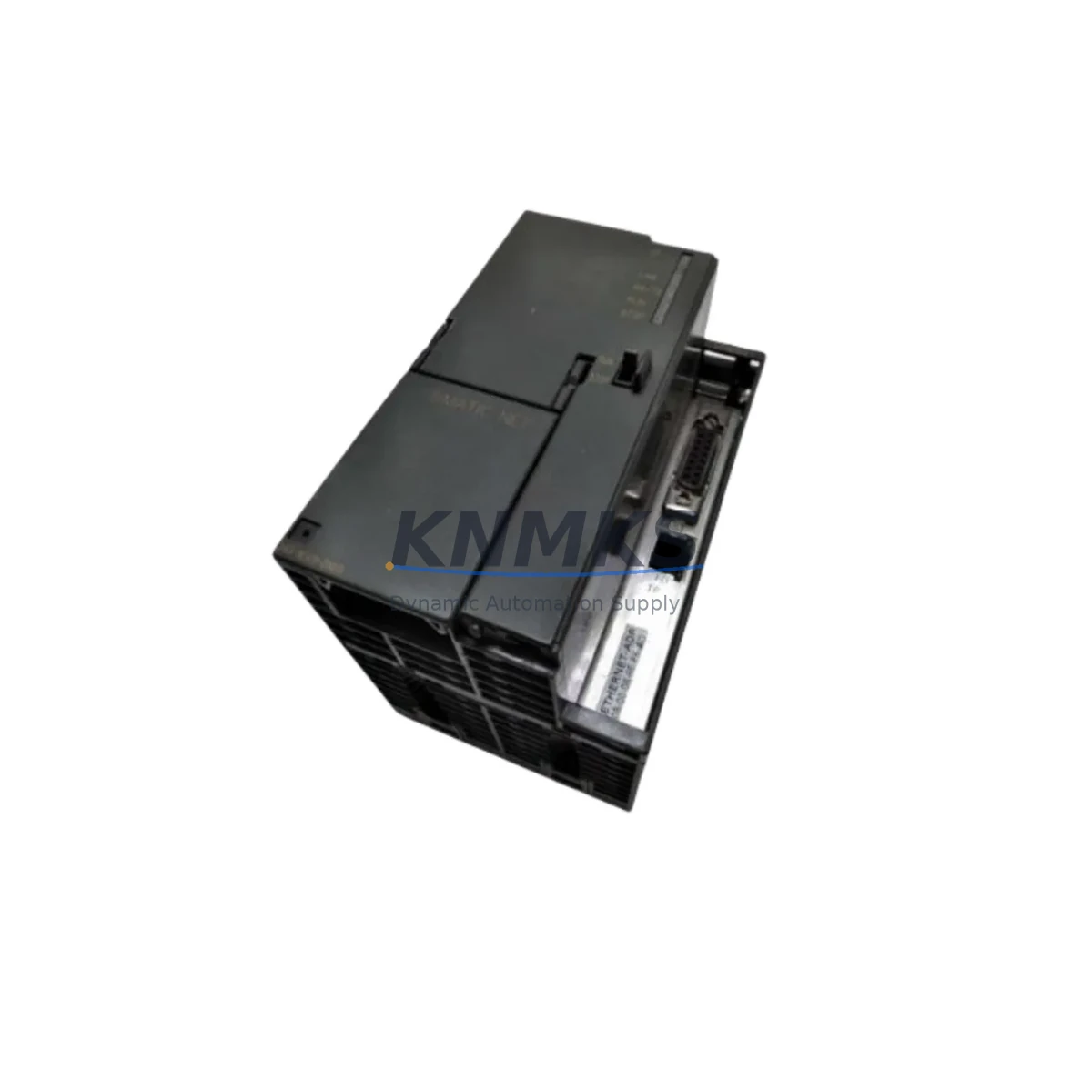

The Siemens 6GK7343-1EX11-0XE0, also designated CP 343-1 EX11, is a high-performance Ethernet Communication Processor engineered for SIMATIC S7-300 PLC systems operating in demanding industrial environments. Designed to maintain uninterrupted network connectivity in the face of electromagnetic interference, voltage fluctuations, and harsh ambient conditions, this module is a cornerstone of fail-safe communication architecture in critical control cabinets across petrochemical, power generation, mining, water treatment, metallurgical, and port automation facilities.

In continuous production environments where a single communication dropout can cascade into a full line stoppage, the 6GK7343-1EX11-0XE0 delivers the network resilience that maintenance and automation engineers depend on. Its robust EMI shielding and industrial-grade Ethernet interface ensure stable PROFINET and ISO-on-TCP data exchange even in high-noise electrical environments — including those with large variable frequency drives, high-voltage switchgear, and dense relay panels operating in close proximity.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 6GK7343-1EX11-0XE0 as part of a structured control cabinet protection strategy significantly reduces the risk of unplanned communication failures in safety-critical loops. Maintenance engineers working on S7-300-based control systems should evaluate the full communication and power chain when replacing or commissioning this CP module.

The CPU module — typically a 6ES7315-2EH14-0AB0 or equivalent S7-300 CPU — must be verified for firmware compatibility and slot assignment before the CP is installed. The 24 VDC power supply module (such as the SITOP PSU100S series) feeding the rack should be inspected for output stability and ripple, as voltage irregularities can cause the CP to reset or lose its configured connections. In high-EMI environments, the use of shielded Ethernet cables and proper grounding of the cabinet rail is essential to prevent signal degradation on the CP’s RJ45 port.

Where the S7-300 rack interfaces with field devices via PROFIBUS DP, the CP 342-5 communication processor should be checked in parallel — a failing PROFIBUS CP can mask Ethernet-layer faults and complicate fault isolation. Similarly, the SM 321 digital input modules and SM 322 digital output modules in the same rack should be inspected for loose terminal connections that may introduce ground loops affecting communication integrity.

For installations in substations or motor control centers, surge protection devices on the Ethernet line — such as the Siemens SITOP surge filter or equivalent DIN-rail SPD — are strongly recommended to protect the 6GK7343-1EX11-0XE0 from transient overvoltages caused by switching operations. Maintaining a spare CP 343-1 EX11 in the site’s critical spare parts inventory ensures that any communication fault can be resolved within a single shift, minimizing production impact.

Critical Industrial Safety Applications

The 6GK7343-1EX11-0XE0 is deployed across a wide range of safety-sensitive industrial sectors where communication continuity is non-negotiable:

Petrochemical & Refinery: In process control networks linking S7-300 PLCs to SCADA systems and DCS gateways, this CP module maintains the Ethernet backbone that carries alarm, interlock, and process variable data. A communication failure in this environment can delay emergency shutdown responses, making a validated spare essential.

Power Generation & Substation Automation: High electromagnetic interference from transformer switching and bus bar operations demands a CP with proven EMI immunity. The 6GK7343-1EX11-0XE0’s compliance with industrial EMC standards makes it suitable for 110 kV and 220 kV substation control rooms where S7-300 systems manage protection relay coordination.

Mining & Mineral Processing: Dust-laden, high-vibration environments in underground and open-pit mining operations place extreme mechanical and thermal stress on communication hardware. The CP 343-1 EX11’s industrial temperature range and robust backplane connection ensure reliable data exchange between PLCs controlling conveyor drives, crusher motors, and ventilation systems.

Water & Wastewater Treatment: Continuous monitoring of pump stations, dosing systems, and filtration processes depends on uninterrupted PLC-to-SCADA communication. The 6GK7343-1EX11-0XE0 supports the ISO-on-TCP connections commonly used in water utility SCADA architectures, providing a stable communication path even in high-humidity pump house environments.

Metallurgy & Steel Production: Rolling mill and furnace control systems operating under extreme thermal gradients and high-current switching require communication processors that can sustain reliable Ethernet links without packet loss or connection drops. This CP module’s auto-negotiation capability ensures seamless integration into both legacy 10 Mbit/s and modern 100 Mbit/s plant networks.

Port & Logistics Automation: Crane control systems and automated guided vehicle networks in port terminals rely on fast, deterministic Ethernet communication. The 6GK7343-1EX11-0XE0 supports the multi-connection architecture needed to simultaneously manage HMI polling, SCADA data collection, and inter-PLC communication in high-throughput logistics environments.

Safety and Quality FAQ

Q1: What support terms is provided with the 6GK7343-1EX11-0XE0?
Every unit is covered by a support terms confirmed by quotation from the date of shipment. Each module undergoes pre-shipment functional testing to verify communication interface integrity, backplane bus compatibility, and configuration retention before dispatch.

Q2: How is compatibility with existing S7-300 systems verified?
The 6GK7343-1EX11-0XE0 is compatible with all standard S7-300 racks and CPUs that support CP 343-1 series modules. Compatibility is confirmed against the SIMATIC S7-300 hardware catalog. For systems running STEP 7 V5.x or TIA Portal, the module’s GSD/GSDML file ensures correct hardware configuration. Our technical team can assist with slot assignment and firmware version cross-referencing prior to shipment.

Q3: Can this module replace older CP 343-1 variants in legacy installations?
Yes. The 6GK7343-1EX11-0XE0 is a direct functional replacement for earlier CP 343-1 variants including the 6GK7343-1EX10-0XE0 and 6GK7343-1EX20-0XE0 in most S7-300 rack configurations. Physical dimensions, backplane interface, and supported protocols are consistent across the CP 343-1 product family, enabling drop-in replacement without rack modification.

Q4: What is the long-term supply availability for this part?
We maintain dedicated stock of the 6GK7343-1EX11-0XE0 to support long-cycle industrial maintenance programs. For facilities managing multi-year spare parts plans — particularly those operating legacy S7-300 systems beyond Siemens’ standard product lifecycle — we offer volume reservation and scheduled delivery arrangements to ensure supply continuity without emergency procurement risk.
