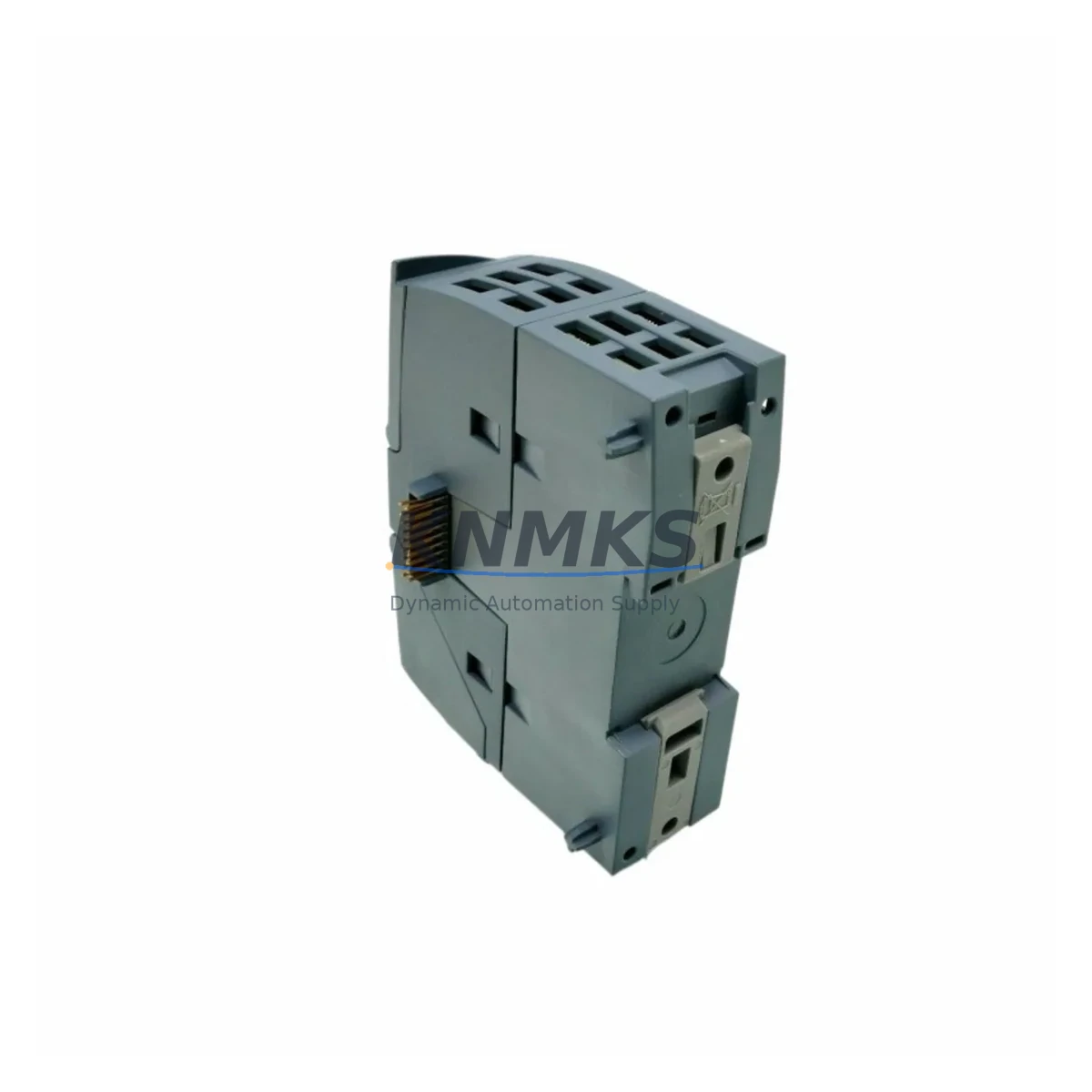

Siemens 6GK7243-5DX30-0XE0 Migration-Ready PROFIBUS DP Master

Overview

Siemens 6GK7243-5DX30-0XE0 Migration-Ready PROFIBUS DP Master for Legacy Control Systems

The Siemens 6GK7243-5DX30-0XE0, commercially designated as the CP 1243-5, is a PROFIBUS DP Master communications processor engineered for the S7-1200 controller platform. As industrial facilities worldwide continue to operate aging PROFIBUS-based architectures alongside newer Ethernet-centric systems, this module serves as a critical bridge component — enabling S7-1200 controllers to assume master-class control over existing PROFIBUS DP field device networks without requiring wholesale replacement of proven field instrumentation. For plant engineers managing legacy control systems in petrochemical, power generation, water treatment, and continuous manufacturing environments, the 6GK7243-5DX30-0XE0 represents a validated, cost-effective migration path that preserves capital investment in field devices while modernizing the controller tier.

When planning a retrofit from an older S7-300 or S7-400 platform to the S7-1200, one of the most common engineering challenges is maintaining PROFIBUS DP master functionality. The CP 1243-5 addresses this directly. It installs on the left-side signal board expansion slot of the S7-1200 CPU, occupying a compact footprint that fits within existing control cabinet layouts without requiring additional DIN rail space. Engineers should verify available cabinet depth and the number of occupied left-side expansion slots before committing to the installation plan, as the S7-1200 supports a limited number of communication modules on the left bus.

From a wiring and terminal perspective, the 6GK7243-5DX30-0XE0 uses a standard 9-pin Sub-D connector for PROFIBUS DP network connection, consistent with the RS-485 physical layer used across the installed base of PROFIBUS devices. This means existing PROFIBUS cables, bus connectors, and termination resistors can typically be reused without modification — a significant advantage in minimizing downtime during cutover. Engineers should confirm bus segment length, baud rate settings, and termination status at both ends of the PROFIBUS segment before energizing the new configuration.

GSD file compatibility is a key consideration during migration. The CP 1243-5 operates as a Class 1 PROFIBUS DP Master and supports standard GSD-based device integration through TIA Portal. Existing GSD files for field devices — including Siemens ET 200S distributed I/O stations, Siemens IM 151-1 interface modules, and third-party PROFIBUS slaves — can be imported directly into the TIA Portal project, preserving the I/O address mapping and process image configuration from the legacy STEP 7 project where possible. Engineers should perform a careful address mapping review, as the S7-1200 process image structure differs from S7-300/400 and may require program block adaptation.

The firmware version of the S7-1200 CPU must be verified prior to installation. The CP 1243-5 requires a minimum CPU firmware version to operate correctly; mismatched firmware can result in communication faults or module recognition failures. KNMKS supplies the 6GK7243-5DX30-0XE0 with pre-shipment functional testing completed, and each unit is verified against its hardware revision documentation. For sites running older S7-1200 CPUs such as the CPU 1214C or CPU 1215C on early firmware, a firmware update via TIA Portal or SIMATIC Automation Tool should be scheduled as part of the migration preparation phase.

In control cabinets where the S7-1200 is paired with a Siemens SITOP PSU100S 24V DC power supply, engineers should audit the total current draw after adding the CP 1243-5, as the module adds to the backplane current budget. Similarly, if the cabinet includes a Siemens KTP700 Basic HMI panel connected via PROFINET to the same S7-1200 CPU, the HMI screen tags referencing PROFIBUS device data must be reviewed and updated to reflect any address changes introduced during the migration. HMI variable tables and alarm configurations should be exported and backed up before any program changes are applied to the controller.

For sites where the legacy PROFIBUS network includes safety-rated devices operating under PROFIsafe protocol, it is important to note that the CP 1243-5 operates as a standard PROFIBUS DP Master and does not support PROFIsafe. Safety I/O in such configurations must be handled through a dedicated F-CPU or a separate safety-rated communications path. KNMKS recommends consulting the system architecture documentation before specifying the 6GK7243-5DX30-0XE0 in safety-instrumented system (SIS) applications.

Downtime control during migration is best achieved through a staged cutover approach: configure and test the new S7-1200 program with the CP 1243-5 in a parallel bench environment, validate all PROFIBUS slave communications offline, then execute a planned switchover during a scheduled maintenance window. KNMKS maintains in-stock inventory of the 6GK7243-5DX30-0XE0 to support urgent retrofit schedules, with same-day dispatch available for confirmed orders. All units are covered by a support terms confirmed by quotation from the date of shipment, with full traceability documentation provided.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 6GK7243-5DX30-0XE0 requires systematic planning across hardware, software, and field commissioning dimensions. The starting point is a full audit of the existing PROFIBUS network topology: document every slave device address, GSD file version, I/O byte count, and diagnostic behavior. This audit forms the baseline for rebuilding the PROFIBUS configuration in TIA Portal under the new S7-1200 project.

On the hardware side, the S7-1200 CPU selected for the retrofit must have an available left-side expansion slot. If the CPU is already populated with a Siemens CM 1241 RS485 serial communications module or a Siemens CM 1243-5 (note: the CM 1243-5 is the earlier designation; the CP 1243-5 is the current product), the slot configuration must be reviewed. The S7-1200 supports up to three communication modules on the left bus, so slot availability is generally not a constraint in standard configurations, but it must be confirmed for compact cabinet builds.

For distributed I/O migration, sites running Siemens ET 200S or ET 200M stations as PROFIBUS DP slaves can retain these stations unchanged during the controller migration — the CP 1243-5 will assume the DP Master role and communicate with these proven field stations using their existing GSD configurations. This approach eliminates the need to replace field wiring or retrain maintenance personnel on new I/O hardware, significantly reducing migration risk and cost.

Program adaptation in TIA Portal should focus on the PROFIBUS DP communication function blocks. Legacy STEP 7 programs using SFC14 (DPRD_DAT) and SFC15 (DPWR_DAT) for consistent data transfer must be reviewed and adapted to the equivalent TIA Portal instruction set. Address offsets and data block structures should be validated against the physical I/O configuration before the first online test. A Siemens SIMATIC S7-PLCSIM Advanced simulation environment is recommended for pre-commissioning validation where available.

Cabinet-level integration should also account for the Siemens SITOP PSU100S or equivalent 24V DC power supply capacity, ensuring the additional current draw of the CP 1243-5 module is within the supply’s rated output. Bus termination at the PROFIBUS segment endpoints must be confirmed active, and the network should be tested with a PROFIBUS diagnostic tool before the S7-1200 is brought online as master.

Downtime Control During System Migration

Minimizing unplanned downtime during a PROFIBUS master migration is the primary operational concern for plant engineers. The 6GK7243-5DX30-0XE0 supports a structured cutover methodology that keeps production risk to a minimum. The recommended approach is a parallel commissioning strategy: the new S7-1200 with CP 1243-5 is configured and tested in a workshop environment using a representative subset of PROFIBUS slave devices, validating communication, I/O data integrity, and diagnostic behavior before the unit is brought to site.

During the planned maintenance window, the legacy controller is placed in STOP mode, the PROFIBUS bus connector is transferred from the old CP module to the new CP 1243-5, and the S7-1200 is powered up with the pre-validated program. Because the CP 1243-5 reuses the existing PROFIBUS physical layer — same cable, same connectors, same baud rate — the field device network requires no modification. Slave devices remain at their configured addresses and respond to the new master without reconfiguration, provided the GSD-based address mapping in the TIA Portal project matches the legacy configuration.

Original program logic should be preserved as completely as possible during the migration. Where STEP 7 function blocks cannot be directly imported, the logic should be manually reconstructed in TIA Portal LAD or FBD, with each output verified against the original program documentation. HMI screens connected via PROFINET to the S7-1200 should be tested for correct tag resolution after the program update, with particular attention to PROFIBUS device diagnostic tags that may have changed address in the new project structure.

KNMKS maintains buffer stock of the 6GK7243-5DX30-0XE0 specifically to support emergency retrofit scenarios where an existing CP module has failed and production continuity is at risk. Units are dispatched with pre-shipment test records and hardware revision documentation, enabling site engineers to confirm compatibility before installation. The support terms confirmed by quotation cover all units against manufacturing defects, with technical support available through [email protected] for commissioning queries.

Retrofit Support FAQ

Q1: Can the 6GK7243-5DX30-0XE0 directly replace a CP 342-5 or CP 443-5 PROFIBUS DP Master from an S7-300/400 system?
The CP 1243-5 is not a physical drop-in replacement for CP 342-5 or CP 443-5 modules, as it is designed for the S7-1200 platform with a different form factor and backplane interface. However, it provides equivalent PROFIBUS DP Master functionality and can assume control of the same PROFIBUS DP slave network when the controller platform is migrated from S7-300/400 to S7-1200. GSD files and slave address configurations from the legacy project can be reused in TIA Portal, significantly reducing re-engineering effort.

Q2: What pre-shipment testing is performed on each unit?
Each 6GK7243-5DX30-0XE0 supplied by KNMKS undergoes functional verification prior to dispatch, including power-on self-test confirmation and hardware revision documentation review. Units are packaged in anti-static protective packaging with full traceability records. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and premature failure under normal operating conditions.

Q3: Is the CP 1243-5 compatible with all PROFIBUS DP slave devices, including third-party field instruments?
Yes. The CP 1243-5 operates as a standard Class 1 PROFIBUS DP Master compliant with IEC 61158 and EN 50170. It supports any PROFIBUS DP slave device for which a valid GSD file is available, including third-party transmitters, valve positioners, variable frequency drives, and distributed I/O stations. Baud rates from 9.6 kbps to 12 Mbps are supported, covering the full range of installed PROFIBUS networks.

Q4: What is the long-term supply availability for the 6GK7243-5DX30-0XE0?
KNMKS maintains ongoing stock of the 6GK7243-5DX30-0XE0 to support both planned retrofit projects and emergency spare part requirements. For customers managing multi-year maintenance contracts or long-term spare parts programs, KNMKS can provide volume reservation and scheduled delivery arrangements. Contact [email protected] or +86 18359268345 to discuss long-term supply agreements.
